HOME Products Solid State Drives (SSDs) Enclosure M.2 PCIe/SATA PD60 Enclosure

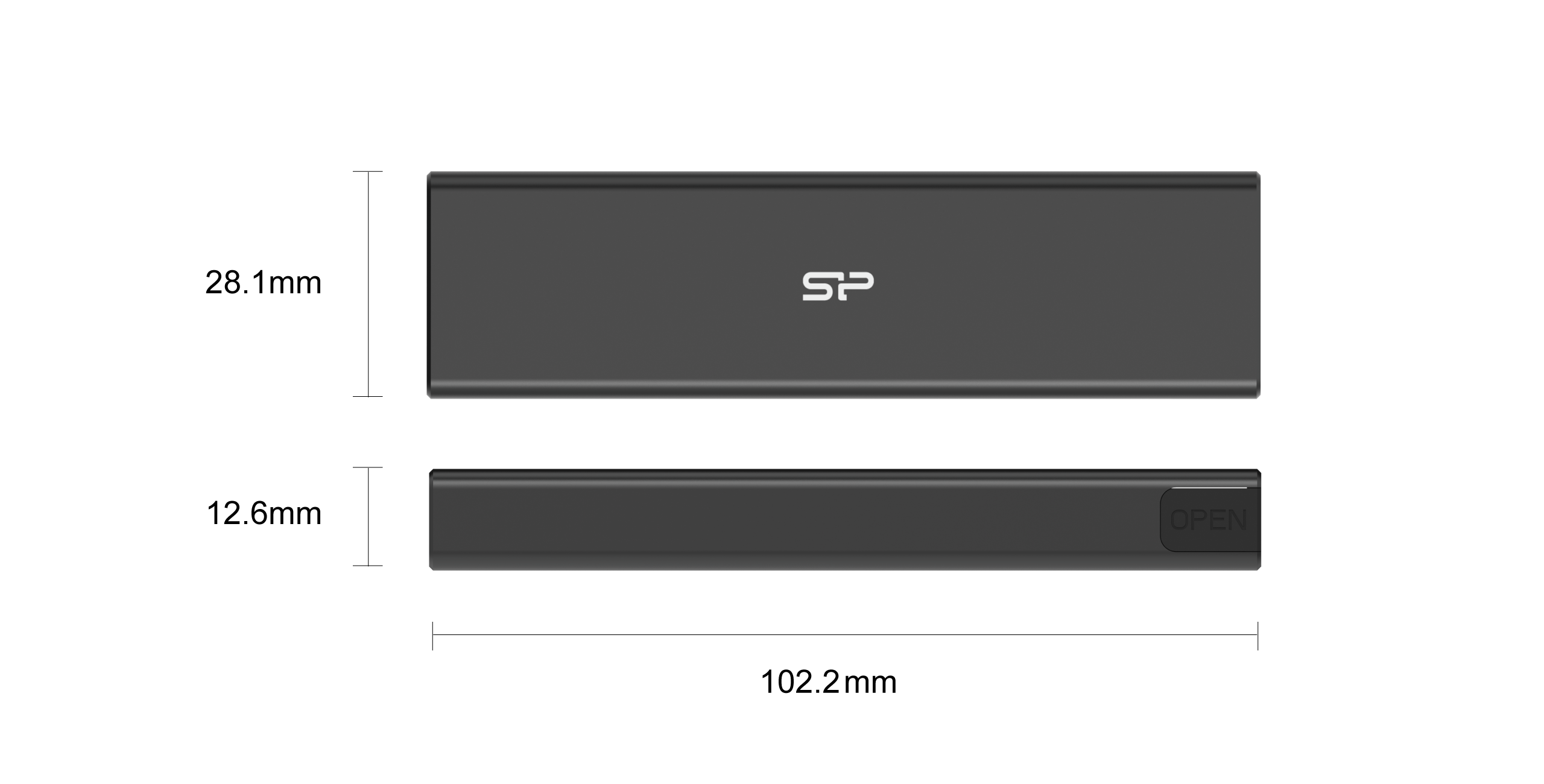

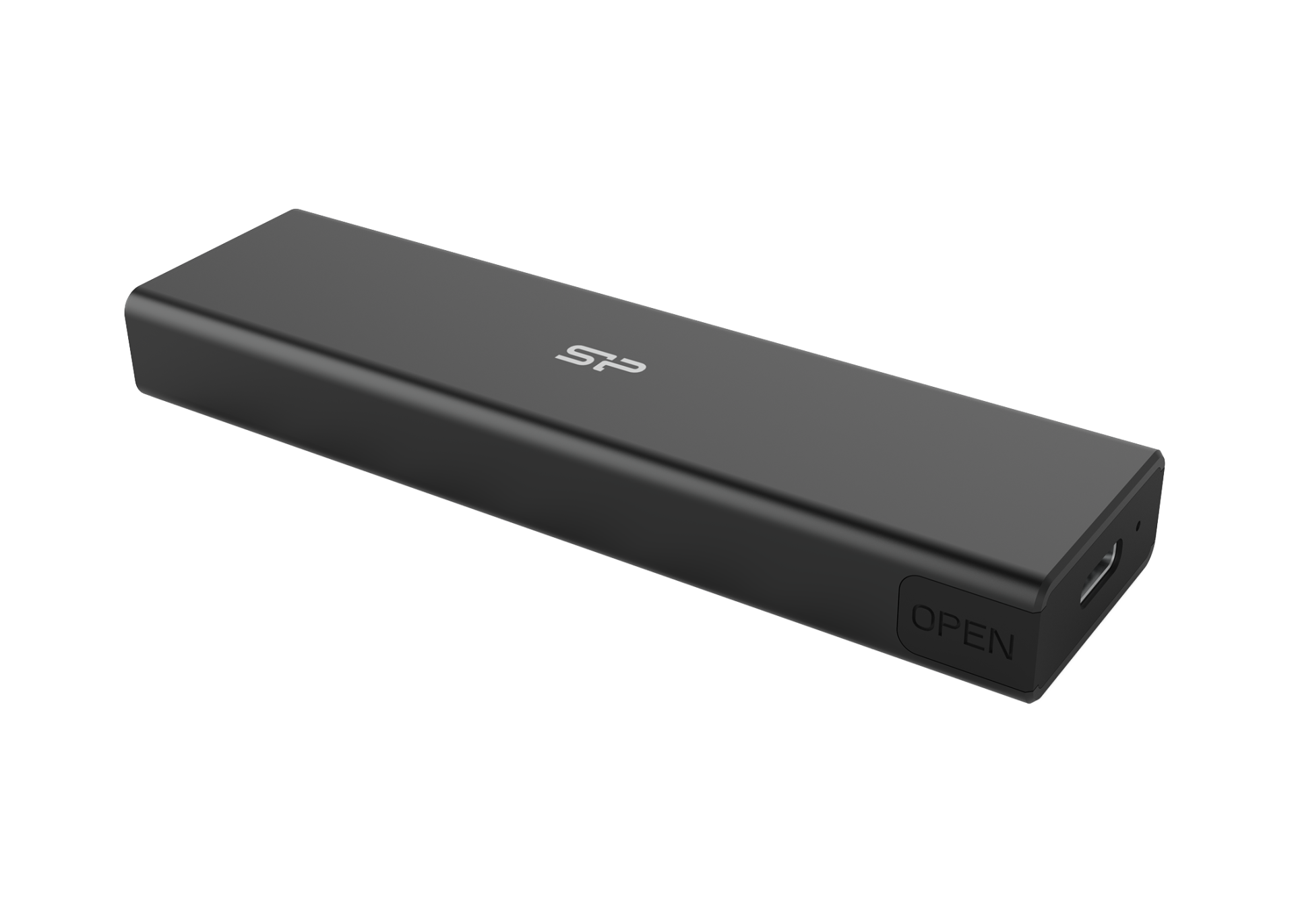

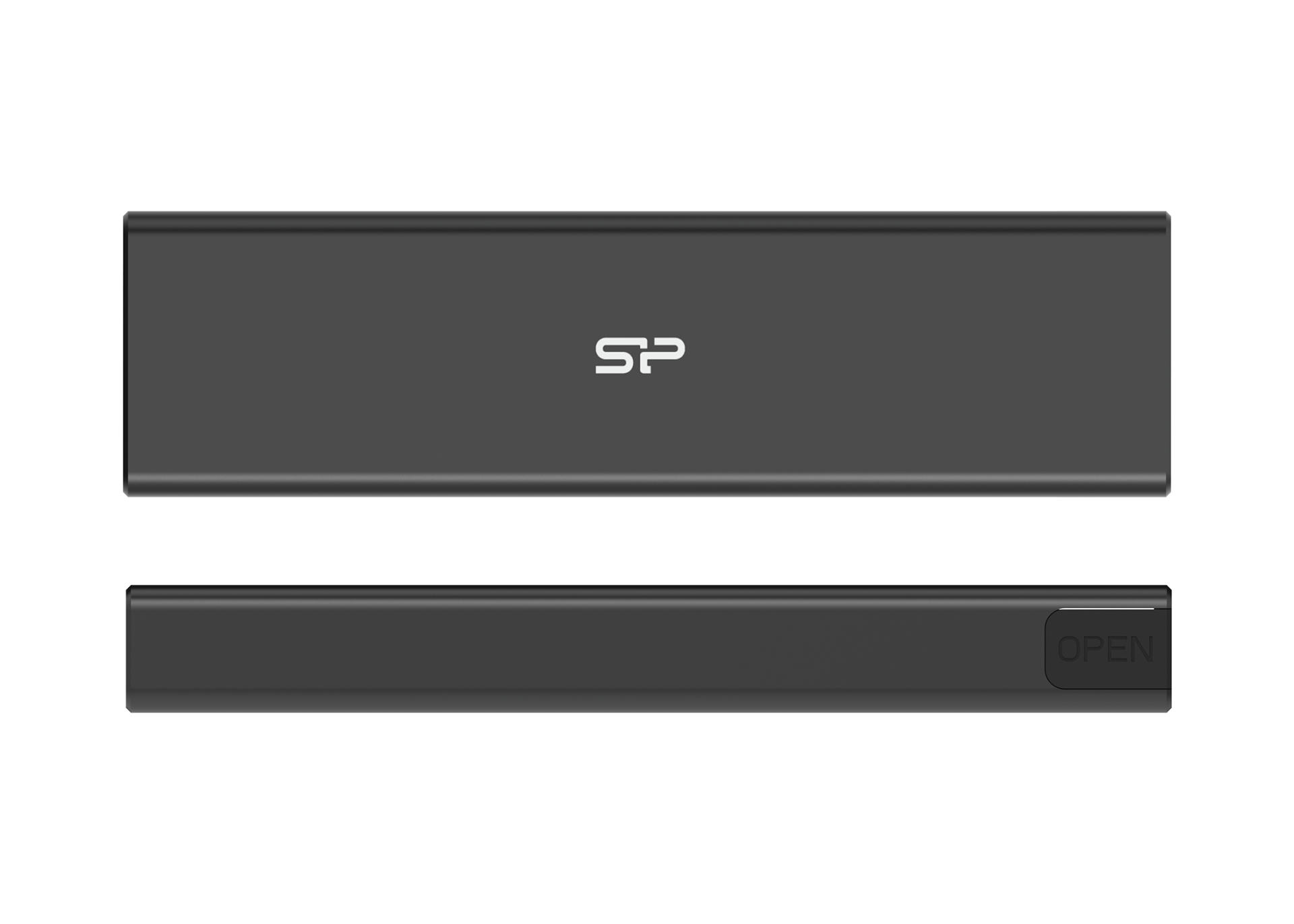

M.2 PCIe/SATA PD60 Enclosure

• Transform an SSD into a durable and portable hard drive
• Compatible with 2230/2242/2260/2280 M.2 M-key PCIe NVMe or SATA SSDs
• Rapid data transfer with USB 3.2 Gen 2 extreme high-speed interface (up to 10Gbps)
• Made of lightweight aluminum with superior heat dissipation
• Supports Plug & Play so no external power is required
• Simple installation only takes a few seconds
• Includes 1 USB-C to USB-C cable

Expand

Product Introduction
Product Specifications
File Download
Purchase
Compatibility Search

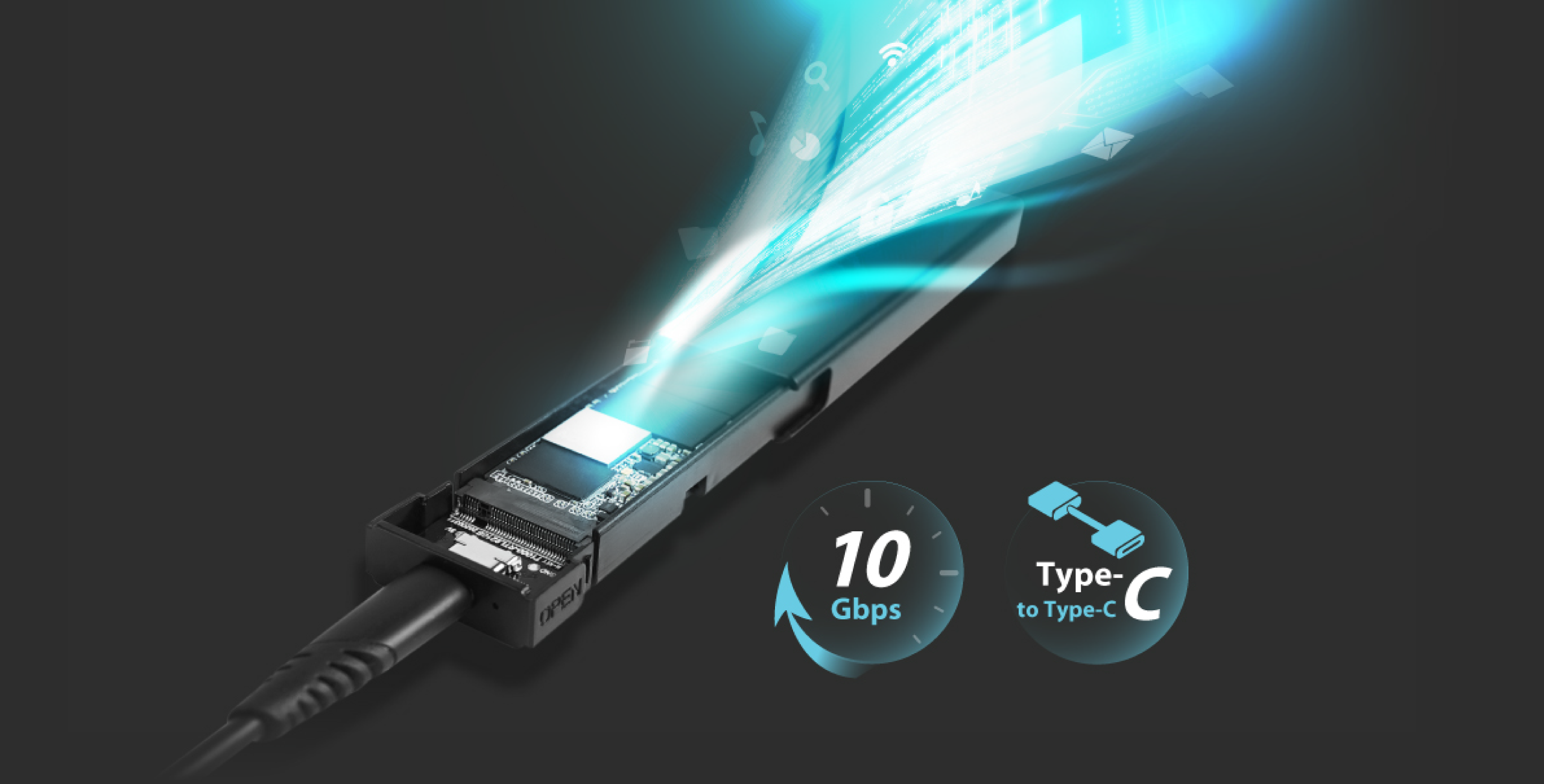

Upgrade To New And Faster Possibilities

The PD60 turns your M.2 M-key PCIe NVMe or SATA SSD into a portable hard drive for whenever and wherever you need it. Transfer data rapidly up to 10Gbps via its USB 3.2 Gen 2 interface with the included USB-C to USB-C cable. It's also backwards-compatible with USB 3.1/3.0/2.0 at their respective speed limits.

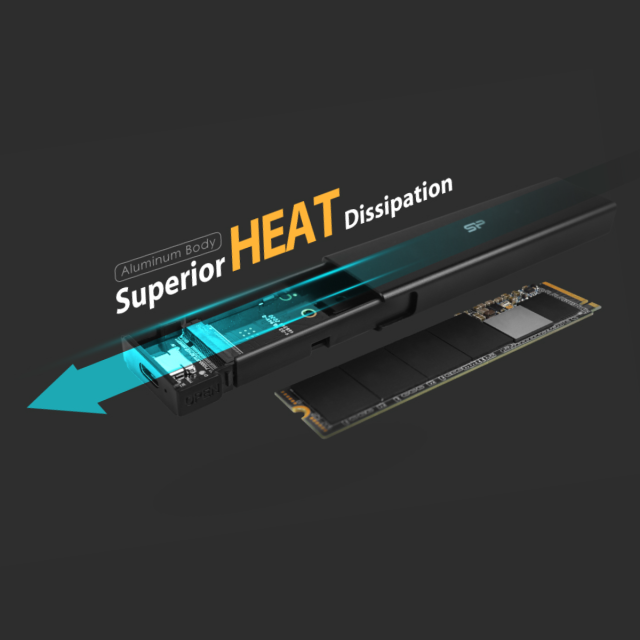

Shield What Matters To You

The aluminum body is durable enough to protect your SSD, yet light enough to toss in your bag and hardly notice it, making it the perfect travel companion. It also provides superior heat dissipation, which is further enhanced by its slide design, allowing excess heat to escape when the cover is removed.

Access Data From Multiple Devices

With the included USB-C to USB-C cable, it's easy to access your data from a variety of devices. Get what you need with direct access from USB-C laptops, desktops, and OTG-enabled phones or tablets. It works with Windows, Mac, Linux, and Android for complete support.

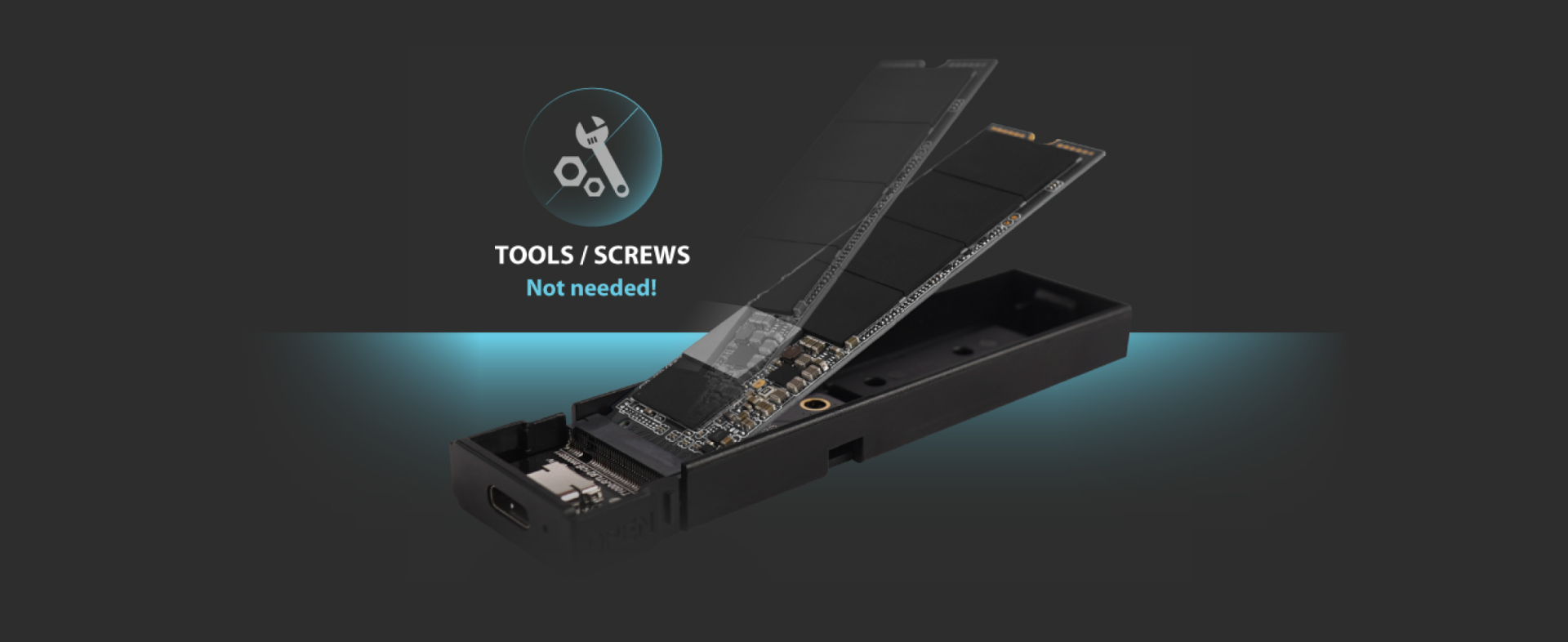

Simple Installation, Many Benefits

The PD60 does not require any tools or screws, offering a simple SSD installation that only takes a few seconds. In return, it grants the ability to take your SSD anywhere with 360° protection and lightning-fast speed access to your data.

P/N	Capacity	Performance Read	Performance Write	⇅ Compare
SP000HSPSDPD60CK	n/a	1000MB/s	1000MB/s	Add to compare

Dimensions	102.2mm x 28.1mm x 12.6mm
Weight	38g
Material	Aluminum
Color	Black
Connection Interface	USB 3.2 Gen 2 (USB 3.1 Gen 2, USB 3.1 Gen 1 & USB 3.0 & USB 2.0 backwards-compatible)
Internal Interface	M.2 PCIe NVMe SSD / M.2 SATA SSD
Compatibility	2230 / 2242 / 2260 / 2280 M.2 M-key form factors
Performance Read(max.)	up to 1000MB/s
Performance Write(max.)	up to 1000MB/s
Supported OS	Desktop Windows 7 and higher Mac OS X 10.3 and higher Mobile Android 6 and higher iOS 13 and higher Console PlayStation™ 5 (Play and store PS4™ games; archive PS5™ games) PlayStation™ 4 Pro or PS4 with system software version 4.50 or higher Xbox™ Series X\|S (Play and store Xbox One™ games; archive Xbox Series X\|S games)
Power Support	DC 5V
Operating Temperature	5°C~55°C
Storage Temperature	-40°C - 70°C
Certification	CE / FCC / BSMI / Green dot / WEEE / RoHS / KCC
Warranty	2-year limited warranty The SSD warranty is based on the TBW or Warranty period. Please click for more information about Silicon Power Warranty Policy.
Disclaimer	Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity. Please check the product specifications to ensure full device compatibility before making a purchase.
