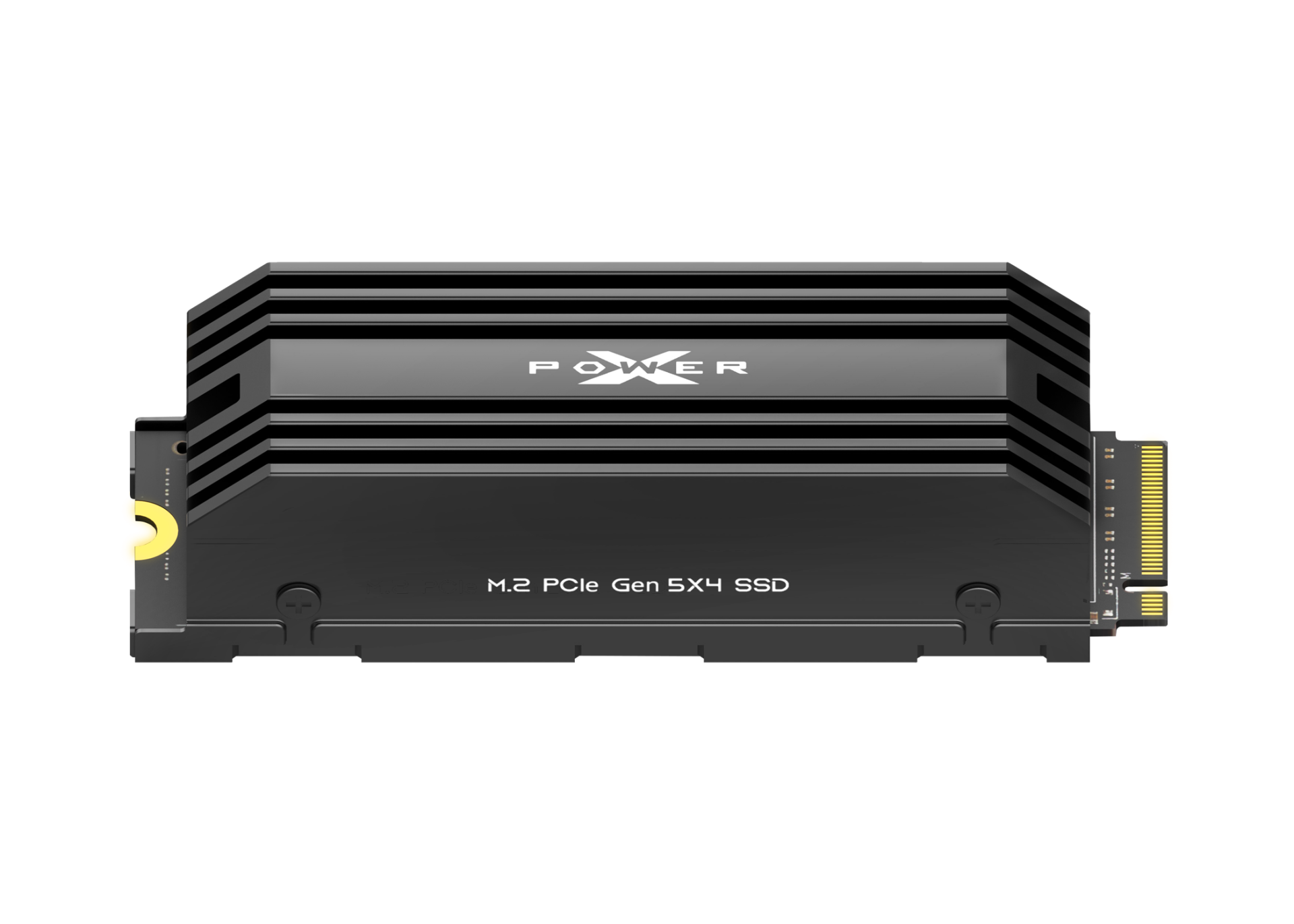

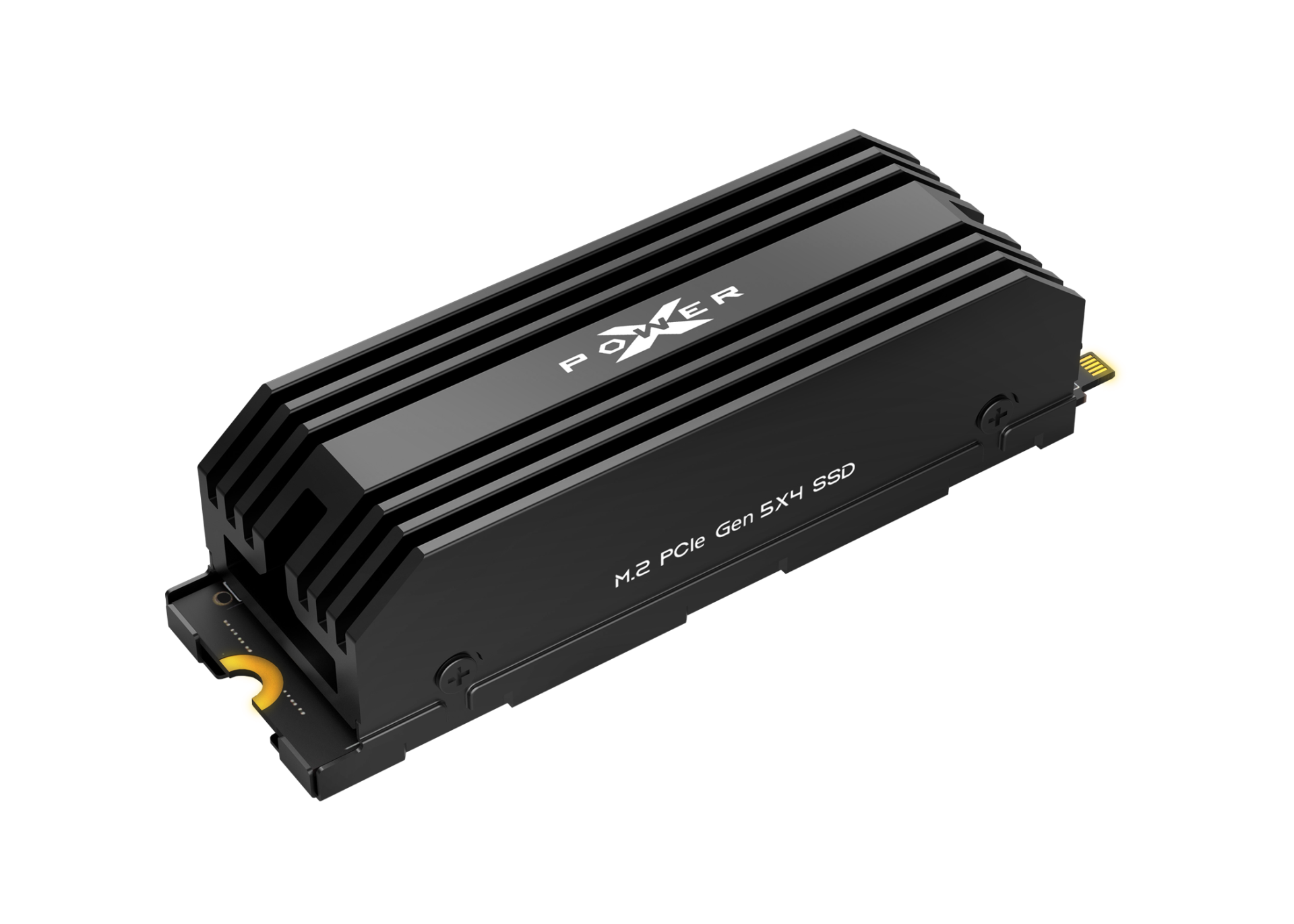

XPOWER XS80 NVMe™ SSD

• Engineered for advanced gamers, creators, and professionals who looking to lay down high-resolution exports at high bitrates
• Precision-crafted aluminum heatsink
• Highly flexible and is backward-compatible with Gen3 and Gen4 systems
• SP Toolbox for drive performance, data security, and firmware accuracy

Expand

Product Introduction
Product Specifications
Purchase
Compatibility Search

Introducing the Next-Generation PCIe Gen5 x4 SSD

Get ready for an immersive gaming experience that will leave you in awe! Unleash the exhilarating speed and power of the XPOWER Gen 5 storage. With lightning-fast read and write speeds, the Gen 5 cutting-edge technology propels your system to a whole new level.

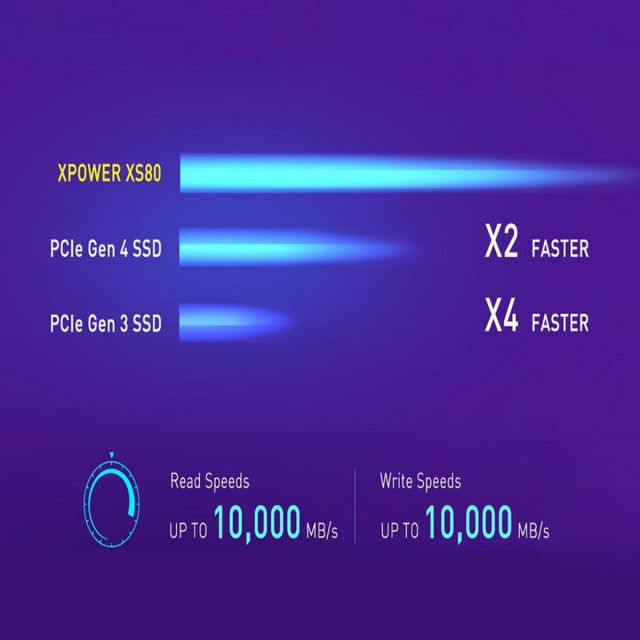

Maximum sequential read and write performance

Double the sequential write speed of Gen4, XPOWER XS80 features advanced PCIe Gen 5 controller Phison E26, and the latest 3D NAND Flash technology. Experience the mind-blowing read and write speeds, reaching up to 10000MB/s and 10000MB/s respectively.

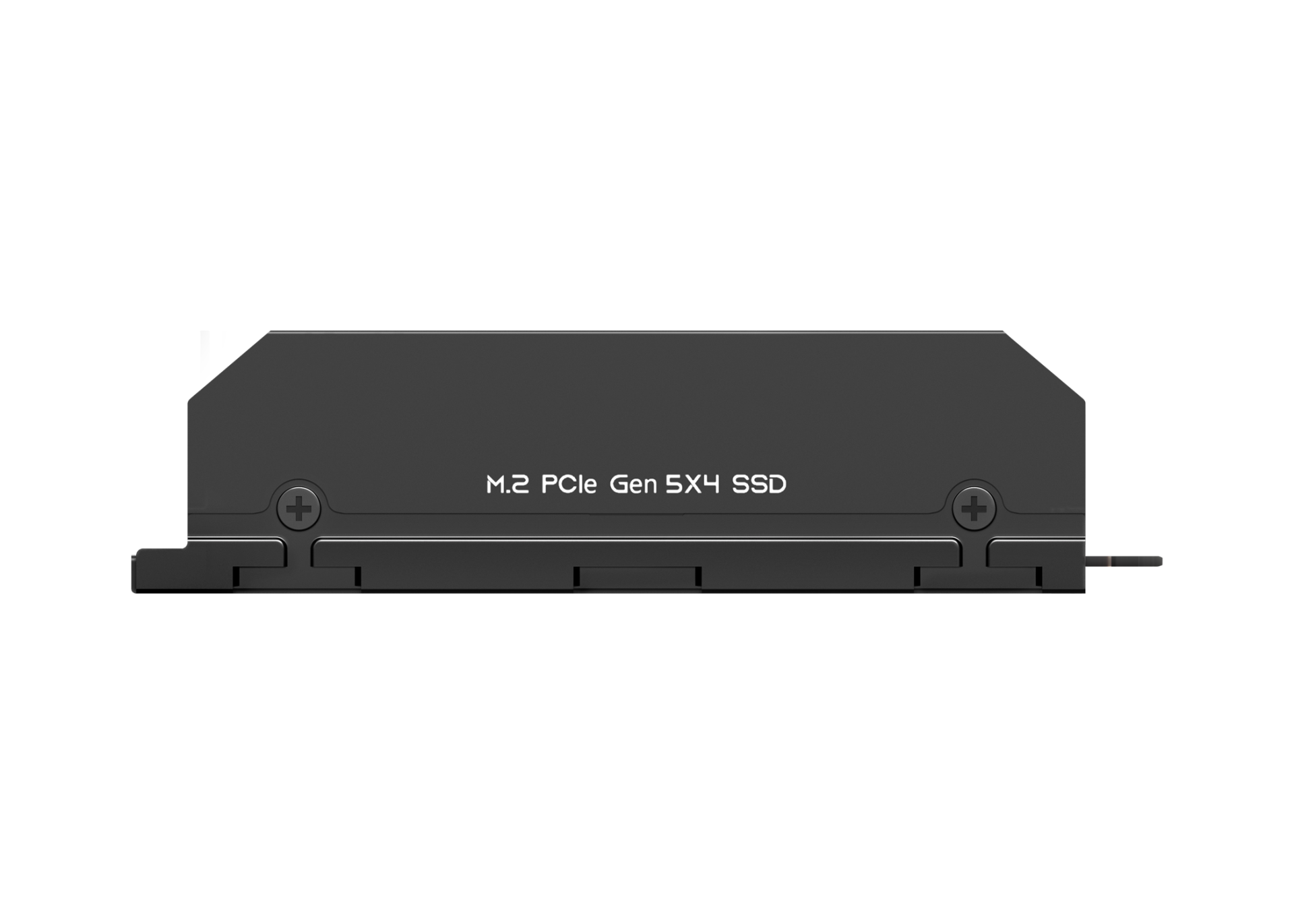

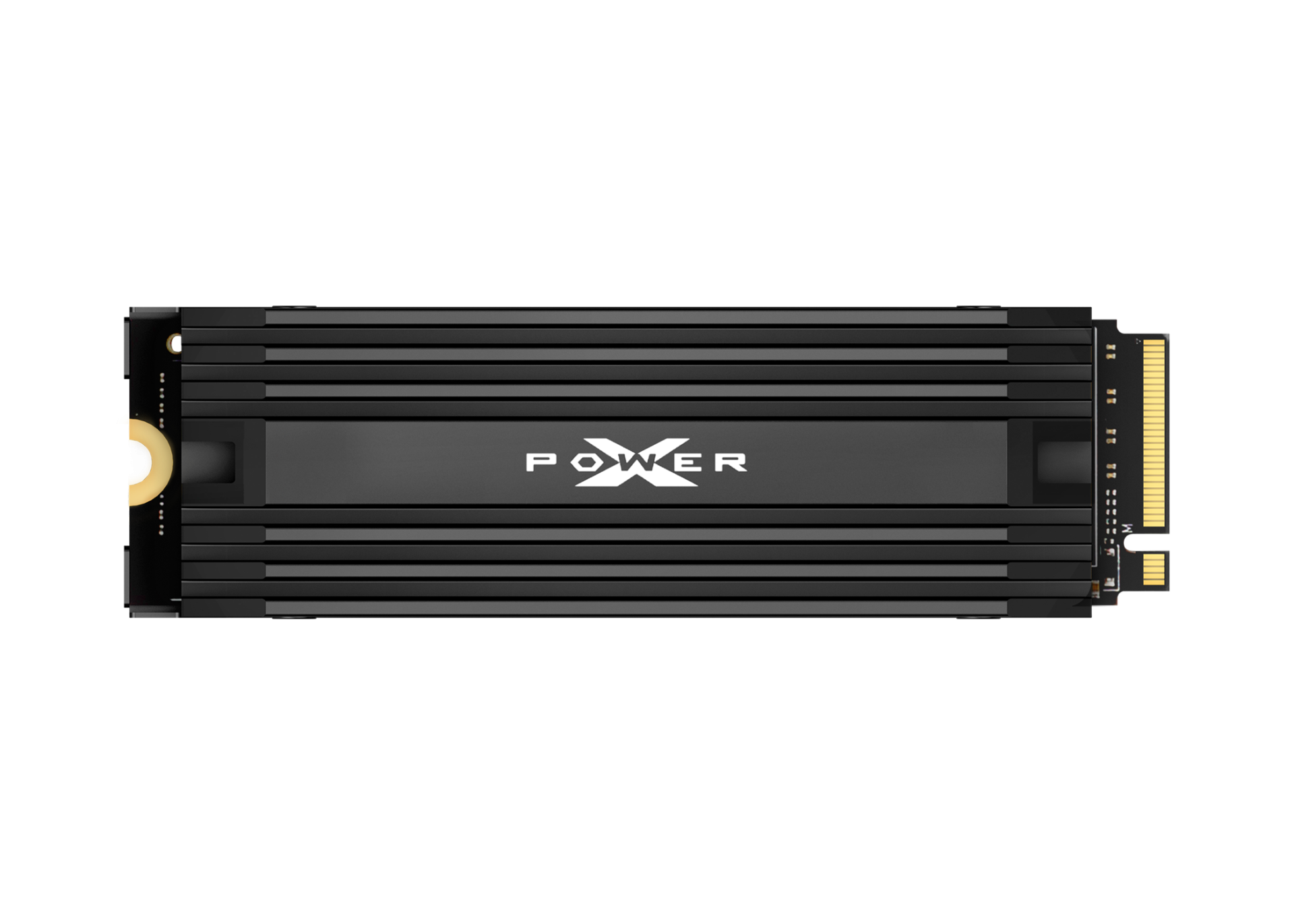

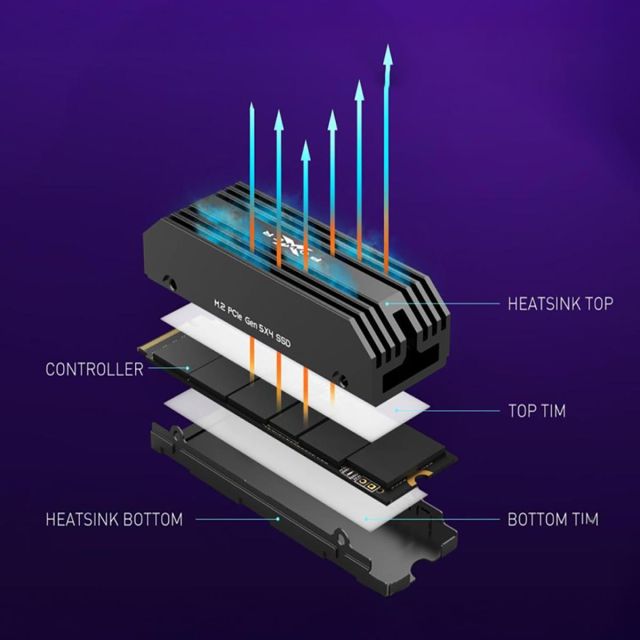

Precision-Crafted Aluminum heatsink

The XS80 features a custom-crafted aluminum alloy construction, designed with precision for perfect balance. With its premium heatsink design, it ensures superior heat dissipation and efficient thermal management, resulting in optimal performance and unrivaled reliability.

Seamless Flexibility

Designed for Intel® 13th Gen and AMD Ryzen™ 7000 series CPUs and PCIe Gen 5 desktops and motherboards.
PCIe 5 slots are backwards compatible with all generations.

Safeguards and Accuracy for your data

Built-in data security and error-correction capabilities to ensure the integrity of your information and provide a reliable storage solution. Our user-friendly SP Toolbox ensures effortless access to drive information and maintenance, providing comprehensive data protection and accuracy.

Capacity	1TB, 2TB

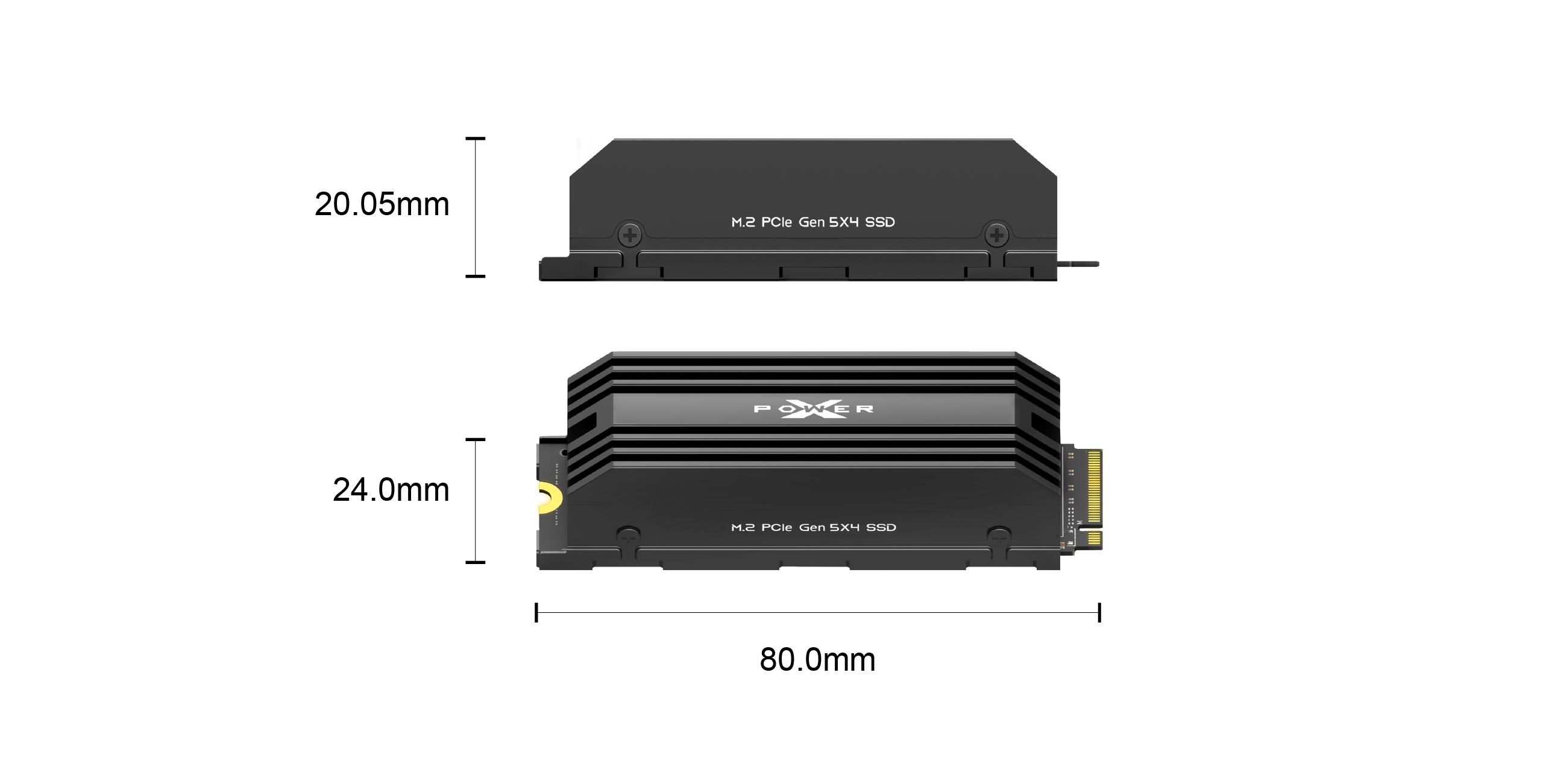

Dimensions	24.0 x 80.4 x 20.5 (mm)
Weight	53g
nterface	PCIe Gen5 x4
Performance Read(max.)	1TB: 9500MB/s 2TB: 10000MB/s
Performance Write(max.)	1TB: 8500MB/s 2TB: 10000MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
MTBF (est)	1,600,000 hours
Shock Resistance Test	1500g/0.5ms
Operating Temperature	0°C ~ 70°C
Certification	CE / FCC / UKCA / BSMI / Green dot / WEEE / RoHS / KCC
Warranty	5-year limited warranty The SSD warranty is based on the TBW or Warranty period. Please click for more information about Silicon Power Warranty Policy.
Note	*Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity
