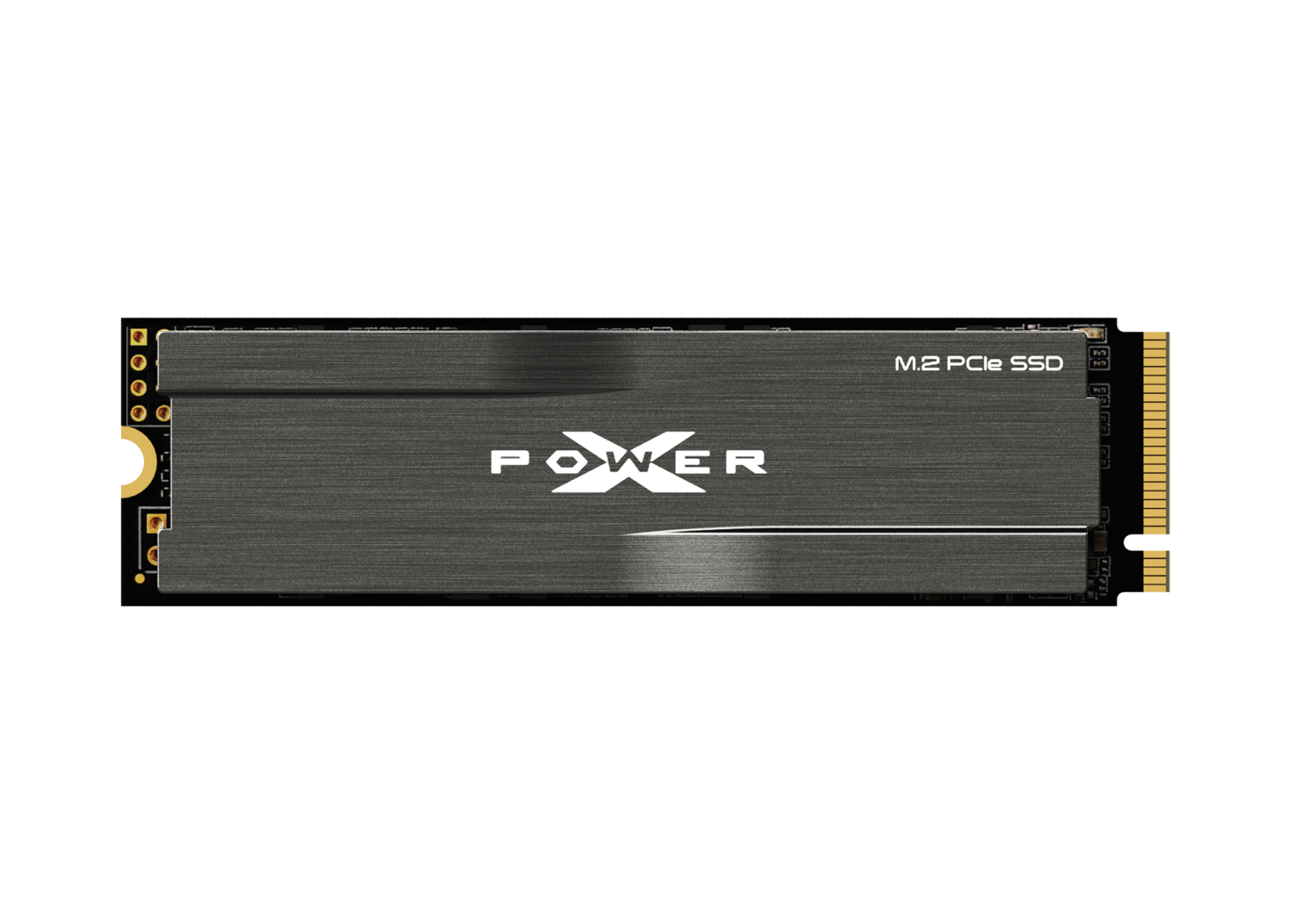

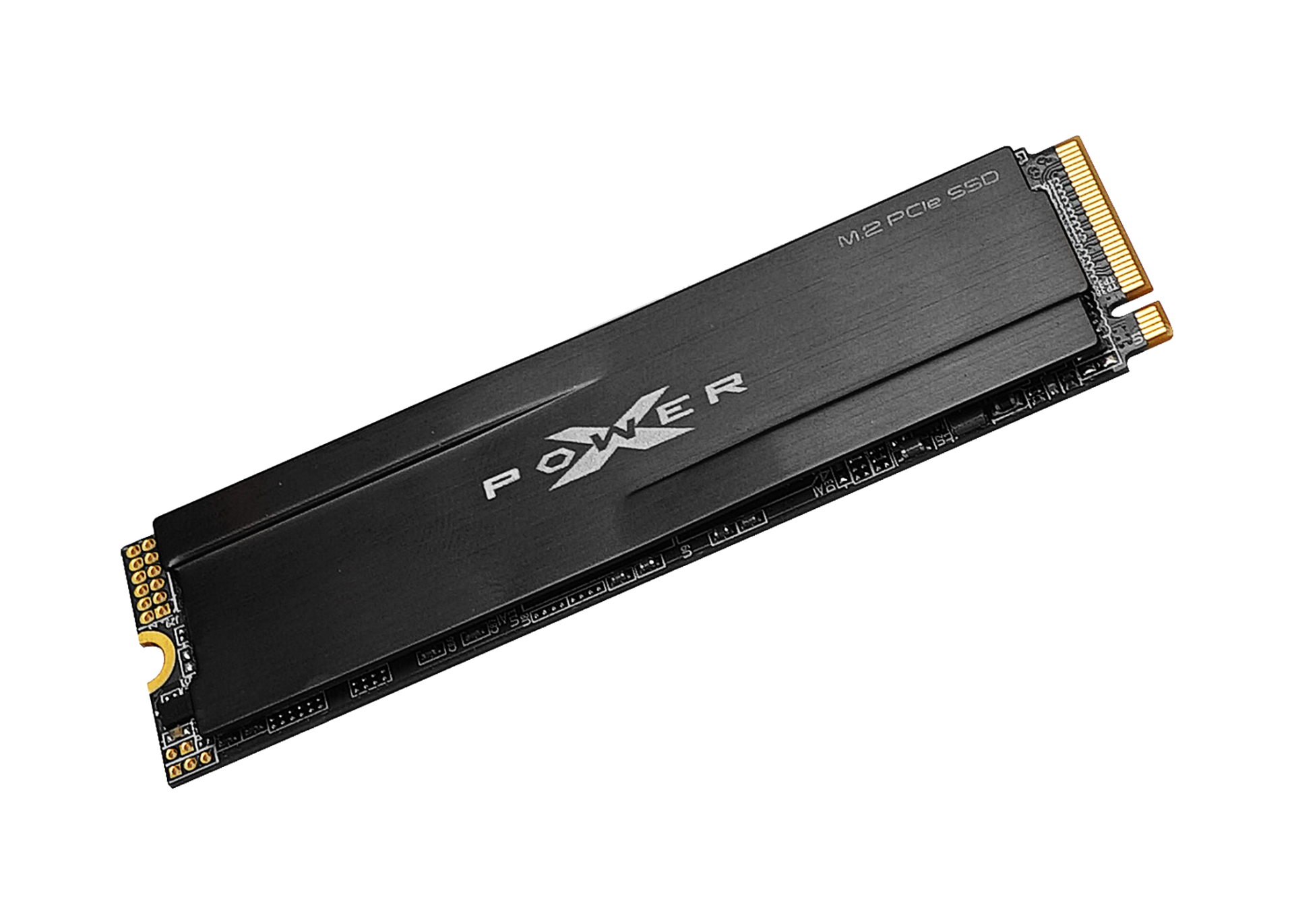

XPOWER XD80 NVMe™ SSD

• PCIe Gen3 x4 interface with read speeds up to 3400MB/s and write speeds up to 3000MB/s
• Durable aluminum heatsink reduces SSD temperatures by up to 20% for optimal cooling.
• Ideal for performance enthusiasts building custom gaming rigs or desktops
• NVMe 1.3 support allows for higher performance, lower latency, and lower power consumption
• Available in massive storage capacity options ranging from 256GB to 2TB
• Supports SLC Caching and DRAM Cache Buffer to improve sequential read/write and random read/write performance
• Supports RAID engine technology for enhanced data integrity and stability
• Small form factor M.2 2280 (80mm) allows for easy installation in laptops and small form factor PC systems
• Free SP ToolBox download for SSD info, health reports, and diagnostics

Expand

Product Introduction
Product Specifications
Purchase
Compatibility Search

XPOWER PCIe SSD XD80

Unleash Potential

XPOWER PCIe SSD XD80

Unleash Potential

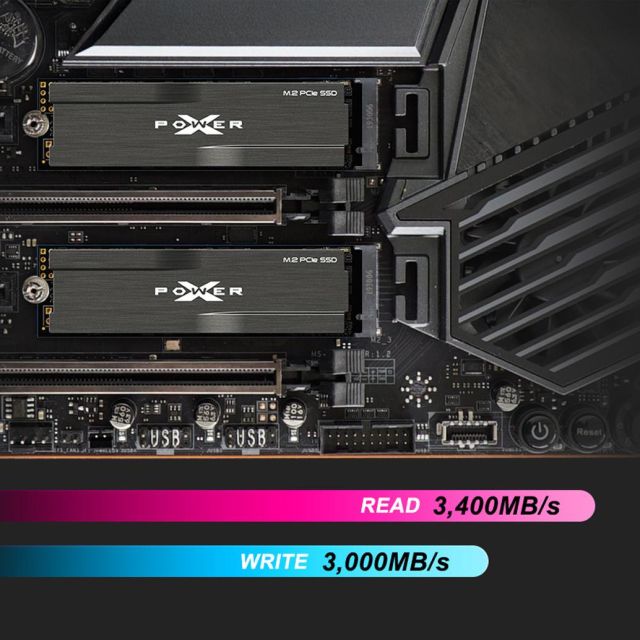

Speed Ahead Of The Competition

Featuring SLC Caching and DRAM Cache Buffer, the XD80 peels rubber with blazing read/write speeds up to 3400/3000MB/s, respectively. Its high-speed PCIe Gen3 x4 interface leaves traditional SATA III SSDs behind in the dust, giving hardcore gamers the competitive edge they need to secure the win.

Eliminate Lag While Keeping It Cool

With NVMe 1.3 support, the XD80 delivers higher performance, lower latency, and lower power consumption for the smoothest gameplay without any lag. The durable aluminum heatsink provides maximum heat dissipation and thermal management. In fact, compared to SSDs without a heatsink, the XD80 keeps temperatures as much as 20% lower, maintaining its stability.

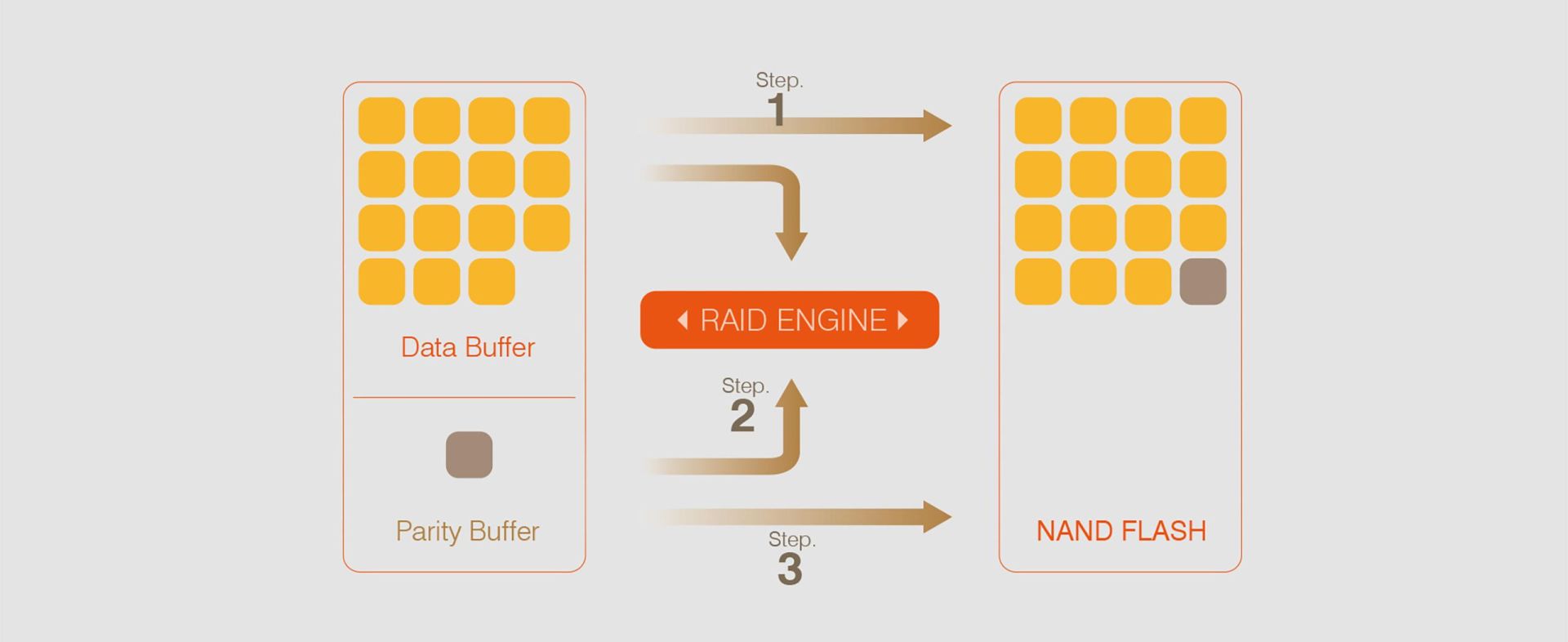

Better Performance With RAID Technology

In order to push beyond standard limits, the XD80 supports RAID technology and comes in massive storage capacity options up to 2TB. Even during the most highly demanding games, it will maintain system stability and data integrity to deliver maximum and reliable performance.

A Powerful System Upgrade With Room For More

With an M.2 2280 (80mm) form factor, the XD80's compact size allows for easy installation, while also saving space for other components. Coupled with its blazing speed and massive storage capacity options, it makes for an easy upgrade that's ready to handle the most intense gaming sessions.

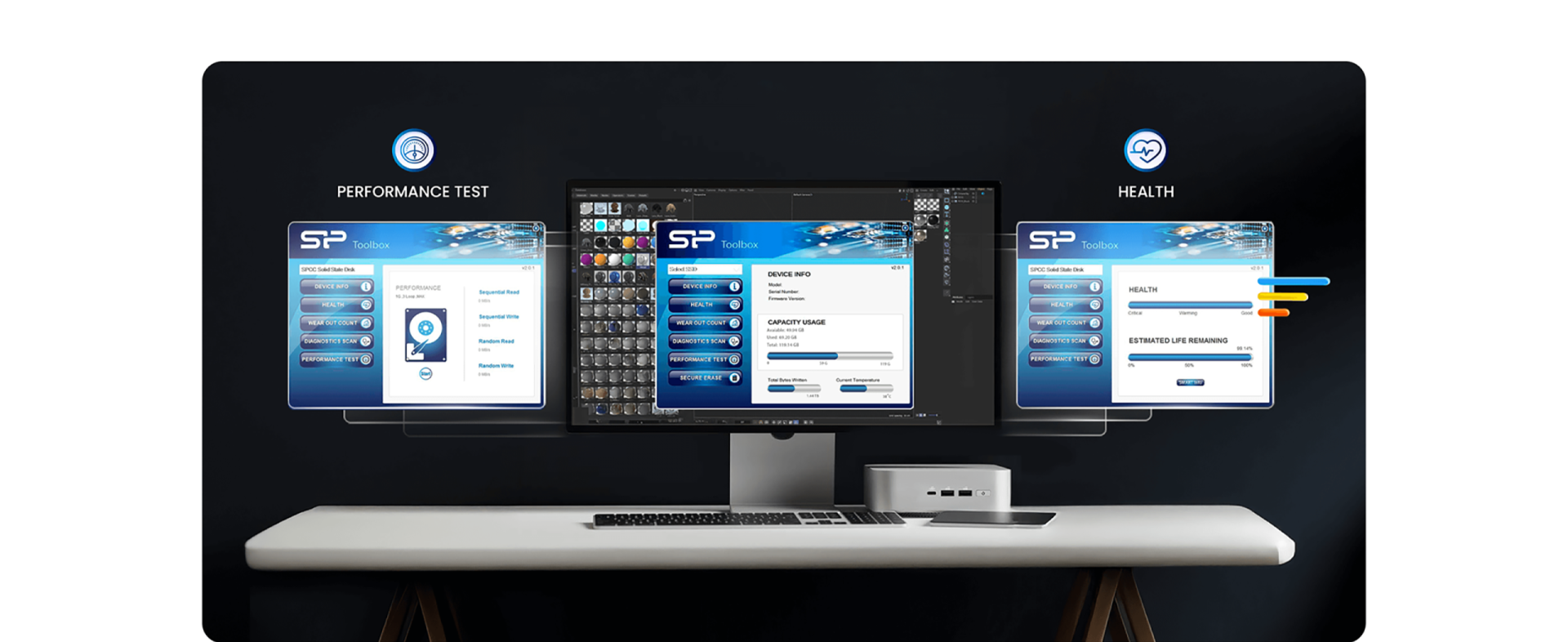

Free-Download of SSD Health Monitor - SP Toolbox

Easily monitor your new SSD's health with our free-download software – SP Toolbox. Run performance tests on the XD80, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

Capacity	256GB, 512GB, 1TB, 2TB

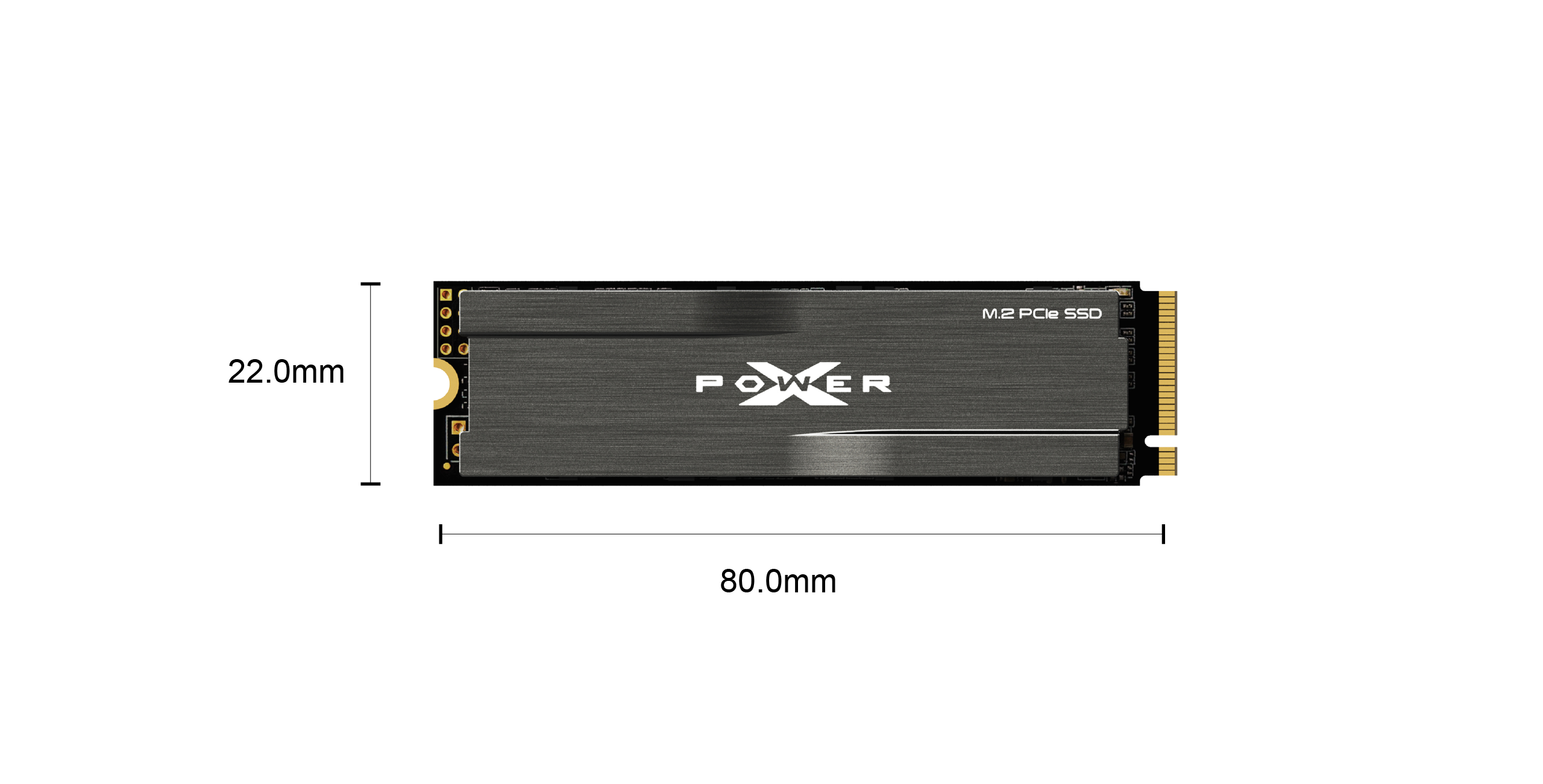

Dimensions	22.0mm x 80.0mm x 5mm
Interface	PCIe Gen3 x4
Weight	11g
Performance Read(max.)	256GB: 3100MB/s 512GB: 3400MB/s 1TB: 3400MB/s 2TB: 3400MB/s
Performance Write(max.)	256GB: 1100MB/s 512GB: 2300MB/s 1TB: 3000MB/s 2TB: 3000MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
MTBF (est)	2,000,000 hours
Shock Resistance Test	1500G/0.5ms
Operating Temperature	0℃- 70℃
Certification	CE / FCC / BSMI / Green dot / WEEE / RoHS / KCC
Warranty	5-Year Limited warranty The SSD warranty is based on the TBW or Warranty period. Please click for more information about Silicon Power Warranty Policy.
Note	Please check that this product can fit in the desired memory slot position before making a purchase. *Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity
