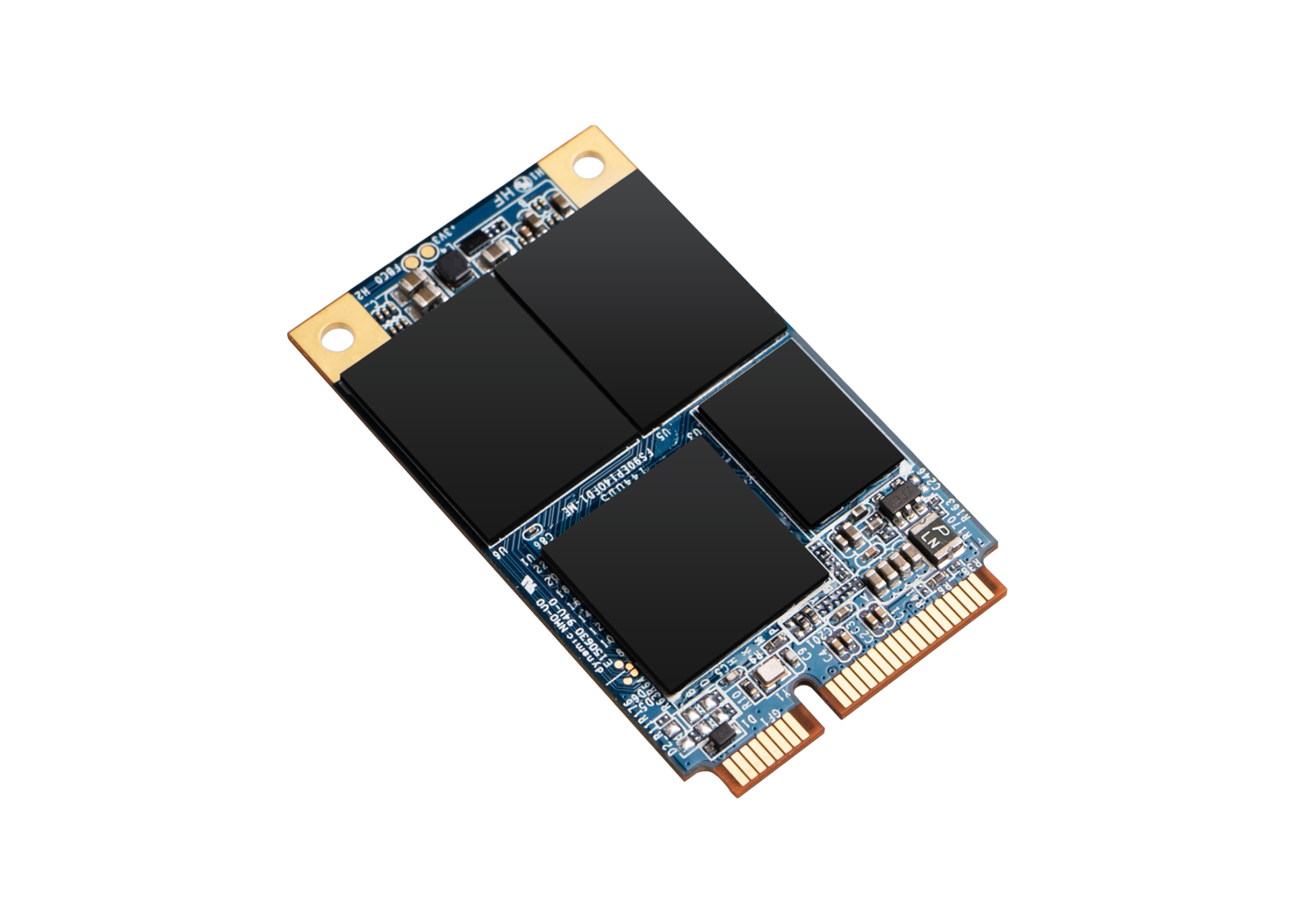

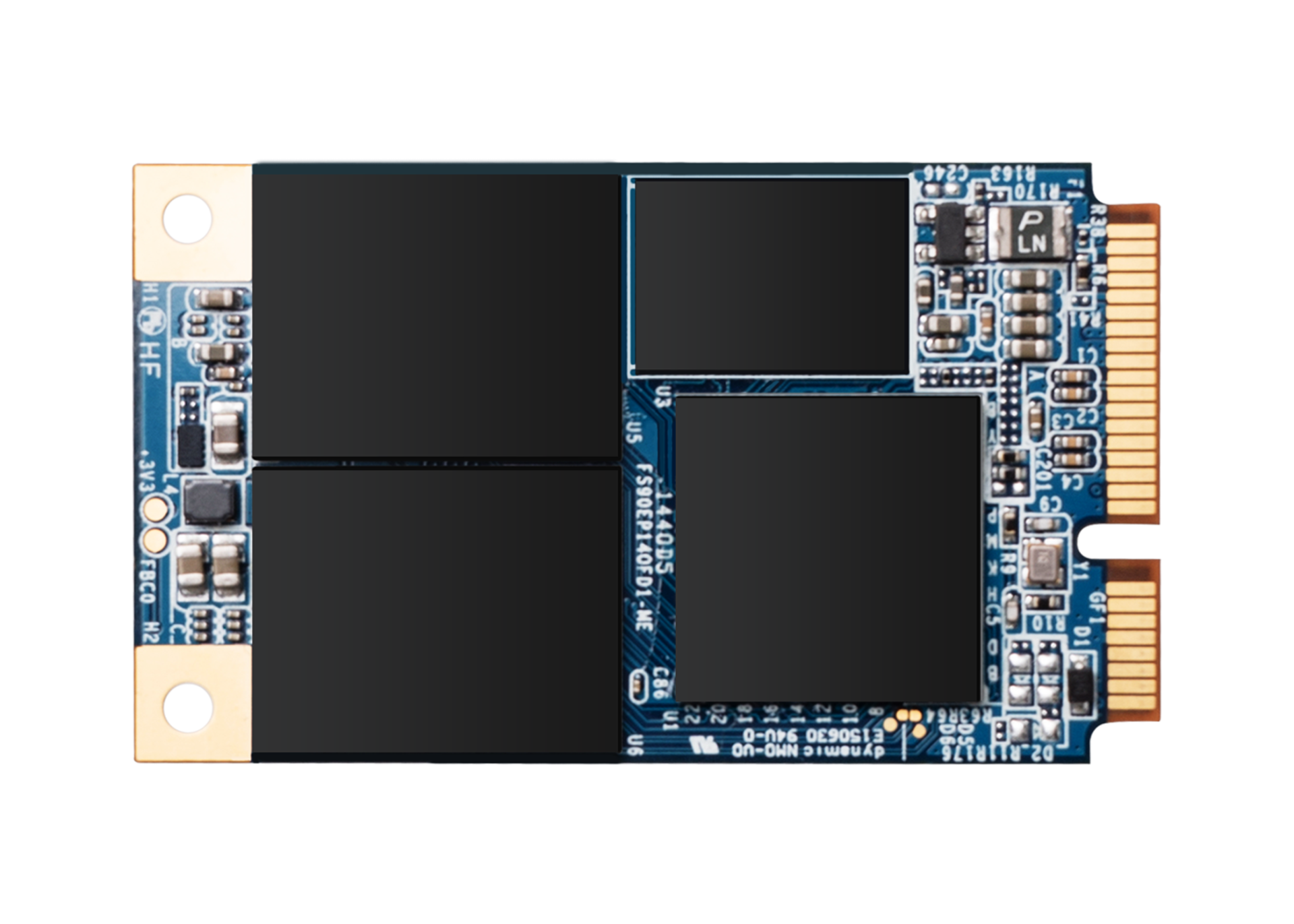

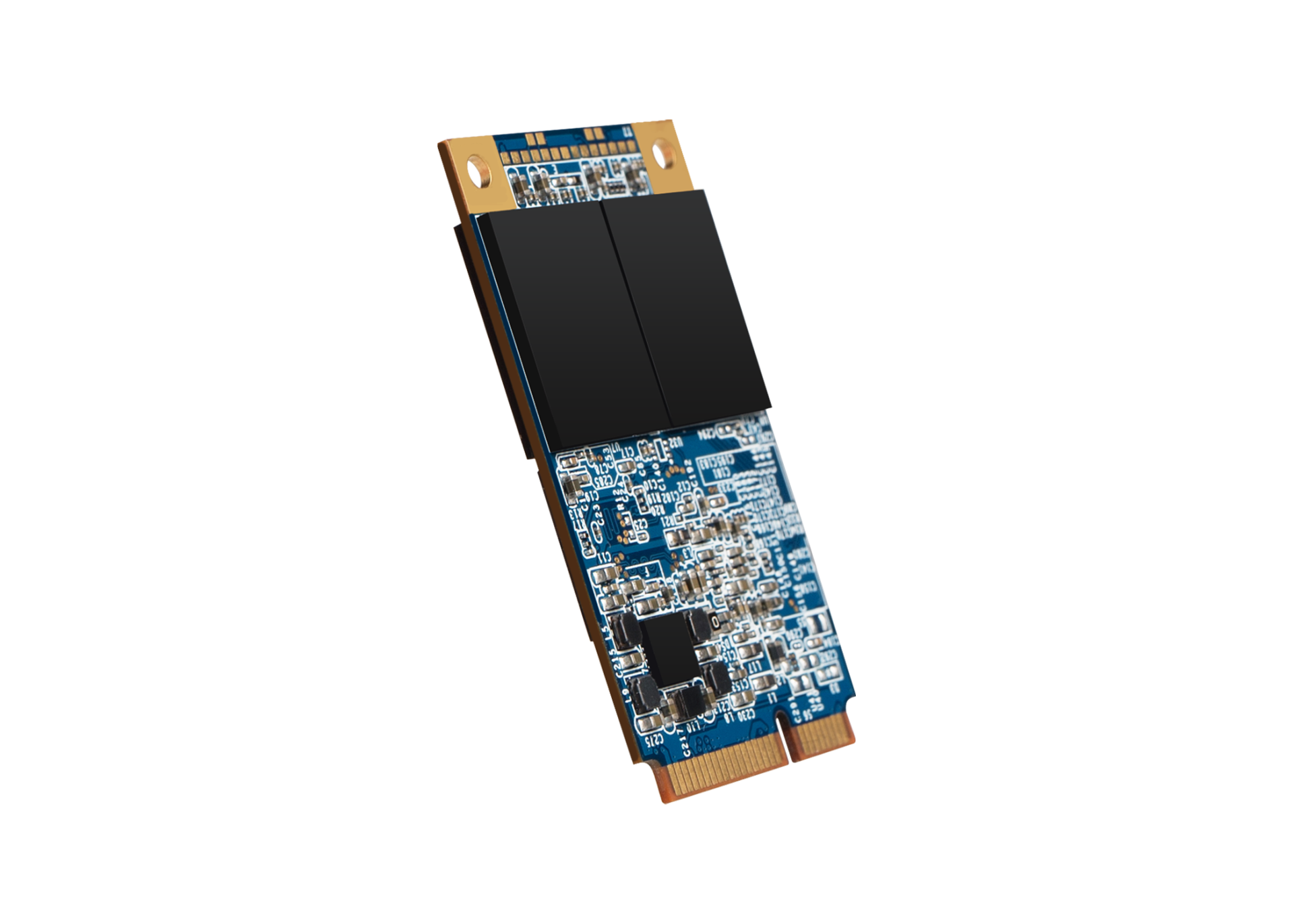

SP M10 mSATA SSD

• mSATA design suitable for Ultrabooks, laptops, and desktops
• High compatibility, support Intel® Smart Response Technology (ISRT)
• Support TRIM command and NCQ
• Support ECC technology and Bad Block Management to guarantee data transmission reliability
• Built-in with SMART monitoring system
• Low power consumption, shock- and vibration-proof, no noise and low latency

Espandi

Slimmer Design, Smarter Power

Instant Performance Boost for Ultrabooks

With just one-eighth the size of a traditional 2.5-inch SSD, the compact form factor enhances the product's versatility, making it an ideal upgrade for Ultrabooks and slim laptops.
The M10 mSATA adopts the latest SATA III 6Gb/s interface, targeting the next generation of slim mobile devices that demand high-performance hardware — offering users a space-saving and time-efficient upgrade solution.

Built for professionals and hardcore gamers

The high-quality controller and NAND flash chips are used to deliver astonishing transfer rates. It can serve as a boot drive for capacity expansion and speed acceleration. For heavy gamers, professionals and DIY enthusiasts who value the importance of efficiency and stability, the powerful SSD can meet their needs with shorter boot time and faster application loading.

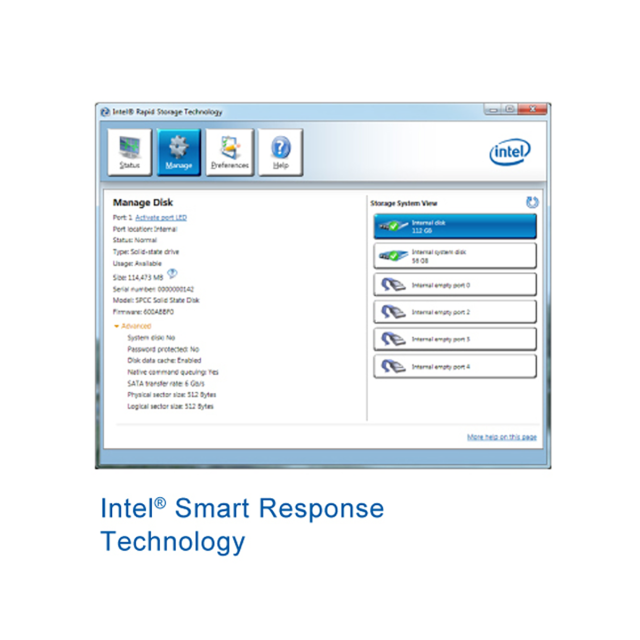

More flexibility in hardware upgrade with Intel®SRT

Intel® Smart Response Technology (ISRT) is applied for more flexibility in hardware upgrades. Users can configure the computer with M10 mSATA SSD acting as a cache drive between the hard disk drive and system memory to enable quick access to frequently used programs and games.

Excellent reliability and stability

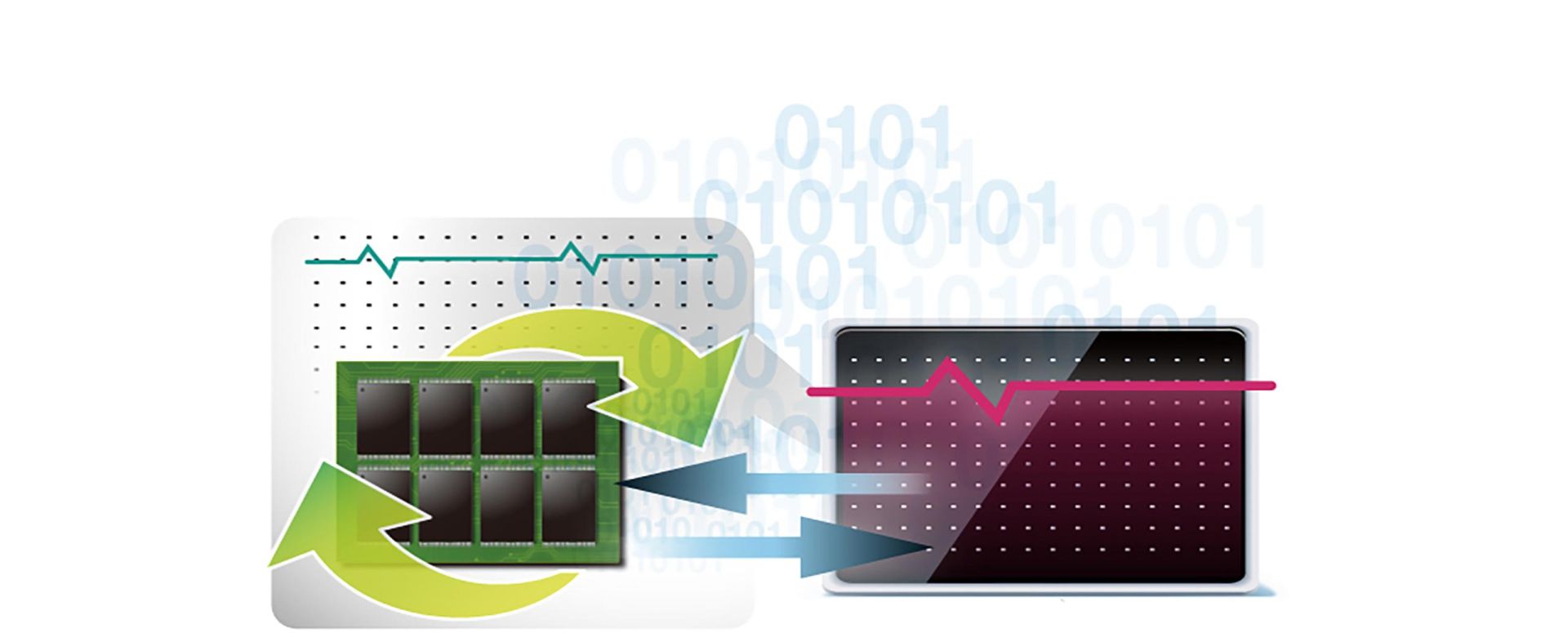

Through advanced control technology, the M10 mSATA SSD supports TRIM, NCQ, and S.M.A.R.T commands which allow the SSD’s real-time performance to be maintained at an optimum level at all times; Meanwhile it performs the ECC technology, Wearing Leveling, and Bad Block Management to guarantee data transmission reliability and overall system stability.

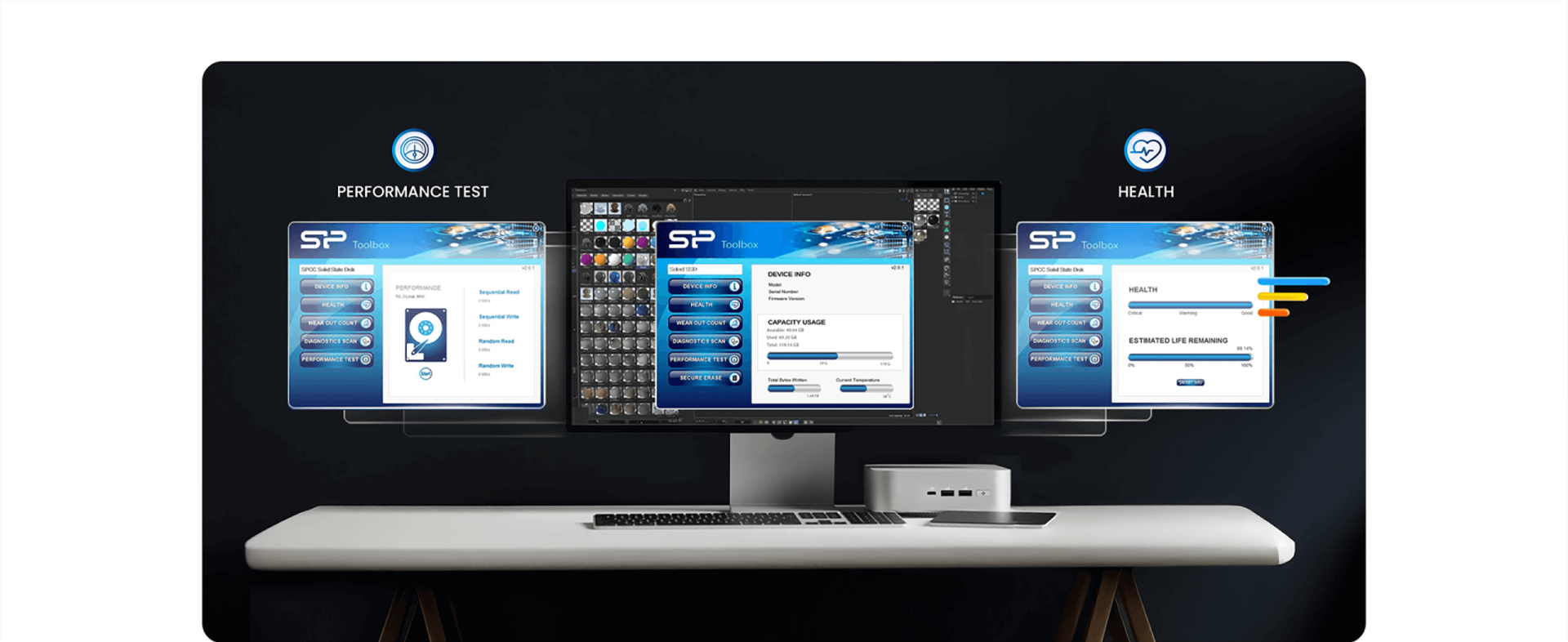

SP ToolBox Free-download Software

SP Toolbox was developed for using with SP SSDs and Industrial Flash products, and provides multiple ways for users to obtain disk information, and to change settings easily. Additionally, it is an advanced and user-friendly software that makes it easier than ever to maintain a healthy and efficient device.

P/N	Capacity	Performance Read	Performance Write	⇅ Confronta
SP120GBSS3M10MFF	120GB	500MB/s	300MB/s	Aggiungere confronto
SP240GBSS3M10MFF	240GB	500MB/s	300MB/s	Aggiungere confronto
SP480GBSS3M10MFF	480GB	500MB/s	300MB/s	Aggiungere confronto

Capacity	120GB, 240GB, 480GB

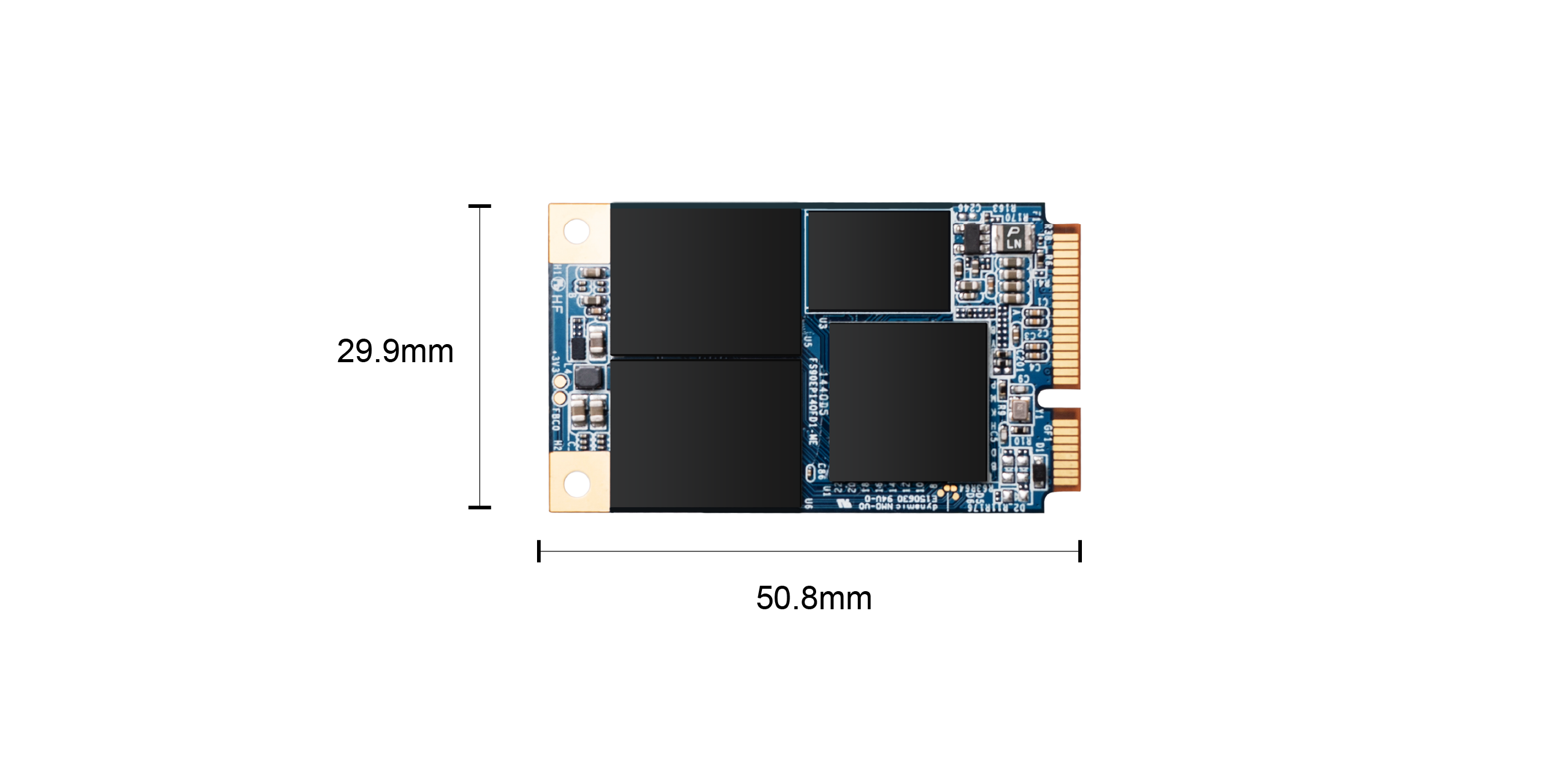

Dimensions	50.8 x 29.9 x 4 mm
Weight	7 g
Interface	SATA III
Performance Read(max.)	500MB/s (CDM)
Performance Write(max.)	300MB/s (CDM)
IOPS(4K Random)	40K/40K
MTBF (est)	1,200,000 hours
Warranty	3 years The SSD warranty is based on the TBW or Warranty period. Please click for more information about Silicon Power Warranty Policy.
Note	Performance results may vary, depending on system platform, software, interface, and capacity.

Nome

Lingua

Formato del file

Versione

Data di aggiornamento

Scarica file

SP M10 mSATA SSD

PDF.

v1.0
