Endura NAS ED90 SSD

• NASベンダーにより認定されたベンダーリスト(QVL)にて認証を受け、NASシステムとのシームレスな互換性とRAIDパフォーマンスを保証。
• 超高速PCIe Gen 4x4インターフェースを搭載し、NVMeコマンドプロトコルと互換性があるため、ストレージニーズに合わせて高度な接続性とデータ転送を実現。
• 持続的なパフォーマンスを実現するよう最適化したED90 NAS SSDは、ダイナミック・ウェアレベリング技術を採用し、厳しい環境下でも長寿命と安定した動作を実現。
• 最大5,000MB/秒、最大4,800MB/秒の驚異的なシーケンシャル読み取り/書き込み速度を実現。
• コンパクトなM.2 2280設計により、ED90 NAS SSDは小型フォームファクターでありながら高性能、低レイテンシ、低消費電力を実現し、ノートパソコンやタブレットに最適。
• 500GB、1TB、2TB、4TBの容量オプション
• 高度な低密度パリティチェック(LDPC)ECCにより、堅牢なデータ安定性と整合性を確保。
• 耐久性と耐障害性を重視して設計したED90 NASは、150万時間のMTBFを誇り、4TBモデルでは最大4100テラバイトの書き込み容量(TBW)をサポート。0℃~70℃の動作温度範囲、耐振動性(80~2000Hz/20G)、耐衝撃性(1500G/0.5ms)を備え、様々な条件下でも--信頼性の高い動作を実現。
• S.M.A.R.T.サポートにより、SSDの健康状態とパフォーマンス状況を監視することが可能。
• CE、FC、UKCA、BSMI、Green dot、WEEE、ROHS、KCなどの主要な国際規格に準拠。
展開
PCIe Gen 4x4 M.2 2280 SSD ED90

Built for NAS Endurance
and Designed to
Accelerate Your Network

Driving intensive NAS workloads or High-Speed Virtualization? Unleash peak performance with the Endura ED90 NAS SSD. Experience elite PCIe Gen4 speeds up to 7,100 MB/s , built for 24/7 access with a 1.5 million hour MTBF and a colossal 4,100TBW. Advanced LDPC ECC ensures absolute data integrity. Command your data with the ultimate NAS upgrade.
PCIe Gen 4x4 M.2 2280 SSD ED90

Built for NAS Endurance
and Designed to
Accelerate Your Network

Driving intensive NAS workloads or High-Speed Virtualization? Unleash peak performance with the Endura ED90 NAS SSD. Experience elite PCIe Gen4 speeds up to 7,100 MB/s , built for 24/7 access with a 1.5 million hour MTBF and a colossal 4,100TBW. Advanced LDPC ECC ensures absolute data integrity. Command your data with the ultimate NAS upgrade.


NAS Validated

Design


Extreme

Endurance

4,100TBW


Peak Speed

& IPOS


Advanced Data

Protection


Robust

Environmental Tolerance


Intelligent

Wear-Leveling













NAS Validated Design


Verified. Integrated. Trusted
Eliminate guesswork with drives verified on NAS vendor Quality Vendor Lists (QVL). The ED90 NAS SSD is specifically designed for seamless integration and rock-solid performance with leading NAS manufacturers.. This purpose-built approach, including its RAID-optimized firmware, ensures stable, predictable, and highly reliable performance within your specific RAID and network environment.

NAS Validated Design


Verified. Integrated. Trusted
Eliminate guesswork with drives verified on NAS vendor Quality Vendor Lists (QVL). The ED90 NAS SSD is specifically designed for seamless integration and rock-solid performance with leading NAS manufacturers.. This purpose-built approach, including its RAID-optimized firmware, ensures stable, predictable, and highly reliable performance within your specific RAID and network environment.

Extreme Endurance TBW

Endurance for Non-Stop Data
Engineered for constant data access, the ED90 NAS SSD boasts a Mean Time Between Failures (MTBF) of 1,500,000 hours and a robust TBW rating of up to 4,100TB for the 4TB model. This high endurance, built upon premium TLC 3D NAND Flash, ensures longevity and consistent performance under the relentless read/write cycles of a modern NAS workload.

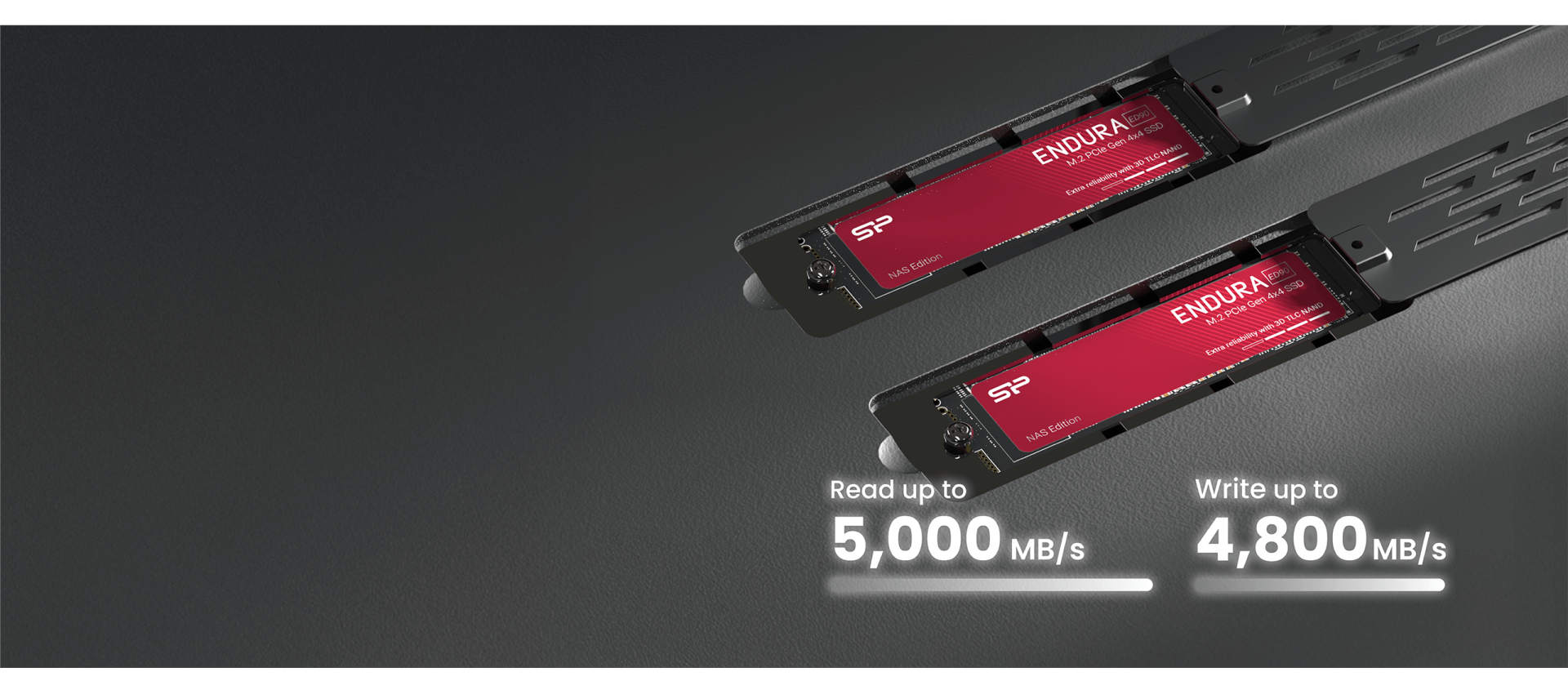

Peak Speed & IOPS


Speed That Fuels Productivity
Drastically reduce latency and accelerate your workflow with the ED90 NAS SSD. The PCIe Gen 4x4 interface, compatible with NVMe 1.4, delivers blistering sequential read/write speeds up to 5,000/4,800 MB/s. It also offers a staggering 950K maximum 4K random write IOPS. Accessing small files, running databases, and handling multi-user environments is virtually instant due to its low write latency.

Advanced Data Protection


Your Data, Fortified
ECC Error Correction Code
Your data integrity is paramount. The ED90 NAS SSD integrates a suite of protective technologies, including Low-Density Parity-Check (LDPC) error correction code (ECC) to detect and fix data errors, thereby enhancing data integrity and the SSD's overall stability and lifespan. Support for RAID configurations enhances data redundancy, while the robust TLC 3D NAND Flash provides "extra reliability", ensuring your files remain secure and uncorrupted.

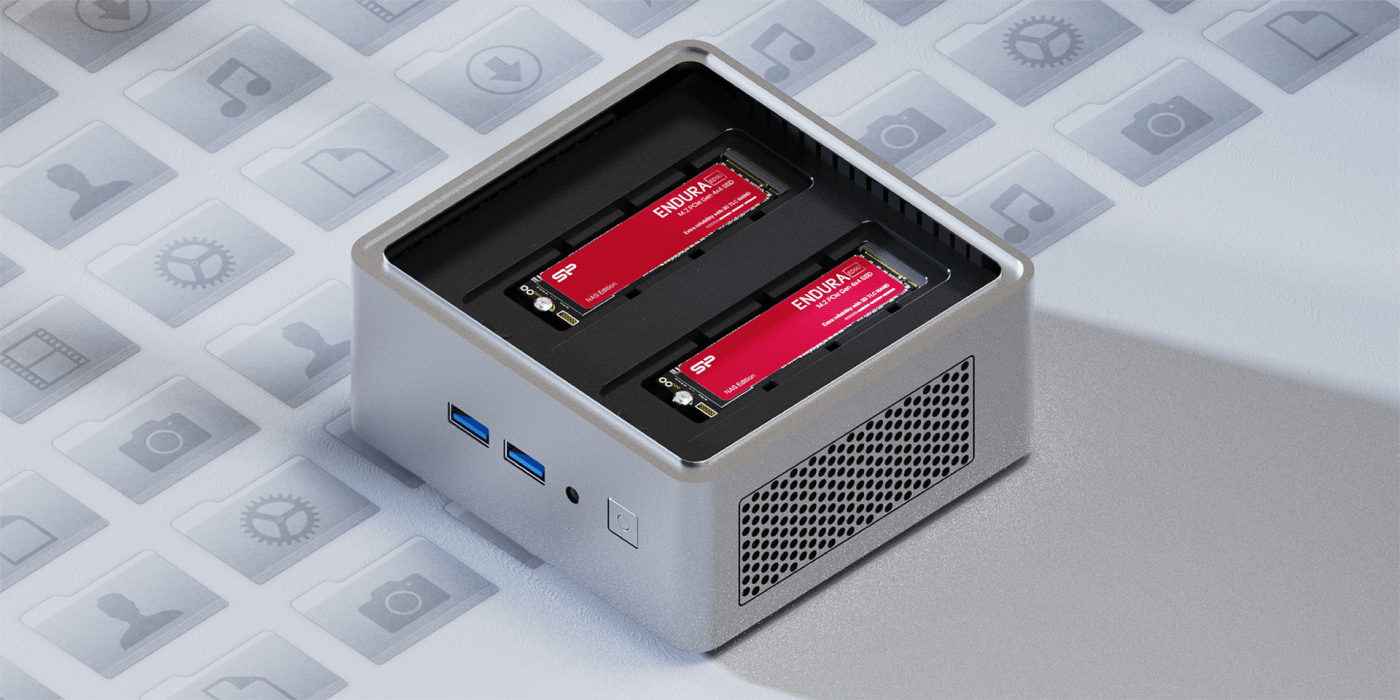

RAID Configurations Code
Your data integrity is paramount. The ED90 NAS SSD integrates a suite of protective technologies, including Low-Density Parity-Check (LDPC) error correction code (ECC) to detect and fix data errors, thereby enhancing data integrity and the SSD's overall stability and lifespan. Support for RAID configurations enhances data redundancy, while the robust TLC 3D NAND Flash provides "extra reliability", ensuring your files remain secure and uncorrupted.
Your data integrity is paramount. The ED90 NAS SSD integrates a suite of protective technologies, including Low-Density Parity-Check (LDPC) error correction code (ECC) to detect and fix data errors, thereby enhancing data integrity and the SSD's overall stability and lifespan. Support for RAID configurations enhances data redundancy, while the robust TLC 3D NAND Flash provides "extra reliability", ensuring your files remain secure and uncorrupted.

Robust Environmental Tolerance


Cool, Quiet, and Resilient
The ED90 NAS SSD operates silently and efficiently. Built with no moving parts, this SSD is inherently shock-resistant up to 1500G and can withstand significant vibration. With a standard operating temperature range of 0°C to 70°C, the ED90 NAS is built to maintain stability in diverse physical environments, ensuring quiet, cool, and energy-efficient operation for your always-on NAS.

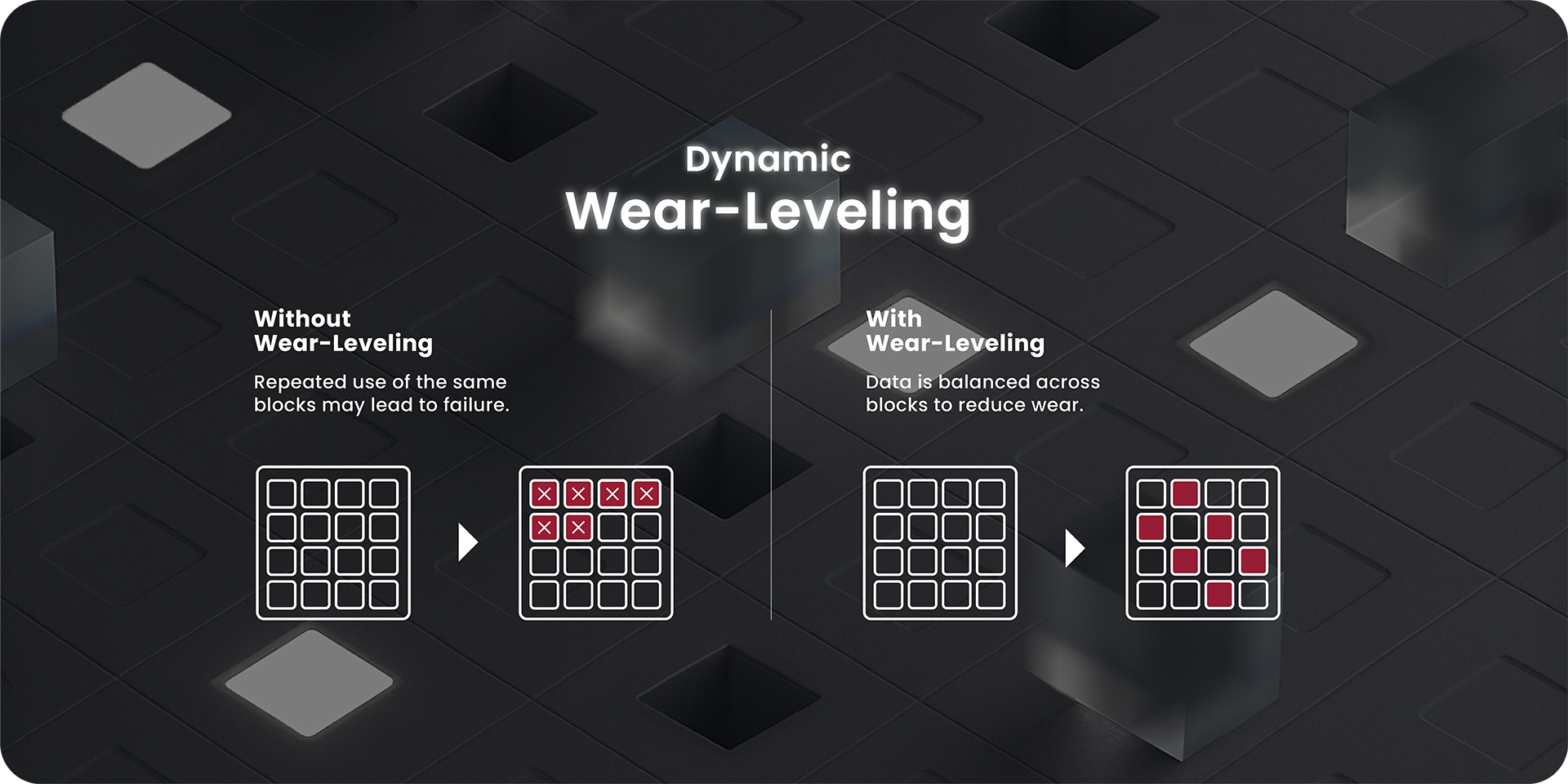

Intelligent Wear-Leveling

Smarter Writes, Longer Life
To maximize the lifespan and reliability of the drive, the ED90 NAS SSD employs sophisticated wear-leveling algorithms. By distributing write and erase cycles evenly across all NAND flash blocks, its Dynamic wear leveling technique prevents premature wear on any single part of the drive. This ensures stable, long-term performance and endurance, being specifically tuned to work in harmony with the sustained writes and rebuilds common in NAS RAID environments.


Deployment Scenarios
AI
Development Hub

Fuel your models with rapid data
High-Speed Virtualization
Run responsive virtual machines effortlessly
4K/8K
Video Production

dit and serve large files seamlessly
Smart Security Surveillance
4/7 recording to secure your critical footage

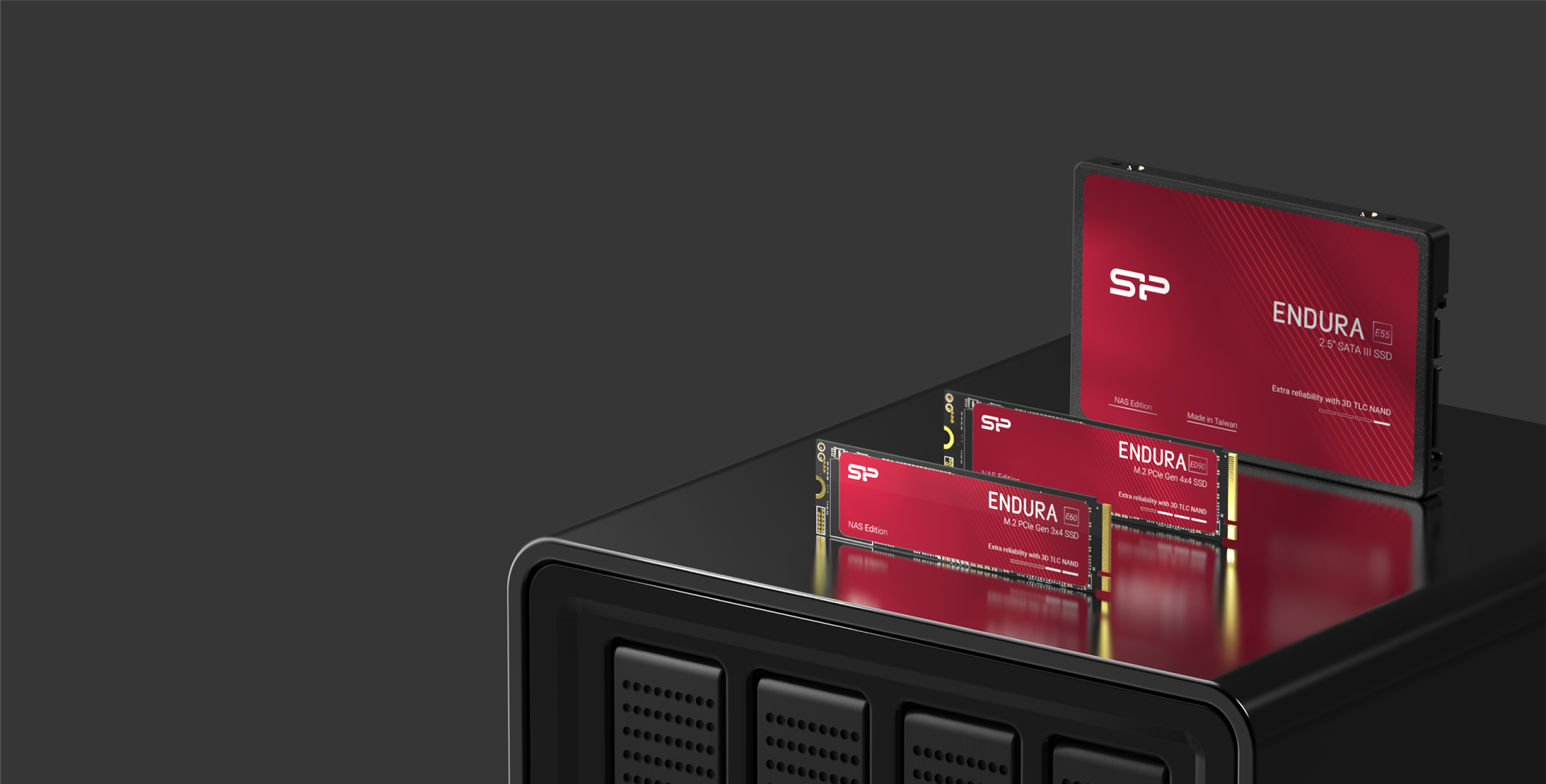

NAS Edition SSD
ENDURA

Silent Power,
Synchronized Performance

The Silicon Power Endura NAS series SSDs are engineered for endurance and cutting-edge performance, designed specifically for network-attached storage (NAS) environments. The ED90 NAS stands out with blazing sequential speeds of up to 5,000 MB/s read and 4,800 MB/s write. Built for ultimate reliability and consistent high-speed performance under intense, sustained workloads, it boasts impressive endurance of up to 4,100 Terabytes Written (TBW) and supports Low Density Parity Check (LDPC) code for enhanced data integrity.
NAS Edition SSD
ENDURA

Silent Power,
Synchronized Performance

The Silicon Power Endura NAS series SSDs are engineered for endurance and cutting-edge performance, designed specifically for network-attached storage (NAS) environments. The ED90 NAS stands out with blazing sequential speeds of up to 5,000 MB/s read and 4,800 MB/s write. Built for ultimate reliability and consistent high-speed performance under intense, sustained workloads, it boasts impressive endurance of up to 4,100 Terabytes Written (TBW) and supports Low Density Parity Check (LDPC) code for enhanced data integrity.
  • The performance test and secure erase features in SP ToolBox are available only for industrial SSD products.
  • Specifications such as capacities, speeds, and features mentioned in this product description may vary between different products within the Endura NAS Edition. Please check individual product details for accurate specifications and compatibility.
P/N CapacityDimensionsWeightInterfaceConnectorsPerformance ReadPerformance WriteMaterialColorSupported OSSystem RequirementOperating TemperaturePatentMTBF (est)CertificationWarrantyExtra ProtectionProduct Feature ⇅ 比較
SP04KGBP44ED90N5 4TB 80mm (l) x 22m (w) x 3.6mm (h) 8g PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 4,800 MB/s - - Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer - - - - - 5 year limited warranty Shock Resistance Test(1500g/0.5ms) - 比較に追加
SP02KGBP44ED90N5 2TB 80mm (l) x 22m (w) x 3.6mm (h) 8g PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 4,800 MB/s - - Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer - - - - - 5 year limited warranty Shock Resistance Test(1500g/0.5ms) - 比較に追加
SP01KGBP44ED90N5 1TB 80mm (l) x 22m (w) x 3.6mm (h) 8g PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 4,800 MB/s - - Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer - - - - - 5 year limited warranty Shock Resistance Test(1500g/0.5ms) - 比較に追加
SP500GBP44ED90N5 500GB 80mm (l) x 22m (w) x 3.6mm (h) 8g PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 4,800 MB/s - - Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer - - - - - 5 year limited warranty Shock Resistance Test(1500g/0.5ms) - 比較に追加



容量

500GB / 1TB / 2TB / 4TB

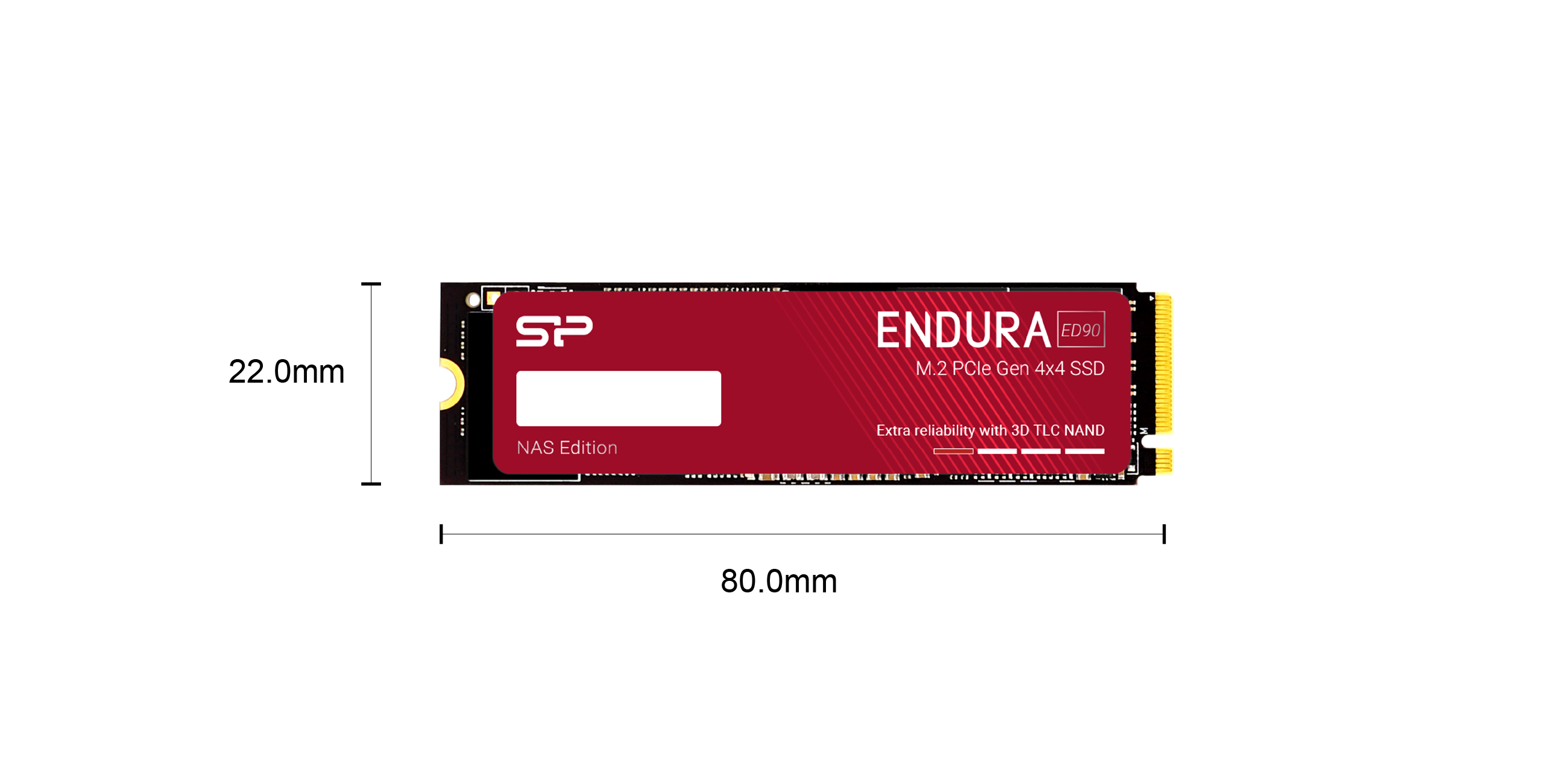

寸法 80mm (l) x 22mm (w) x 3.6mm (h)
重量 8g
インターフェイス PCIe Gen 4x4
フォームファクター M.2 PCIe 2280 SSD
読み込みパフォーマンス(最大)

5,000 MB/s

書き込みパフォーマンス(最大)

4,800 MB/s

証明 CE / FCC / BSMI / KCC / RoHS / Green dot / WEEE
保証期間

5 年有限保固

TBW

500TB (500GB), 1000TB (1TB), 2000TB (2TB), 4100TB (4TB)

免責事項
  • 読み取りおよび書き込み速度は、デバイス、容量、その他の要因によって異なる場合があります。
  • PCIeコネクタに接続するには、M.2(「M」キー)スロットが必要です。
  • パフォーマンス結果は社内テストに基づいており、ホストデバイス、使用状況、容量、その他の要因によって異なる場合があります。
  • ストレージの一部はシステム使用のために予約されているため、使用可能な容量は少なくなります。1GB = 10億バイトですが、一部の容量は発売時に利用できない場合があります。
  • 1GBは10億バイト、1TBは1兆バイトです。使用可能な容量は動作環境によって異なります。
  • PCIe Gen 4デバイスは、PCIe Gen 3システムと下位互換性があります。ED90 NASは、互換性のあるGen 4マザーボードと併用することで、PCIe Gen 4x4転送モードをサポートします。
  • 保証期間は5年間、または製品データシートおよびSMARTデータに記載されている最大書き込みバイト数(TBW)に達するまでです。
  • 製品の入手可能時期は地域によって異なる場合があります。
  • SP ToolBox のパフォーマンス テストおよびセキュア消去機能は、産業用 SSD 製品でのみ使用できます。
