SP Ace A58 SATA III SSD

• Adopts 3D NAND Flash and "SLC Cache technology" to improve overall performance
• 15 x faster than a standard 5,400 HDD
• 7 mm slim design suitable for ultrabooks and ultra-slim laptops
• Supports TRIM command and Garbage Collection technology
• NCQ and RAID ready
• ECC technology to guarantee reliable data transmission
• S.M.A.R.T. monitoring system
• Low power consumption, shock and vibration-proof, noiseless and low latency
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics

展開

製品紹介
製品仕様
ファイルダウンロード
購入経路

More Than Just a Solid Performance - Can You Keep Up?

Equipped with a high-quality controller, the A58 provides outstanding system performance. It will give your computer a powerful boost with significantly reduced boot times and accelerated response processes. Can you keep up?

Time Is Money! Don’t Waste It on a Slow System

The ultra-fast SATA III 6Gbps transfer interface delivers incredible sequential transfer rates of up to 500 MB/s read and 450 MB/s write. It enables boot-ups in the blink of an eye, faster application loading and speedier file execution.

Durability and Performance

Equipped with an original controller and 3D NAND Flash, the Ace A58 can not only guarantee stability and durability. It also delivers outstanding performance which enables 10-second quick boot-ups, shorter application load times and faster data transmission speed. Whether you are web surfing, enjoying a good movie, or have to handle paperwork, the Ace A58 will bring you a smooth, lag-free experience.

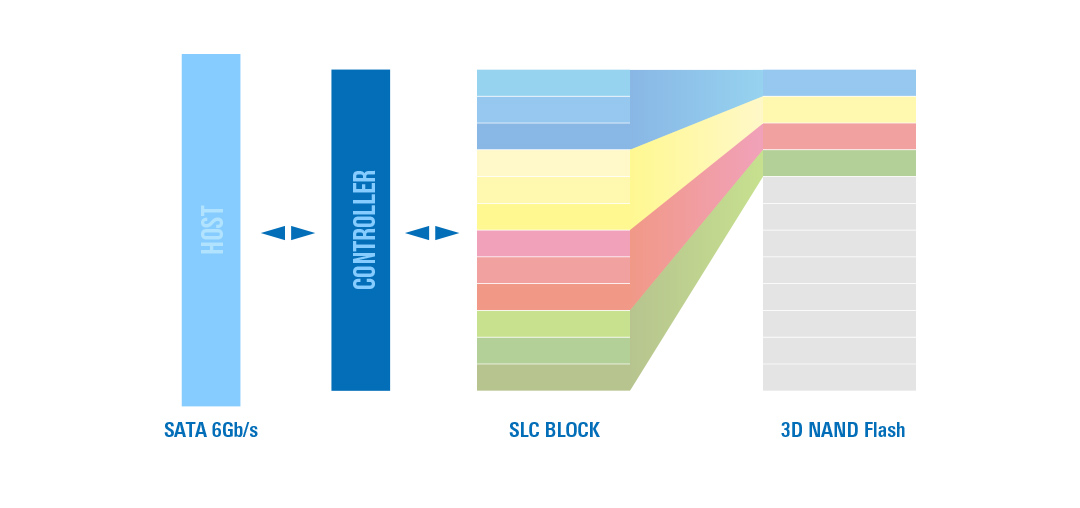

Internal Auto-Copy Technology

The Ace A58's auto-copy technology allows automatic copy operations from the SLC cache to the 3D NAND Flash inside the NAND without using the controller or DDR. This supports higher efficiency by reducing the controller's and DRAM's workload.

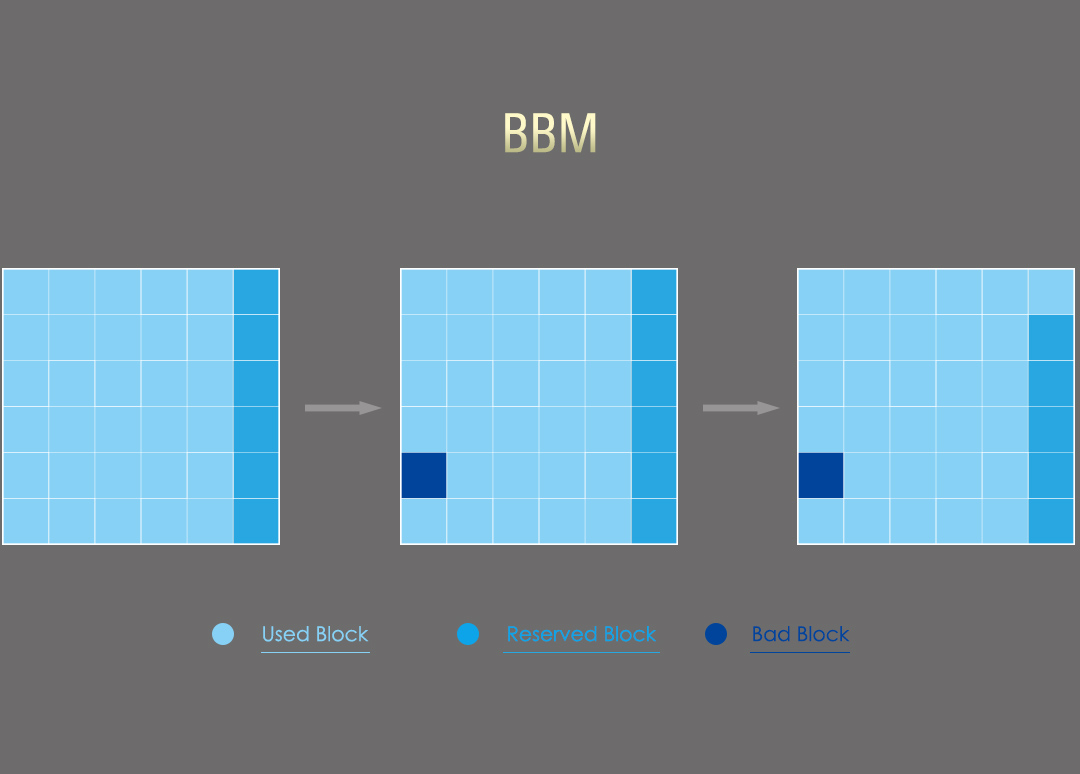

Bad Block management (BBM)

A bad block management (BBM) mechanism detects and marks bad blocks to avoid storage in those blocks and eliminate access errors. And, even if errors do occur in new blocks during an erase, this mechanism can move the data to other effective blocks to prevent data loss resulting from the failed erase.

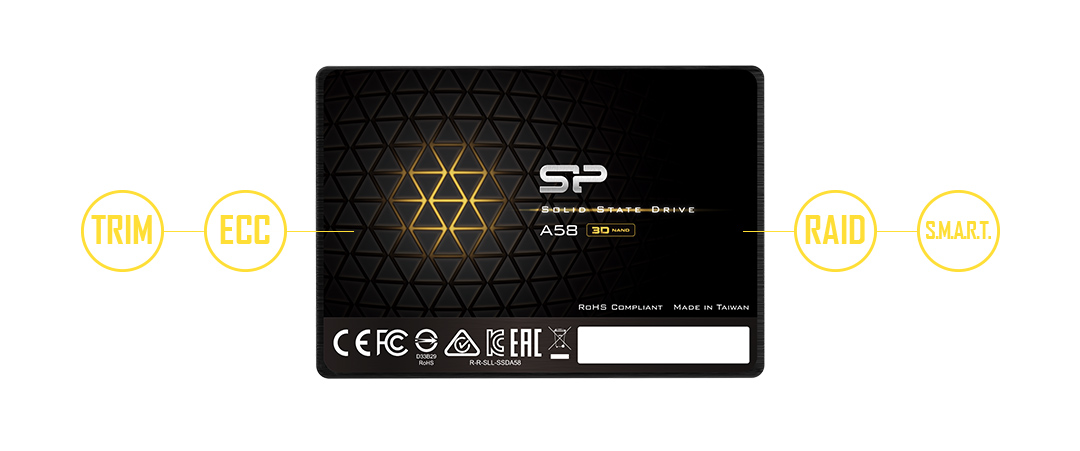

Because we do care about your data.

The A58 is one of the lightest and thinnest SSDs of its kind yet it is shock- and vibration-proof, because it contains no moving parts. Equipped with a S.M.A.R.T. monitoring system and ECC (error correction code) technology, it also promises higher data transmission safet

SP Toolbox Software

Easily monitor your new SSD’s health with our free-download software – SP Toolbox. Run performance tests on the A58, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	MTBF (est)	Certification	Warranty	Extra Protection	Product Feature	⇅ 比較
SP128GBSS3A58A25	128GB	100.0x69.9x7.0 mm	63g	SATA III	SATA	460 MB/s	360 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SP256GBSS3A58A25	256GB	100.0x69.9x7.0 mm	63g	SATA III	SATA	460 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SP512GBSS3A58A25	512GB	100.0x69.9x7.0 mm	63g	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SP001TBSS3A58A25	1TB	100.0x69.9x7.0 mm	63g	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SP002TBSS3A58A25	2TB	100.0x69.9x7.0 mm	63g	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SP004TBSS3A58A25	4TB	100.0x69.9x7.0 mm	63g	SATA III	SATA	n/a	n/a	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SU128GBSS3A58A25CA	128GB	100.0x69.9x7.0 mm	63g	SATA III	SATA	460 MB/s	360 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 時間	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SU256GBSS3A58A25CA	256GB	100.0x69.9x7.0 mm	63g	SATA III	SATA	460 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 hours	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SU512GBSS3A58A25CA	512GB	100.0x69.9x7.0 mm	63g	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 hours	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加
SU001TBSS3A58A25CA	1TB	100.0x69.9x7.0 mm	63g	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	1,500,000 hours	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3年保証 *SSDの保証は TBW値以内、もしくは保証期間内となります。Silicon Powerの保証規定に関しての詳しい情報はこちらをご確認ください。	n/a	n/a	比較に追加

Capacity	128 GB, 256 GB, 512 GB, 1 TB, 2 TB, 4 TB, 8 TB, 16 TB
Dimensions	100.0 x 69.9 x 7.0 (mm)
Interface	SATA III
Weight	63.0g
Performance Read(max.)	128GB: 460 MB/s 256GB: 460 MB/s 512GB: 500 MB/s 1TB: 500 MB/s 2TB: 500 MB/s 8TB: 500 MB/s 16TB: 500 MB/s
Performance Write(max.)	128GB: 360 MB/s 256GB: 450 MB/s 512GB: 450 MB/s 1TB: 450 MB/s 2TB: 450 MB/s 8TB: 450 MB/s 16TB: 450 MB/s
Operation Voltage	5V
MTBF (est)	1,500,000 hours
Vibration Resistance Test	20 G
Shock Resistance Test	1500G Max
Certification	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC
Warranty	3 years
Note	Performance result may vary, depending on system platform, software, interface and capacity

名前

言語

ファイル形式

バージョン

更新日

ファイルダウンロード

SP Ace A58 SATA III SSD

PDF.

v1.0
