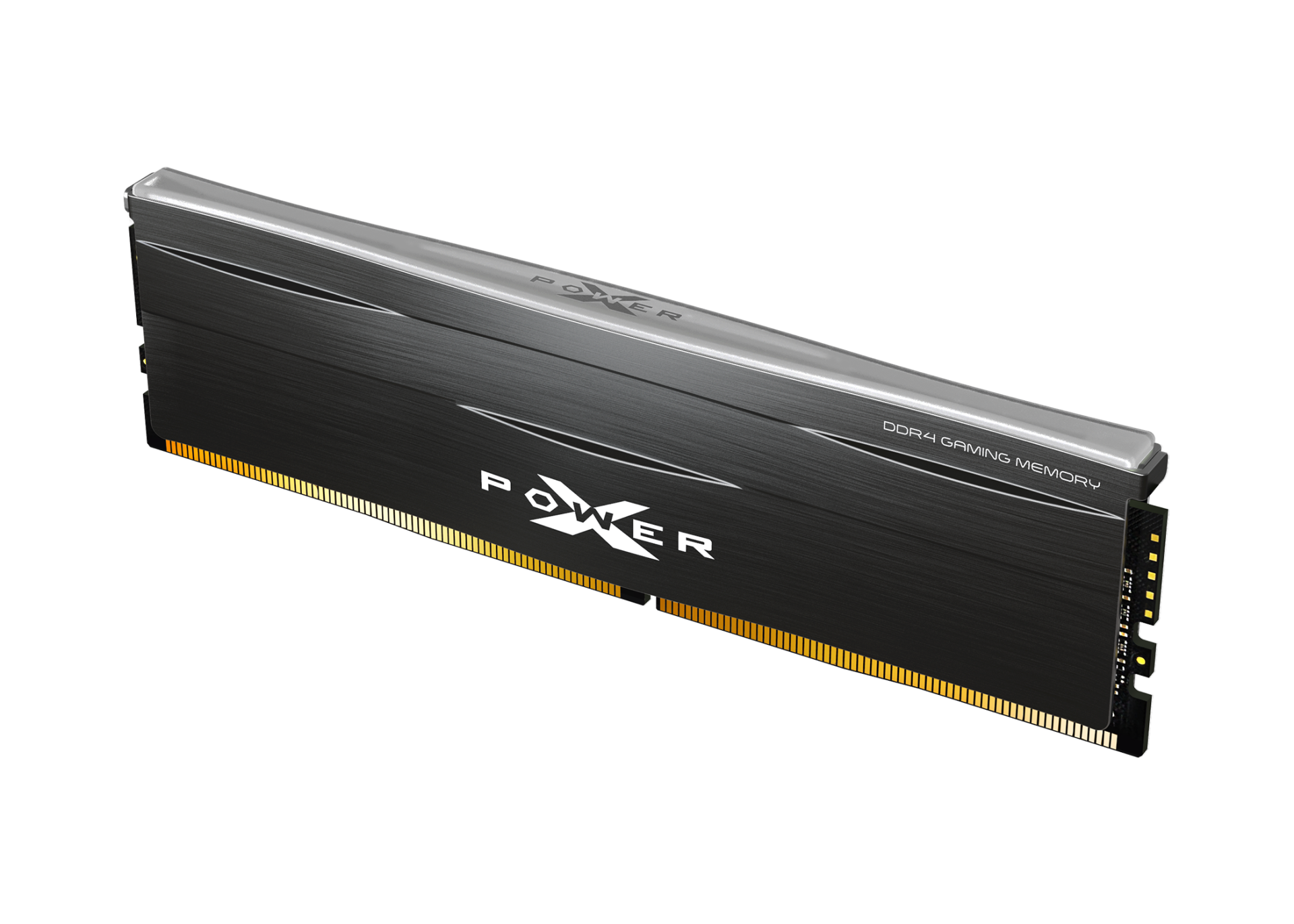

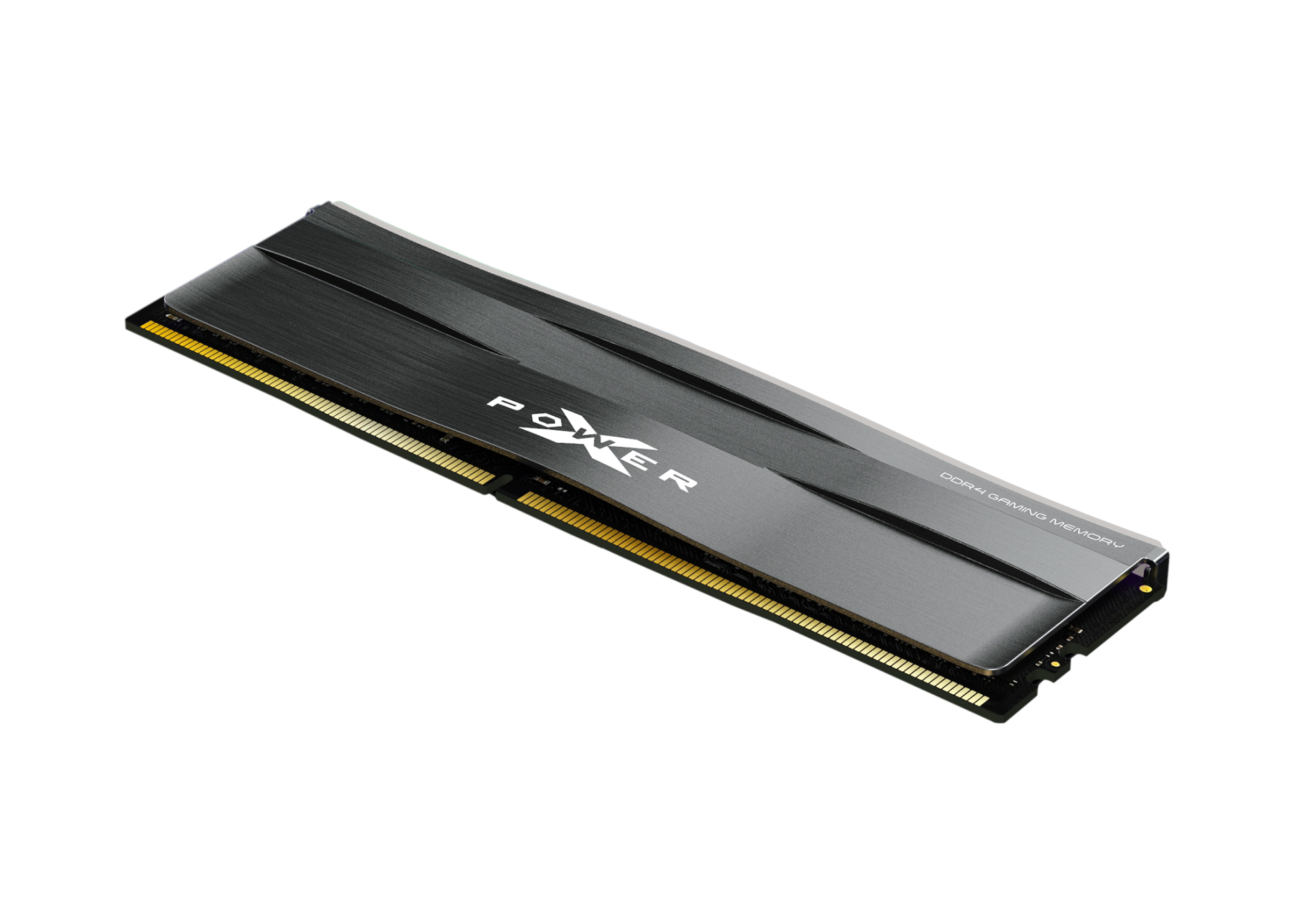

XPOWER Zenith DDR4 Gaming UDIMM

• High-quality gaming memory module built for hardcore gamers
• Blazing speeds ranging from 3200MT/s to 3600MT/s with almost zero lag time allow for maximum DDR4 performance
• 100% tested for stability, durability, and compatibility on major motherboard brands
• Durable aluminum heat spreader provides maximum heat dissipation and thermal management
• Supports Intel® Extreme Memory Profile (Intel® XMP) Standards
• Up to 10-layer PCBs to ensure stability and reliability
• Low voltage of 1.35V for less power consumption

Expand

Product Introduction
Product Specifications
File Download
Purchase

Optimized For Hardcore Gamers And Modders

Ranging from blazing speeds of 3200MT/s to 3600MT/s with low 1.35V power consumption, the Zenith allows for gameplay at the highest settings with automatic overclocking. Its fully optimized testing ensures complete compatibility on most leading high-end motherboards to support the most hardcore gamers and modders.

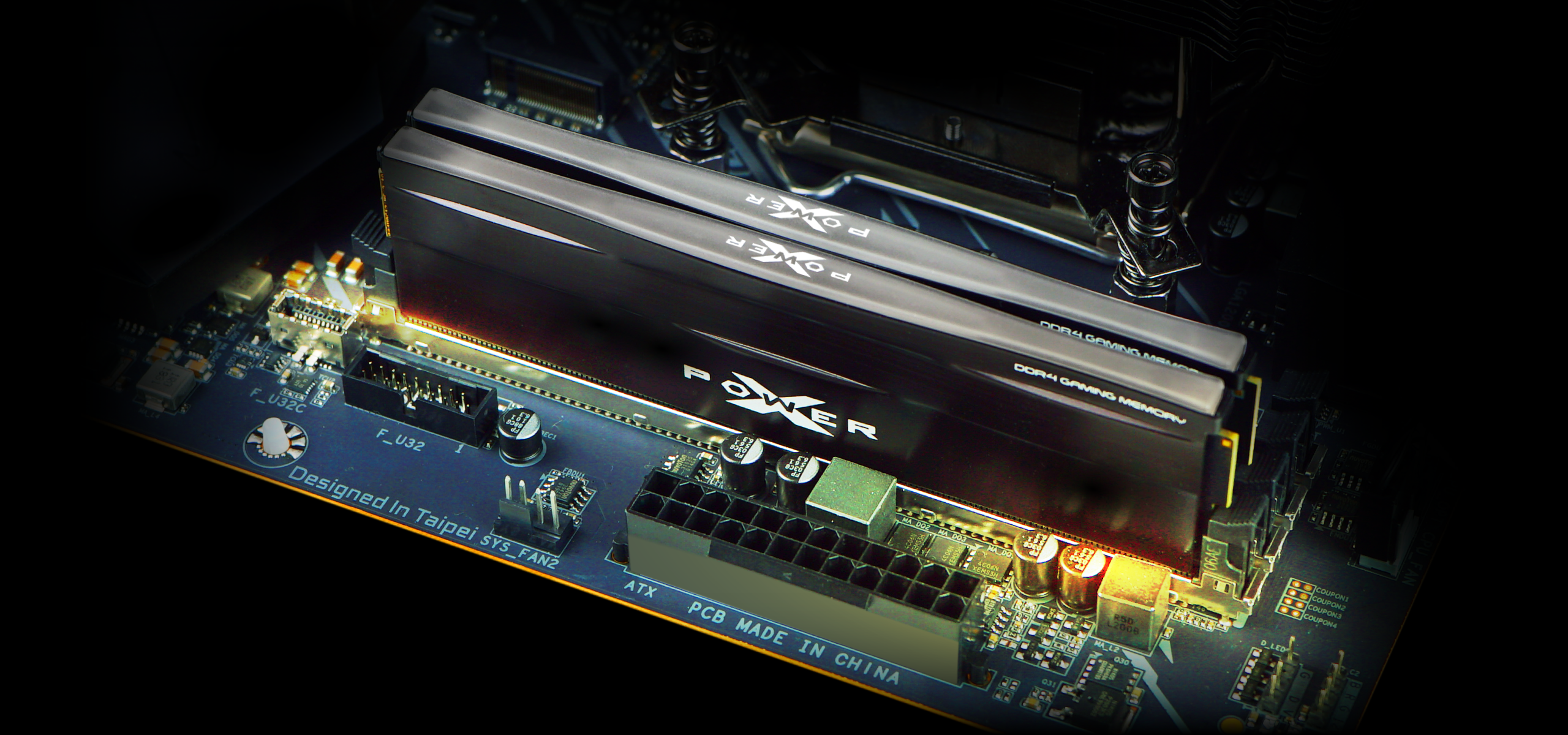

A Sharp Design That Stays Cool

This iron grey colored heat spreader with a textured hairline finish results in a sharp and eye-catching design that is balanced by soft curves. The durable aluminum promotes maximum heat dissipation and thermal management, which prevents overheating and results in longer playtime.

Low Profile, High Performance

The Zenith was designed with a low profile to fit in compact set-ups, but it's packed with high performance. DDR4 technology is up to twice as fast as its predecessor, DDR3, delivering more bandwidth and more energy efficiency to push beyond standard limits.

Play To Your Heart's Content: Lifetime Warranty

The Zenith has up to 10 layers of PCBs for superior signal quality and is 100% factory-tested to guarantee high stability, durability, and compatibility. We are so confident that we back it with a lifetime warranty promising complete Silicon Power technical support and services. Play to your heart's content, worry free.

P/N	Memory Type	Capacity	Speed	Timing	Voltage	Dimensions	Weight	Color	Exterior dimensions	Warranty	⇅ Compare
SP008GXLZU360BSC	DDR4	8GB	3600MT/s	18-22-22-42	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP016GXLZU360FSC	DDR4	16GB	3600MT/s	18-22-22-42	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP016GXLZU360BSC	DDR4	16GB	3600MT/s	18-22-22-42	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP016GXLZU360BDC	DDR4	16GB	3600MT/s	18-22-22-42	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP032GXLZU360FDC	DDR4	32GB	3600MT/s	18-22-22-42	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP032GXLZU360BDC	DDR4	32GB	3600MT/s	18-22-22-42	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP008GXLZU320BSC	DDR4	8GB	3200MT/s	16-18-18-38	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP016GXLZU320FSC	DDR4	16GB	3200MT/s	16-18-18-38	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP016GXLZU320BSC	DDR4	16GB	3200MT/s	16-18-18-38	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP016GXLZU320BDC	DDR4	16GB	3200MT/s	16-18-18-38	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP032GXLZU320FDC	DDR4	32GB	3200MT/s	16-18-18-38	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare
SP032GXLZU320BDC	DDR4	32GB	3200MT/s	16-18-18-38	1.35V	133.4 x 38.5 x 8.0 mm	42g	Gray	UDIMM	Limited Lifetime Warranty	Add to compare

Capacity	Single Pack: 8GB, 16GB Dual Channel Kit: 16GB(8GB2), 32GB(16GB2)
Tested Speed	3200/3600 MT/s
Dimensions	133.4mm x 38.5mm x 8.0mm
Form Factor	UDIMM
CAS Latency	CL16-18-18-38(3200) / CL18-22-22-42(3600)
Voltage	1.35V
Patent	TW Patent No. D213586
Certification	CE, FCC, Green dot, WEEE, RoHS
Warranty	Limited Lifetime Warranty
Note	Please check that this product can fit in the desired memory slot position before making a purchase.

Name

Language

File Format

Version

Last Updated

File Download

XPOWER Zenith DDR4 Gaming UDIMM

PDF.

v2.0
