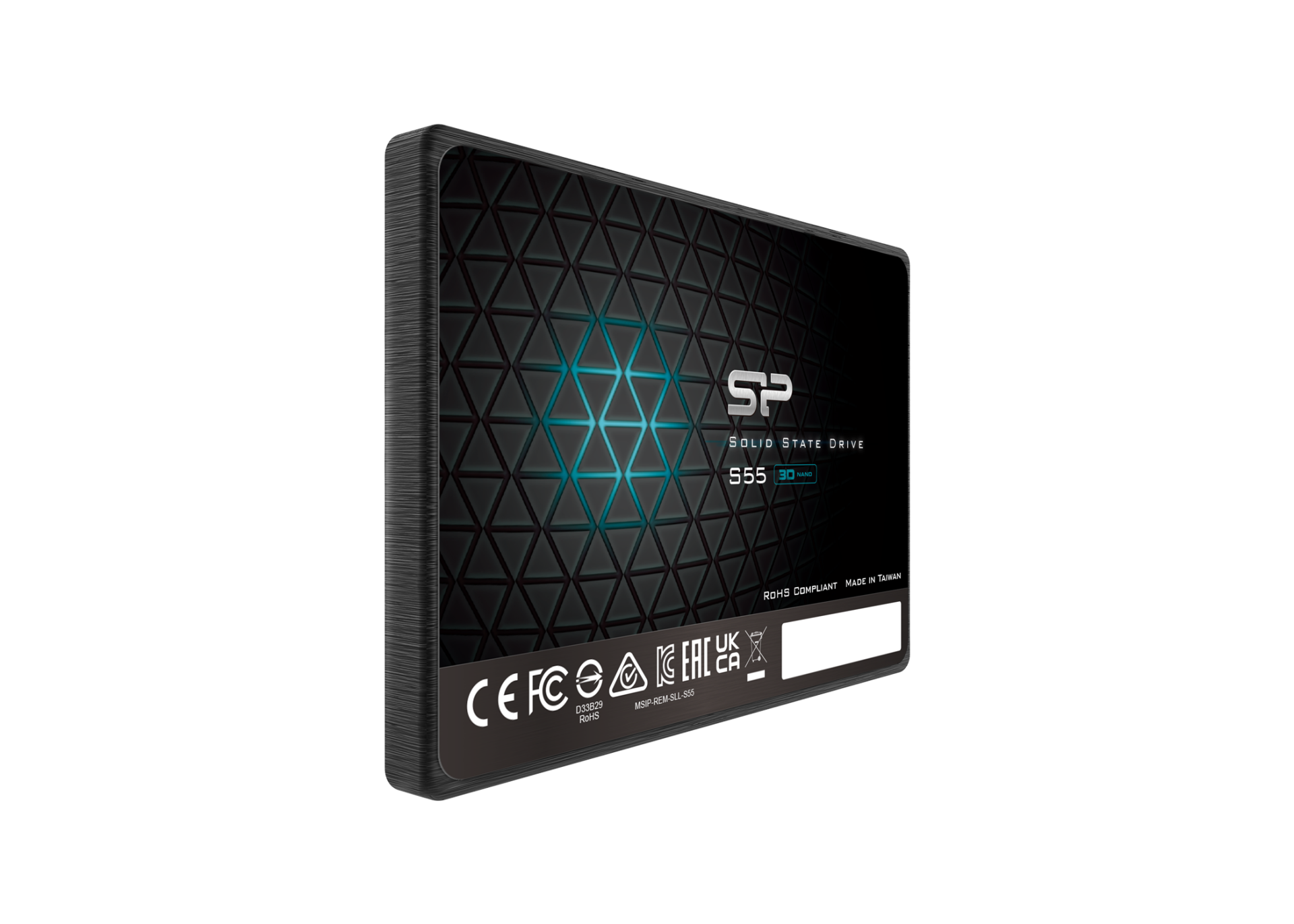

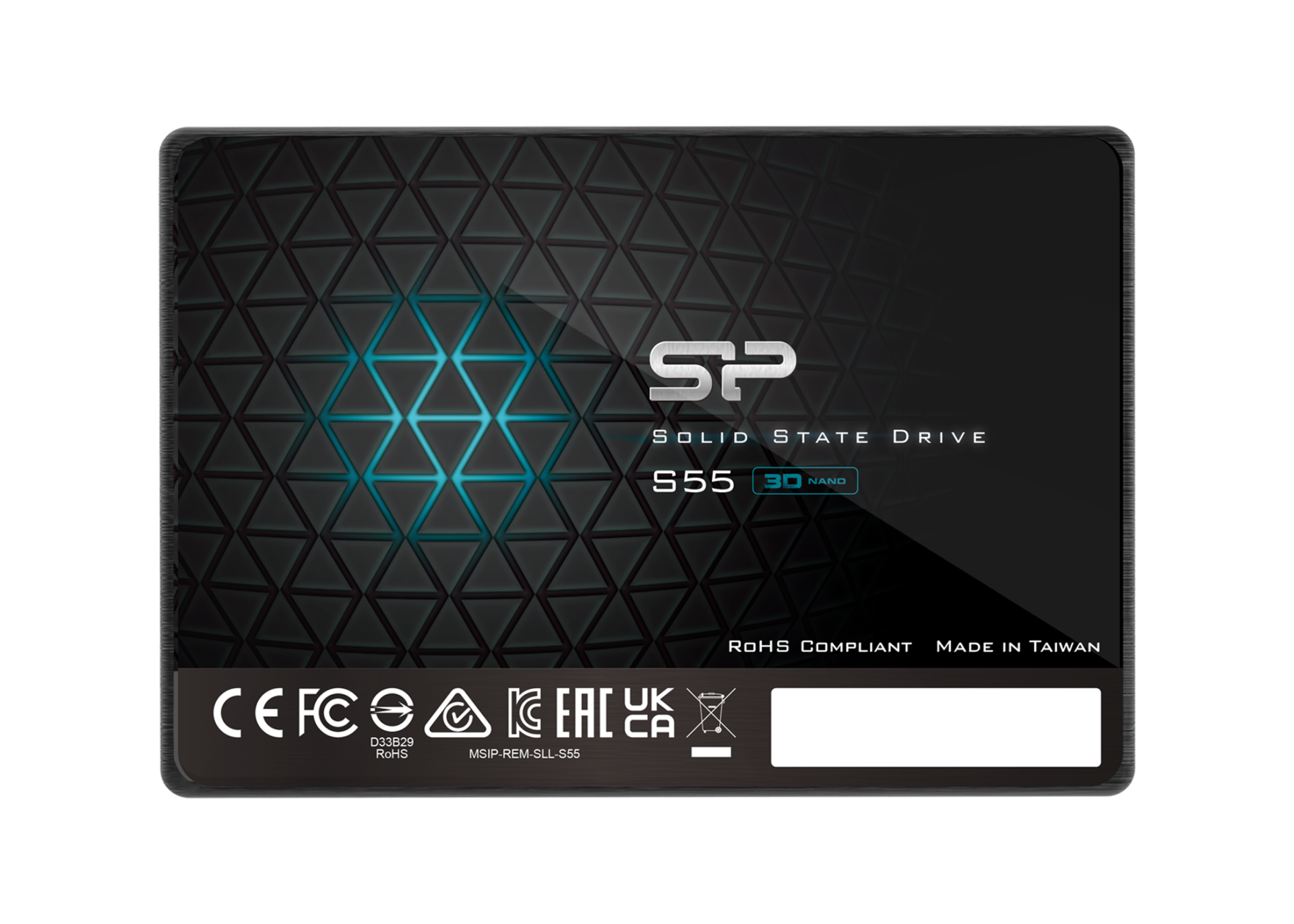

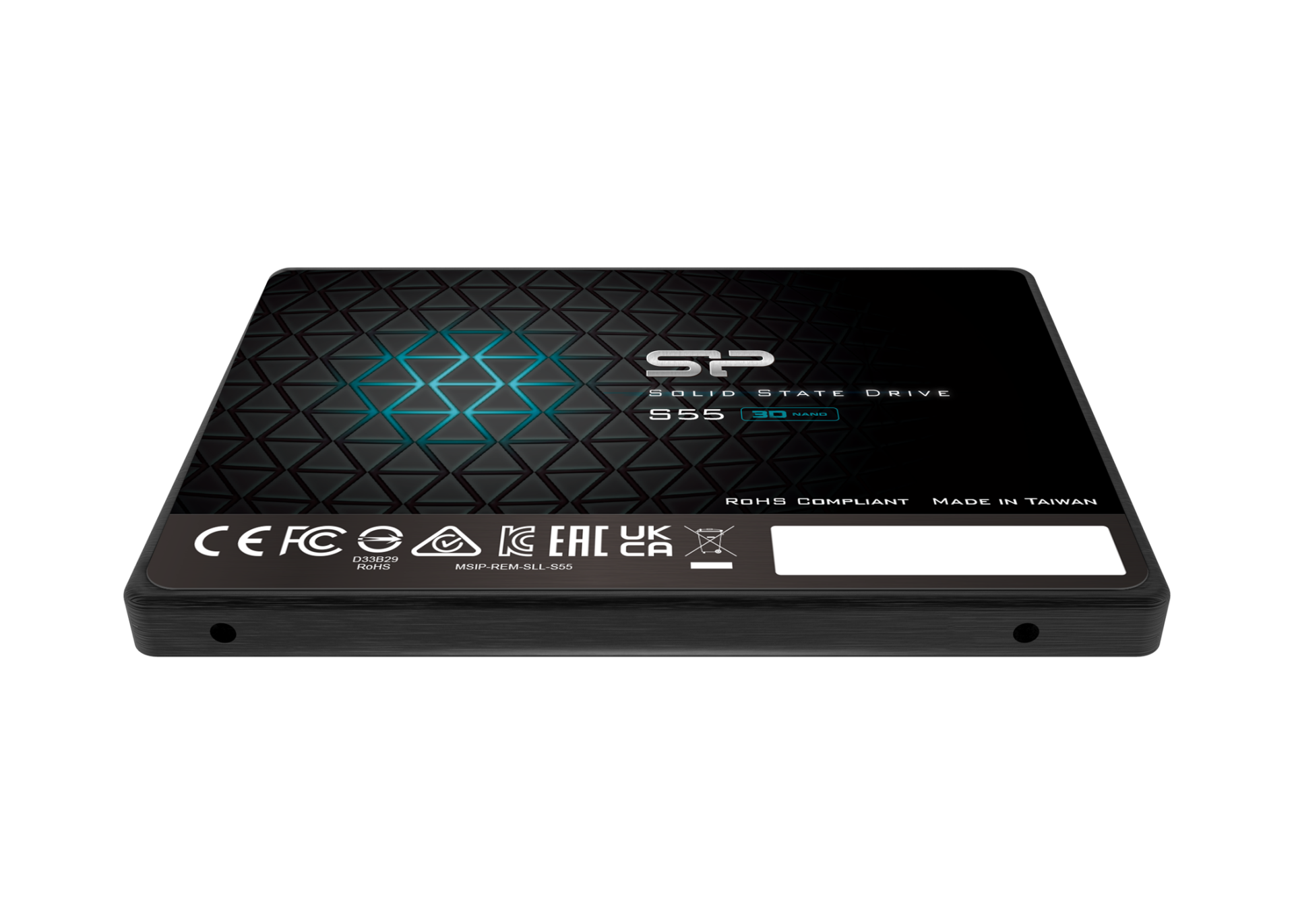

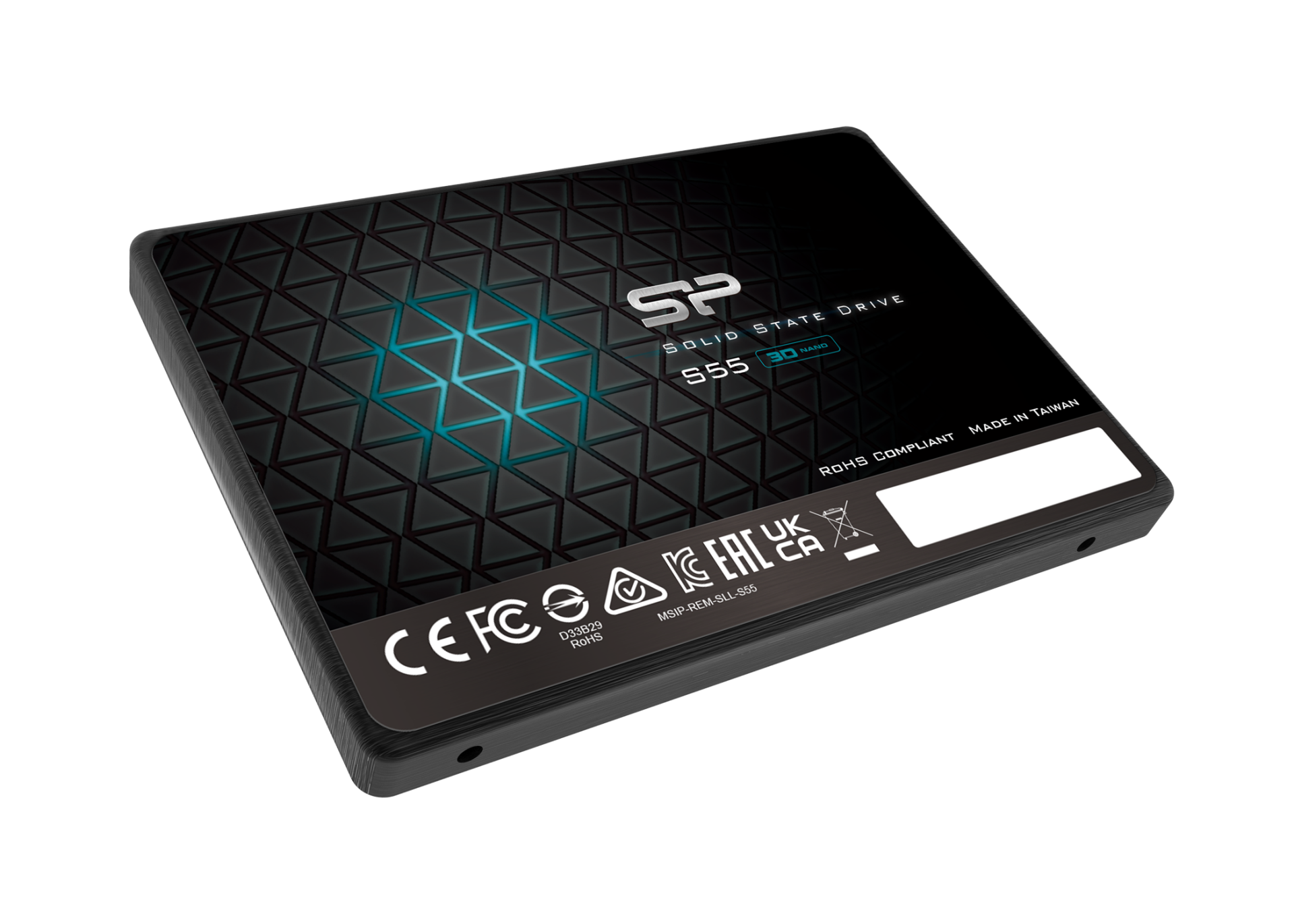

SP Slim S55 SATA III SSD

• Adopts 3D NAND FLASH and "SLC Cache Technology" to improve overall performance
• 15 x faster than a standard 5400 HDD*
• 7mm slim design suitable for ultrabooks and ultra-slim laptops
• Supports TRIM command and garbage collection technology
• NCQ and RAID ready
• ECC (error correction code) technology to guarantee reliable data transmission
• S.M.A.R.T. monitoring system
• Low power consumption, shock and vibration-proof, noiseless and low latency
• Free SP ToolBox software download for disk information such as self-monitoring analysis report, extent of consumption, and SSD diagnostics

Expand

Product Introduction
Product Specifications
File Download
Purchase

Affordable Upgrade for Everyone

A high-quality product for the budget-minded among us, the S55 is positioned as one of the most cost-effective SSD models. With its advanced SATA III 6Gb/s interface and an affordable price, you can now easily upgrade your old computer without spending a fortune.

Time is Money!
Don't Waste It

Still wasting precious time while booting your computer or loading applications? Then it's time to get rid of your old hard drive and switch to an SSD. Powered by SATA III 6Gb/s interface, the S55 is able to boot your computer or launch applications within seconds.

An Upgrade
as Easy as 1-2-3

Upgrading your computer is a piece of cake – you don’t need to be a techie to do it. Just follow these three easy steps:
Step 1. Backup your data to another storage device
Step 2. Remove the old HDD from your computer
Step 3. Insert the S55 in your computer.

Durability and Performance

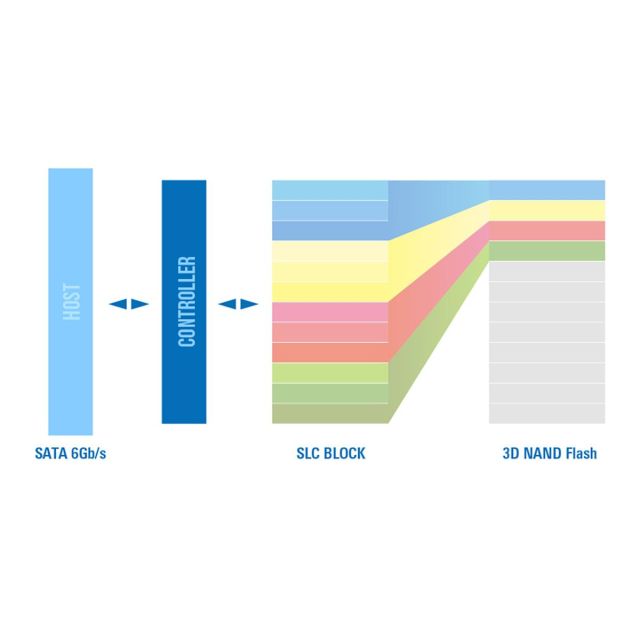

Equipped with an original controller and selected NAND flash, the S55 can not only guarantee stability and durability. It also delivers outstanding performance which enables 10-second quick boot-ups, shorter application load times and faster data transmission speed. Whether you are web surfing, enjoying a good movie, or have to handle paperwork, the S55 will bring you a smooth, lag-free experience.The S55 applies ”SLC Cache technology” with a new caching architecture that combines both SLC and 3D NAND FLASH blocks. This technology enables all data to be written in the SLC section before being sequentially copied to the 3D NAND FLASH block, and as a consequence allows for higher peak writing performance.

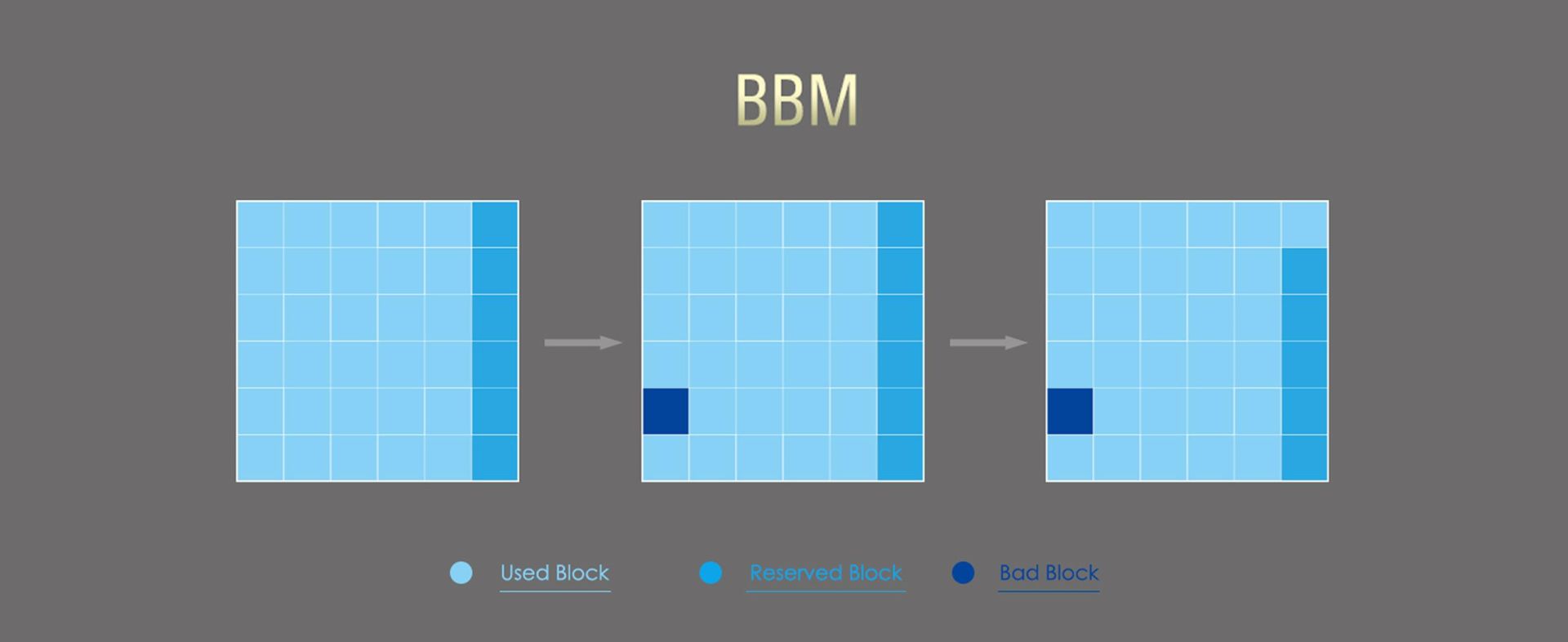

Bad Block management (BBM)

A bad block management (BBM) mechanism detects and marks bad blocks to avoid storage in those blocks and eliminate access errors. And, even if errors do occur in new blocks during an erase, this mechanism can move the data to other effective blocks to prevent data loss resulting from the failed erase.

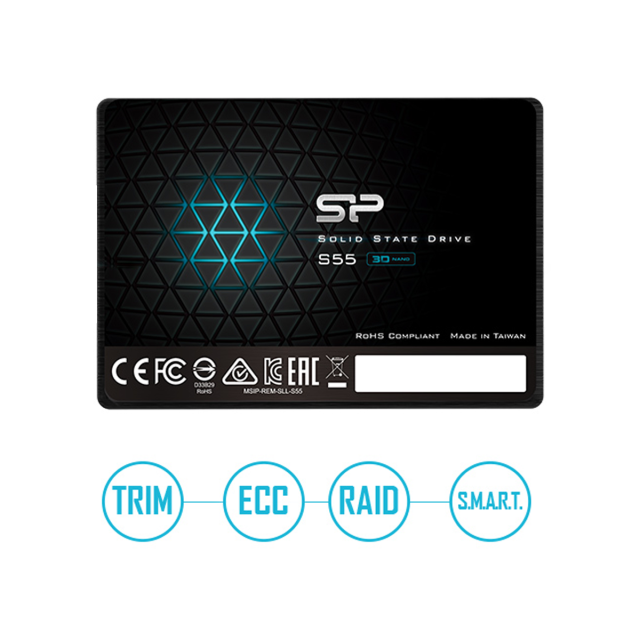

Light and S.M.A.R.T.

The S55 is one of the lightest and thinnest SSDs of its kind yet it is shock- and vibration-proof, because it contains no moving parts. Equipped with a S.M.A.R.T. monitoring system and ECC (error correction code) technology, it also promises higher data transmission safety.

Internal Auto-Copy Technology

The S55’s auto-copy technology allows automatic copy operations from the SLC cache to the 3D NAND FLASH blocks inside the NAND without using the controller or DDR. This supports higher efficiency by reducing the controller’s and DRAM’s workload.

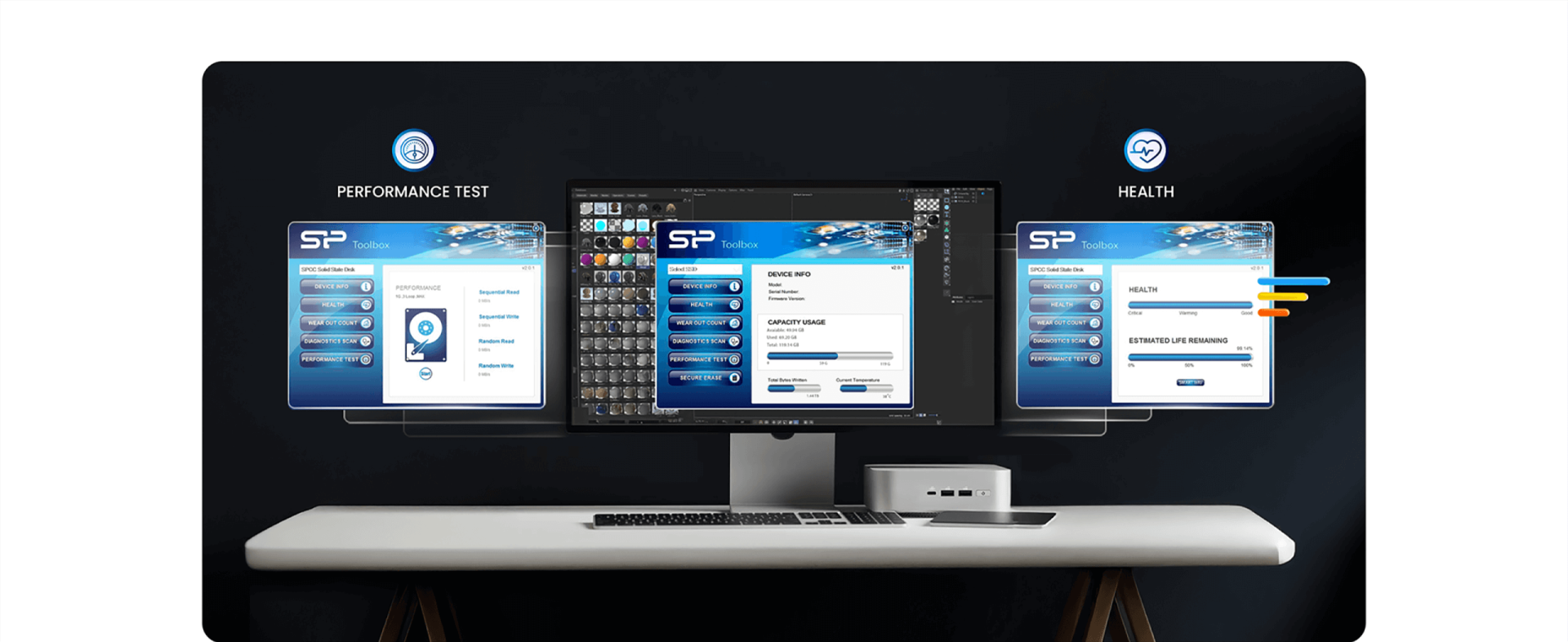

Free-Download of SSD Health Monitor Tool - SP Toolbox Software

Easily monitor your new SSD’s health with our free-download software – SP Toolbox. Run performance tests on the S55, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

*Based on “out-of-box performance” using a SATA Revision 3.0 motherboard. Performance result may vary, depending on system platform, software, interface, and capacity.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP120GBSS3S55S25	120GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	460 MB/s	360 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C - 70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP240GBSS3S55S25	240GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	460 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C - 70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP480GBSS3S55S25	480GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C - 70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP960GBSS3S55S25	960GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C - 70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	120GB, 240GB, 480GB, 960GB
Dimensions	100.0 x 69.9 x 7.0mm
Weight	63g (max.)
Interface	SATA III
Performance Read(max.)	120GB: 460 MB/s 240GB: 460 MB/s 480GB: 500 MB/s 960GB: 500 MB/s
Performance Write(max.)	120GB: 360 MB/s 240GB: 450 MB/s 480GB: 450 MB/s 960GB: 450 MB/s
Operation Voltage	5V
MTBF (est)	1,500,000 hours
Vibration Resistance Test	20G
Shock Resistance Test	1500G Max
Certification	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC
Warranty	3 years
Note	Performance results may vary, depending on system platform, software, interface, and capacity.
