SP SR30 Memory Card Reader

• 8 ports in one
• Supports pass-through charging up to 100W
• Universal compatibility with Mac, iPad, Chromebook, and PC
• Fast data transfer speed
• HDMI 4K @ 60Hz port

Expand

Product Introduction
Product Specifications
File Download
Purchase

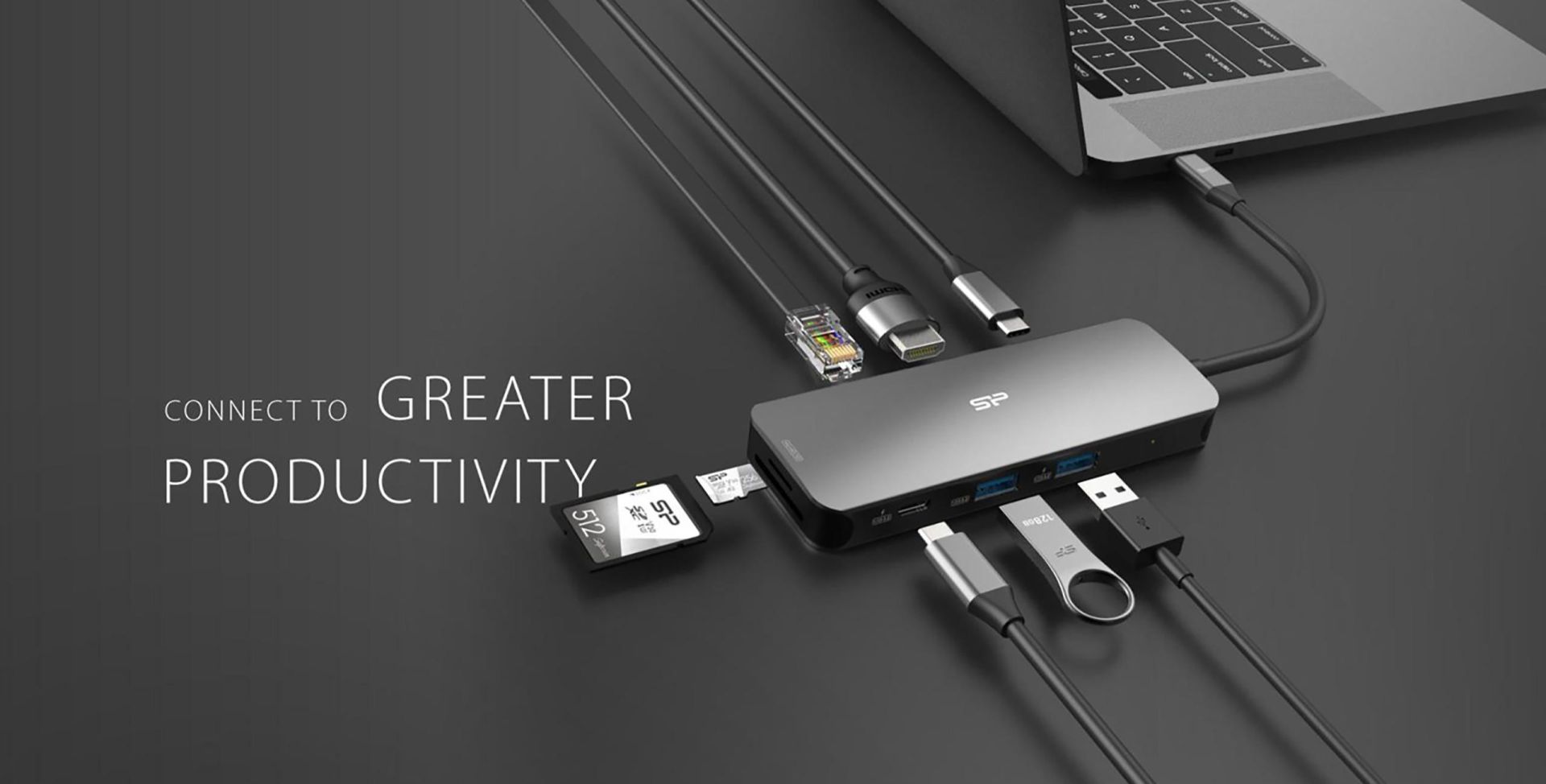

Compact and Efficient Solution

Meet the SR30 8-in-1 USB-C Docking Station - a powerhouse of connectivity and the perfect all-in-one solution for connecting your USB-C devices. Its compact design makes it ideal for use at home, in the office, or on-the-go between workstations. Simplify your connections with this versatile hub.

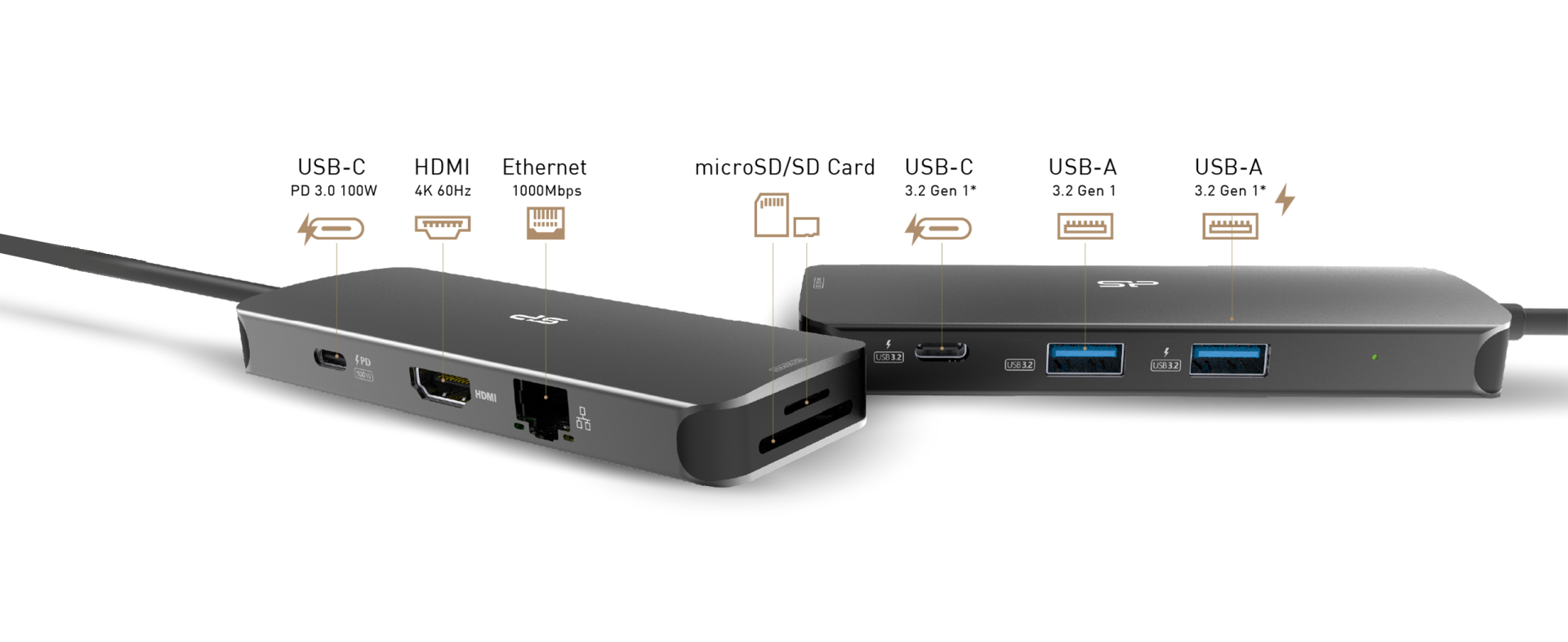

Multi-task with 8 Ports

The SR30 supports a USB-C 3.0 PD input port, a USB-C 3.2 Gen 1 port, 2 USB-A 3.2 Gen 1 ports, a 4K HDMI port, an Ethernet port, and 2 SD/microSD card slots. With such comprehensive options, you can easily and safely connect multiple devices at once.

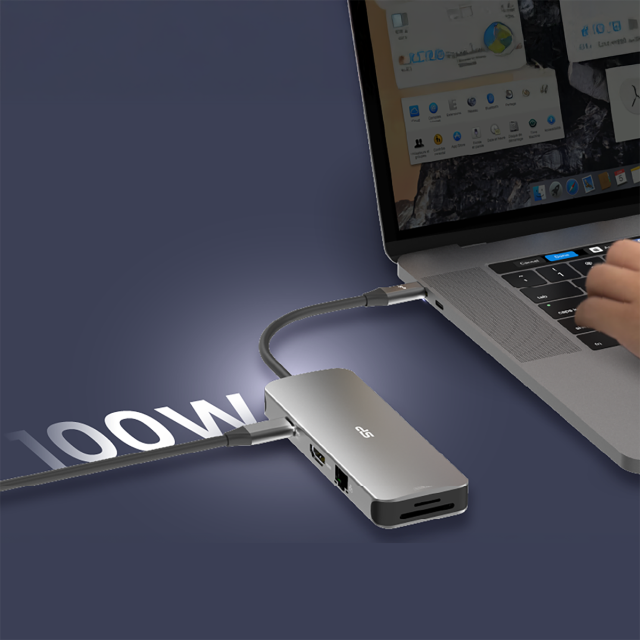

100W Pass-through Charging

Harness the power of up to 100W pass-through charging, providing abundant throughput for your laptop's power needs and lightning-fast charging.

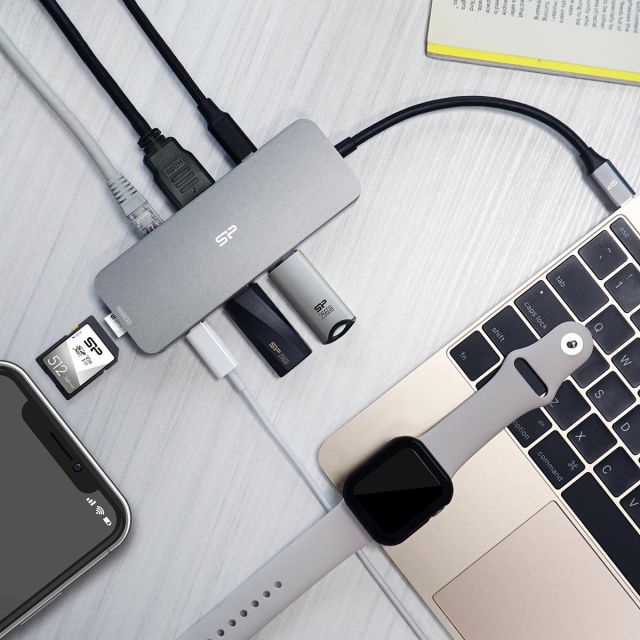

5Gbps Data Transfers

Experience flawless data delivery and enhanced productivity with speeds up to 5Gbps via the hub. Seamlessly connect to multiple devices, ensuring smooth operation and efficient data transfers.

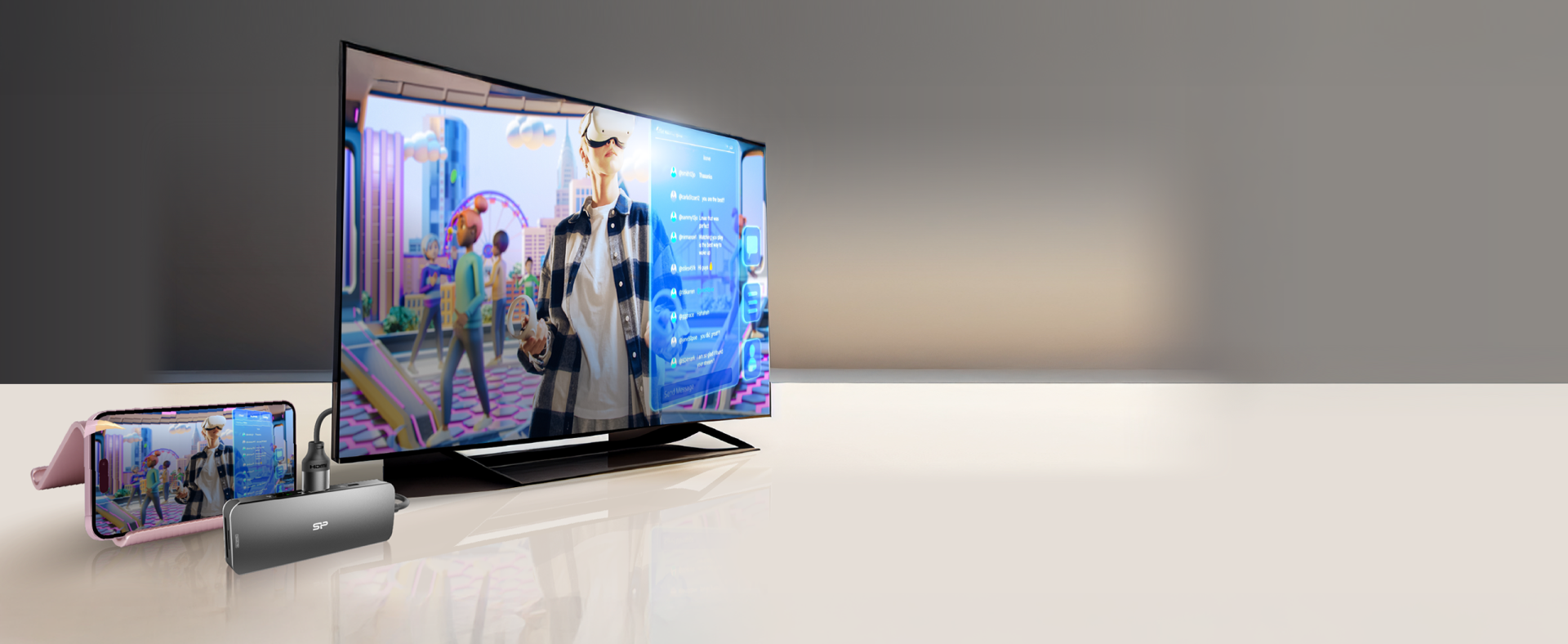

Stunning 4K Ultra HD Display

Take your visual experience to the next level with breathtaking 4K Ultra HD @60Hz resolutions for videos and images that will captivate your senses.

Stunning 4K Ultra HD Display

Take your visual experience to the next level with breathtaking 4K Ultra HD @60Hz resolutions for videos and images that will captivate your senses.

P/N	Dimensions	Weight	Material	Color	Input	Output	Certification	Warranty	Operating Temperature	Storage Temperature	Supported Card Formats	Available Interface Input	Available Interface Output	Total Power Output	Cable Length	Protection	Interface	Performance	Read Write	Media Type	Supported OS	Connector Type	Operating Humidity	Data Transfer Speed	Transmission Distance	Bluetooth Version	Waterproof Certification	Supported Profile	Supported Function	Speaker Driver	Output Power	Speaker Sensitivity	Impedance	Frequency	Audio Codec	Communication Range	Talk Time	Music Time	Standby Time	Battery Capacity	charging-input	Charging Time	Battery Type	Type	⇅ Compare
SPU3C08DOCSR300G	123 x 45.5 x 15 mm	95.8g	Aluminum	Metallic Gray	n/a	n/a	CE,FCC,UKCA,KC,EAC	1.5-year-Limited	0°C - 70°C	-10°C - 70°C	microSD™，microSDHC™，microSDXC™ & microSD™ UHS-I	USB-C (USB 3.2 Gen 1)	2 x USB-A (USB 3.2 Gen 1) 1 x USB-C PD 3.0 100W (max.) 1 x USB-C 3.2 Gen 1 1 x HDMI 4K @ 60Hz 1 x SD Card 1 x microSD Card 1 x Gigabit Ethernet	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	< 85% (Non-Condensing)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Add to compare

Dimensions	123 x 45.5 x 15 (mm)
Weight	95.8g
Material	Aluminum
Input	USB-C (USB 3.2 Gen 1)
Output	2 x USB-A 3.2 Gen 1 1 x USB-C PD 3.0 100W (max.) 1 x USB-C 3.2 Gen 1 1 x HDMI 4K @ 60Hz 1 x microSD Card 1 x SD Card 1 x Gigabit Ethernet
Operating Temperature	0°C ~ 45°C
Storage Temperature	-10°C ~ 70°C
Operating Humidity	< 85% (Non-Condensing)
Certification	CE,FCC,UKCA,KC,EAC
Warranty	1.5 year Limited Warranty
Note	*1 USB-C 3.2 Gen 1 and 1 USB-A 3.2 Gen 1 port support both 5V/1.5A charging and data transfer.

Name

Language

File Format

Version

Last Updated

File Download

SP SR30 Memory Card Reader

PDF.

v1.0
