HOME Products Solid State Drives (SSDs) Internal SSD XPOWER XS70 NVMe™ SSD

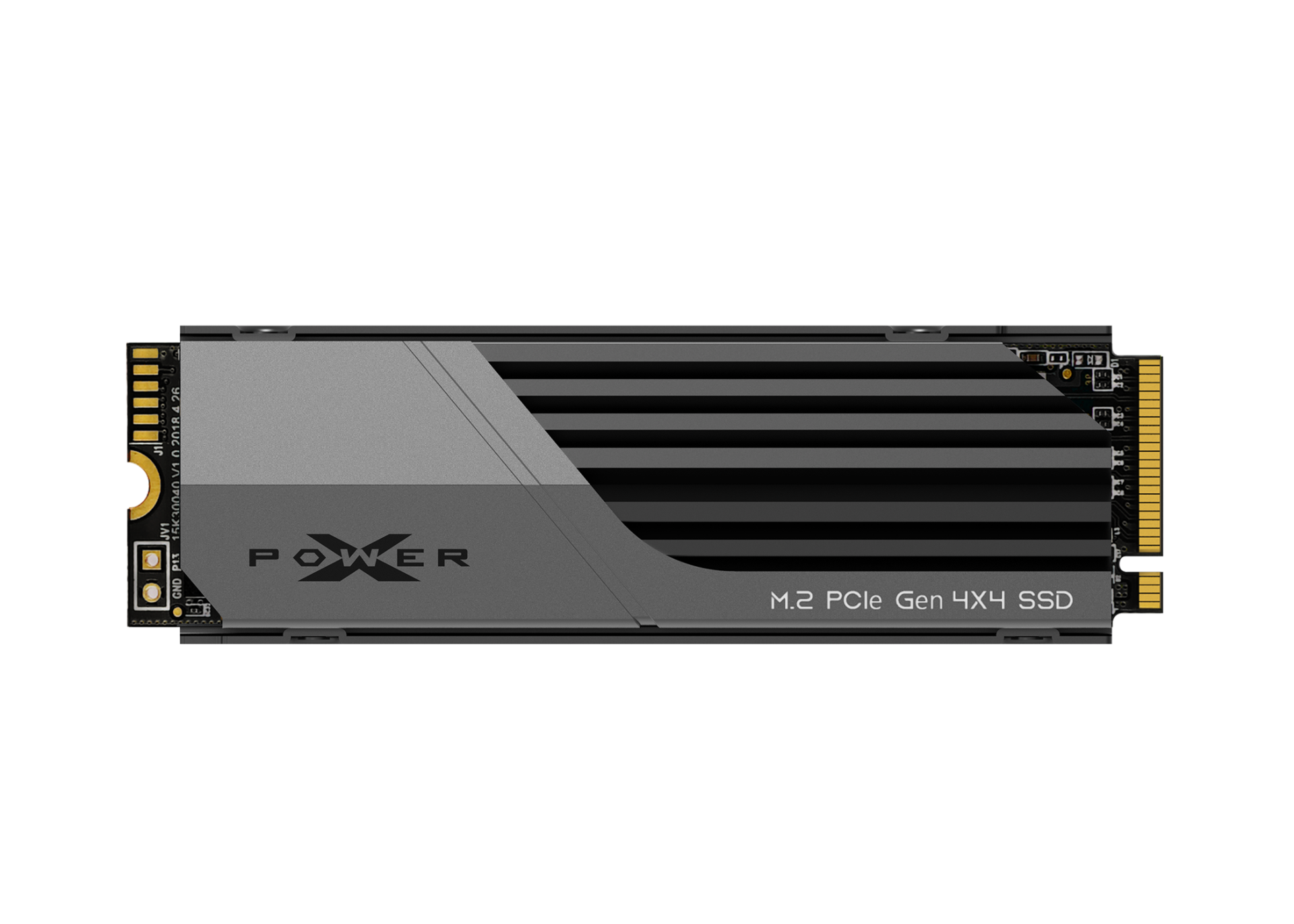

siliconpower-SSD-XS75-2100x1500_1

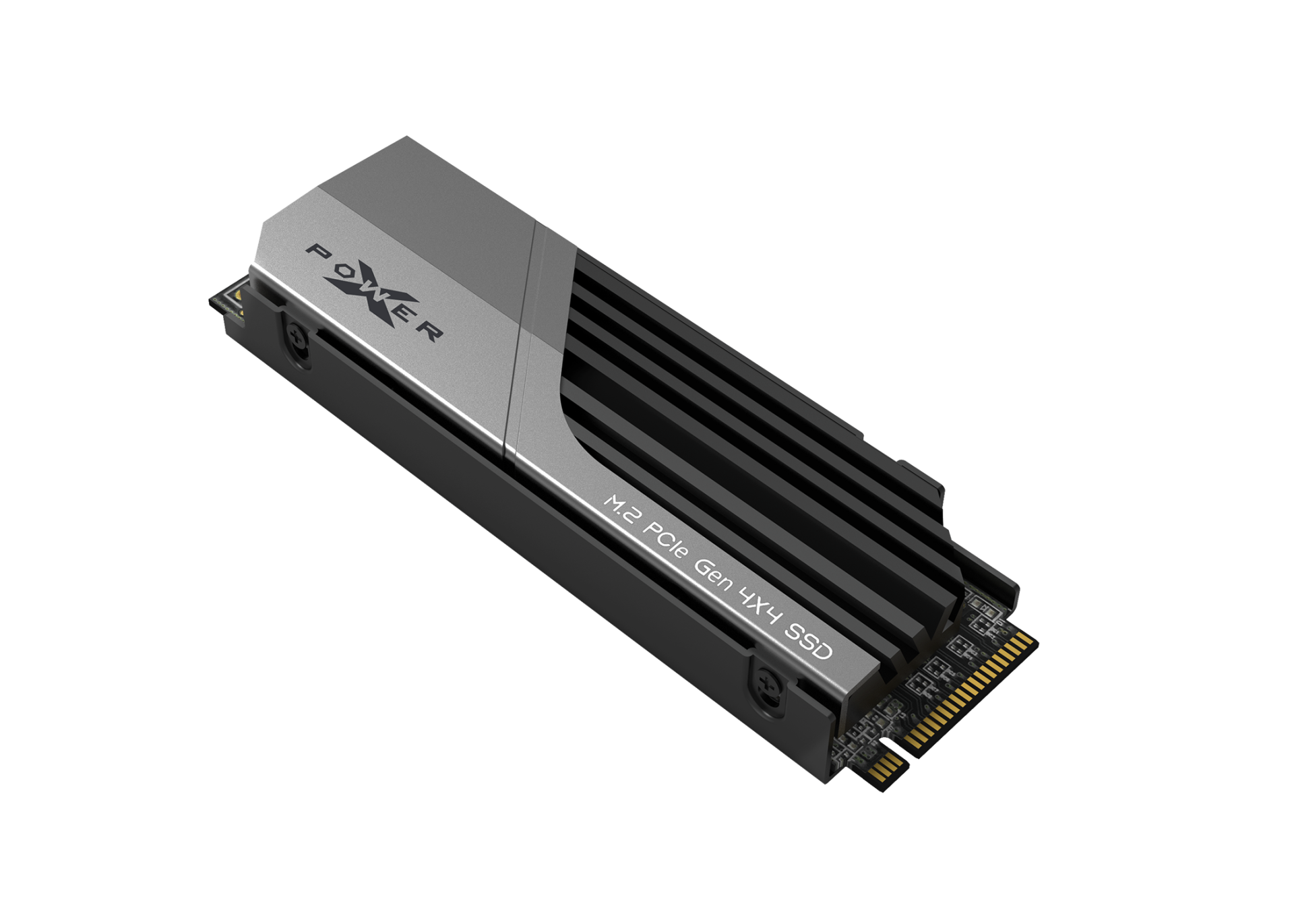

siliconpower-SSD-XS75-2100x1500_2

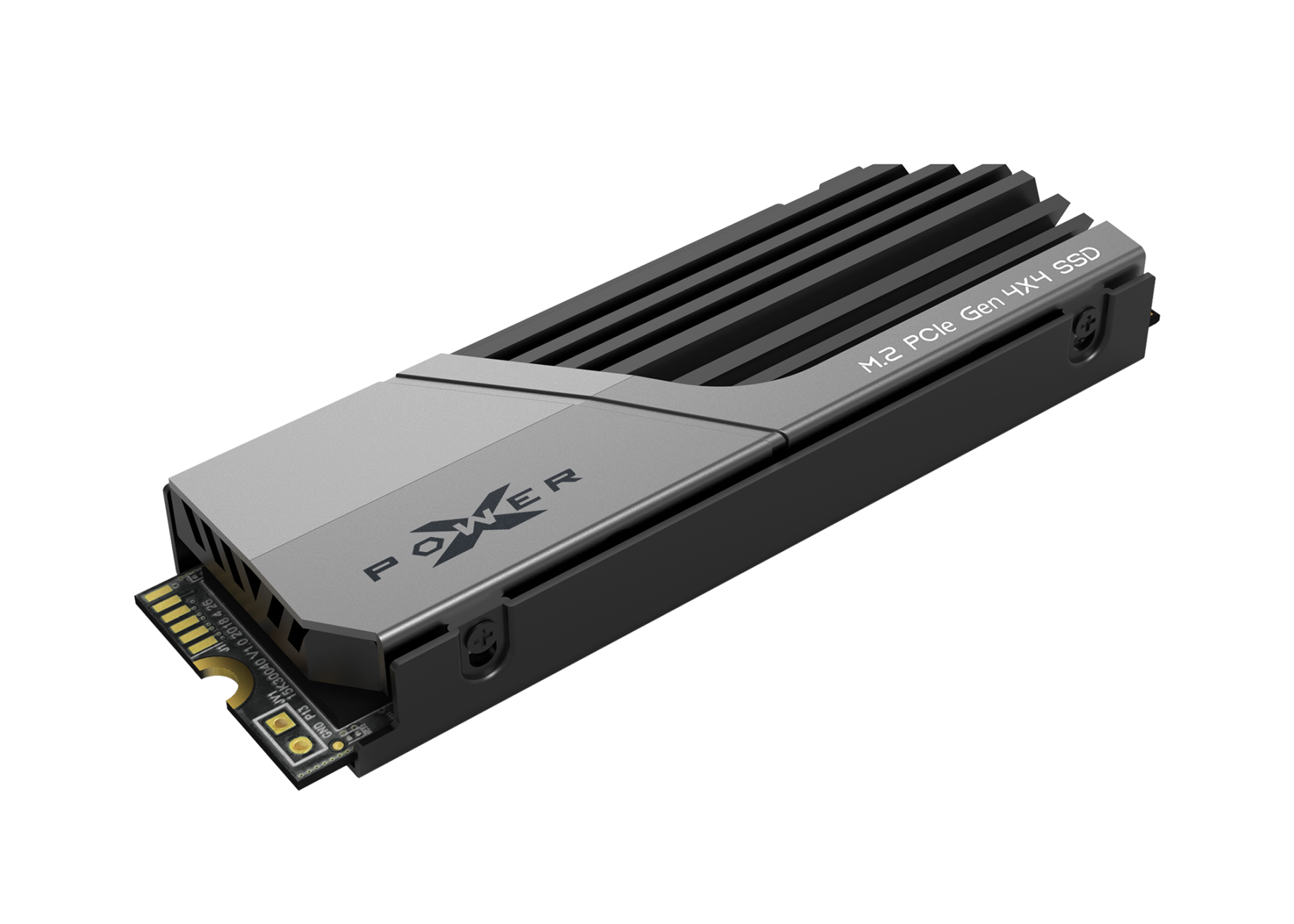

siliconpower-SSD-XS75-2100x1500_3

XPOWER XS70 NVMe™ SSD

• PCIe Gen 4x4 interface with read speeds up to 7,300MB/s and write speeds up to 6,800MB/s
• Compatible with PlayStation 5 for additional storage expansion
• Unique heatsink design provides maximum heat dissipation and thermal management
• NVMe 1.4 support allows for higher performance, lower latency, and lower power consumption
• Available in massive storage capacity options ranging from 1TB to 8TB
• Supports DRAM Cache Buffer for improved sequential read/write and random read/write performance
• Supports LDPC and RAID engine technology for enhanced data integrity and stability
• Small form factor M.2 2280 (80mm) allows for easy installation in laptops and small form factor PC systems
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics
GOOD DESIGN AWARD
German Reddot Design Award
Expand
The PCIe 4.0 That Crushes The Competition
With a standard data transfer rate that's 2x faster than the 3.0 version, the XS70 PCIe Gen 4x4 with 3D NAND flash memory and NVMe 1.4 support is exactly what serious gamers need to crush the competition. Mind-blowing continuous read and write speeds up to 7,300MB/s and 6,800MB/s, respectively, enable the XS70 to push the limits of what an SSD can do so you can break new records.
The PCIe 4.0 That Crushes The Competition
With a standard data transfer rate that's 2x faster than the 3.0 version, the XS70 PCIe Gen 4x4 with 3D NAND flash memory and NVMe 1.4 support is exactly what serious gamers need to crush the competition. Mind-blowing continuous read and write speeds up to 7,300MB/s and 6,800MB/s, respectively, enable the XS70 to push the limits of what an SSD can do so you can break new records.

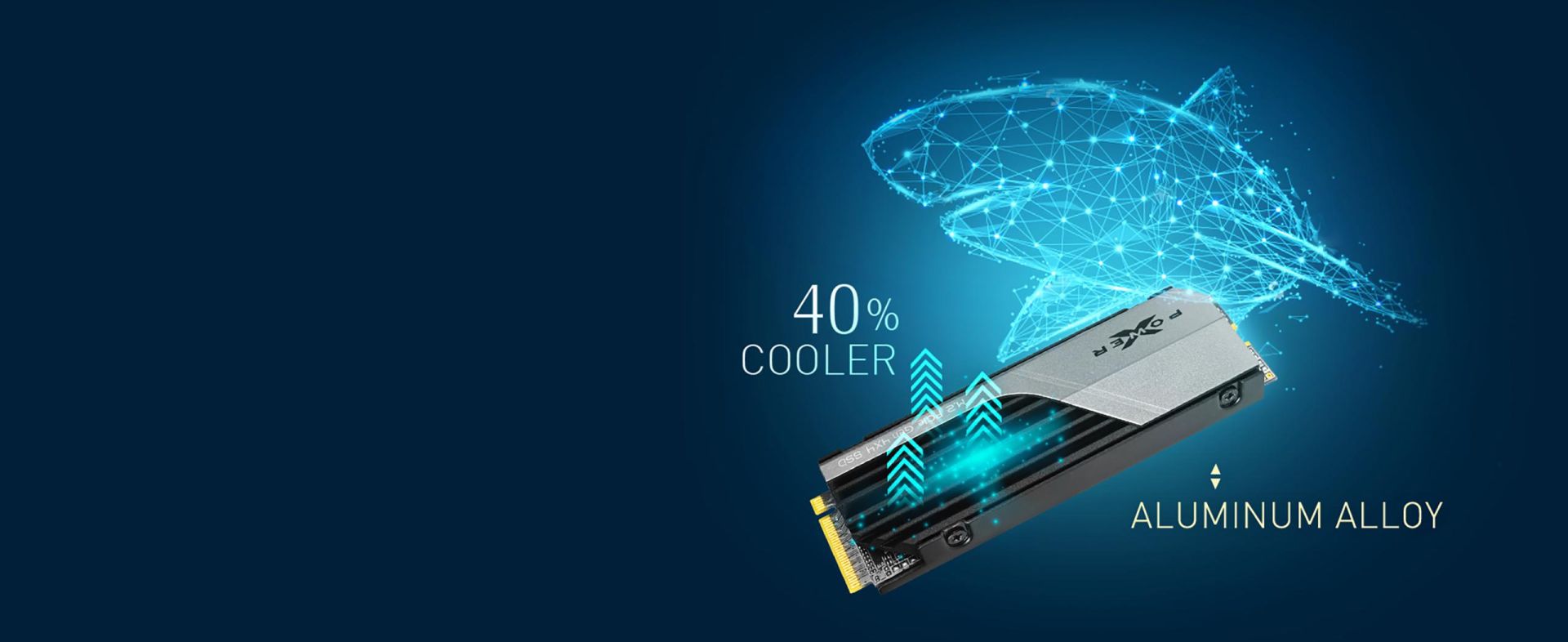

A Design That Breathes Like A Shark
Inspired by the gills of a shark, the XS70's unique heatsink design with carefully angled slits enables it to breathe during even the most intense gaming sessions. Heat easily ventilates out through the heatsink's gill-like slits to prevent overheating and maintain superior performance. The XS70 is not only as fierce as a shark on a performance level, but it can breathe like one too for longer and more stable gameplay!
A Design That Breathes Like A Shark
Inspired by the gills of a shark, the XS70's unique heatsink design with carefully angled slits enables it to breathe during even the most intense gaming sessions. Heat easily ventilates out through the heatsink's gill-like slits to prevent overheating and maintain superior performance. The XS70 is not only as fierce as a shark on a performance level, but it can breathe like one too for longer and more stable gameplay!

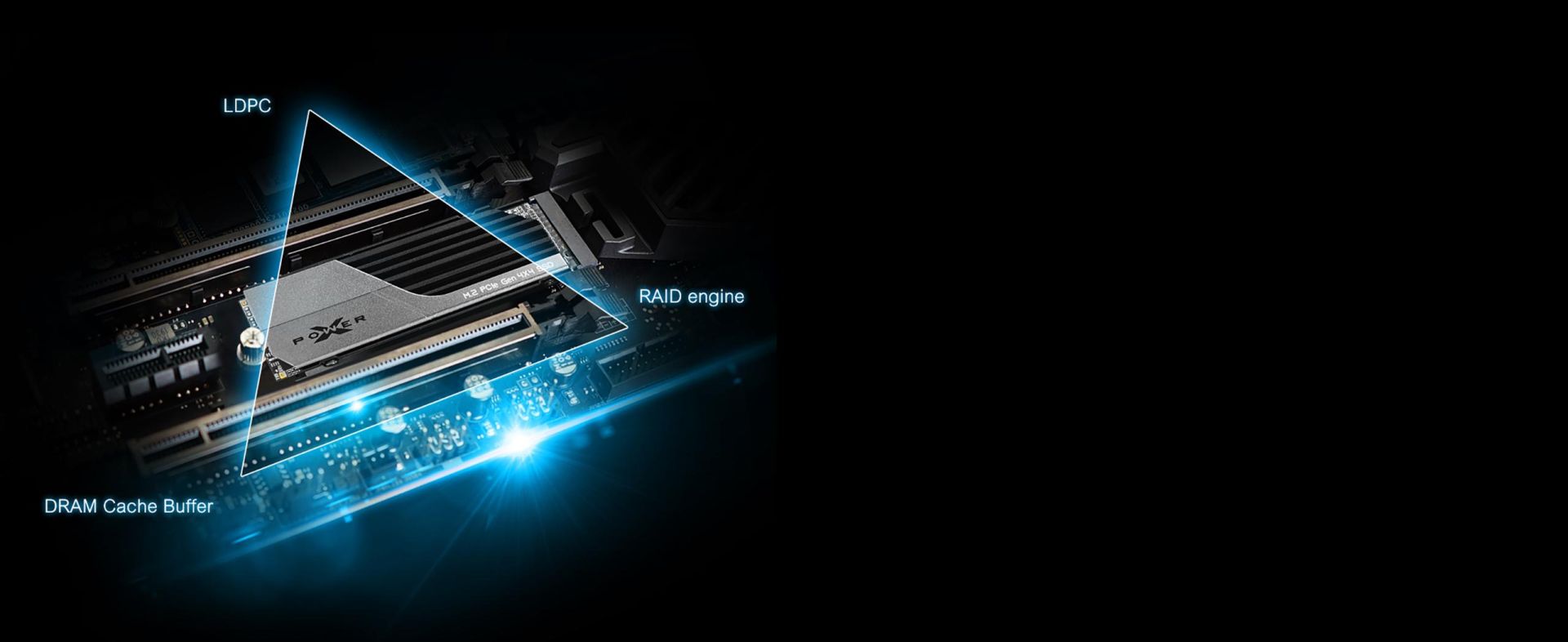

Powered By Multiple Technologies For Optimum Performance
In order to game to the extreme, the XS70 supports RAID technology and LDPC coding to maintain system stability and data integrity to deliver maximum and reliable performance. It also supports DRAM Cache Buffer for improved sequential read/write and random read/write performance.
Powered By Multiple Technologies For Optimum Performance
In order to game to the extreme, the XS70 supports RAID technology and LDPC coding to maintain system stability and data integrity to deliver maximum and reliable performance. It also supports DRAM Cache Buffer for improved sequential read/write and random read/write performance.

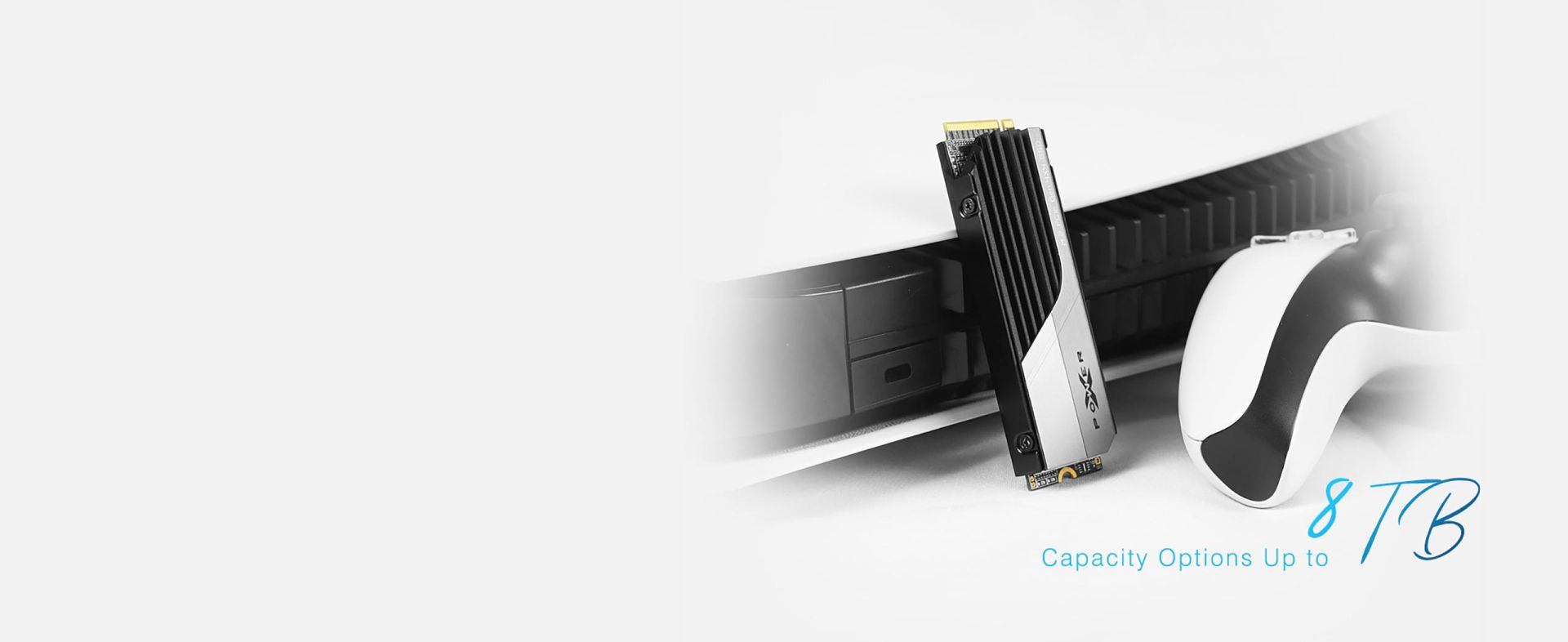

Extra Storage Space On The PS5
The XS70 is available in massive storage capacity options up to 8TB. Its size and performance specifications also meet PlayStation 5 console requirements, making it a simple solution to gain lots of extra storage space. With the XS70, there's no need to compromise old titles for new titles -- keep them all and build an impressive library.
Extra Storage Space On The PS5
The XS70 is available in massive storage capacity options up to 8TB. Its size and performance specifications also meet PlayStation 5 console requirements, making it a simple solution to gain lots of extra storage space. With the XS70, there's no need to compromise old titles for new titles -- keep them all and build an impressive library.

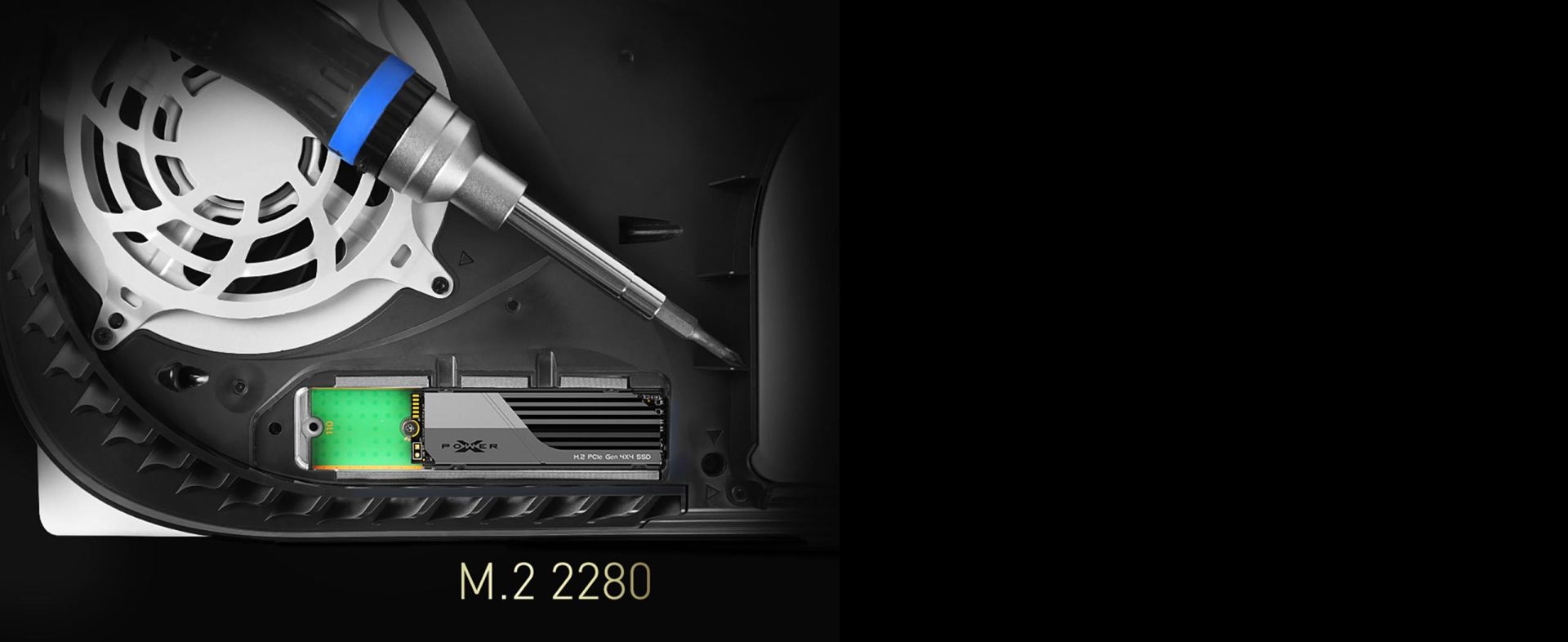

A Powerful System Upgrade With Room For More
With an M.2 2280 (80mm) form factor, the XS70's compact size allows for easy installation, while also saving space for other components. Coupled with its unparalleled performance and massive storage capacity options, it makes for an easy upgrade that's ready to handle the most heated matches against your opponents.
A Powerful System Upgrade With Room For More
With an M.2 2280 (80mm) form factor, the XS70's compact size allows for easy installation, while also saving space for other components. Coupled with its unparalleled performance and massive storage capacity options, it makes for an easy upgrade that's ready to handle the most heated matches against your opponents.

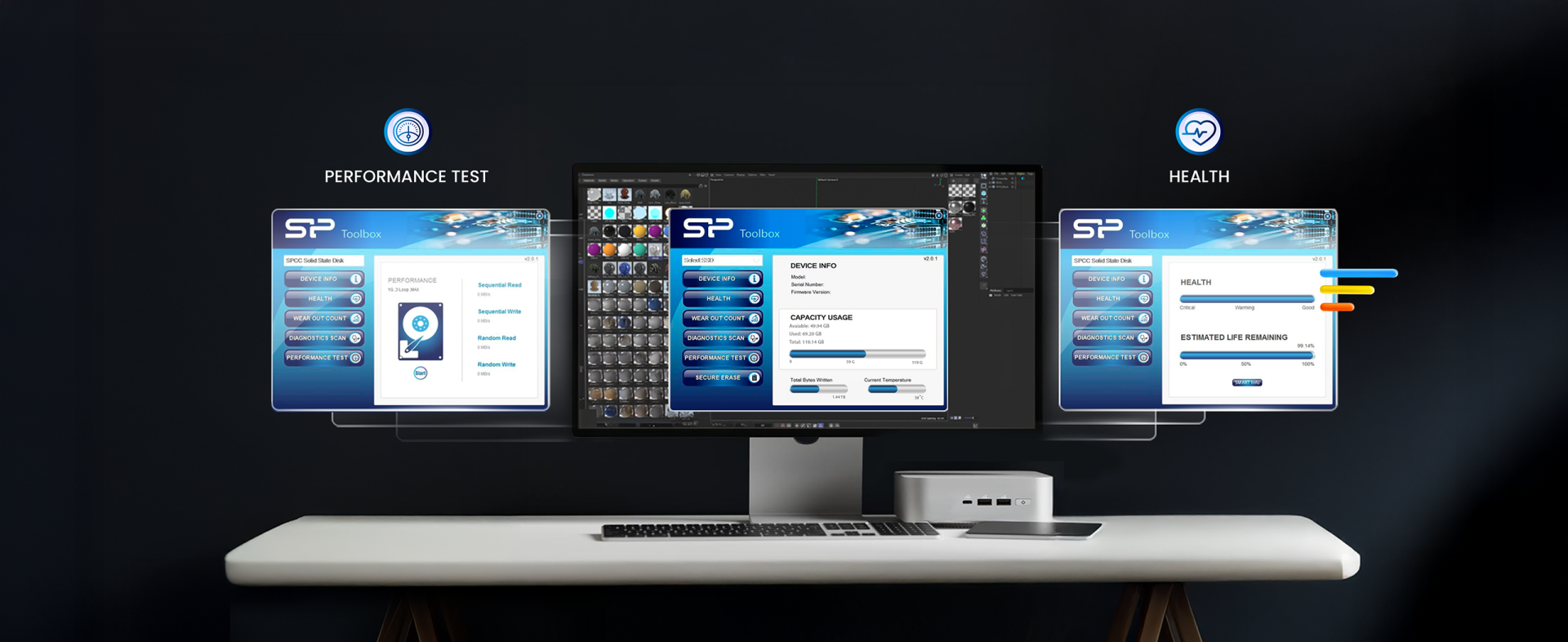

Free-Download of SSD Health Monitor - SP Toolbox
Easily monitor your new SSD's health with our free-download software – SP Toolbox. Run performance tests on the XS70, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.
P/N CapacityDimensionsWeightInterfaceConnectorsPerformance ReadPerformance WriteMaterialColorSupported OSSystem RequirementOperating TemperaturePatentCertificationWarrantyExtra ProtectionProduct Feature ⇅ Compare
SP01KGBP44XS7005 1TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,000MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP02KGBP44XS7005 2TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,800MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP04KGBP44XS7005 4TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,200MB/s 6,800MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP08KGBP44XS7005 8TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,600MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP01KGBP44XS7005US 1TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,000MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP01KGBP44XS7005SN 1TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,000MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP02KGBP44XS7005US 2TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,800MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP02KGBP44XS7005SN 2TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,300MB/s 6,800MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP04KGBP44XS7005US 4TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,200MB/s 6,800MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP04KGBP44XS7005SN 4TB 24.6mm x 80.0mm x 10.8mm 33g M.2 PCIe Gen 4x4 M.2 NVMe M Key 7,200MB/s 6,800MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C TW Patent No. D219236 CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare


Capacity

1TB, 2TB, 4TB, 8TB

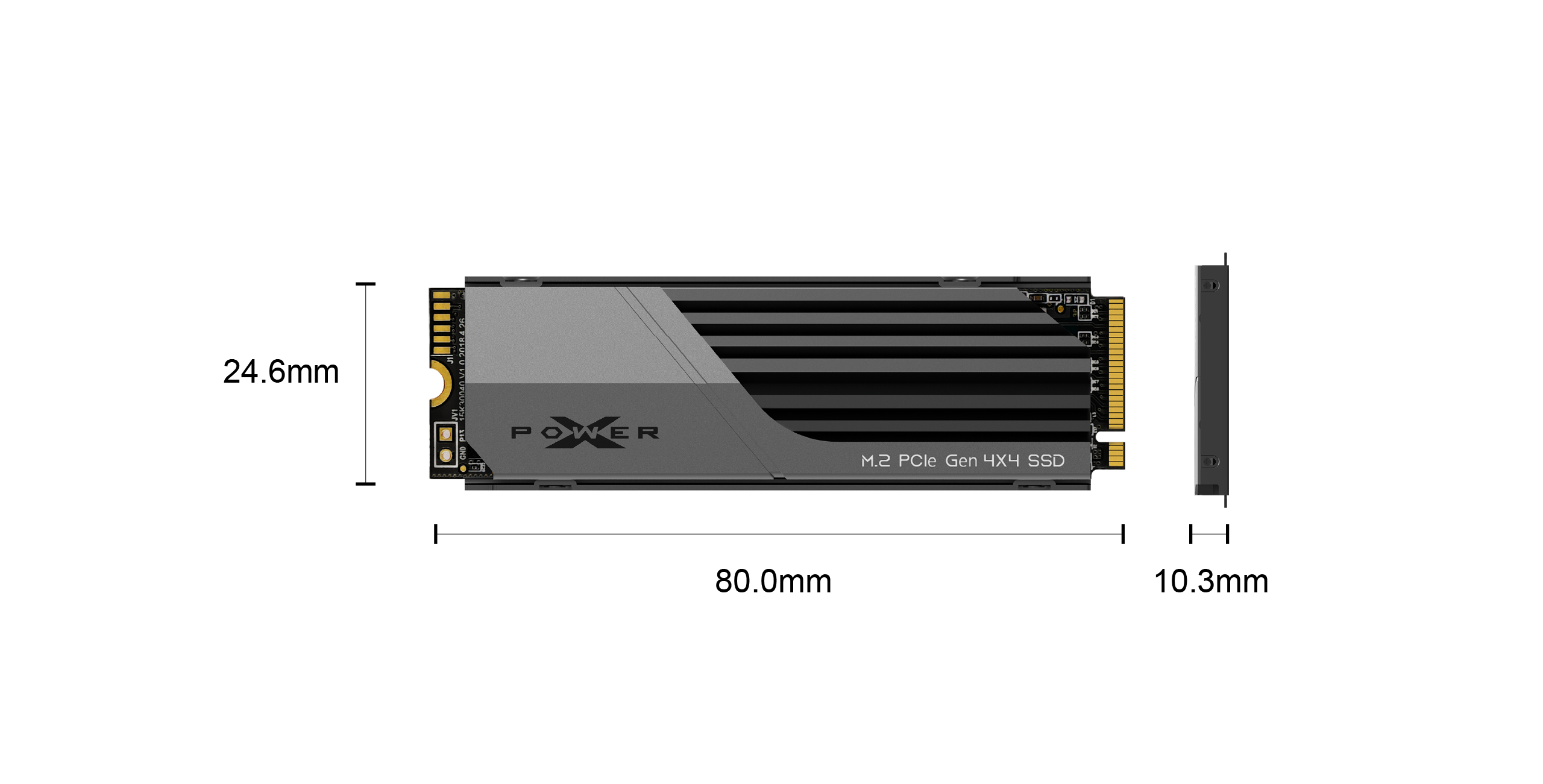

Dimensions 24.6mm x 80.0mm x 10.8mm
Weight 33g
Interface PCIe Gen 4x4
Performance Read(max.) 1TB: 7,300MB/s
2TB: 7,300MB/s
4TB: 7,200MB/s
8TB: 7,300MB/s
Performance Write(max.)

1TB: 6,000MB/s
2TB: 6,800MB/s
4TB: 6,800MB/s
8TB: 6,600MB/s
System Requirement Computer with M.2 slots supporting PCIe interface and an OS with NVMe support

Patent

 TW Patent No. D219236



MTBF (est)



 1,600,000 hours
Shock Resistance Test 1500G/0.5ms
Operating Temperature 0℃ ~ 70℃
Certification CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC
Warranty

5-year limited warranty
Note *Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity
*All trademarks, including brand names and images, are the property of their respective owners
Name
Language
File Format
Version
Last Updated
File Download
XPOWER XS70 NVMe™ SSD
EN
PDF.
v1.0
-
