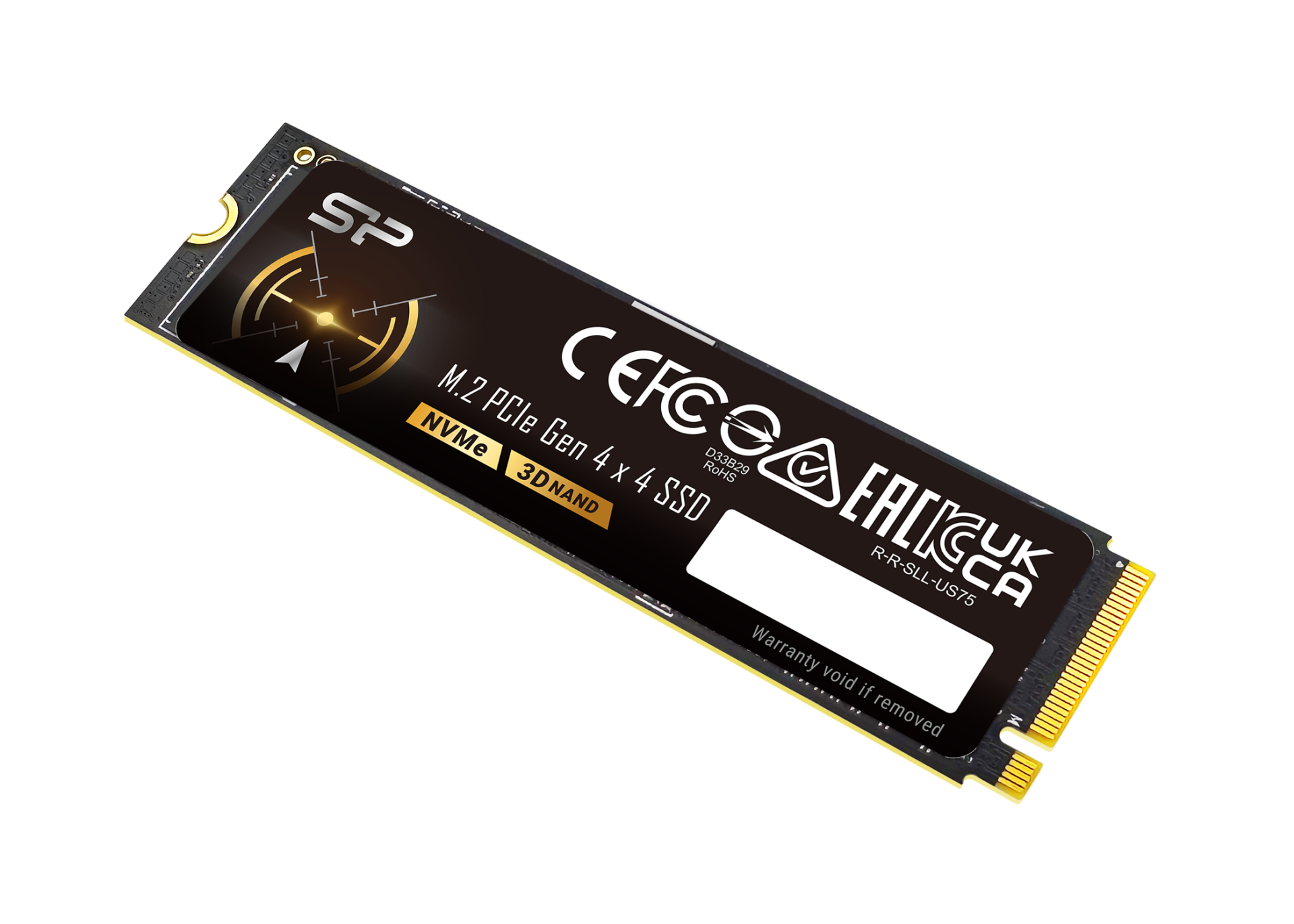

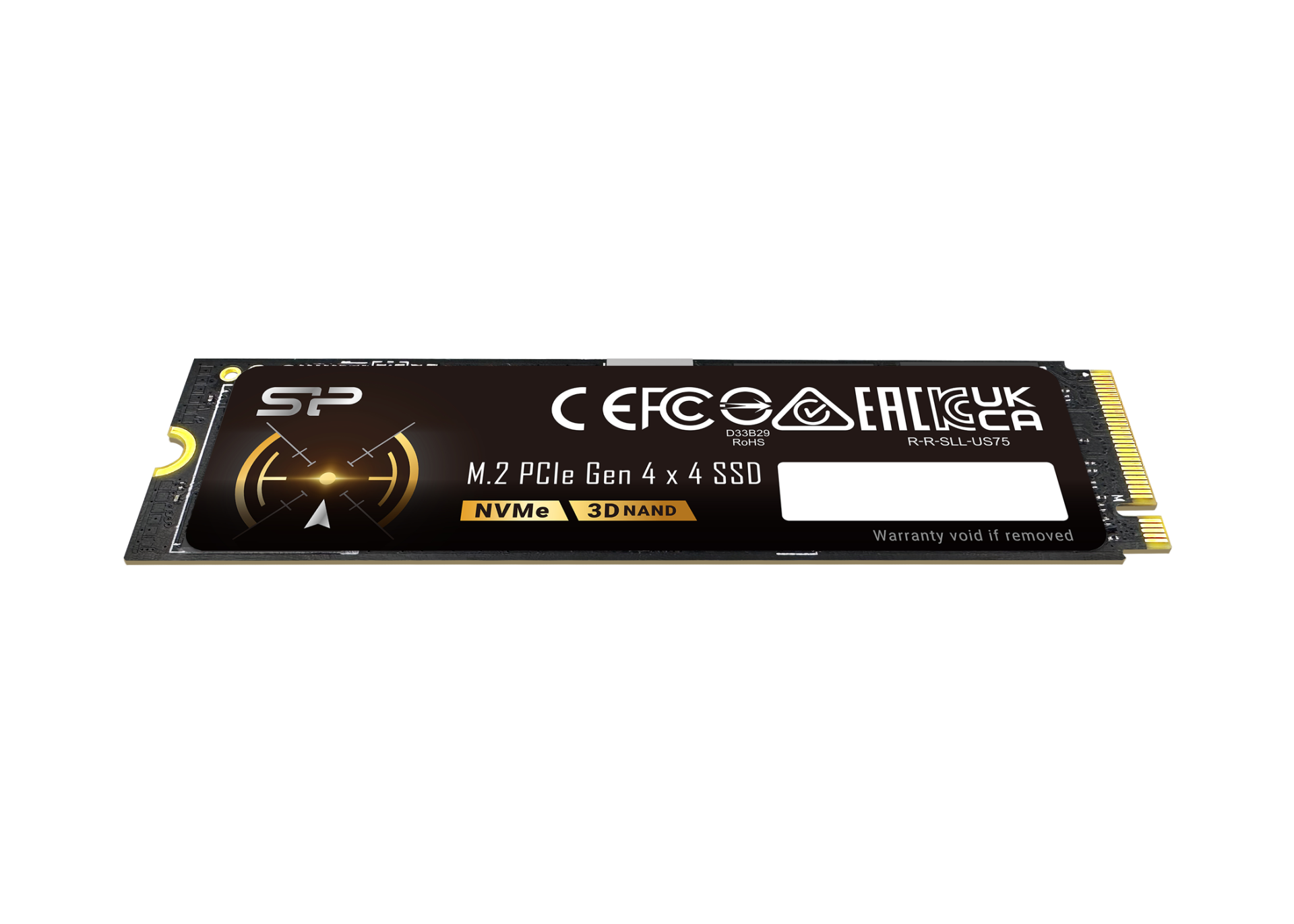

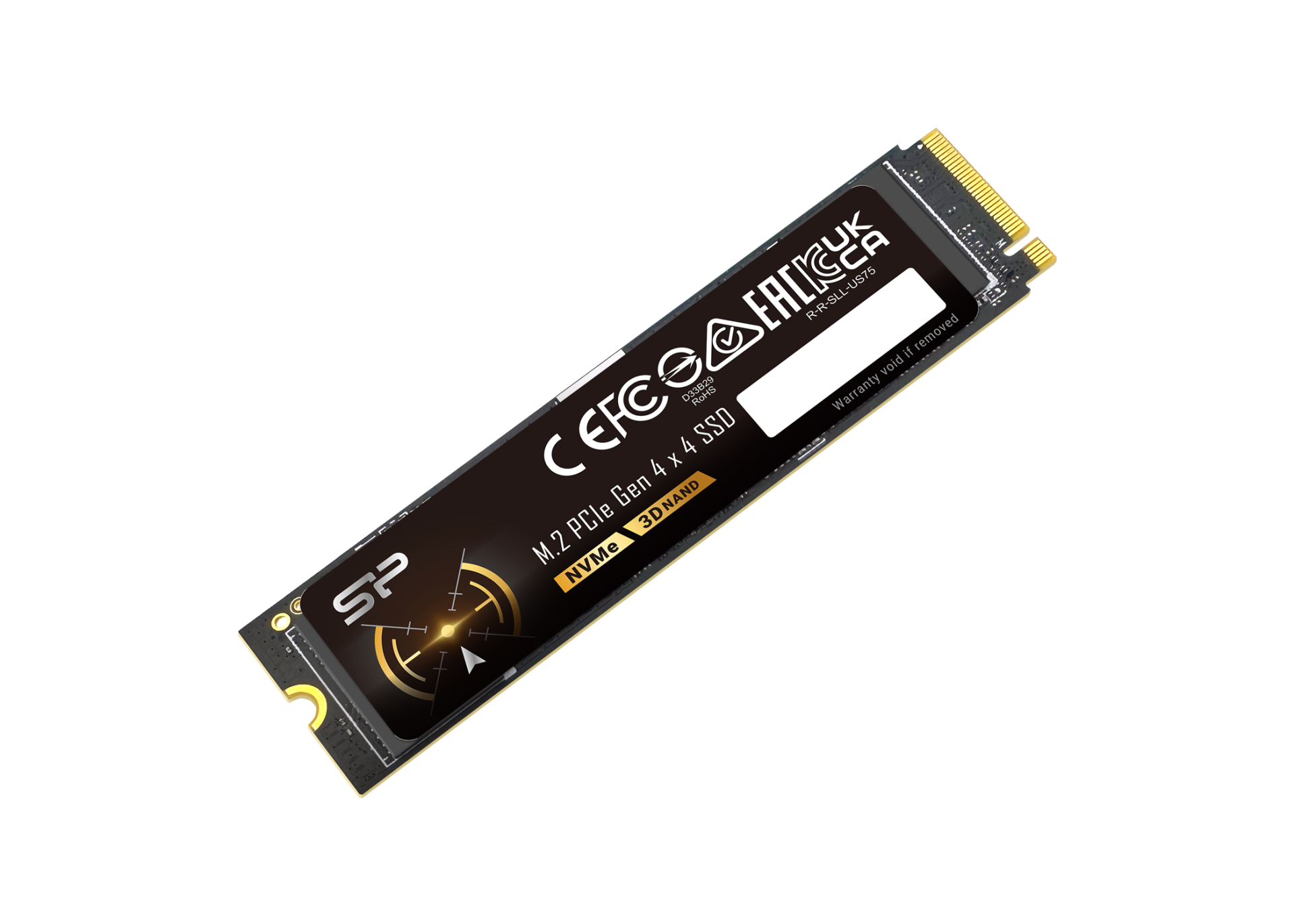

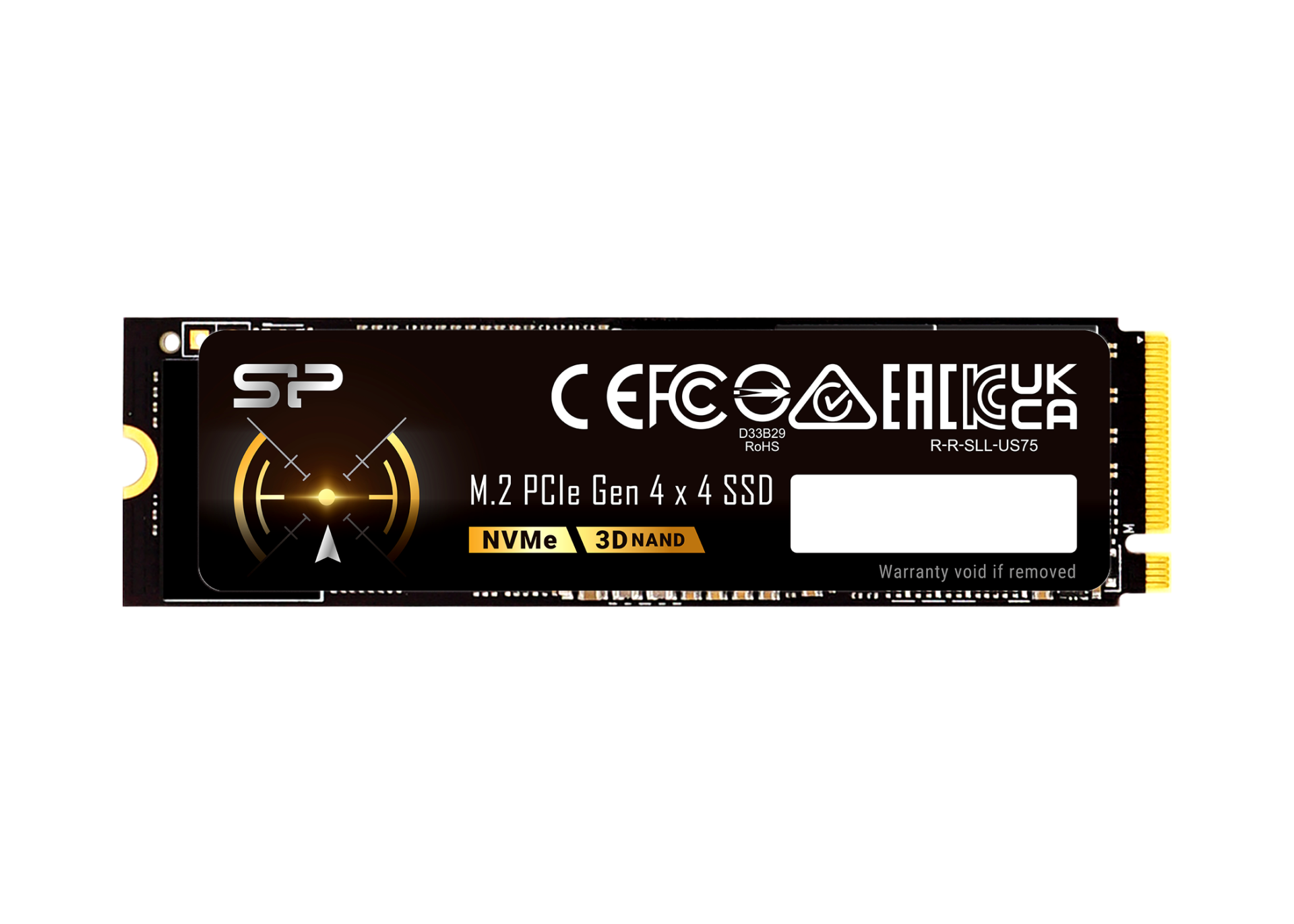

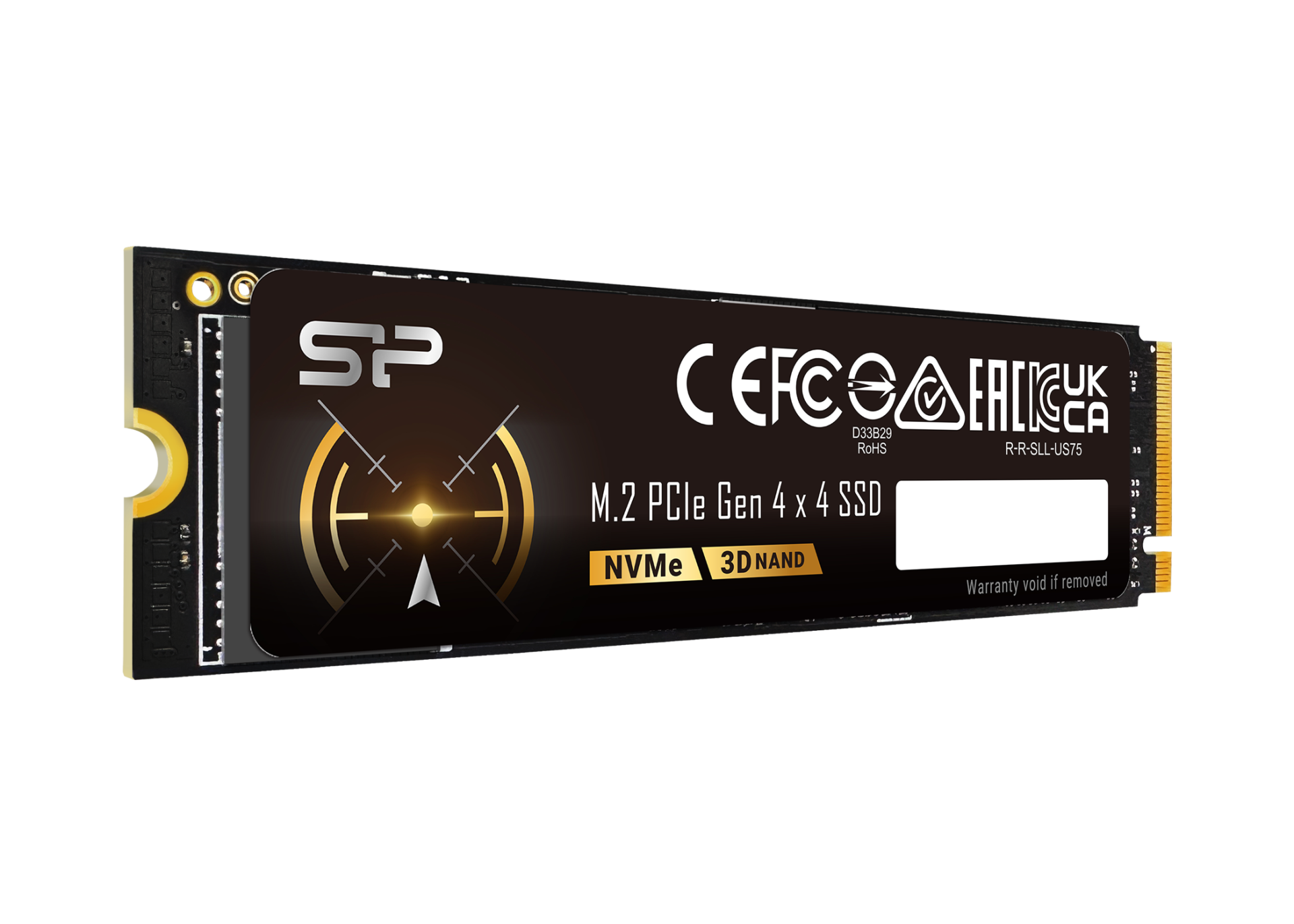

SP US75 PCIe Gen 4x4 NVMe™ SSD

• Boost Performance with Gen 4x4 NVMe
• Store more with the full capacities up to 4TB
• Compact M.2 2280 small form factor
• Monitor SSD Health with SP Toolbox

Expand

Product Introduction
Product Specifications
File Download
Purchase

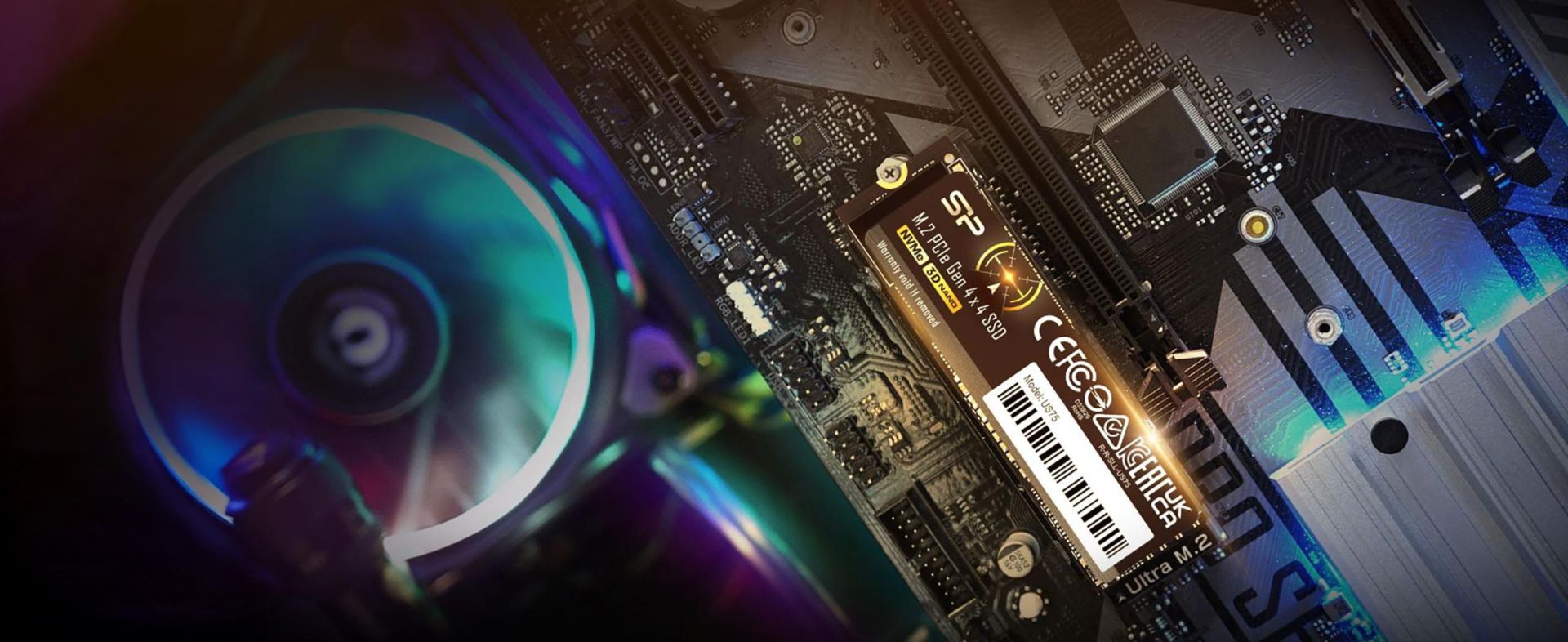

Next-Level Performance with PCIe Gen 4 NVMe

Supercharge your creative workflow with our PCIe Gen 4x4 NVMe SSD. Designed for content creators, it offers lightning-fast read/write speeds up to 7,000/6,500MB/s, making it ideal for high-power users. Maximize your productivity and unleash your creative potential effortlessly.

Next-Level Performance with PCIe Gen 4 NVMe

Efficiency Meets Capacity

Maximize your creative potential with US75. With up to 4TB of storage space, you can store and access your video projects, media files, and creative assets effortlessly, fueling your content creation journey.

Flexible Upgrades

Boost your productivity wherever you go with M.2 2280 small form factor seamlessly integrates into laptops, unleashing rapid data transfer speeds and empowering content creators to work with speed and precision.

Flexible Upgrades

Reliable Performance

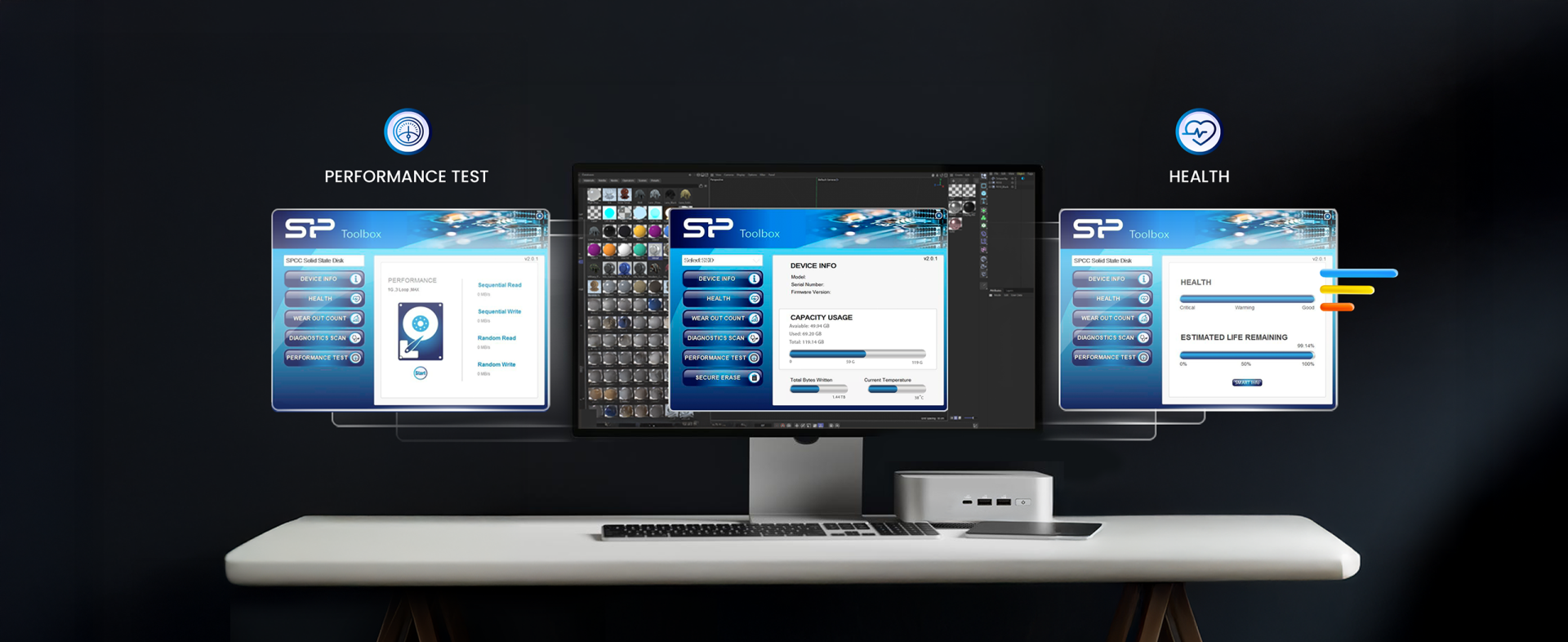

Built-in data security and error-correction capabilities to ensure the integrity of your information and provide a reliable storage solution. And the SP Toolbox helps you monitor your drive’s health, available space, temperature and more. To help you work with confidence, knowing your files are protected.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	MTBF-est	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP500GBP44US7505	500GB	22.0x80.0x3.6 mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	7,000MB/s	4,400MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	-	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP01KGBP44US7505	1TB	22.0x80.0x3.6 mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	7,000MB/s	6,000MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	-	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP02KGBP44US7505	2TB	22.0x80.0x3.6 mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	7,000MB/s	6,500MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	-	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP04KGBP44US7505	4TB	22.0x80.0x3.6 mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	7,000MB/s	6,500MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	-	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	500GB, 1TB, 2TB, 4TB

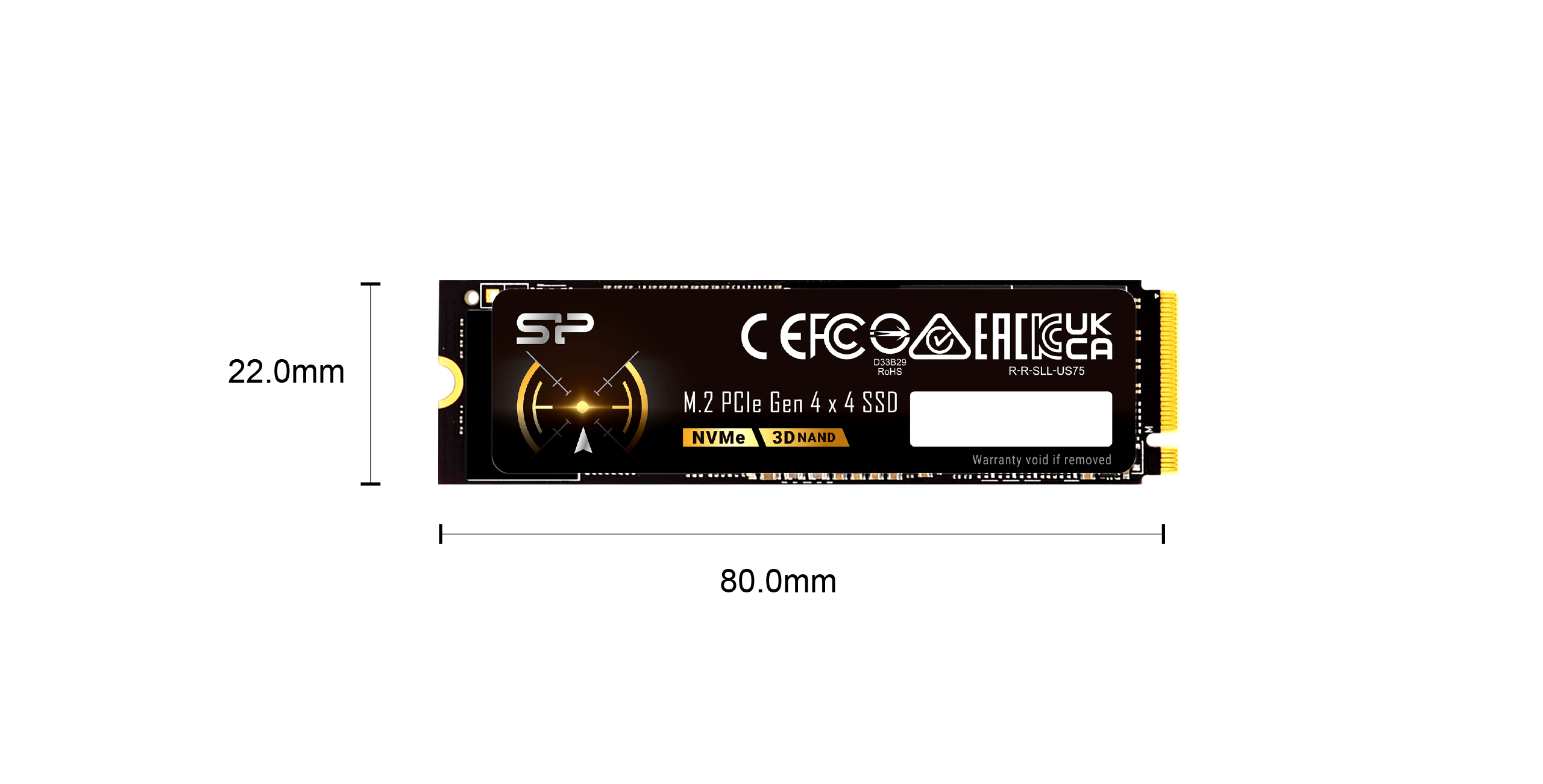

Dimensions	22.0mm x 80.0mm x 3.6mm
Weight	8g
Interface	PCIe Gen 4x4
Performance Read(max.)	500GB: 7,000MB/s 1TB: 7,000MB/s 2TB: 7,000MB/s 4TB: 7,000MB/s
Performance Write(max.)	500GB: 4,400MB/s 1TB: 6,000MB/s 2TB: 6,500MB/s 4TB: 6,500MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
MTBF (est)	1,500,000 hours
Shock Resistance Test	1500G/0.5ms
Operating Temperature	0℃ ~ 70℃
Certification	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KCC
Warranty	5-year limited warranty
Note	*Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity

Name

Language

File Format

Version

Last Updated

File Download

SP US75 PCIe Gen 4x4 NVMe™ SSD

PDF.

v2.0
