SP US70 PCIe Gen 4x4 NVMe™ SSD

• PCIe Gen 4x4 interface with read speeds up to 5,000MB/s and write speeds up to 4,400MB/s
• NVMe 1.3 support allows for higher performance, lower latency, and lower power consumption
• Features wear leveling to equalize the wear of each NAND flash block, ensuring longer reliability and stability of the SSD
• Built-in BBM detects and marks NAND bad blocks to prevent storage and reduce errors.
• Includes over-provision (OP) to boost performance, enhance durability, reduce NAND wear, and extend SSD lifespan.
• Supports SLC Caching and DRAM Cache Buffer to improve sequential read/write and random read/write performance
• Built-in E2E data protection for enhanced data transfer integrity
• Engineered with low density parity check (LDPC) coding to ensure accuracy of data transmission and reliability of data access
• Supports TRIM commands, enabling the SSD to efficiently manage reusable space as well as significantly reduce hard drive wear out
• Features our proprietary S.M.A.R.T. software for operational monitoring at any time
• Small form factor M.2 2280 (80mm) allows for easy installation in small form factor PC systems
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics

Expand

Product Introduction
Product Specifications
File Download
Purchase

Race Into The Future: PCIe 4.0

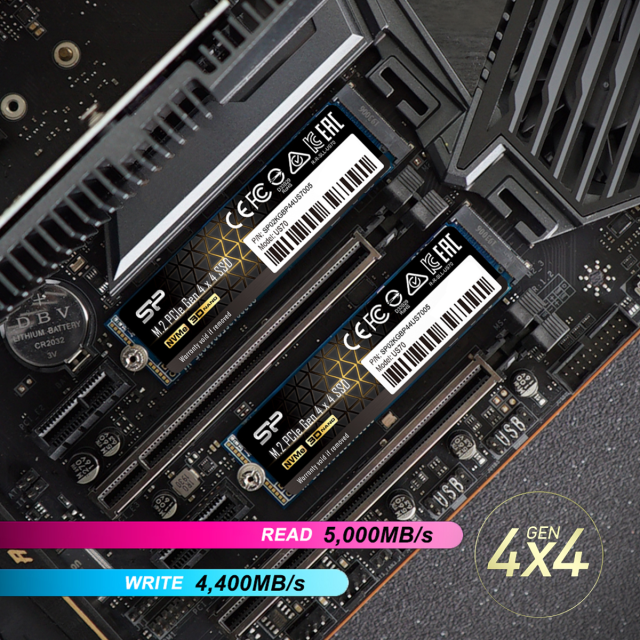

Offering a standard data transfer rate that's double that of the previous 3.0 version, the US70 PCIe Gen 4x4 with 3D NAND flash memory and NVMe 1.3 support is exactly what combative gamers, competitive overclockers, professional designers/editors, and high-end business users crave. With incredible read and write speeds up to 5,000MB/s and 4,400MB/s, respectively, the US70 is nearly 10 times faster than traditional SATA III SSDs. It provides next-level specs that will be competitively relevant for the future, while also being backwards-compatible with PCIe 3.0 too.

Long-Lasting Performance With NVMe 1.3 Support

The US70 packs the storage capacity, either 1TB or 2TB, to put its unmatched performance to good use. Featuring 3D NAND flash memory stacks, the Total Bytes Written (TBW) is substantially improved to meet the demanding needs of storage applications with ease. TBW for the 1TB version is 1,800TB and 3,600TB for the 2TB version. NVMe 1.3 support allows for higher performance, lower latency, and lower power consumption to maximize the power and lifespan of this SSD.

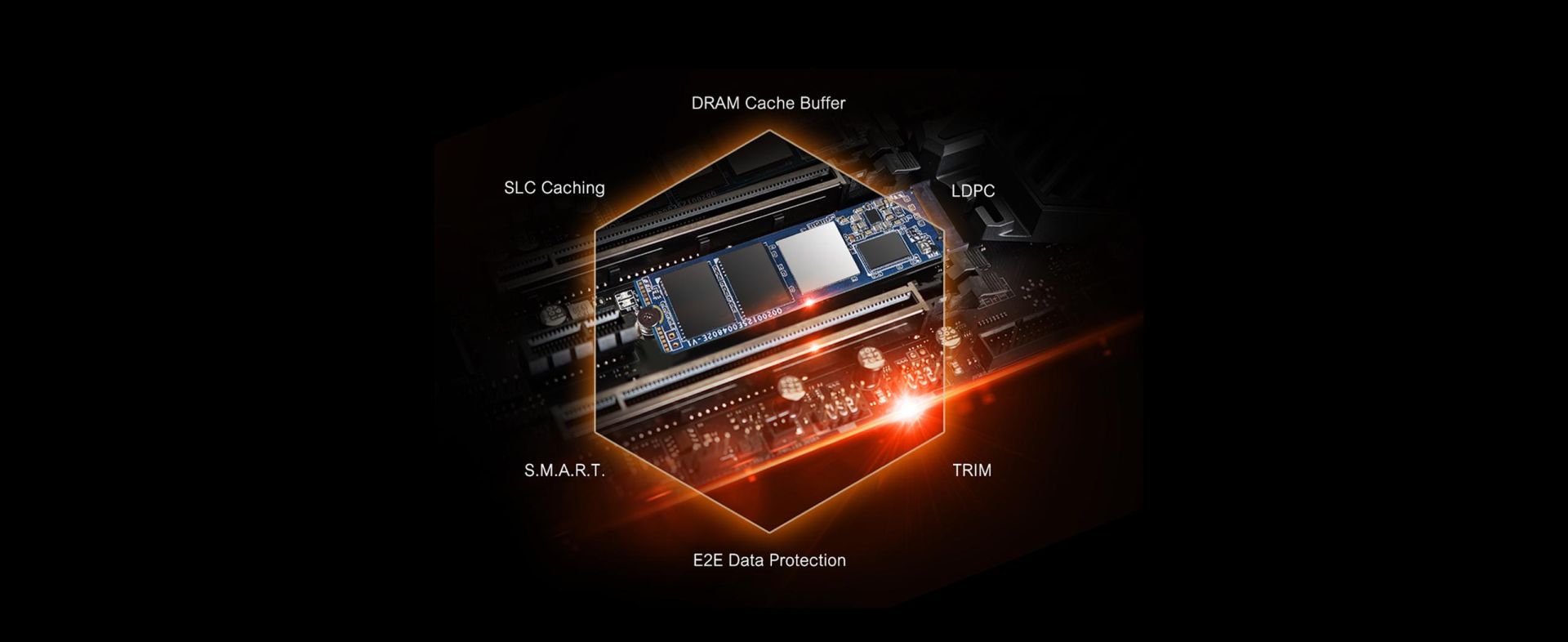

The US70 supports SLC Caching and DRAM Cache Buffer to improve sequential read/write and random read/write performance. It is engineered with low density parity check (LDPC) coding and an ECC algorithm to ensure accuracy of transmission and reliability of data access. Featuring E2E data protection and support for TRIM commands, the US70 efficiently manages reusable space and significantly reduces hard drive wear out. And if all that's not enough, our proprietary S.M.A.R.T. software enables operational monitoring of the SSD at any time.

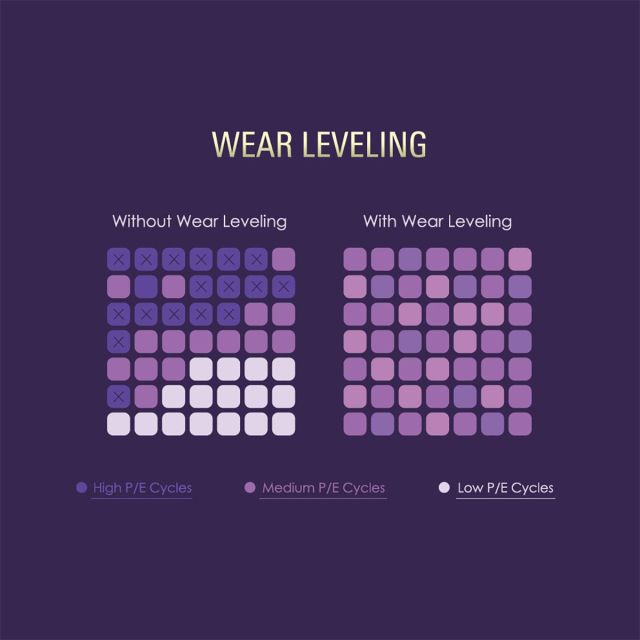

Wear leveling

Wear leveling equalizes the wear of each NAND flash block, avoiding damage or data loss caused by excess use.

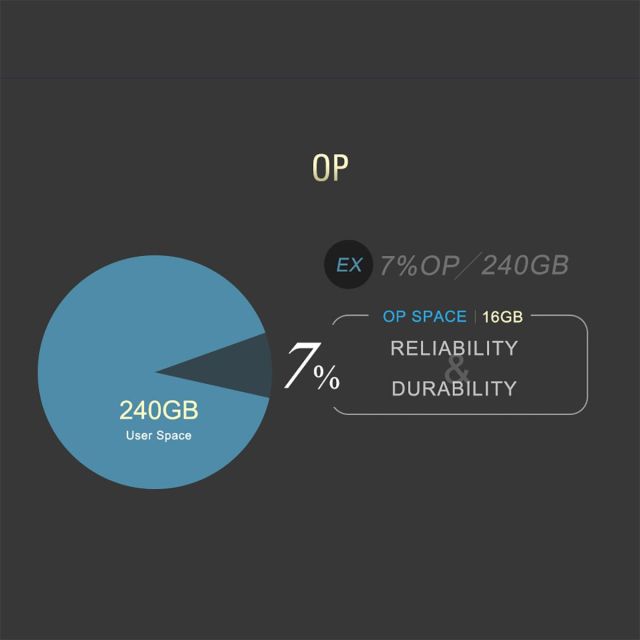

Over-Provision (OP)

The built-in over-provision (OP) increases the SSD's reserved space and reduces NAND flash wear to ensure reliability and stability as well as achieve an optimal lifespan.

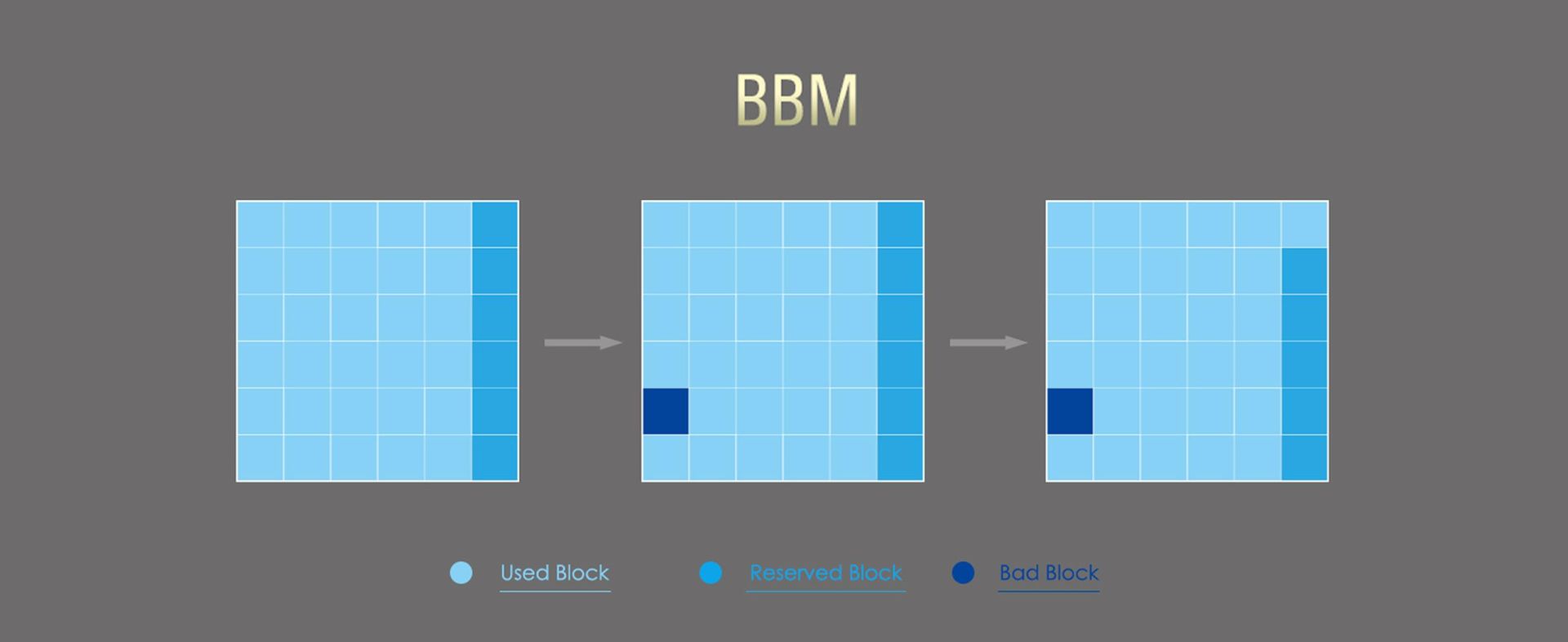

Bad Block management (BBM)

A bad block management (BBM) mechanism detects and marks bad blocks to avoid storage in those blocks and eliminate access errors. And, even if errors do occur in new blocks during an erase, this mechanism can move the data to other effective blocks to prevent data loss resulting from the failed erase.

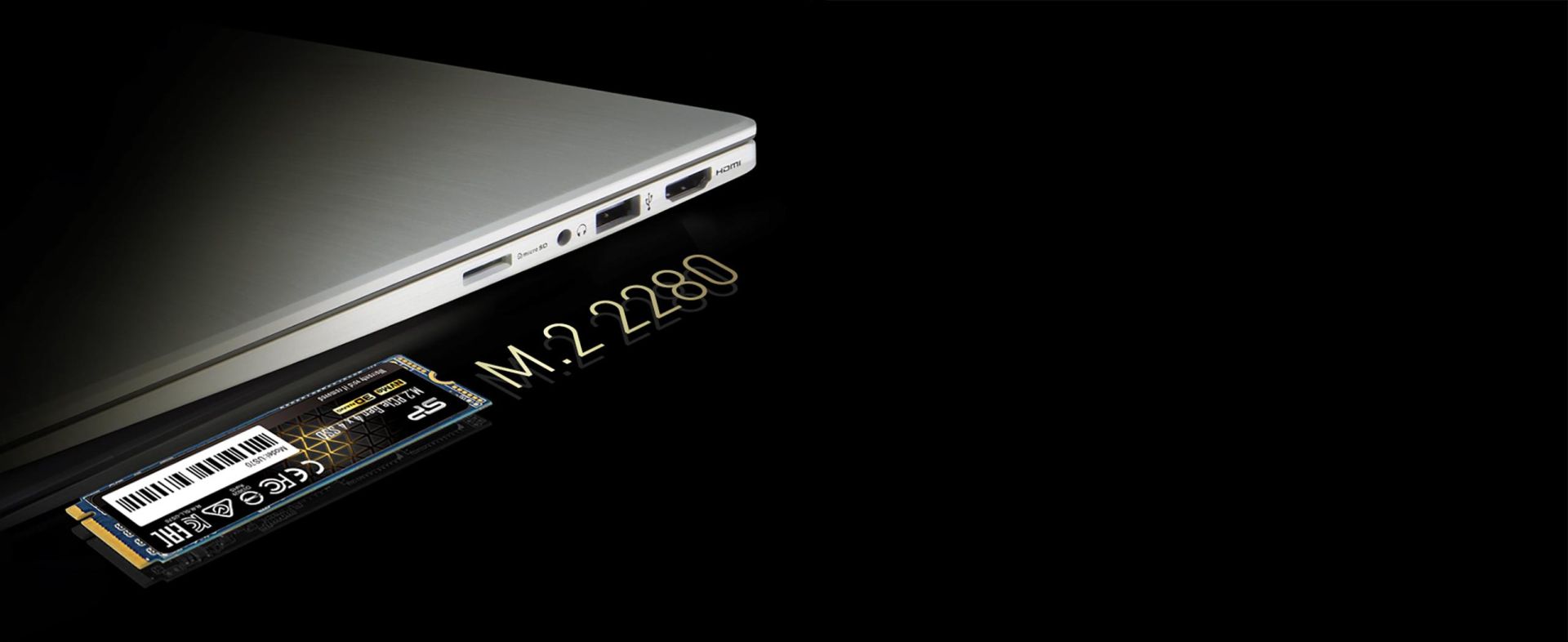

A Powerful System Upgrade With Room For More

With an M.2 2280 (80mm) form factor, the US70's compact size allows for easy installation in small form factor PC systems. Coupled with its massive storage capacity options, blazing speed, and numerous advanced technologies, it makes for an easy upgrade that will significantly improve your system's performance and storage potential, while also saving space for other components.

A Powerful System Upgrade With Room For More

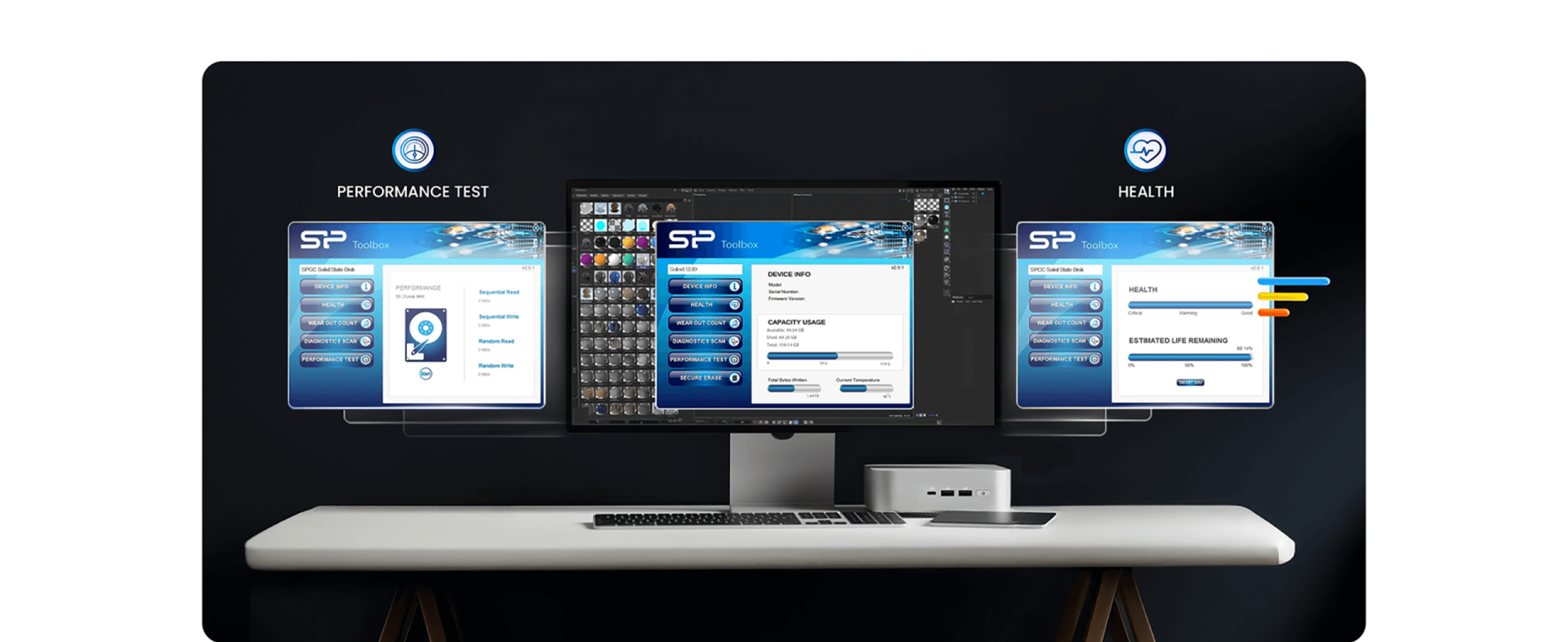

Free-Download of SSD Health Monitor - SP Toolbox

Easily monitor your new SSD's health with our free-download software – SP Toolbox. Run performance tests on the US70, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	MTBF-est	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP01KGBP44US7005	1TB	22.0mm x 80.0mm x 3.5mm	8g	PCIe Gen 4x4	M.2 NVMe M Key	5,000 MB/s	4,400 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	1,700,000 hours	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1,500g/0.5ms)	n/a	Add to compare
SP02KGBP44US7005	2TB	22.0mm x 80.0mm x 3.5mm	8g	PCIe Gen 4x4	M.2 NVMe M Key	5,000 MB/s	4,400 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	1,700,000 hours	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1,500g/0.5ms)	n/a	Add to compare

Capacity	1TB / 2TB
Dimensions	22.0 x 80.0 x 3.5mm
Weight	8g
Interface	PCIe Gen 4x4
Performance Read(max.)	1TB: 5,000 MB 2TB: 5,000 MB/s
Performance Write(max.)	1TB: 4,400 MB/s 2TB: 4,400 MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
MTBF (est)	1,700,000 hours
Shock Resistance Test	1500G/0.5ms
Operating Temperature	0℃ ~ 70℃
Certification	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC
Warranty	5年
Note	Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity
