HOME Products Solid State Drives (SSDs) Internal SSD SP UD90 2242 PCIe Gen 4x4 NVMe™ SSD
SiliconPower-SSD-UD90 2242-2100x1500-1
SiliconPower-SSD-UD90 2242-2100x1500-2
SiliconPower-SSD-UD90 2242-2100x1500-3
SiliconPower-SSD-UD90 2242-2100x1500-4
SiliconPower-SSD-UD90 2242-2100x1500-5

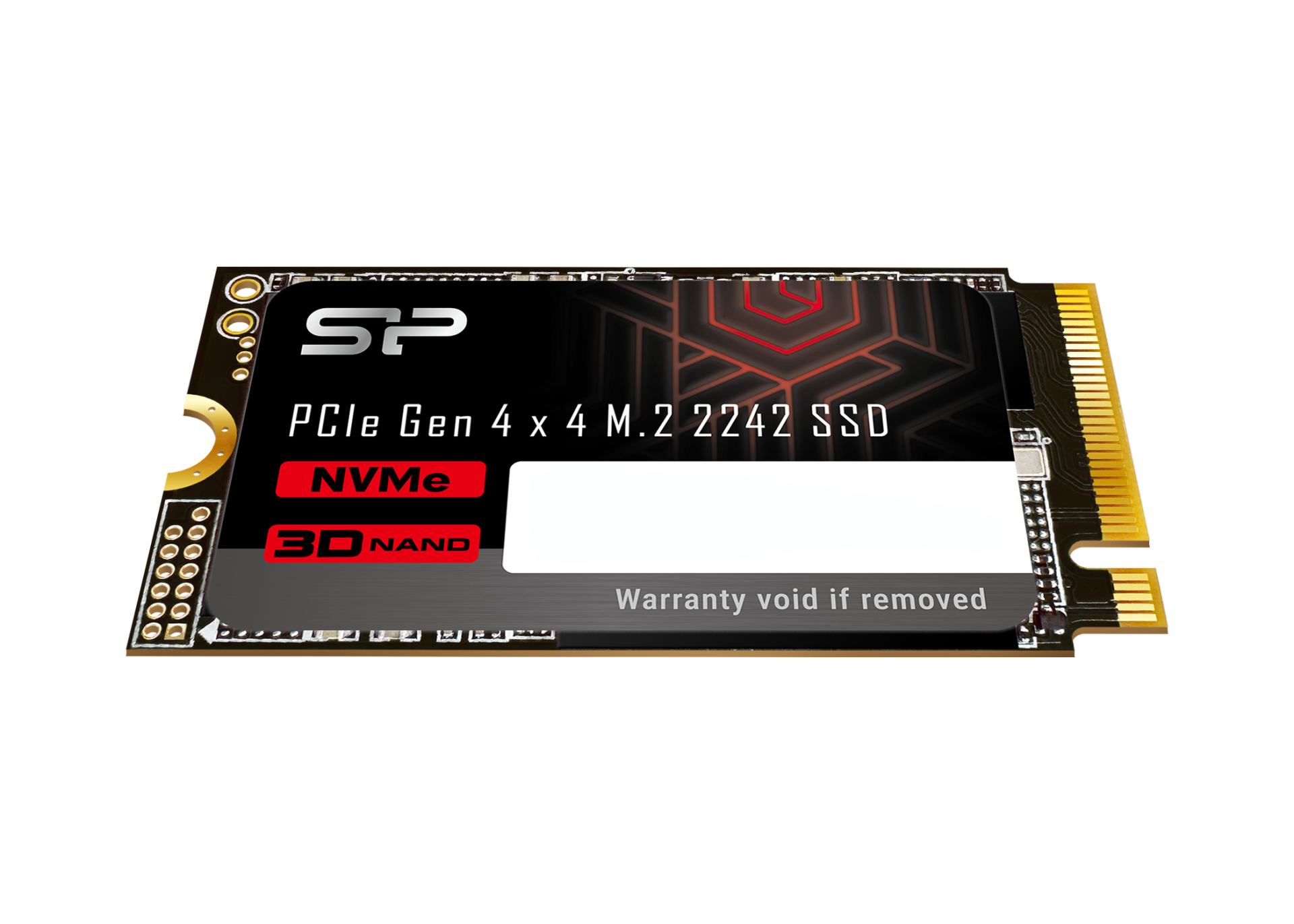

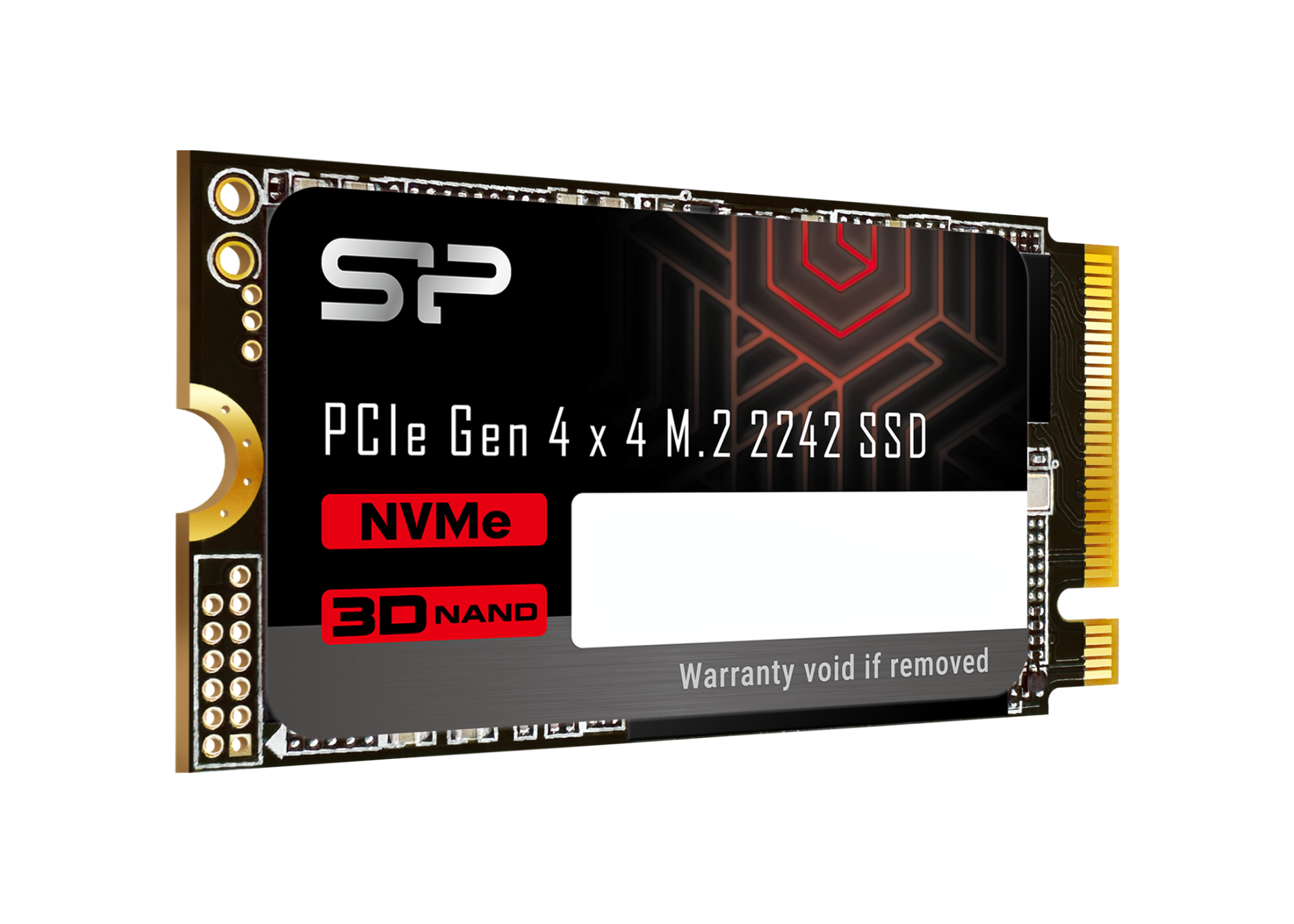

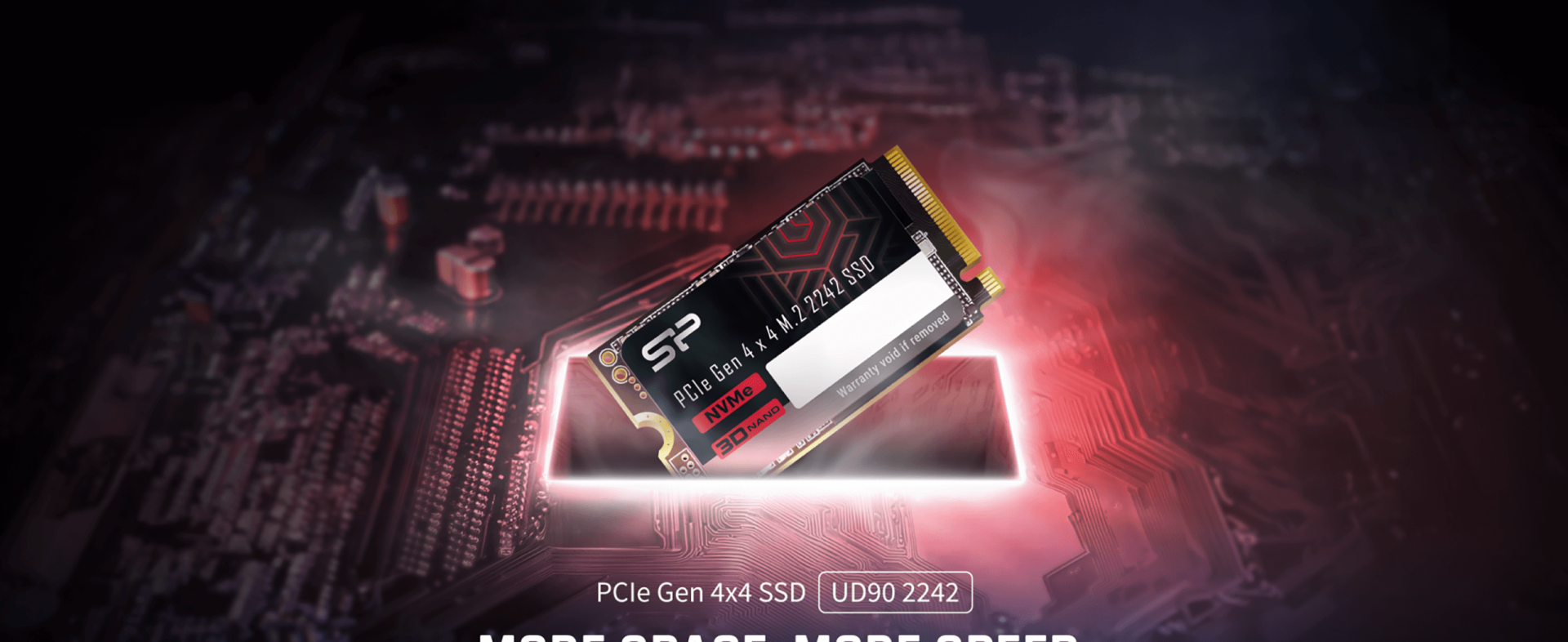

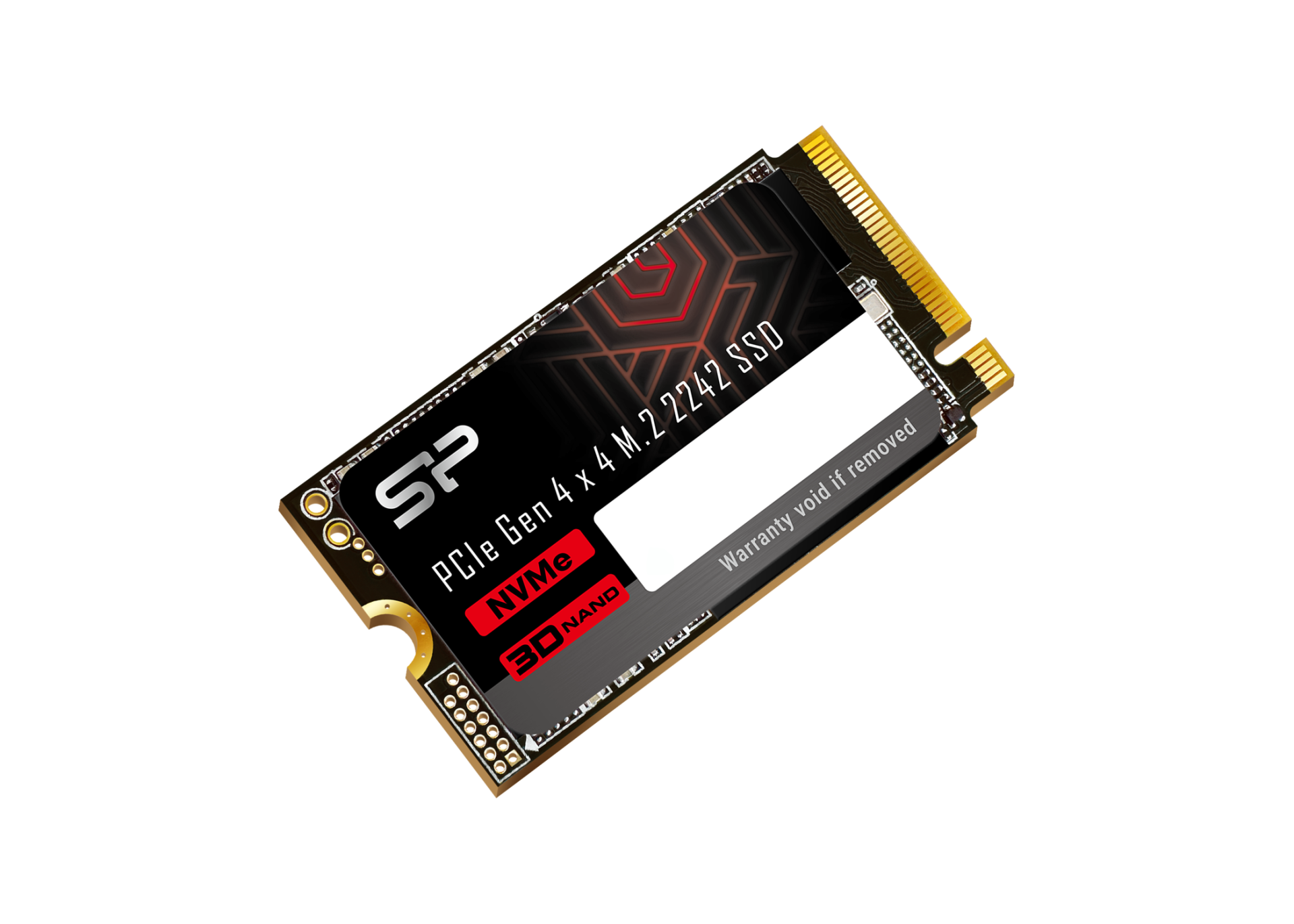

SP UD90 2242 PCIe Gen 4x4 NVMe™ SSD

• Blazing Fast PCIe Gen4x4, NVMe 1.4 Compliant
• DRAM-less SSDs use HMB for efficient performance utilizing system memory
• Ultra-Fast Read/Write Speeds: Up to 5,000/3,200 MB/s
• Adopt advanced 3D NAND Flash Memory
• Enhanced Data Integrity with LDPC + RAID
• Optimized for Lenovo and Dell PCs (2242 Form Factor)
• Seamless Fit for Lenovo Legion Go Devices
Expand
Future-Ready Gen 4x4 Speed
Experience PCIe Gen 4x4 technology with read speeds up to 5,000 MB/s and write speeds up to 3,200 MB/s. This speed ensures quick boot times, faster app loading, and smooth file transfers, greatly enhancing your system's performance.
Future-Ready Gen 4x4 Speed
Experience PCIe Gen 4x4 technology with read speeds up to 5,000 MB/s and write speeds up to 3,200 MB/s. This speed ensures quick boot times, faster app loading, and smooth file transfers, greatly enhancing your system's performance.
Huge 2TB Storage
Enjoy the freedom of ample storage with our 2TB SSD. Perfect for gamers, creators, and professionals, this high-capacity drive lets you store games, apps, media, and more without space concerns.
Huge 2TB Storage
Enjoy the freedom of ample storage with our 2TB SSD. Perfect for gamers, creators, and professionals, this high-capacity drive lets you store games, apps, media, and more without space concerns.

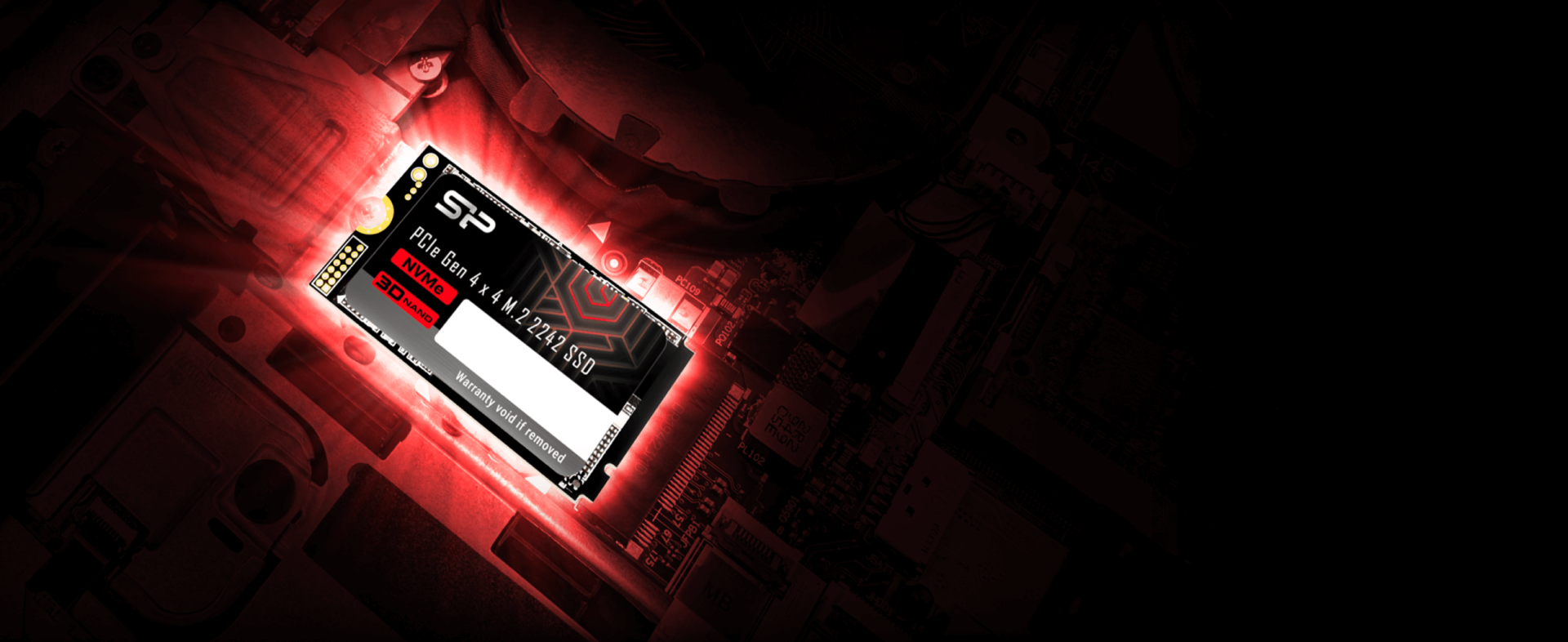

Wide-Ranging Compatibility
Our UD90 2242 is designed for broad compatibility with laptops, desktops, and workstations. It supports both Windows and Linux, making it an ideal upgrade for your system. Enjoy easy installation and improved performance across all your devices.
Wide-Ranging Compatibility
Our UD90 2242 is designed for broad compatibility with laptops, desktops, and workstations. It supports both Windows and Linux, making it an ideal upgrade for your system. Enjoy easy installation and improved performance across all your devices.
Monitor Your SSD's Health
Enhance your SSD's lifespan and performance with our SP Toolbox. This robust software provides drive management features such as health monitoring, performance testing, TBW checks, and secure erase options, ensuring your SSD runs optimally and keeps your data safe.
P/N CapacityDimensionsWeightInterfaceConnectorsPerformance ReadPerformance WriteMaterialColorSupported OSSystem RequirementOperating TemperaturePatentMTBF-estCertificationWarrantyExtra ProtectionProduct Feature ⇅ Compare
SP500GBP44UD9003 500GB 22.0x42.0x3.5 mm 3.9g M.2 PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 3,200 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C n/a - CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP01KGBP44UD9003 1TB 22.0x42.0x3.5 mm 3.9g M.2 PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 3,200 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C n/a - CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare
SP02KGBP44UD9003 2TB 22.0x42.0x3.5 mm 3.9g M.2 PCIe Gen 4x4 M.2 NVMe M Key 5,000 MB/s 3,200 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with M.2 slots supporting PCIe interface and an OS with NVMe support 0°C - 70°C n/a - CE/FCC/UKCA/BSMI/Green dot/WEEE/RoHS/KCC 5-Year Limited Shock Resistance Test(1500g/0.5ms) Game Console Compatible Add to compare



Capacity

500GB / 1TB / 2TB
Dimensions 22.0 x 42.0 x 3.5(mm)
Weight 3.9g
Interface PCIe Gen 4x4
Performance Read(max.) 5,000 MB/s
Performance Write(max.) 3,200 MB/s
System Requirement Computer with M.2 slots supporting PCIe interface and an OS with NVMe support

MTBF (est)

 1,500,000 hours
Shock Resistance Test 1500G / 0.5ms
Operating Temperature 0℃ ~ 70℃
Certification CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC
Warranty

5-Year Limited
Note
  • Product size and weight may vary due to configuration, manufacturing process, and measurement methods. All specifications are subject to the actual product.
  • 2. Read/write performance may vary depending on system performance factors such as hardware, software, interface mode, and capacity
