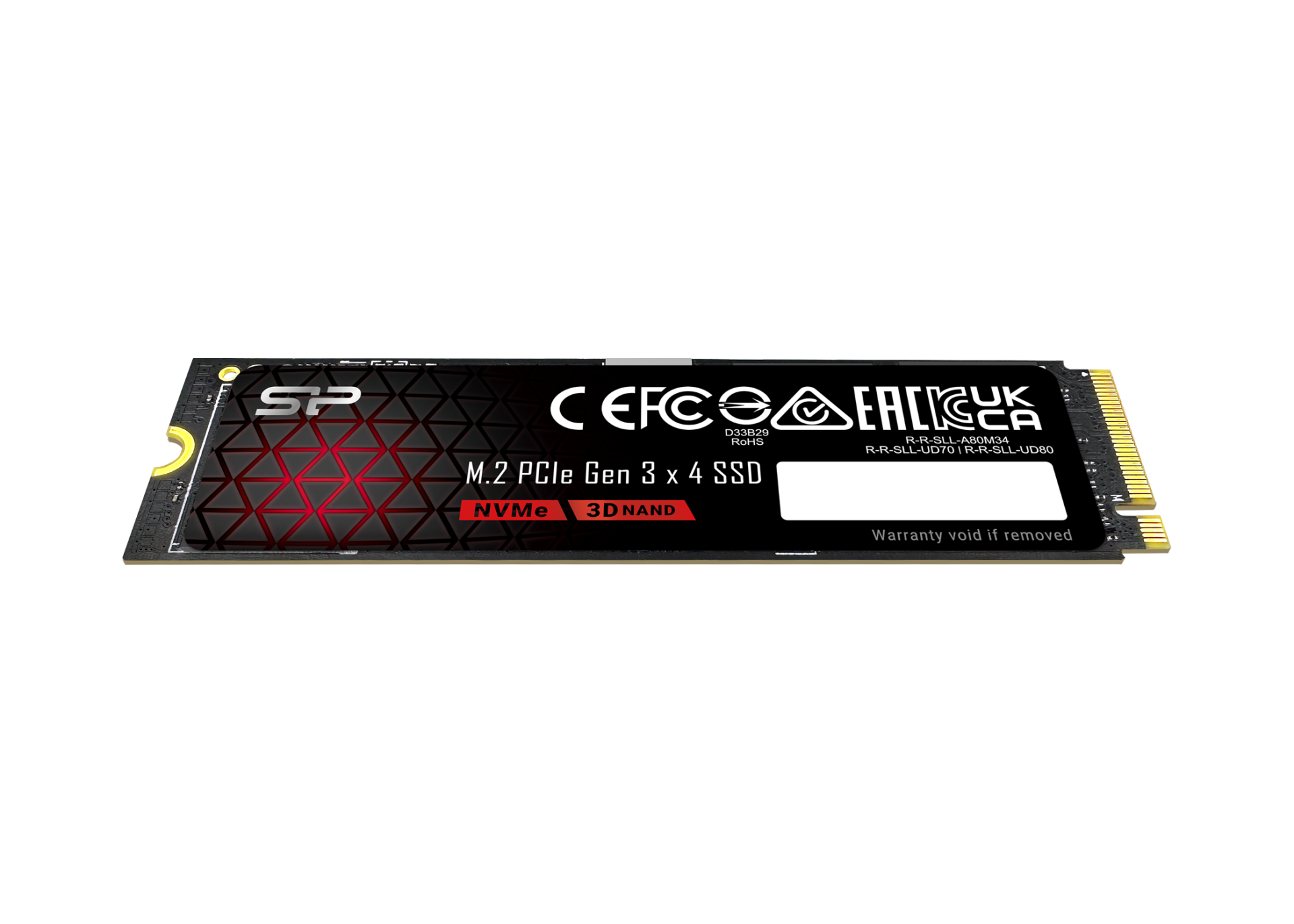

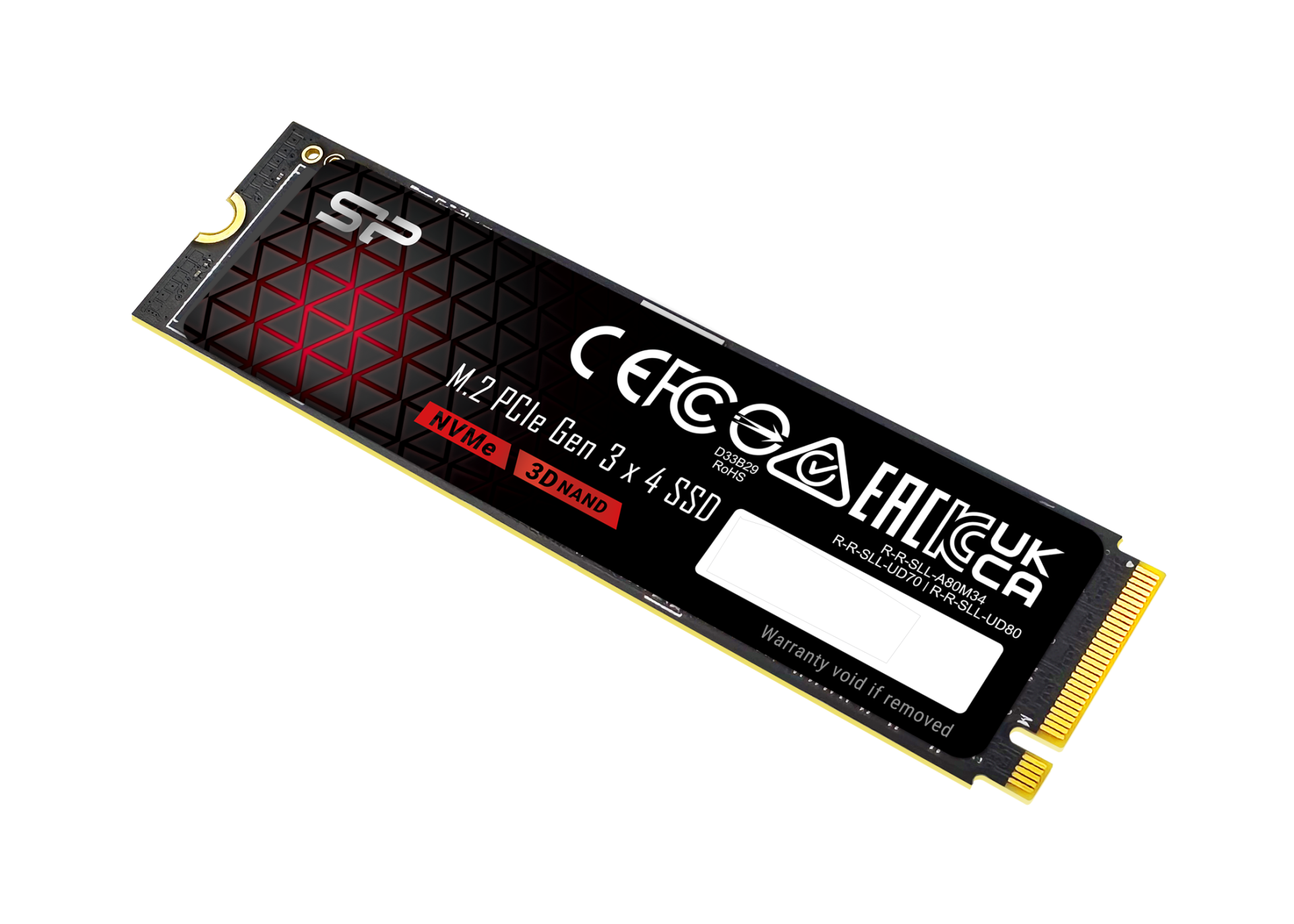

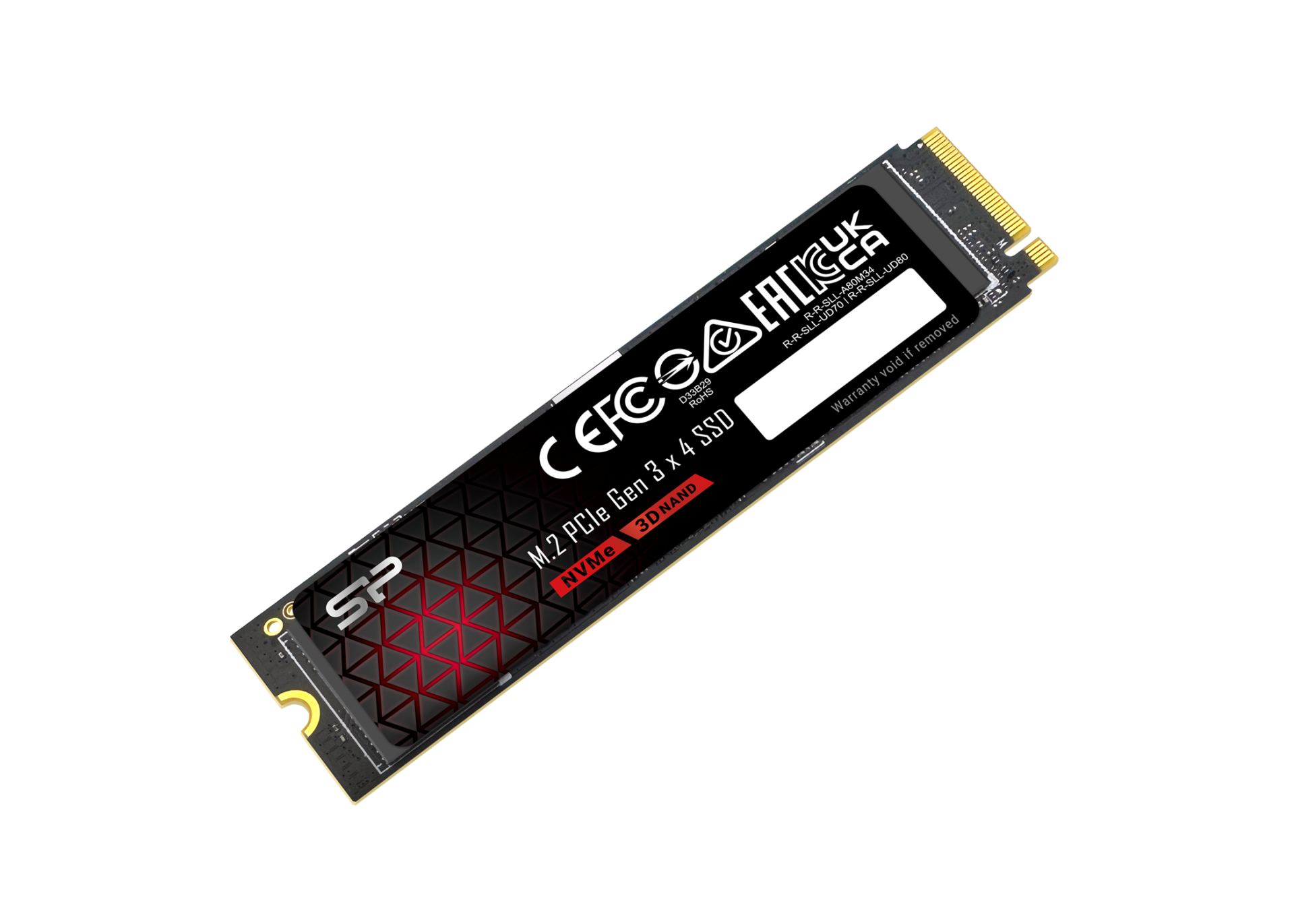

SP UD80 PCIe Gen 3x4 NVMe™ SSD

• PCIe Gen 3x4 interface with read speeds up to 3,400MB/s and write speeds up to 3,000MB/s
• Supports NVMe 1.4 and Host Memory Buffer (HMB) for higher performance and lower latency
• 3D NAND technology allows for dense storage in a compact design
• Available in massive storage capacity options up to 2TB
• Supports low density parity check (LDPC) coding to ensure accuracy of data transmission and reliability of data access
• Supports SLC Caching to improve sequential read/write and random read/write performance
• Supports RAID to protect data in the case of a drive failure
• Built-in E2E data protection for enhanced data transfer integrity
• Small form factor M.2 2280 (80mm) allows for easy installation in laptops, small form factor PC systems, and some ultrabooks
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics

Expand

Product Introduction
Product Specifications
File Download
Purchase

A Well-Balanced PCIe Gen3x4 For All

The UD80 strikes a perfect harmony between cost and performance to breathe new life into your system without burning a hole in your pocket. Designed for creators that need more than just a jolt of inspiration, the UD80 provides exceptional value and a performance boost with a PCIe Gen3x4 interface – a boost that leaves SATA III SSDs behind in the dust!

Create Faster With Reduced Waiting Times

The UD80 utilizes the speed capabilities of PCIe 3.0 with the efficiency of NVMe and Host Memory Buffer (HMB) technology. Let your creative juices flow with rapid read and write speeds up to 3,400MB/s and 3,000MB/s, respectively. At the same time, experience seamless productivity via the higher performance and lower latency that's achieved by NVMe 1.4 and HMB technology.

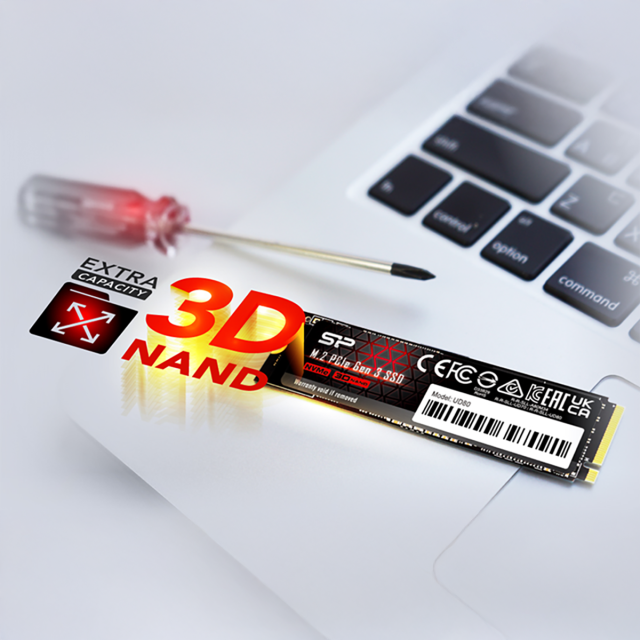

More Storage In A Versatile Form Factor

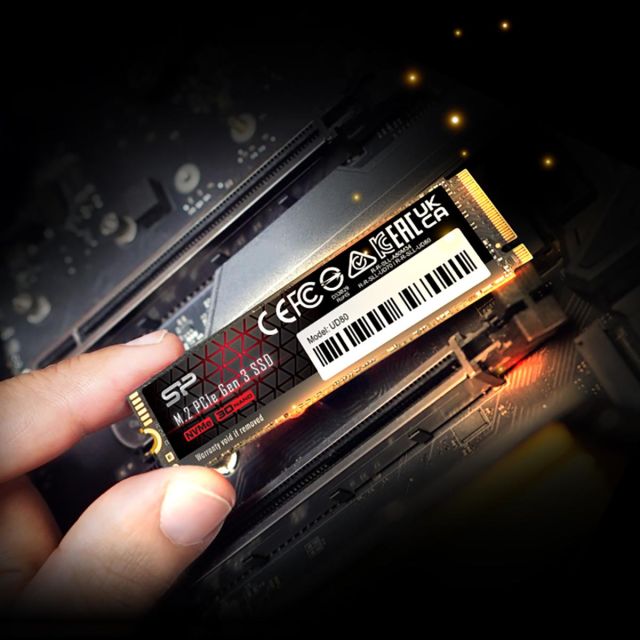

Far superior to its 2D counterpart, the UD80 features 3D NAND flash technology, which allows for greater storage density on the versatile M.2 2280 form factor. Easily install this small form factor in laptops, small form factor PC systems, and some ultrabooks to instantly gain up to 2TB of extra storage capacity.

Speed Meets Reliability

An SSD's speed is meaningless without the ability to handle that speed reliably. The UD80 achieves improved sequential read/write and random read/write performance with support for SLC Caching. At the same time, it supports low density parity check (LDPC) coding to ensure accuracy of data transmission and reliability of data access.

Safe And Secure Data Storage

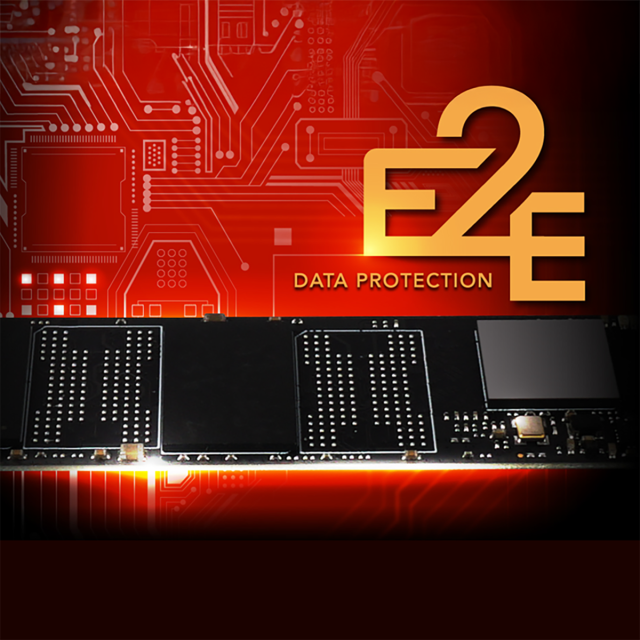

The UD80 supports RAID to protect data in the case of a drive failure. It's also equipped with built-in E2E data protection for enhanced data transfer integrity. Unexpected things can happen at any moment, but the UD80 is prepared for them with your data at its utmost priority.

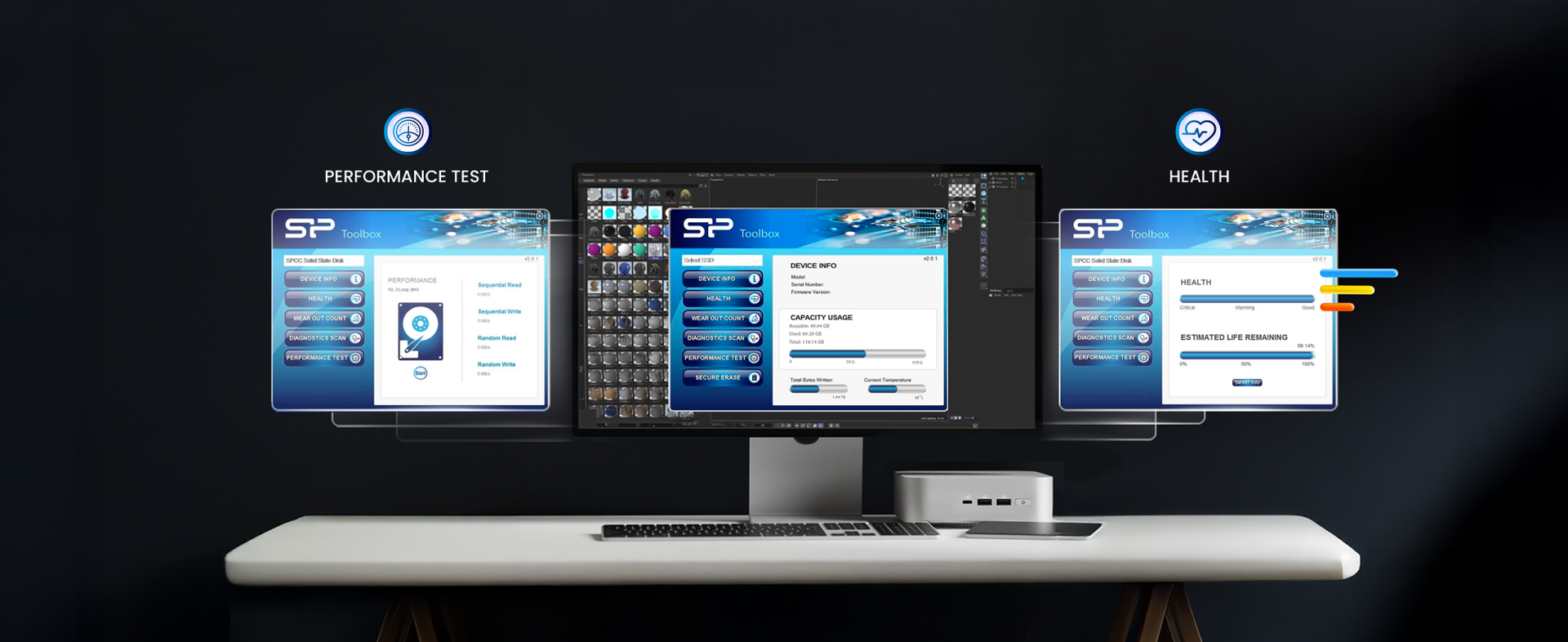

Free-Download of SSD Health Monitor - SP Toolbox

Easily monitor your new SSD's health with our free-download software – SP Toolbox. Run performance tests on the UD80, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	MTBF-est	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP250GBP34UD8005	250GB	22.0mm x 80.0mm x 3.5mm	8g	M.2 PCIe Gen 3x4	M.2 NVMe M Key	3,100MB/s	1,100MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	1,500,000 hours	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP500GBP34UD8005	500GB	22.0mm x 80.0mm x 3.5mm	8g	M.2 PCIe Gen 3x4	M.2 NVMe M Key	3,400MB/s	2,300MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	1,500,000 hours	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP01KGBP34UD8005	1TB	22.0mm x 80.0mm x 3.5mm	8g	M.2 PCIe Gen 3x4	M.2 NVMe M Key	3,400MB/s	3,000MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	1,500,000 hours	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP02KGBP34UD8005	2TB	22.0mm x 80.0mm x 3.5mm	8g	M.2 PCIe Gen 3x4	M.2 NVMe M Key	3,400MB/s	3,000MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0°C - 70°C	n/a	1,500,000 hours	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	250GB, 500GB, 1TB, 2TB
Dimensions	22.0 x 80.0 x 3.5 (mm)
Weight	8g
Interface	PCIe Gen 3x4
Performance Read(max.)	250GB: 3,100MB/s 500GB: 3,400MB/s 1TB: 3,400MB/s 2TB: 3,400MB/s
Performance Write(max.)	250GB: 1,100MB/s 500GB: 2,300MB/s 1TB: 3,000MB/s 2TB: 3,000MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
MTBF (est)	1,500,000 hours
Shock Resistance Test	1500G/0.5ms
Operating Temperature	0℃ ~ 70℃
Certification	CE, FCC, UKCA, BSMI, Green dot, WEEE, RoHS, KC
Warranty	5-year limited warranty
Note	*Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity
