SP P34A80 PCIe Gen 3×4 NVMe™ SSD

• Super-fast PCIe Gen3x4 interface for read/write speeds of up to 3,400MB/s / 3,000MB/s
• NVMe 1.3 support
• RAID engine for enhanced data integrity
• Supports SLC Cache and DRAM Cache Buffer. Provides great SSD sequential read/write and random read/write performance.
• Slim form factor M.2 2280 for perfect fit in slim and portable mobile applications or desktop PCs
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics

Expand

Product Introduction
Product Specifications
File Download
Purchase

Step Up the Game to a New Level of Responsiveness

The full capacity P34A80 takes high-end devices to a whole new level of performance and responsiveness. Supporting the super-fast PCIe Gen 3x4 interface, it reaches incredible read and write speeds of up to 3,400MB/s and 3,000MB/s leaving PCIe Gen 3x2 and SATA III behind by a huge margin and high-power users with nothing better to wish for. It’s the ultimate addition to your performance gaming arsenal.

Step Up the Game to a New Level of Responsiveness

Superior Storage Performance for Performance Gaming

Massive speed and high performance, yet lower power consumption and a small form factor for system flexibility, it’s a gamer’s dream. Supporting RAID engine, the P34A80 also maintains system stability and data integrity during even the most highly-demanding applications that rely on superior storage performance.

Massive Performance, Small Form Factor

The P34A80 weighs in at a mere 8 grams. As versatile as it is effective, the SSD’s small form factor allows for easy installation in the thinnest notebooks, mobile applications, and PC desktops alike.

NVMe 1.3 support

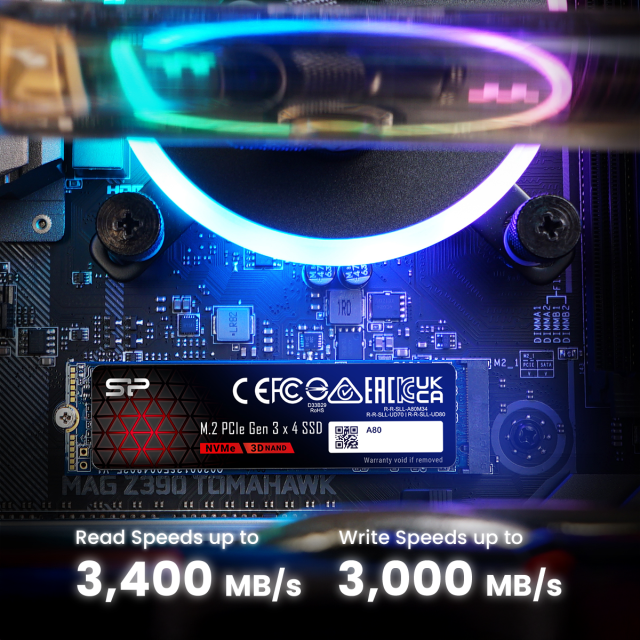

Supports SLC Cache and DRAM Cache Buffer. Provides great SSD performance on sequential read/write up to 3400MB/3000MB and random read/write up to 500K and 600K IOPS. The P34A80 maintains an overall improved system performance level during the most demanding applications, not only for graphic designers and photographers, but also for hardcore gamers.

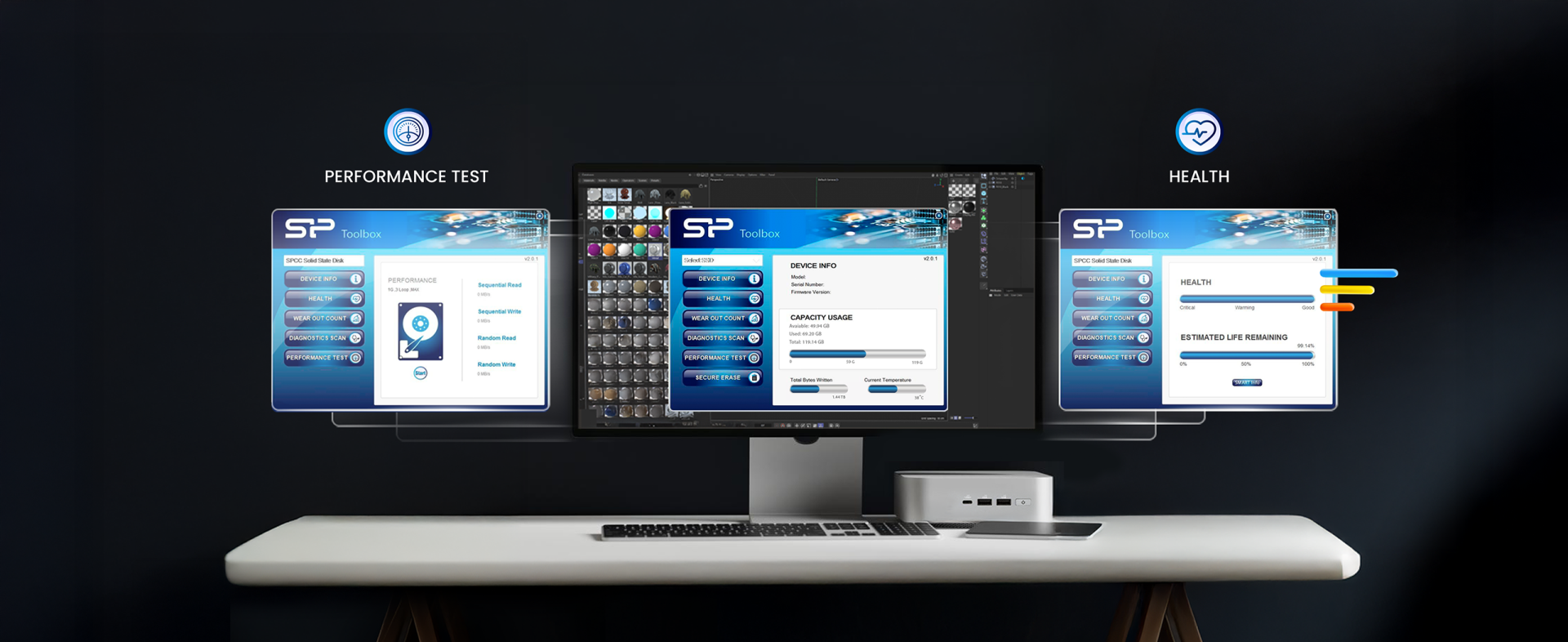

Free-Download of SSD Health Monitor - SP Toolbox

Easily monitor your new SSD's health with our free-download software – SP Toolbox. Run performance tests on the P34A80, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP256GBP34A80M28	256GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,100 MB/s	1,100 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP512GBP34A80M28	512GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,400 MB/s	2,300 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP001TBP34A80M28	1TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,400 MB/s	3,000 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP002TBP34A80M28	2TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,400 MB/s	3,000 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SU256GBP34A80M28AB	256GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,100 MB/s	1,100 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SU512GBP34A80M28AB	512GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,400 MB/s	2,300 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SU001TBP34A80M28AB	1TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,400 MB/s	3,000 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SU002TBP34A80M28AB	2TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	3,400 MB/s	3,000 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	256GB, 512GB, 1TB, 2TB
Dimensions	22.0 x 80.0 x 3.5 (mm)
Weight	8g
Interface	PCIe Gen3x4
Performance Read(max.)	256GB: 3,100 MB/s 512GB: 3,400 MB/s 1TB: 3,400 MB/s 2TB: 3,400 MB/s
Performance Write(max.)	256GB: 1,100 MB/s 512GB: 2,300 MB/s 1TB: 3,000 MB/s 2TB: 3,000 MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
Shock Resistance Test	1500G/0.5ms
Operating Temperature	0℃ ~ 70℃
Certification	CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC
Warranty	5 years
Note	Performance results may vary, depending on system platform, software, interface, and capacity
