SP P34A60 PCIe Gen 3x4 NVMe™ SSD

• PCIe Gen 3x4 interface with read speeds up to 2,200MB/s and write speeds up to 1,600MB/s
• Massive storage capacity options up to 2TB
• LDPC (Low-Density Parity Check) error correction code (ECC) technology, End-To-End (E2E) data protection, and RAID engine for enhanced data integrity and stability
• Supports NVMe 1.3, Host Memory Buffer (HMB), and SLC Cache to deliver high and efficient performance
• Small form factor M.2 2280 (80mm) allows for easy installation in laptops, small form factor PC systems, and some ultrabooks
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics

Expand

Product Introduction
Product Specifications
File Download
Purchase

A Fundamental PCIe Gen3x4 That Goes Further

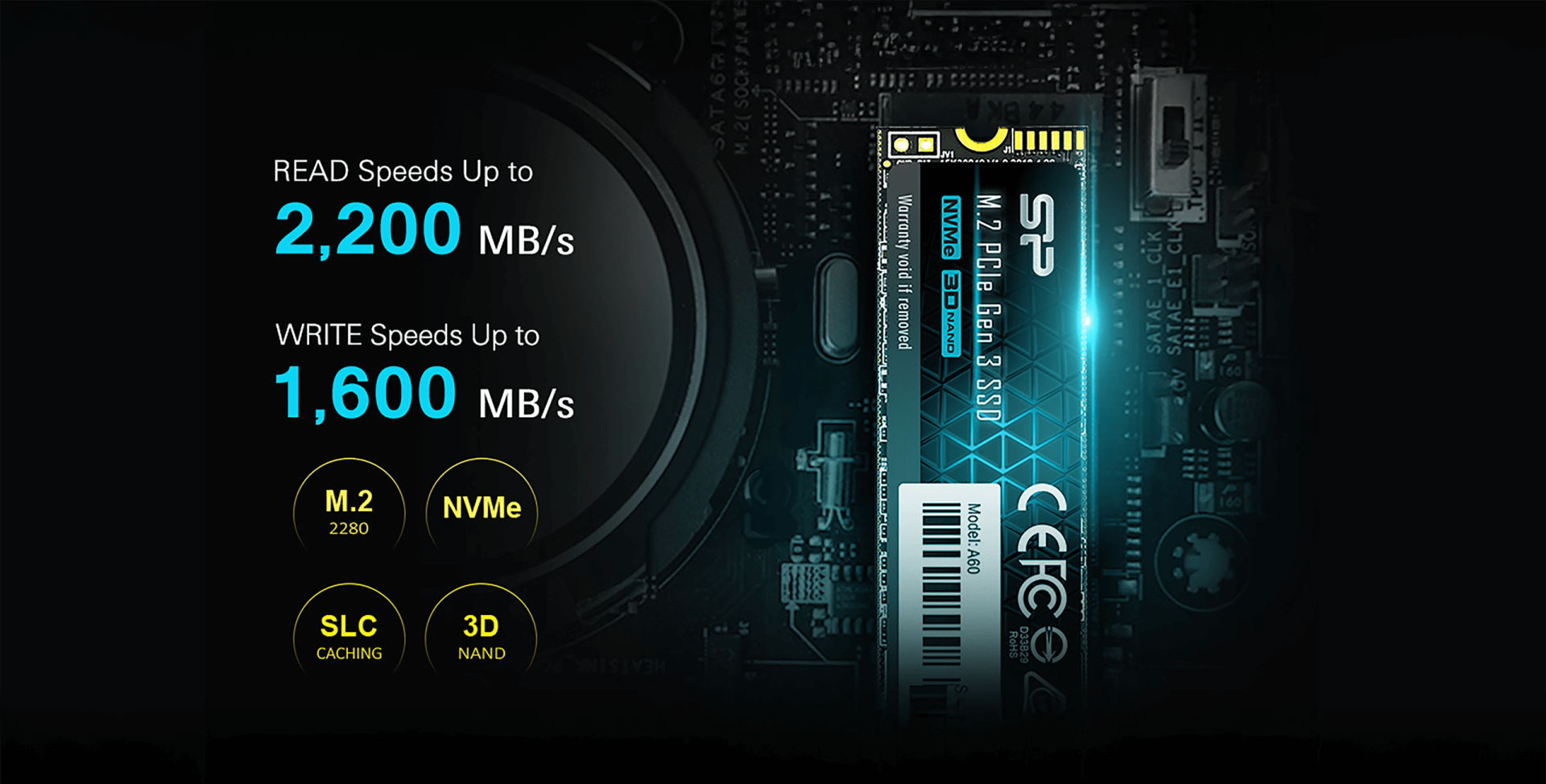

The P34A60 is an affordable storage solution that doesn't skimp on performance. It's designed for novice users, DIY system builders, purpose-built system manufacturers, and simply those who are looking to upgrade their PC. But with a PCIe Gen3x4 interface, which means four lanes are used for transmitting and receiving data simultaneously, read speeds up to 2,200 MB/s, and write speeds up to 1,600 MB/s, this SSD is anything but basic.

NVMe 1.3 + HMB = Optimum Performance

The P34A60 supports NVMe 1.3, which demands better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency. In addition, HMB (Host Memory Buffer) architecture, which allows the host driver to allocate system memory (RAM) for exclusive use by the SSD, results in higher efficiency. It's this teamwork that provides optimum performance.

Your Data In Good Hands

The P34A60 is engineered with LDPC (Low-Density Parity Check) coding, a powerful error correction code (ECC) algorithm, to keep data secure. Furthermore, End-To-End (E2E) data protection, to ensure that accessed and retrieved data are correct from start to finish, and a RAID engine, which provides an acceptable level of fault tolerance, work to enhance data integrity for greater reliability and stability.

A System Upgrade With Room For More

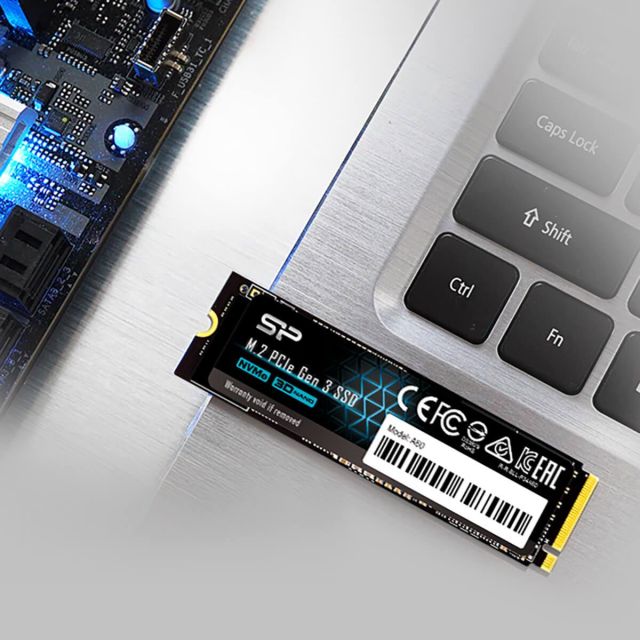

With an M.2 2280 (80mm) form factor, the P34A60's compact size allows for easy installation in laptops, small form factor PC systems, and some ultrabooks. And with up to a massive 2TB capacity option, it's an easy upgrade that can greatly expand your system's storage potential while also saving space for other components.

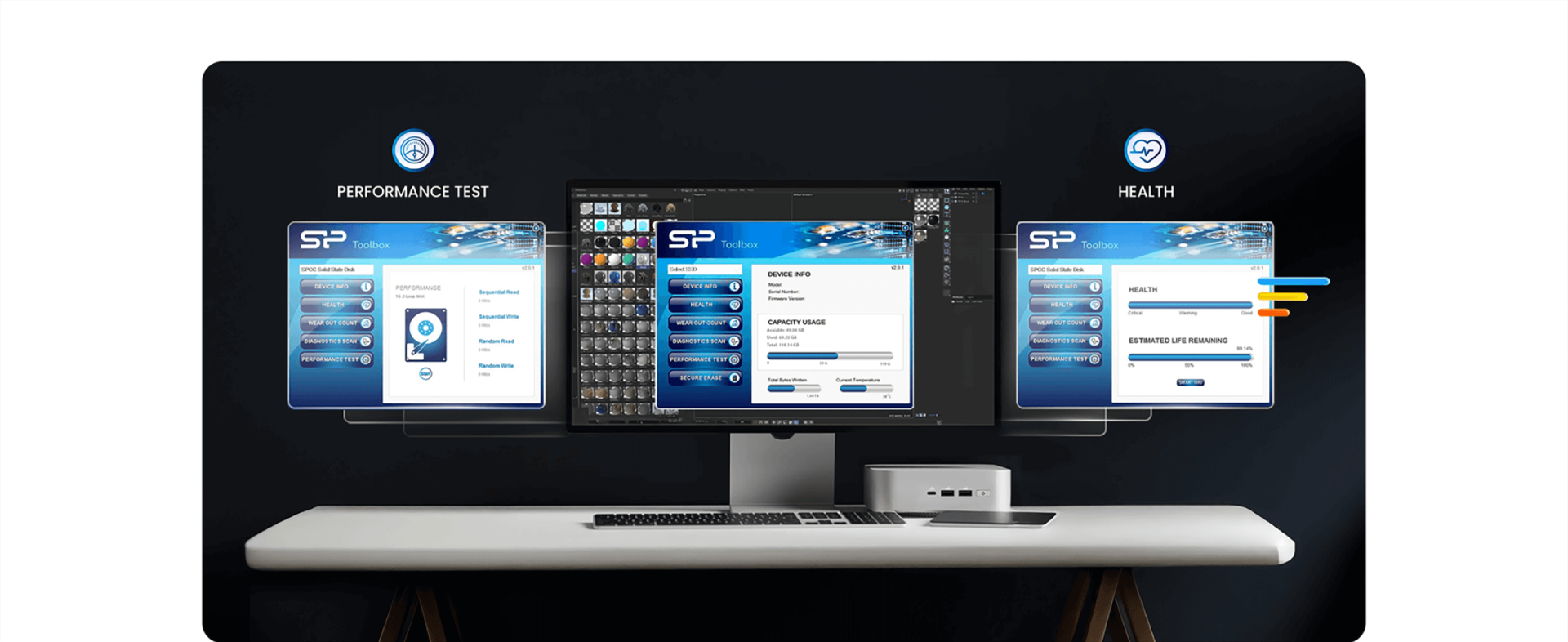

Free-Download of SSD Health Monitor - SP Toolbox

Easily monitor your new SSD's health with our free-download software – SP Toolbox. Run performance tests on the P34A60, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	MTBF-est	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SU001TBP34A60M28CA	1TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	2,200 MB/s	1,600 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	-	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	-	Add to compare
SP128GBP34A60M28	128GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	1,800 MB/s	6,00 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	-	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP256GBP34A60M28	256GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	2,100 MB/s	1,200 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	-	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP512GBP34A60M28	512GB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	2,200 MB/s	1,600 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	-	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP001TBP34A60M28	1TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	2,200 MB/s	1,600 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	-	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP002TBP34A60M28	2TB	22.0 x 80.0 x 3.5mm	8g	M.2 PCIe Gen 4x4	M.2 NVMe M Key	2,200 MB/s	1,600 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support	0℃- 70℃	n/a	-	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC	5-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	128GB, 256GB, 512GB, 1TB, 2TB
Dimensions	22.0 x 80.0 x 3.5 (mm)
Weight	8g
Interface	PCIe Gen3x4
Performance Read(max.)	128GB: 1,800 MB/s 256GB: 2,100 MB/s 512GB: 2,200 MB/s 1TB: 2,200 MB/s 2TB: 2,200 MB/s
Performance Write(max.)	128GB: 6,00 MB/s 256GB: 1,200 MB/s 512GB: 1,600 MB/s 1TB: 1,600 MB/s 2TB: 1,600 MB/s
System Requirement	Computer with M.2 slots supporting PCIe interface and an OS with NVMe support
MTBF (est)	2,000,000 hours
Shock Resistance Test	1500G/0.5ms
Operating Temperature	0℃ ~ 70℃
Certification	CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC
Warranty	5 years
Note	Performance results may vary, depending on system platform, software, interface, and capacity.
