M.2 2280 SATA III A55

• M.2 (NGFF) design suitable for ultrabooks, tablet computers and mini PCs

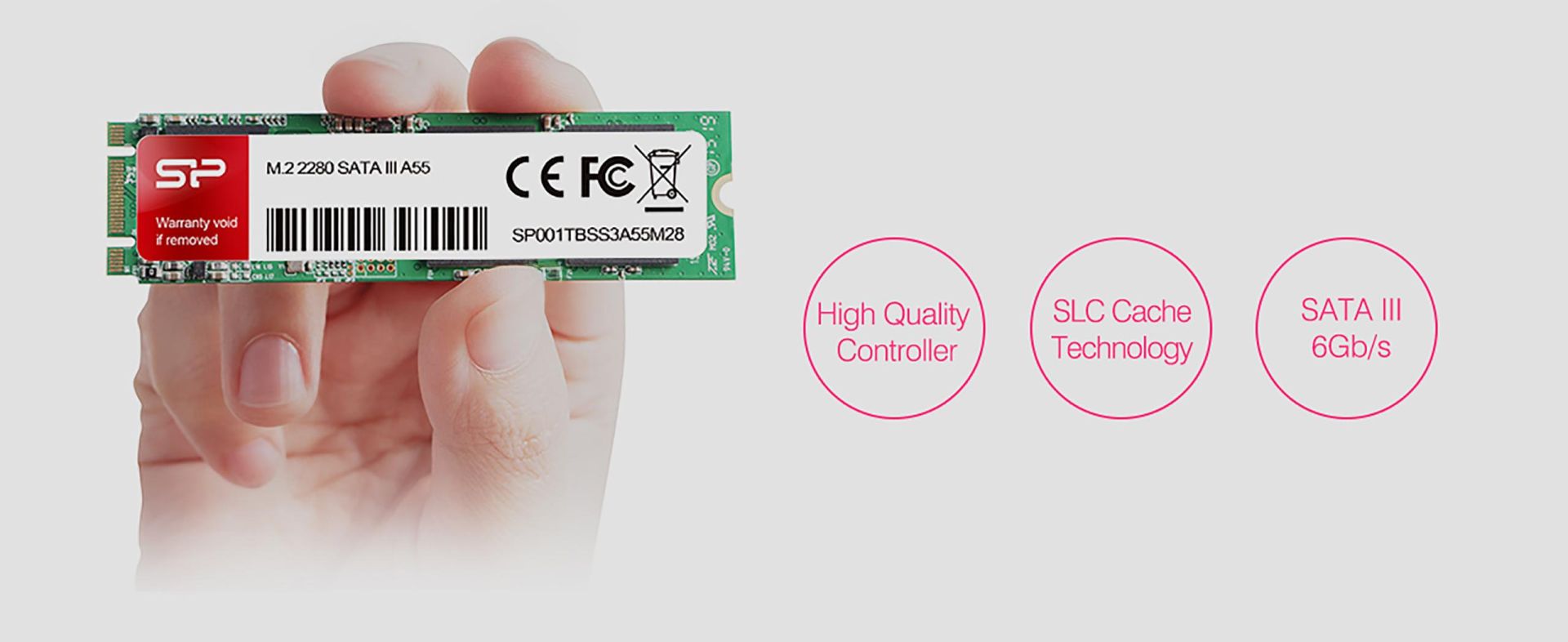

• SLC cache technology for performance boost and longer lifespan
• Supports Intel® Smart Response Technology (ISRT)
• Free download of SP Toolbox Software for efficient device monitoring
• Supports multiple functions including S.M.A.R.T. monitoring system and ECC technology for higher data transmission safety
• Supports TRIM command and NCQ
• 3-year warranty

Expand

Product Introduction
Product Specifications
File Download
Purchase

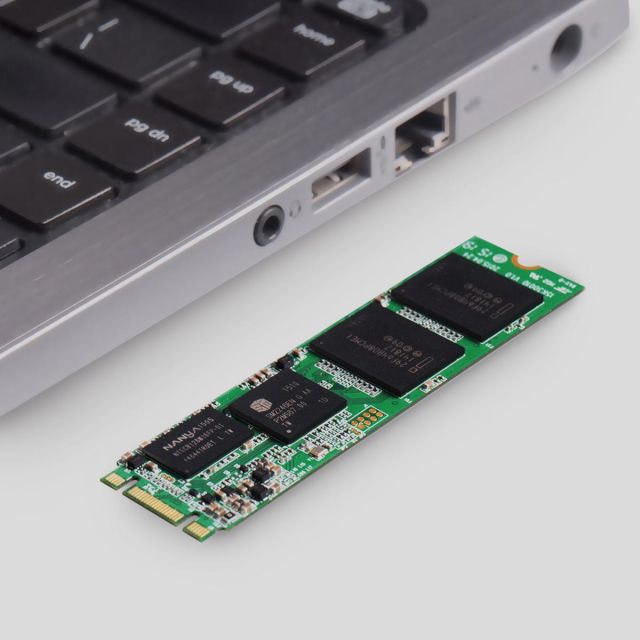

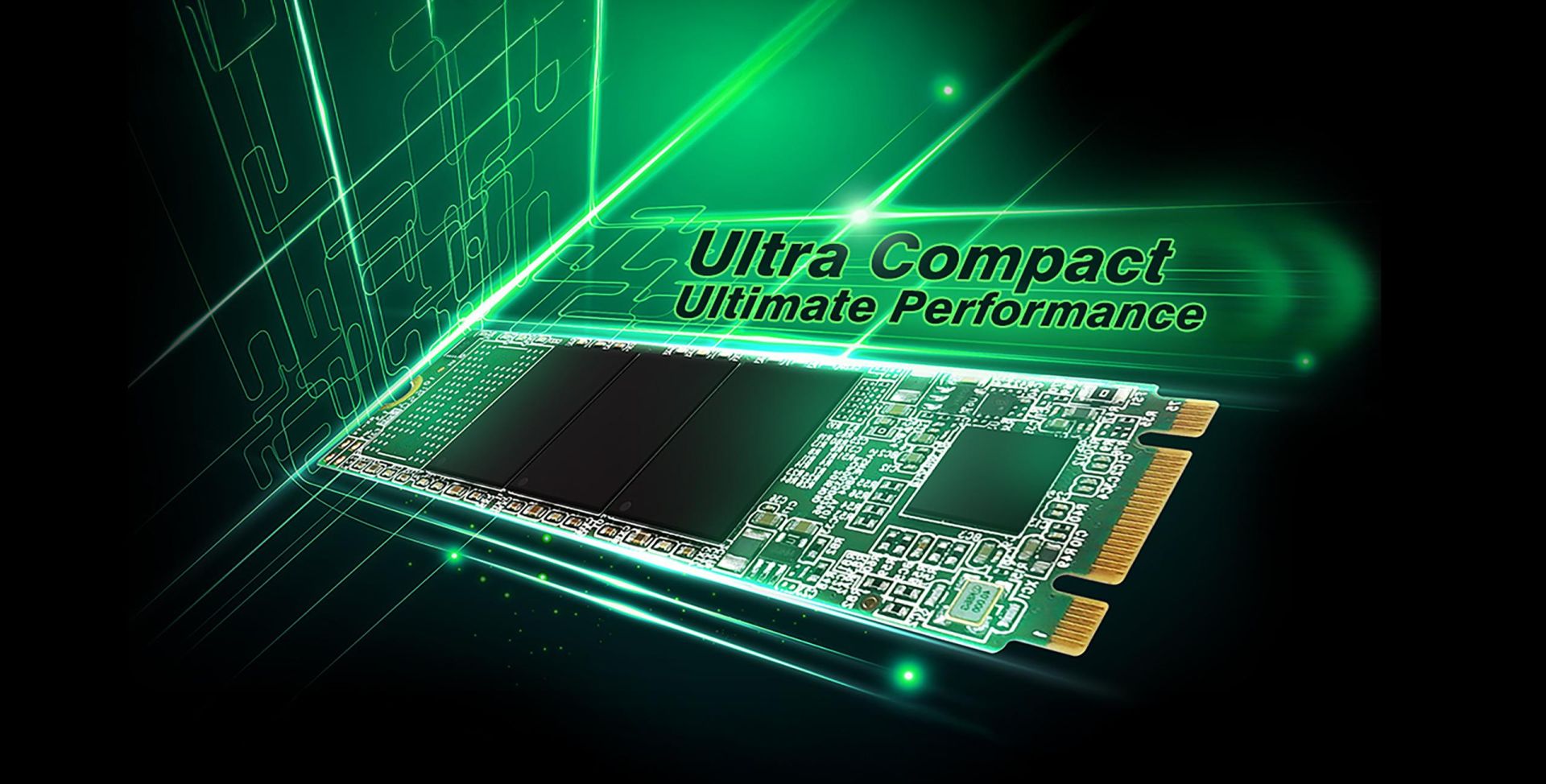

Ultra-Compact for Up-to-Date Devices

Designed with M.2 2280 form factor (80 × 22 x 3.5 mm), compact-sized and case-less A55 M.2 2280 SSD perfectly fits into tiny-and-thin devices such as ultrabooks, tablet computers and mini PCs.

Ultra-Compact for Up-to-Date Devices

Designed with M.2 2280 form factor (80 × 22 x 3.5 mm), compact-sized and case-less A55 M.2 2280 SSD perfectly fits into tiny-and-thin devices such as ultrabooks, tablet computers and mini PCs.

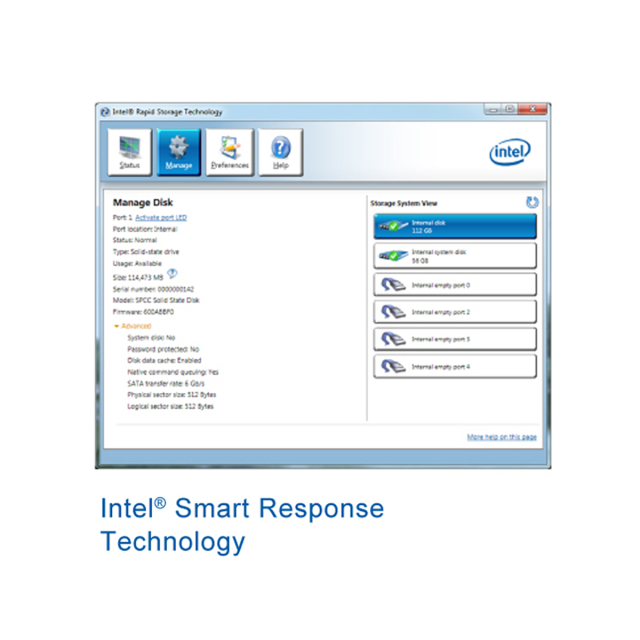

Intel®SRT Supported for Flexible Configuration

Not only fast, also smart! Intel® Smart Response Technology (ISRT) enables flexible computer configuration for improved overall performance and efficiency. It automatically identifies and stores your most frequently used applications to the SSD, while leaving your hard drive full of storage capacity. Ah! So you can combine a small-capacity SSD with a high-capacity HDD and enjoy an upgrade solution that won’t cost you an arm and a leg. (Mind you, you still need them, especially your arm for operating your upgraded, super-fast computer….)

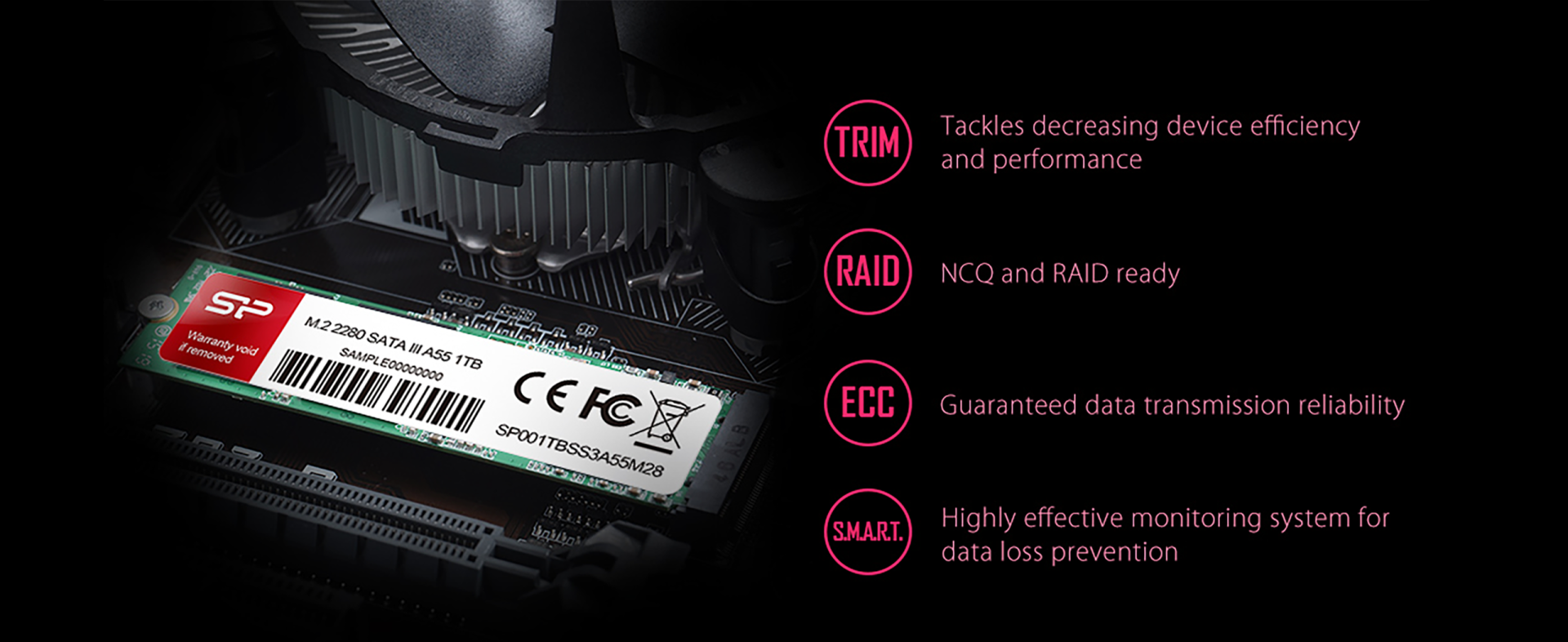

For Peace of Mind - Guaranteed Reliability and Stability

The A55 M.2 2280 supports TRIM, NCQ and S.M.A.R.T. command. It also ensures stability and overall system reliability with built-in automatic error correction (ECC), average rewriteable storage block technology (Wear Leveling) and bad block management.

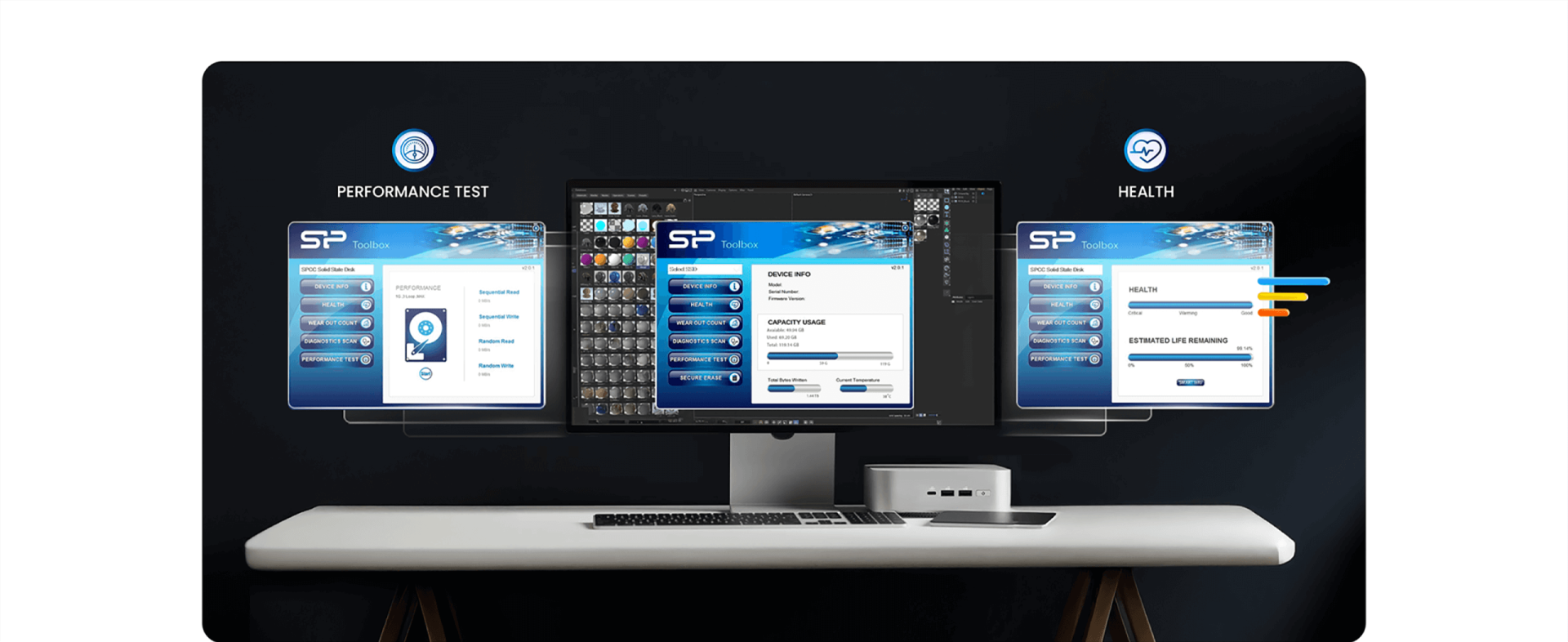

SP Toolbox Software

Easily monitor your new SSD’s health with our free-download Software – SP Toolbox. Run performance tests on the A55 M.2 2280, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP128GBSS3A55M28	128GB	22.0 x 80.0 x 3.5mm	8g	SATA III	M.2 SATA B+M Key	560MB/s	530MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 2280 SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP256GBSS3A55M28	256GB	22.0 x 80.0 x 3.5mm	8g	SATA III	M.2 SATA B+M Key	560MB/s	530MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 2280 SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP512GBSS3A55M28	512GB	22.0 x 80.0 x 3.5mm	8g	SATA III	M.2 SATA B+M Key	560MB/s	530MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 2280 SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP001TBSS3A55M28	1TB	22.0 x 80.0 x 3.5mm	8g	SATA III	M.2 SATA B+M Key	560MB/s	530MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 2280 SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SU512GBSS3A55M28NE	512GB	22.0 x 80.0 x 3.5mm	8g	SATA III	M.2 SATA B+M Key	560MB/s	530MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with M.2 2280 SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	64GB, 128GB, 256GB, 512GB, 1TB
Dimensions	22.0 x 80.0 x 3.5mm
Weight	8g
Interface	SATA III 6Gbps
Form Factor	M.2 2280-D5-B-M
Performance Read(max.)	560MB/s (ATTO)
Performance Write(max.)	530MB/s (ATTO)
MTBF (est)	1,500,000 hours
Operating Temperature	0℃- 70℃
Storage Temperature	-40°C-85°C
Warranty	3 years
Note	Performance results may vary, depending on system platform, software, interface, and capacity.

Name

Language

File Format

Version

Last Updated

File Download

M.2 2280 SATA III A55

PDF.

v1.0
