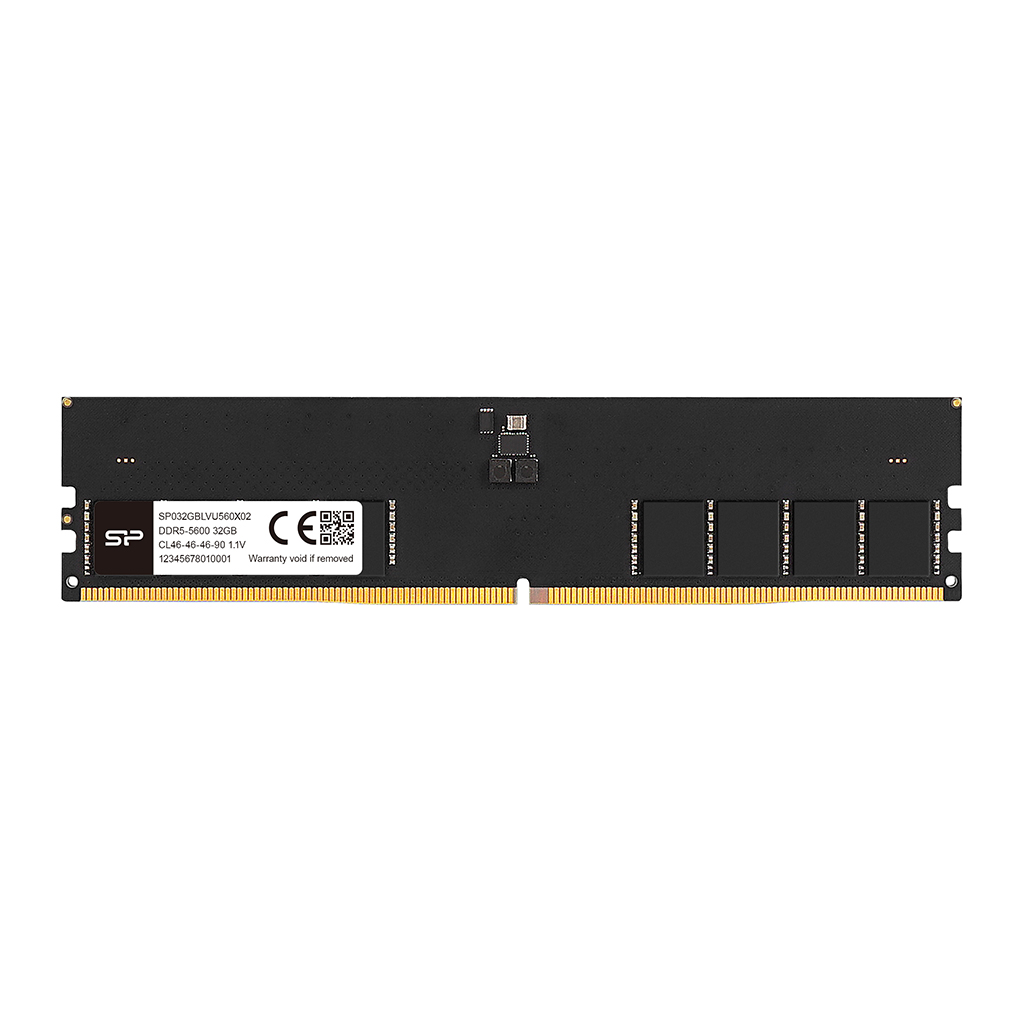

SP DDR5 UDIMM

• 5600MT/s grants faster transmission speeds and higher bandwidth than DDR4
• Available in 8GB, 16GB, 24GB, 32GB and 48GB module densities
• More than 2x faster than DDR4 to provide multi-core CPUs with extreme responsiveness
• Doubled chip unit capacity compared to DDR4 (from 16GB to 32GB) for seamless multi-tasking
• Low voltage of 1.1V for less power consumption
• Improved reliability versus DDR4 with On-Die Error Correction Code (ECC)
• Optimized efficiency with two independent 32-bit channels per module
• High computing performance with double the banks and double the burst length compared to DDR4
• Compatible with 13th Gen Intel® Core™ processors that support DDR5 and DDR5 compatible motherboards

Expand

Product Introduction
Product Specifications
File Download
Purchase

Harness The Power Of DDR5

Taking speed, capacity, and reliability even further, the cutting-edge technology of this DDR5 module gives that next-level edge for your system's performance. With aggressive speeds of 5600MT/s, it's 1.5x faster than standard 3200MT/s DDR4 to provide multi-core CPUs with extreme responsiveness and the power to multi-task seamlessly.

Greater Power Efficiency

Even with all of its extra power, this DDR5 module improves upon its predecessor with on-module voltage regulation. A power management integrated circuit (PMIC) reduces the burden on the motherboard control and results in a lower voltage of 1.1V versus 1.2V for DDR4 for even less power consumption.

No Need To Keep Tabs On Your Tabs

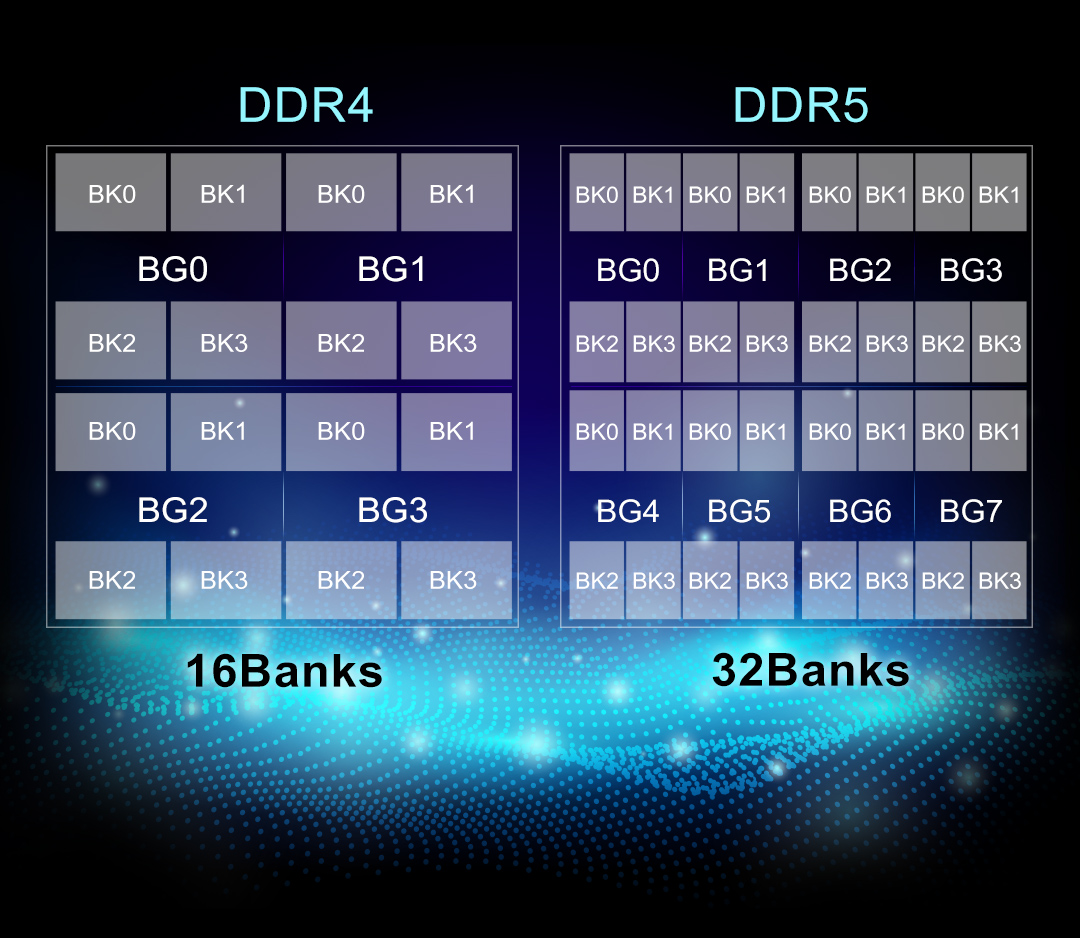

Compared to DDR4's 16GB chip unit capacity, this DDR5 module doubles that number to 32GB by packing in more banks and bank groups. This allows for more pages to be open at a time so you can increase your productivity without worrying about your system slowing down from having too many tabs open at once.

Higher Computing Performance

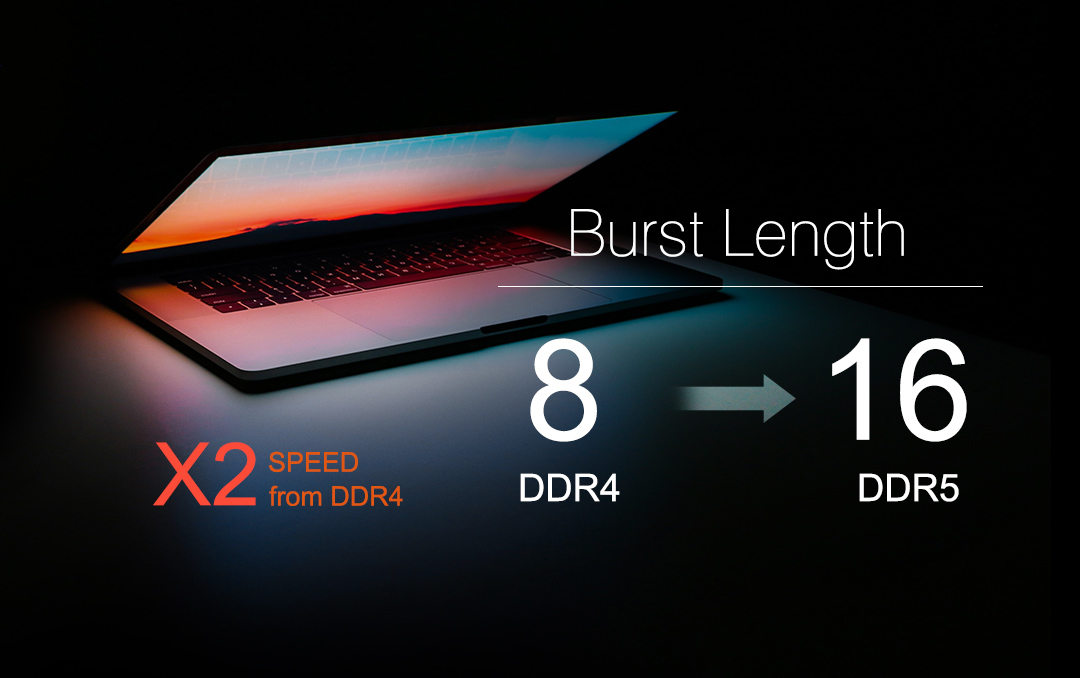

That's not all that's doubled – the minimum burst length on this DDR5 module is up to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.

Less Room For Error

This DDR5 module introduces On-Die ECC (Error Correction Code), a new feature that was designed to correct bit errors in real-time within the DRAM chip. By doing so, this advanced technology keeps your system reliably stable while automatically correcting data errors.

2 Channels Are Better Than 1

For even greater performance, this DDR5 module features two independent 32-bit channels per module. Compared to DDR4's single channel, splitting it into two increases efficiency and lowers the latencies of data accesses for the memory controller to promote optimized efficiency.

P/N	Memory Type	Capacity	Speed	Timing	Voltage	Dimensions	Weight	Color	Exterior dimensions	Warranty	Characteristic	⇅ Compare
SP032GBLVU560FD2AD	DDR5	32GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	-	-	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP064GBLVU560FD2AD	DDR5	64GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	-	-	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP016GBLVU560F02	DDR5	16GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP024GBLVU560P02	DDR5	24GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP032GBLVU560F02	DDR5	32GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP048GBLVU560P02	DDR5	48GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP032GBLVU560F22	DDR5	32GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP064GBLVU560F22	DDR5	64GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP048GBLVU560P22	DDR5	48GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP096GBLVU560P22	DDR5	416GB	5600MT/s	46-46-46-90	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP016GBLVU520F02	DDR5	16GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP024GBLVU520P02	DDR5	24GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP032GBLVU520F02	DDR5	32GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP048GBLVU520P02	DDR5	48GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP064GBLVU520F22	DDR5	64GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP048GBLVU520P22	DDR5	48GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP096GBLVU520P22	DDR5	416GB	5200MT/s	42-42-42-84	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP008GBLVU480G02	DDR5	8GB	4800MT/s	40-40-40-77	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP016GBLVU480F02	DDR5	16GB	4800MT/s	40-40-40-77	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP032GBLVU480F02	DDR5	32GB	4800MT/s	40-40-40-77	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP016GBLVU480G22	DDR5	16GB	4800MT/s	40-40-40-77	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP032GBLVU480F22	DDR5	32GB	4800MT/s	40-40-40-77	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare
SP064GBLVU480F22	DDR5	64GB	4800MT/s	40-40-40-77	1.1V	133.4 x 31.3 mm	n/a	n/a	UDIMM	Limited Lifetime Warranty	-	Add to compare

Capacity	Single Pack: 8GB, 16GB, 24GB, 32GB, 48GB Dual Channel Kit: 16GB(8GB2), 32GB(16GB2), 48GB(24GB2), 64GB(32GB2), 96GB(48GB*2)
Tested Speed	4800MT/s, 5200MT/s, 5600MT/s

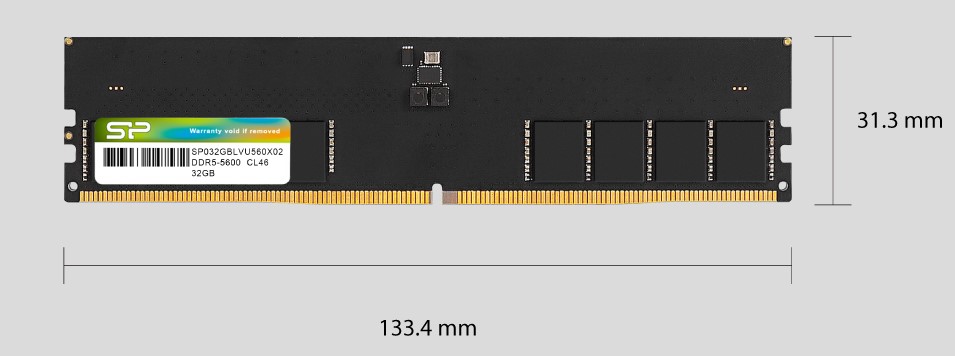

Dimensions	133.4mm x 31.3mm
Form Factor	UDIMM
CAS Latency	CL40, CL42, CL46
Voltage	1.1V
Certification	CE, UKCA, Green dot (Germany & Spain Only), WEEE, Triman, RoHS
Warranty	Limited Lifetime Warranty

Name

Language

File Format

Version

Last Updated

File Download

SP DDR5 UDIMM

PDF.

v3.0
