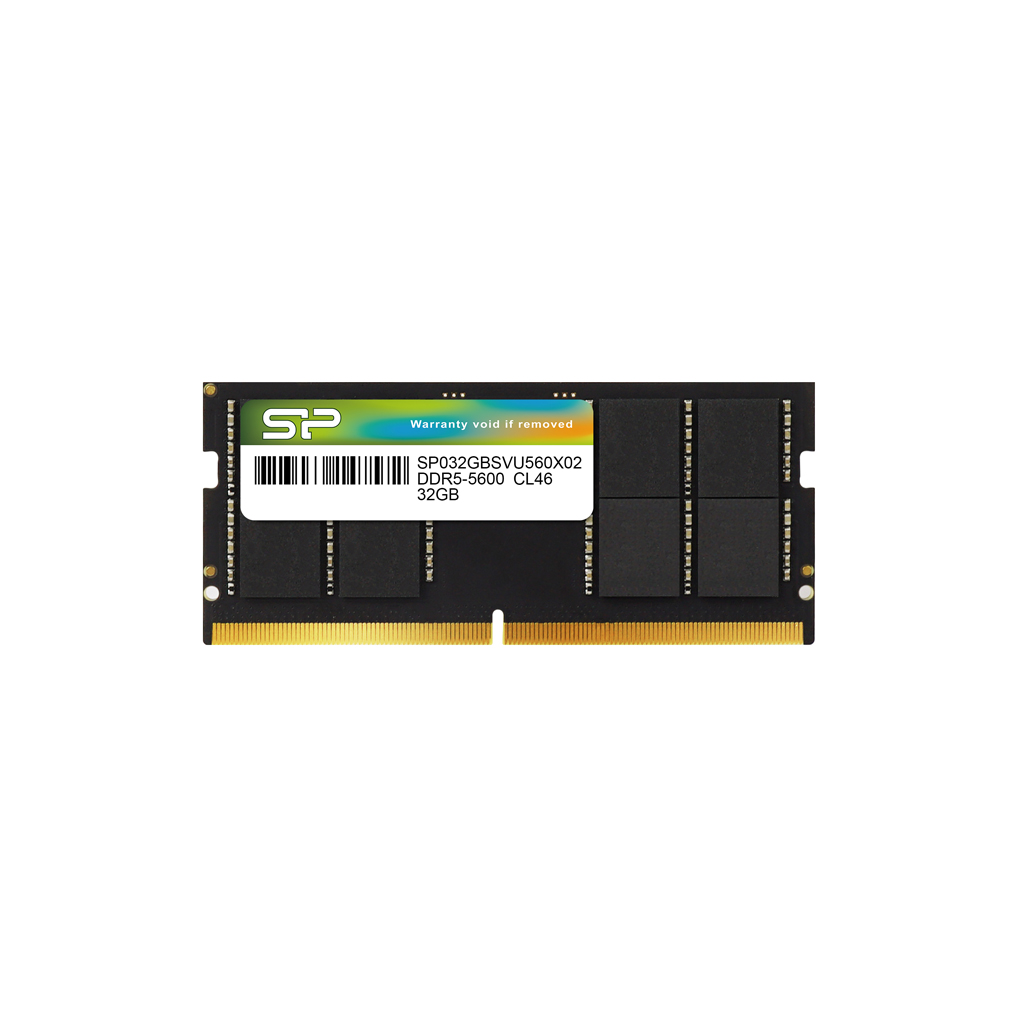

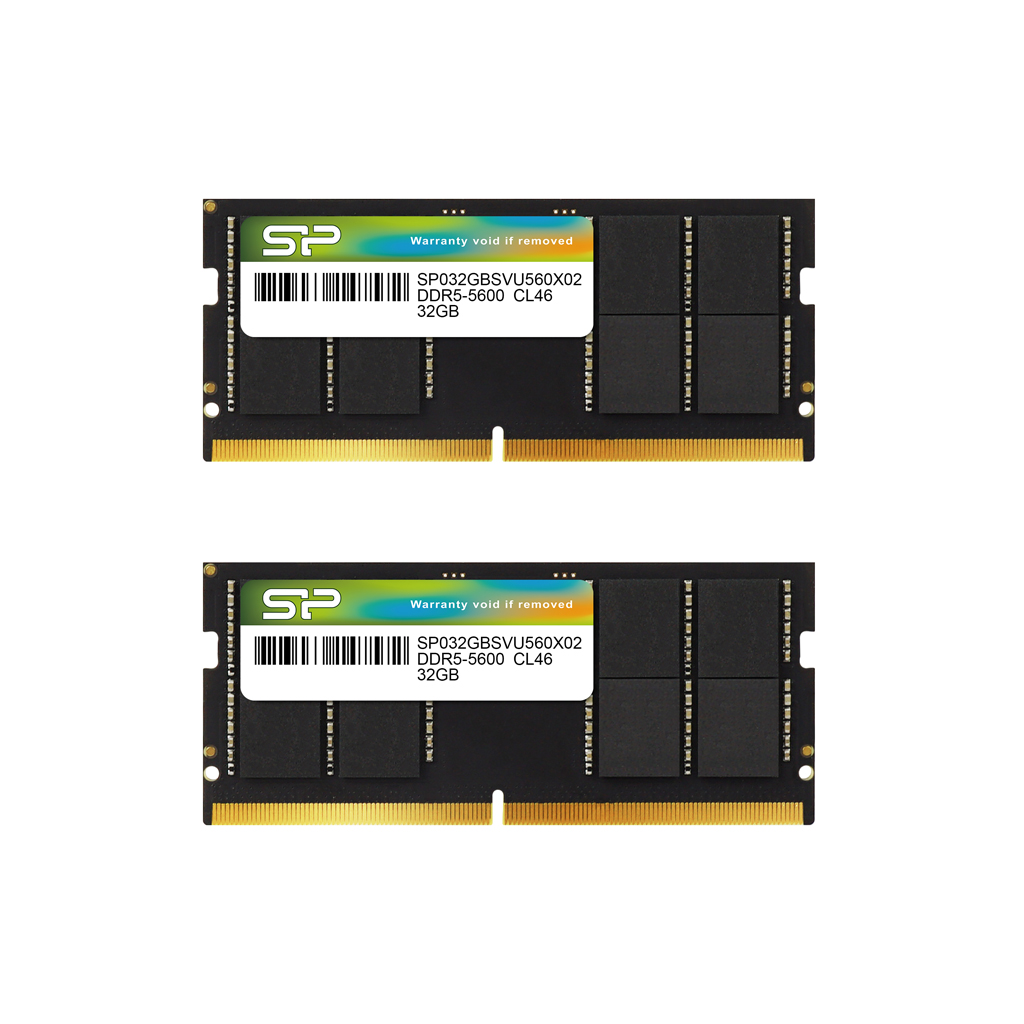

SP DDR5 SODIMM

• 5600MT/s grants faster transmission speeds and higher bandwidth than DDR4
• 1.5x faster than standard 3200MT/s DDR4 to provide multi-core CPUs with extreme responsiveness
• Available in 8GB, 16GB, and 32GB module densities
• Doubled chip unit capacity compared to DDR4 (from 16GB to 32GB) for seamless multi-tasking
• Low voltage of 1.1V for less power consumption
• Improved reliability versus DDR4 with On-Die Error Correction Code (ECC)
• Optimized efficiency with two independent 32-bit channels per module
• High computing performance with double the banks and double the burst length compared to DDR4
• Compatible with 13th Gen Intel® Core™ processors that support DDR5 and DDR5 compatible motherboards

Expand

Product Introduction
Product Specifications
File Download
Purchase

Harness The Power Of DDR5

Taking speed, capacity, and reliability even further, the cutting-edge technology of this DDR5 SODIMM module gives that next-level edge for your laptop's performance. With an aggressive 5600MT/s frequency, it's 75% higher than a standard 3200MT/s DDR4 to provide multi-core CPUs with extreme responsiveness and the power to multi-task seamlessly.

Greater Power Efficiency

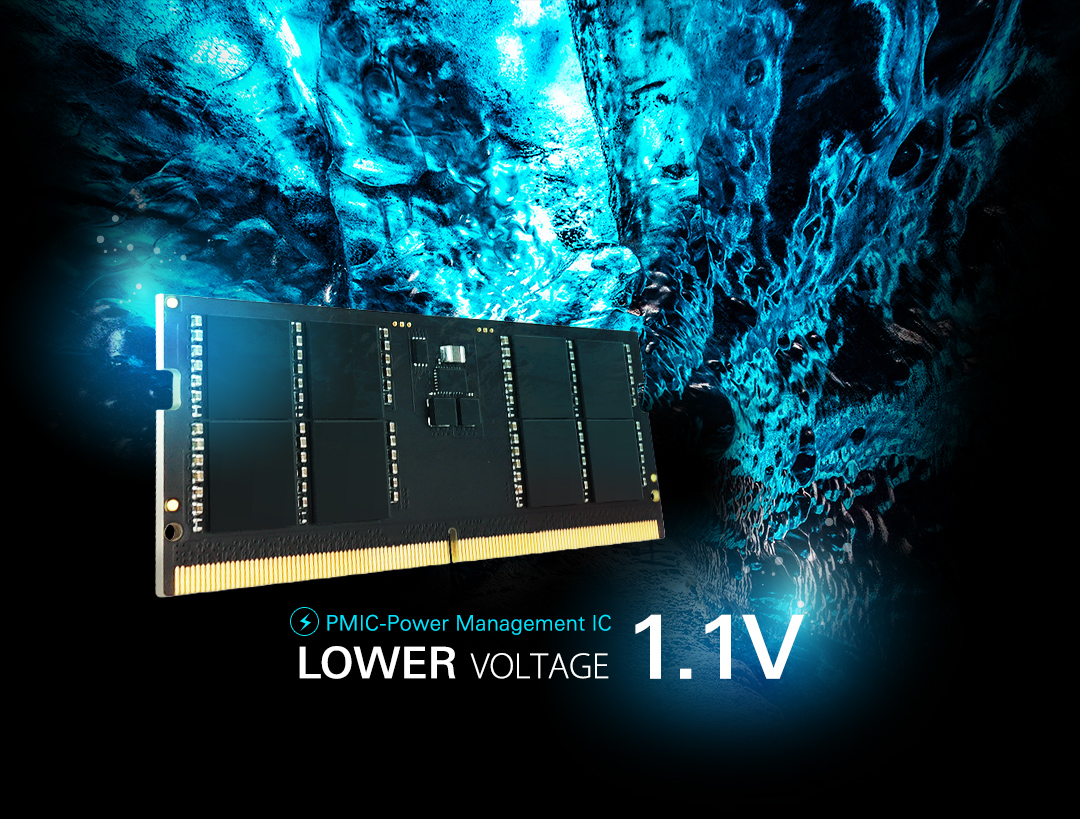

Even with all of its extra power, this DDR5 SODIMM module improves upon its predecessor with on-module voltage regulation. A power management integrated circuit (PMIC) reduces the burden on the motherboard control and results in a lower voltage of 1.1V versus 1.2V for DDR4 for even less power consumption.

No Need To Keep Tabs On Your Tabs

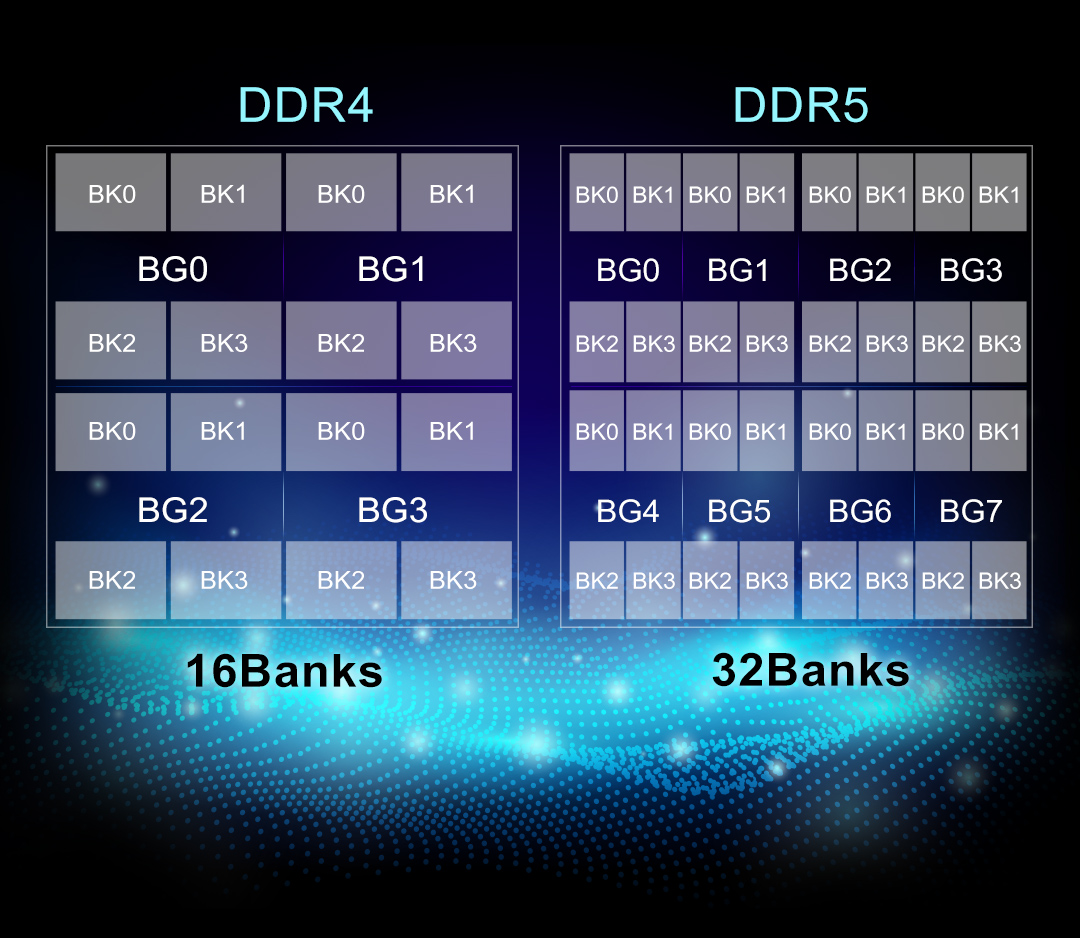

Compared to DDR4's 16GB chip unit capacity, this DDR5 SODIMM module doubles that number to 32GB by packing in more banks and bank groups. This allows for more pages to be open at a time so you can increase your productivity without worrying about your system slowing down from having too many tabs open at once.

Higher Computing Performance

That's not all that's doubled – the minimum burst length on this DDR5 SODIMM module is up to 16, up from 8 for DDR4. This improves data bus efficiency, providing twice the data on the bus, and consequently reduces the number of reads/writes to access the same cache data line.

Less Room For Error

This DDR5 SODIMM module introduces On-Die ECC (Error Correction Code), a new feature that was designed to correct bit errors in real-time within the DRAM chip. By doing so, this advanced technology keeps your system reliably stable while automatically correcting data errors.

2 Channels Are Better Than 1

For even greater performance, this DDR5 SODIMM module features two independent 32-bit channels per module. Compared to DDR4's single channel, splitting it into two increases efficiency and lowers the latencies of data accesses for the memory controller to promote optimized efficiency.

P/N	Memory Type	Capacity	Speed	Timing	Voltage	Dimensions	Weight	Color	Exterior dimensions	Warranty	⇅ Compare
SP024GBSVU560P02	DDR5	24GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SU032GBSVU560F22BH	DDR5	32GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SU064GBSVU560F22BH	DDR5	64GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SU032GBSVU480F22BH	DDR5	32GB	4800MT/s	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SU064GBSVU480F22BH	DDR5	64GB	4800MT/s	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SU064GBSVU480F22AB	DDR5	64GB	4800MHz	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP016GBSVU560F02	DDR5	16GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP032GBSVU560F02	DDR5	32GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP048GBSVU560P02	DDR5	48GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP032GBSVU560F22	DDR5	32GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP064GBSVU560F22	DDR5	64GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP048GBSVU560P22	DDR5	48GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP096GBSVU560P22	DDR5	96GB	5600MT/s	46-46-46-90	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP016GBSVU520F02	DDR5	16GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP024GBSVU520P02	DDR5	24GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP032GBSVU520F02	DDR5	32GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP048GBSVU520P02	DDR5	48GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP032GBSVU520F22	DDR5	32GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP064GBSVU520F22	DDR5	64GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP048GBSVU520P22	DDR5	48GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP096GBSVU520P22	DDR5	96GB	5200MT/s	42-42-42-84	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP016GBSVU480F02	DDR5	16GB	4800MT/s	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP032GBSVU480F02	DDR5	32GB	4800MT/s	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP032GBSVU480F22	DDR5	32GB	4800MT/s	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare
SP064GBSVU480F22	DDR5	64GB	4800MT/s	40-40-40-77	1.1V	30.0 x 69.6mm	-	-	SODIMM	Limited Lifetime Warranty	Add to compare

Capacity	Single Pack: 8GB, 16GB, 32GB Dual Channel Kit: 16GB(8GB2), 32GB(16GB2), 64GB(32GB*2)
Tested Speed	5600MT/s, 5200MT/s, 4800MT/s

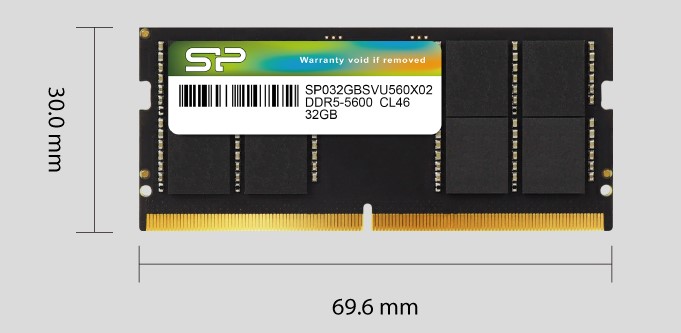

Dimensions	69.6mm x 30.0mm
Form Factor	SODIMM
CAS Latency	CL46, CL42, CL40
Voltage	1.1V
Certification	CE, UKCA, Green dot (Germany & Spain Only), WEEE, Triman, RoHS
Warranty	Limited Lifetime Warranty

Name

Language

File Format

Version

Last Updated

File Download

SP DDR5 SODIMM

PDF.

v2.0
