SP Boost SU20 Memory Card Reader

• 7-in-1 docking station equipped with HDMI, USB Type-A, USB-C PD, SD, and microSD ports
• Connect to a variety of different peripherals at the same time via 1 Type-C input
• Type-C input supports passthrough charging for both power and port expansion
• USB-C PD port is quick-charge ready (max. 60W)
• USB Type-A ports provide up to 5Gbps of bandwidth for quick data transfers between device and peripherals
• Supports HDMI resolution up to 4K (3840x2160) @ 30Hz
• SD and microSD card readers are both compatible with SDHC and SDXC
• Lightweight aluminum housing provides maximum heat dissipation

Expand

Product Introduction
Product Specifications
File Download
Purchase

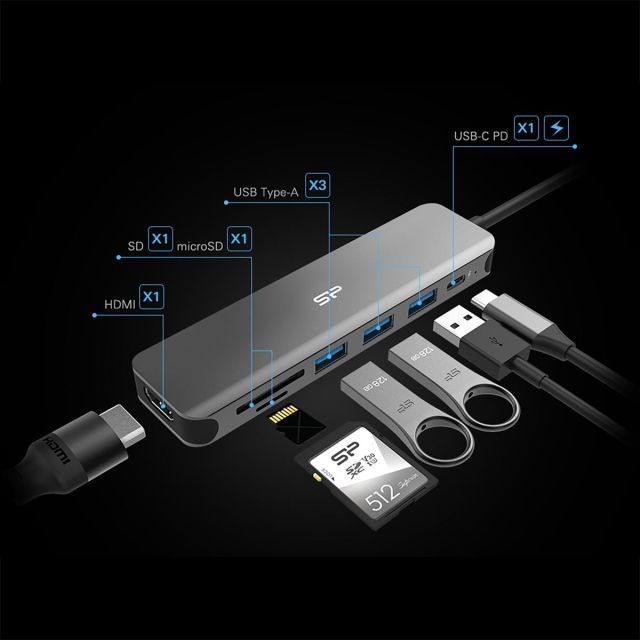

7-In-1 Ultimate Workstation

Create the ultimate workstation with our SU20 7-in-1 multiport dock. This complete solution gives Type-C laptops, notebooks, and tablets access to ports that have been eliminated on newer models. Connect to 1 HDMI port, 3 USB Type-A ports, 1 USB-C PD port, 1 SD card reader, and 1 microSD card reader all from a single Type-C input.

Amped Up Power

The SU20 was designed to deliver all-in-one power and speed. Its Type-C input supports passthrough charging to power your device without needing to sacrifice power for port expansion. Up to 5Gbps of bandwidth via its 3 USB 3.2 Gen 1 Type-A ports, plus 1 USB-C PD port (max. 60W), yields quick data transfers between your device and peripherals.

Efficiency At Its Best

The HDMI port supports resolution up to 4K (3840x2160) @ 30Hz for high-definition quality on multiple displays with no lag time. SD and microSD card readers are compatible with SDHC/SDXC and can work simultaneously for accelerated workflow. 4 USB ports (3 Type-A and 1 Type-C) permit a variety of different peripherals to be connected to your device at the same time.

Stays Cool Under Pressure

With its durable and lightweight aluminum housing, the SU20 provides maximum heat dissipation. It's a small but important detail for a dock that's able to power up to 7 peripherals simultaneously!

P/N	Model Name	Dimensions	Weight	Material	Color	Input	Output	Certification	Warranty	Operating Temperature	Storage Temperature	Supported Card Formats	Available Interface Input	Available Interface Output	Total Power Output	Cable Length	Protection	Ordering Information	Interface	Performance	Read Write	Media Type	Supported OS	Connector Type	Operating Humidity	Data Transfer Speed	Transmission Distance	Bluetooth Version	Waterproof Certification	Supported Profile	Supported Function	Speaker Driver	Output Power	Speaker Sensitivity	Impedance	Frequency	Audio Codec	Communication Range	Talk Time	Music Time	Standby Time	Battery Capacity	charging-input	Charging Time	Battery Type	Type	⇅ Compare
SPU3C07DOCSU200G	-	130.0mm x 35.0mm x 13.0mm	71.6g	Aluminum	Grey	n/a	n/a	BSMI, CE, FCC, KC	1.5 year limited warranty, 2 years limited warranty (EU)	0°C~45°C	-10°C~70°C	microSD™，microSDHC™，microSDXC™ & microSD™ UHS-I	USB Type-C(USB 3.2 Gen 1)	3 x USB-A (USB 3.2 Gen 1) 1 x USB-C PD 60W (max.) 1 x HDMI 4K @ 30Hz 1 x SD Card 1 x microSD Card	n/a	n/a	n/a	-	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Add to compare

Dimensions	130.0 x 35.0 x 13.0 (mm)
Weight	71.6g
Material	Aluminum
Color	Grey
Input	USB Type-C (USB 3.2 Gen 1)
Output	USB Type-A (x3) (USB 3.2 Gen 1), USB-C PD (x1), HDMI (x1), SD Card (x1), microSD Card (x1)
Humidity	<85% (Non-Condensing)
Operating Temperature	0°C ~ 45°C
Storage Temperature	-10°C ~ 70°C
Certification	CE, FCC, BSMI
Warranty	1.5 year limited warranty, 2 years limited warranty (EU)

Name

Language

File Format

Version

Last Updated

File Download

SP Boost SU20 Memory Card Reader

PDF.

v1.0
