SP Boost Charger QM15

• Delivers up to 20W of charging power via the USB Type-A and Type-C ports to refuel mobile phones, tablets, and more
• Charge up to 2.5 times faster with Power Delivery (PD) via Type-C and QC3.0 via USB Type-A
*Only one device may be connected to the charger at a time in order for fast charging to be enabled
**PD is supported by Android-based and iOS-based devices, while QC3.0 is only supported by Android-based devices (excluding some Huawei and OPPO models)
• 4x more power than the original 5W Apple iPhone charger (20W)
• Fast and efficient charging for all Apple devices including the new iPhone 13 and iPad (20W)
• High-quality construction extends the charger's life and improves overall performance
• Foldable plug (US version only) snaps out to charge and folds back in for condensed storage
• Compact form factor ensures maximum portability as well as an outlet fit that won't interfere with space for other chargers
• Safety measures including over voltage protection, over current protection, short circuit protection, and UL94V0 provide total protection for you and your devices

Expand

Product Introduction
Product Specifications
File Download
Purchase

Refuels The New iPhone Faster

With its upgrade to a 20W output, the QM15 was redesigned to fast charge the new iPhone 13 up to 3x quicker than using an original 5W charger. Leverage Power Delivery (PD) via the Type-C output or QC3.0 via the USB Type-A output to take charge of your life and spend less time tethered to a wall – refuel your mobile phones from 0% to up to 50% in just 30 minutes!

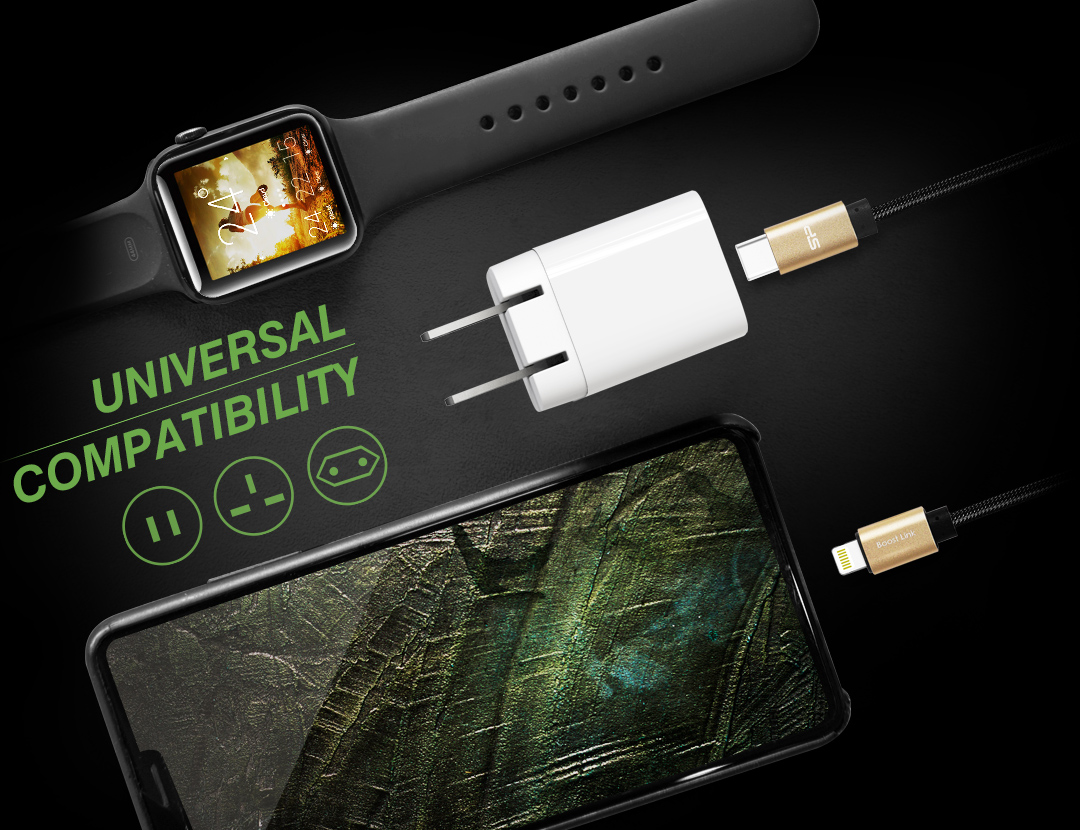

Calibrated For Any Voltage

With its universal AC 100-240 input voltage, the QM15 is calibrated to handle a wide range of voltages. Regardless of whether you're using the US, EU, or UK plug version, rest assured that the QM15 is ready to charge what you need.

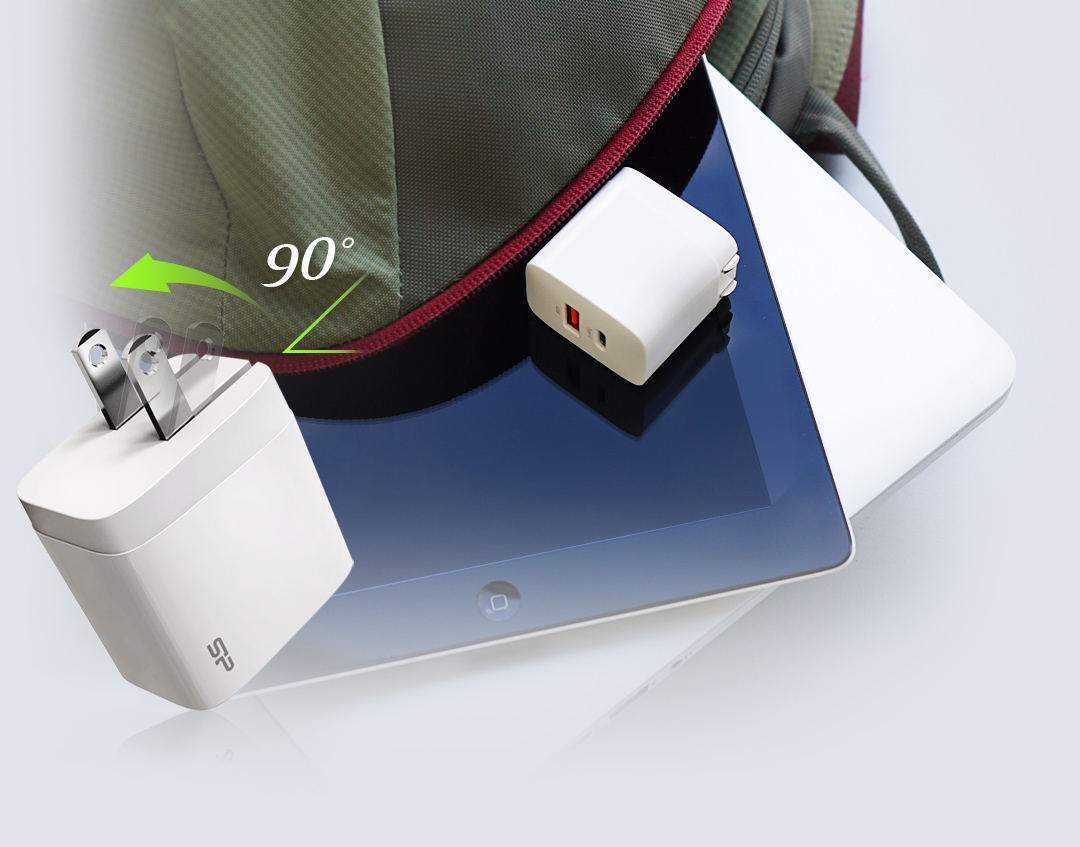

A Snug Fit With Maximized Portability

The QM15 lightweight, compact form factor ensures maximum portability and practical usage. The foldable plug (US version only) snaps out to charge and folds back in for condensed storage, as well as helps to prevent it from damaging or puncturing delicate goods while it's stored in your bag. Furthermore, its snug fit on power outlets won't interfere with space for other chargers.

For The Safest Charge Around

With the safety measures built into the QM15, it's impossible to overcharge your devices. Keep them plugged in and never worry about the dangers of overcharging again, as a trickle charge kicks-in when the battery nears 100%. Thanks to its UL94V0 grade, the QM15 is flame-retardant, and it protects your devices from over-voltage, over-current, short-circuit, and surge, for the safest charge around.

P/N	Model Name	Dimensions	Weight	Material	Color	Input	Output	Certification	Warranty	Operating Temperature	Storage Temperature	Supported Card Formats	Available Interface Input	Available Interface Output	Total Power Output	Cable Length	Protection	Ordering Information	Interface	Performance	Read Write	Media Type	Supported OS	Connector Type	Operating Humidity	Data Transfer Speed	Transmission Distance	Bluetooth Version	Waterproof Certification	Supported Profile	Supported Function	Speaker Driver	Output Power	Speaker Sensitivity	Impedance	Frequency	Audio Codec	Communication Range	Talk Time	Music Time	Standby Time	Battery Capacity	charging-input	Charging Time	Battery Type	Type	⇅ Compare
SP20WASYQM152PAW	-	41.1 x 41.3 x 29.0mm(US) 78.2 x 41.3 x 29.0mm(EU)	49g	PC (UL94V0 Grade)	White	AC 100-240V, 50/60Hz Max 0.5A	20W: USB (USB Type-A): 5V⎓3A, 9V⎓2A, 12V⎓1.5A; Type-C: 5V⎓3A, 9V⎓2.22A, 12V⎓1.5A; USB +Type-C: 5V⎓3.1A (max.)	BSMI, CE, ETL, FCC, PSE	1-Year Limited	0°C-40°C	n/a	n/a	US, EU Plugs	USB Type-A (x1), Type-C (x1)	20W	n/a	Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Surge Protection, Flame-Retardant (UL94V0 Grade)	-	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Add to compare

Dimensions	41.1 x 41.3 x 29.0mm(US) 78.2 x 41.3 x 29.0mm(EU)
Weight	49g (US), 51g (EU)
Material	PC (UL94V0 Grade)
Color	White
Input	AC 100-240V, 50/60Hz Max 0.5A
Output	20W: USB (USB Type-A): 5V⎓3A, 9V⎓2A, 12V⎓1.5A; Type-C: 5V⎓3A, 9V⎓2.22A, 12V⎓1.5A; USB +Type-C: 5V⎓3.1A (max.)
Available Interface (Input)	US, EU
Available Interface (Output)	USB Type-A (x1), Type-C (x1)
Total Power Output	20W
Protection	Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Surge Protection, Flame-Retardant (UL94V0 Grade)
Operating Temperature	0°C - 40°C
Certification	BSMI, CE, ETL, FCC, PSE
Warranty	1 year, 2 years (EU)

Name

Language

File Format

Version

Last Updated

File Download

SP Boost Charger QM15

PDF.

v1.0

SP Boost Charger QM15（20W）

PDF.

v1.0
