SP Boost Charger QM12

• Delivers up to 20W of charging power via the USB Type-C port to refuel mobile phones, tablets, and more
• Ultra-compact design is 50% smaller than a standard iPhone charger
• 4x more power than the original 5W iPhone charger
• Offers fast and efficient charging for Apple products such as the new iPhone 12 and iPad
• Charges the iPhone 8 or later up to 50% in 30 minutes with quick charge support
• Ultra-compact design won't interfere with space for other chargers
• Perfect for global travel, the 100-240 input voltage can safely handle the variety of voltages that come from US, EU, and UK plugs
• High-quality construction extends the charger's life and improves overall performance
• Safety measures including over voltage protection, over current protection, short circuit protection, and UL94V0 provide total protection for you and your devices

Expand

Product Introduction
Product Specifications
File Download
Purchase

4x More Power With 20W Output

With 4x more power than the original 5W iPhone charger, the QM12 offers fast and efficient charging for Apple products such as the new iPhone 12 and iPad. For maximal quick charge performance, pair it with the iPhone 8 or later and charge up to 50% in 30 minutes.

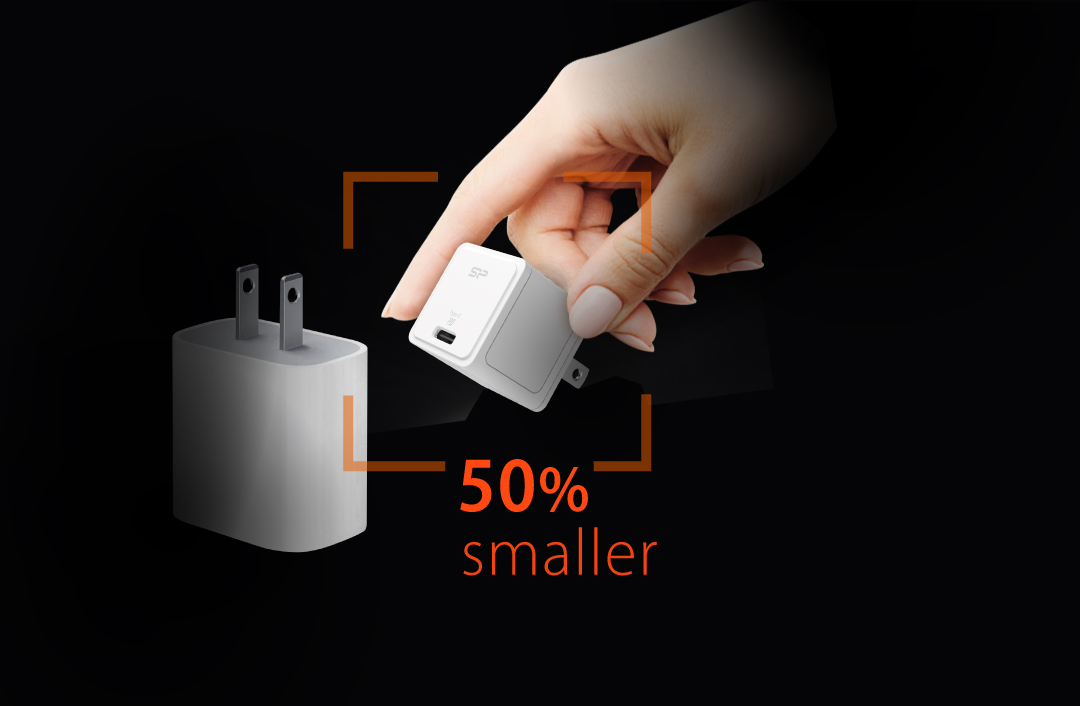

Less Space With Ultra-Compact Design

The QM12 is 50% smaller than a standard iPhone charger, but it delivers up to 20W of charging power with its futureproof Type-C port. This ultra-compact and space-saving design requires minimal space on a power outlet, so it won't interfere with space for other chargers.

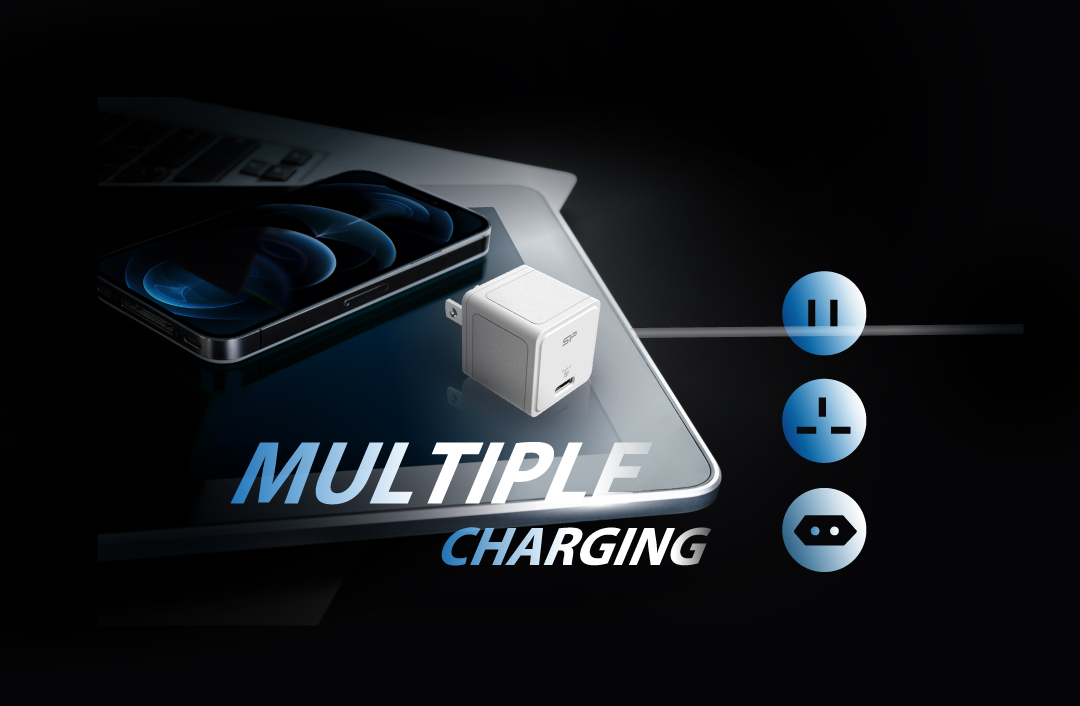

Wide And Far Charging Coverage

The QM12 is ready for global travel with its universal AC 100-240 input voltage. It's calibrated to handle voltages from US, EU, and UK plugs. Plus, with PD3.0 support, compatibility and optimized maximum charging speed on almost any mobile device is ensured from support for multiple charging protocols.

For The Safest Charge Around

With the safety measures built into the QM12, it's impossible to overcharge your devices. Keep them plugged in and never worry about the dangers of overcharging again, as a trickle charge kicks-in when the battery nears 100%. Thanks to its UL94V0 grade, the QM12 is flame-retardant, and it protects your devices from over-voltage, over-current, short-circuit, and surge, for the safest charge around.

P/N	Model Name	Dimensions	Weight	Material	Color	Input	Output	Certification	Warranty	Operating Temperature	Storage Temperature	Supported Card Formats	Available Interface Input	Available Interface Output	Total Power Output	Cable Length	Protection	Ordering Information	Interface	Performance	Read Write	Media Type	Supported OS	Connector Type	Operating Humidity	Data Transfer Speed	Transmission Distance	Bluetooth Version	Waterproof Certification	Supported Profile	Supported Function	Speaker Driver	Output Power	Speaker Sensitivity	Impedance	Frequency	Audio Codec	Communication Range	Talk Time	Music Time	Standby Time	Battery Capacity	charging-input	Charging Time	Battery Type	Type	⇅ Compare
SP20WASYQM121PCW	-	67.5 x 30.6 x 35.6mm (EU)	40g (EU)	PC (UL94V0 Grade)	White	AC100-240V, 50/60Hz Max 0.5A	Type-C: 5V⎓3A / 9V⎓2.22A	BSMI, CE, ETL, FCC, PSE, RoHS, WEEE	2 years (EU)	0°C-40°C	n/a	n/a	EU, UK Plugs	Type-C*1	20W	n/a	Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Surge Protection, Flame-Retardant (UL94V0 Grade)	-	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Add to compare

Dimensions	30.0 x 30.6 x 29.0 mm (US) 67.5 x 30.6 x 35.6mm (EU)
Weight	36g (US), 40g (EU)
Material	PC (UL94V0 Grade)
Color	White
Input	AC100-240V, 50/60Hz Max 0.5A
Output	Type-C: 5V⎓3A / 9V⎓2.22A
Available Interface (Input)	US, EU, UK Plugs
Available Interface (Output)	Type-C (x1)
Total Power Output	20W
Protection	Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Surge Protection, Flame-Retardant (UL94V0 Grade)
Operating Temperature	0°C - 40°C
Certification	BSMI, CE, ETL, FCC, PSE, RoHS, WEEE
Warranty	1 year, 2 years (EU)

Name

Language

File Format

Version

Last Updated

File Download

SP Boost Charger QM12

PDF.

v1.0
