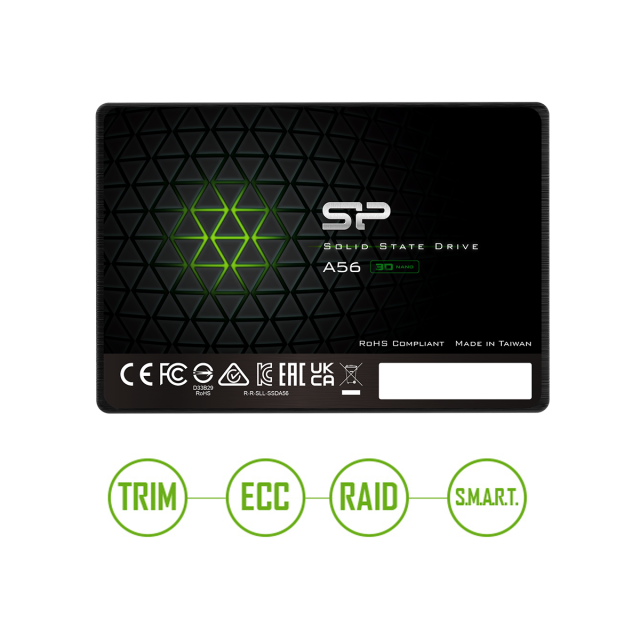

SP Ace A56 SATA III SSD

• 3D NAND flash and "SLC Cache Technology" to improve overall performance
• 15 x faster than a standard 5400 HDD*
• 7mm slim design suitable for ultrabooks and ultra-slim laptops
• Supports TRIM command and garbage collection technology
• NCQ and RAID ready
• ECC (error correction code) technology to guarantee reliable data transmission
• S.M.A.R.T. monitoring system
• Low power consumption, shock- and vibration-proof, noiseless and low latency
• Free SP ToolBox software download to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics

Expand

Product Introduction
Product Specifications
File Download
Purchase

More Than Just a Solid Performance - Can You Keep Up?

Equipped with a high-quality controller and 3D NAND flash, the A56 provides outstanding system performance. It will give your computer a powerful boost with significantly reduced boot times and accelerated response processes. Can you keep up?

Time Is Money! Don’t Waste It on a Slow System

The ultra-fast SATA III 6Gb/s transfer interface delivers incredible sequential transfer rates of up to 560MB/s read and 530MB/s write. It enables boot-ups in the blink of an eye, faster application loading and speedier file execution.

Durability and Performance

Equipped with an original controller and 3D NAND Flash, the Ace A56 can not only guarantee stability and durability. It also delivers outstanding performance which enables 10-second quick boot-ups, shorter application load times and faster data transmission speed. Whether you are web surfing, enjoying a good movie, or have to handle paperwork, the Ace A56 will bring you a smooth, lag-free experience.

Internal Auto-Copy Technology

The Ace A56's auto-copy technology allows automatic copy operations from the SLC cache to the 3D NAND Flash inside the NAND without using the controller or DDR. This supports higher efficiency by reducing the controller's and DRAM's workload.

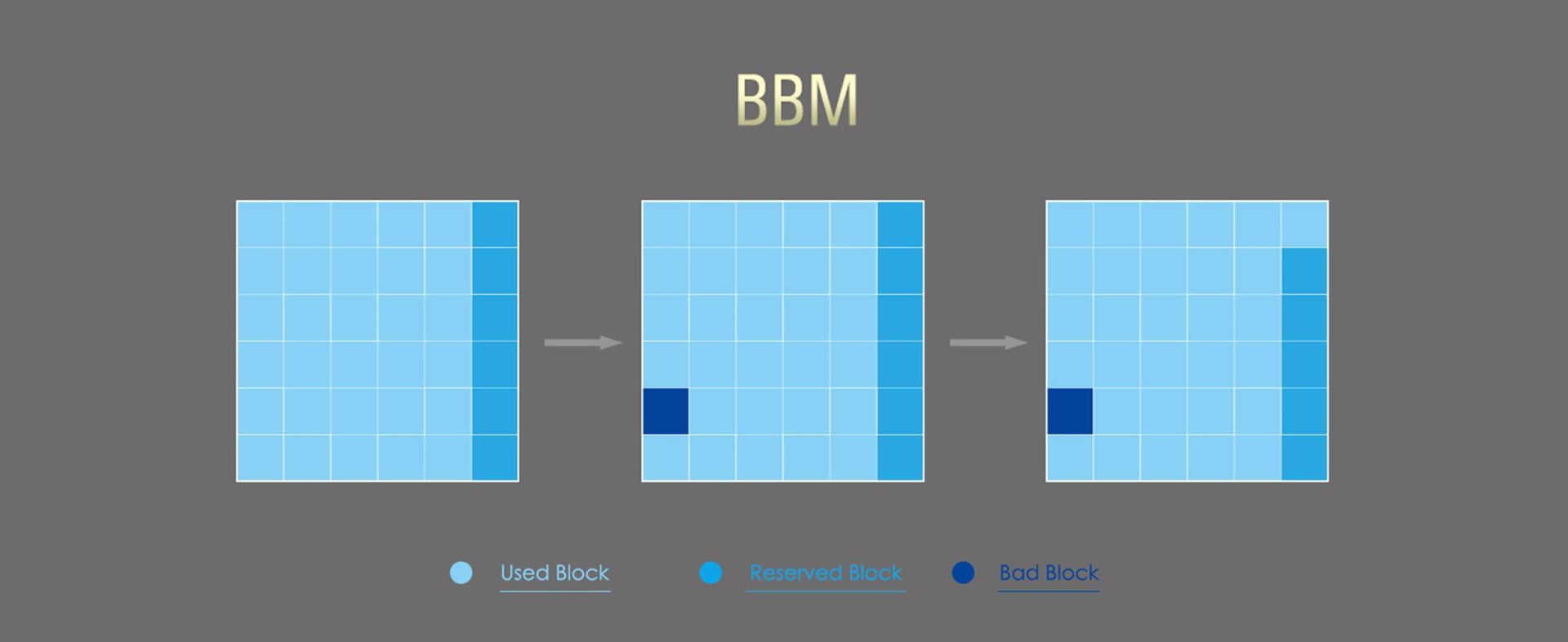

Bad Block management (BBM)

A bad block management (BBM) mechanism detects and marks bad blocks to avoid storage in those blocks and eliminate access errors. And, even if errors do occur in new blocks during an erase, this mechanism can move the data to other effective blocks to prevent data loss resulting from the failed erase.

Light and S.M.A.R.T.

The A56 is one of the lightest and thinnest SSDs of its kind yet it is shock- and vibration-proof, because it contains no moving parts. Equipped with a S.M.A.R.T. monitoring system and ECC (error correction code) technology, it also promises higher data transmission safety.

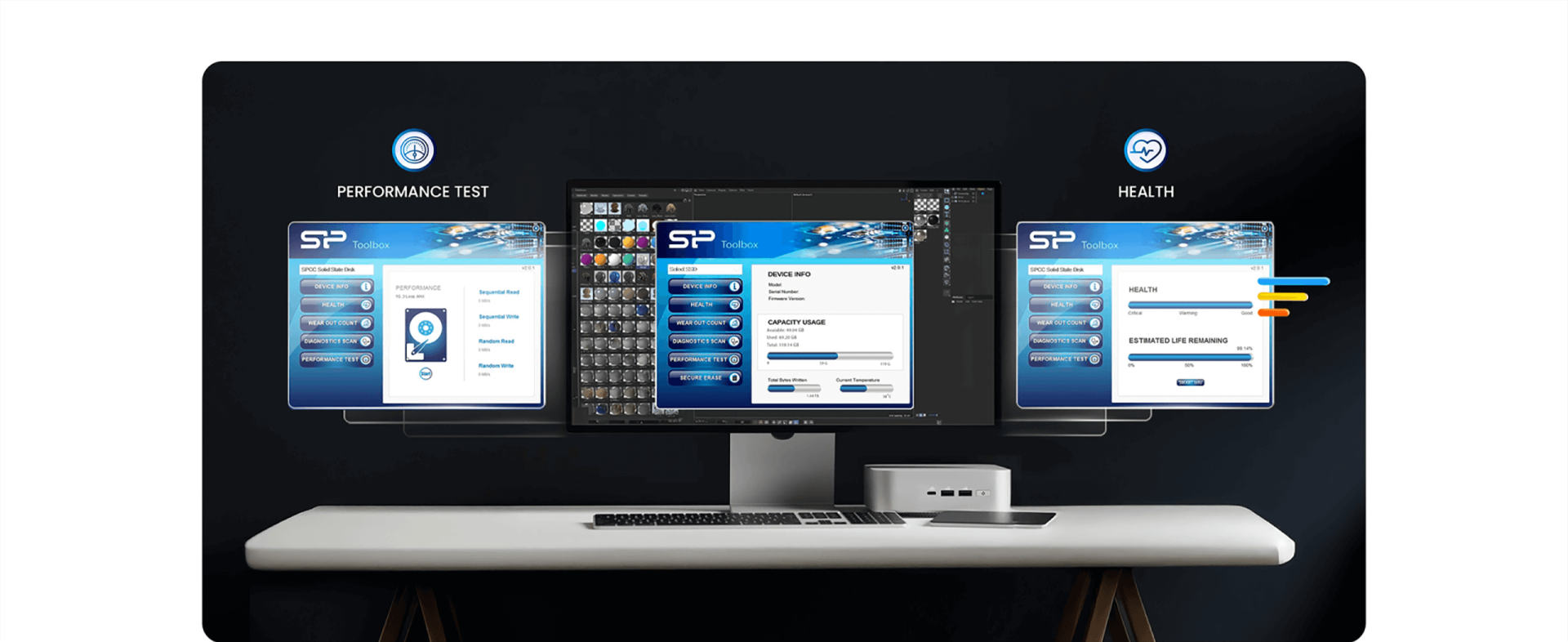

SP Toolbox Software

Easily monitor your new SSD’s health with our free-download software – SP Toolbox. Run performance tests on the A56, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.

*Based on "out-of-box performance” using a SATA Revision 3.0 motherboard. Performance results may vary, depending on system platform, software, interface, and capacity.

P/N	Capacity	Dimensions	Weight	Interface	Connectors	Performance Read	Performance Write	Material	Color	Supported OS	System Requirement	Operating Temperature	Patent	Certification	Warranty	Extra Protection	Product Feature	⇅ Compare
SP128GBSS3A56B25	128GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	460 MB/s	360 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP256GBSS3A56B25	256GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	460 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP512GBSS3A56A25	512GB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP001TBSS3A56A25	1TB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP002TBSS3A56A25	2TB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare
SP004TBSS3A56A25	4TB	100.0 x 69.9 x 7.0mm	63g (max.)	SATA III	SATA	500 MB/s	450 MB/s	n/a	n/a	Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer	Computer with 2.5" SATA slots supporting SATA III interface	0°C-70°C	n/a	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC	3-Year Limited	Shock Resistance Test(1500g/0.5ms)	n/a	Add to compare

Capacity	128GB, 256GB, 512GB, 1TB , 2TB, 4TB, 8TB, 16TB
Dimensions	100.0 x 69.9 x 7.0mm
Interface	SATA III
Weight	63g (max.)
Performance Read(max.)	128GB: 460 MB/s 256GB: 460 MB/s 512GB: 500 MB/s 1TB: 500 MB/s 2TB: 500 MB/s 8TB: 500 MB/s 16TB: 500 MB/s
Performance Write(max.)	128GB: 360 MB/s 256GB: 450 MB/s 512GB: 450 MB/s 1TB: 450 MB/s 2TB: 450 MB/s 8TB: 450 MB/s 16TB: 450 MB/s
Operation Voltage	5V
MTBF (est)	1,500,000 hours
Vibration Resistance Test	20G
Shock Resistance Test	1500G Max
Certification	CE / FCC / ROHS / BSMI / C-TICK / KC / EAC
Warranty	3 years
Note	Performance results may vary, depending on system platform, software, interface and capacity.
