HOME Products Solid State Drives (SSDs) Internal SSD SP Ace A55 SATA III SSD

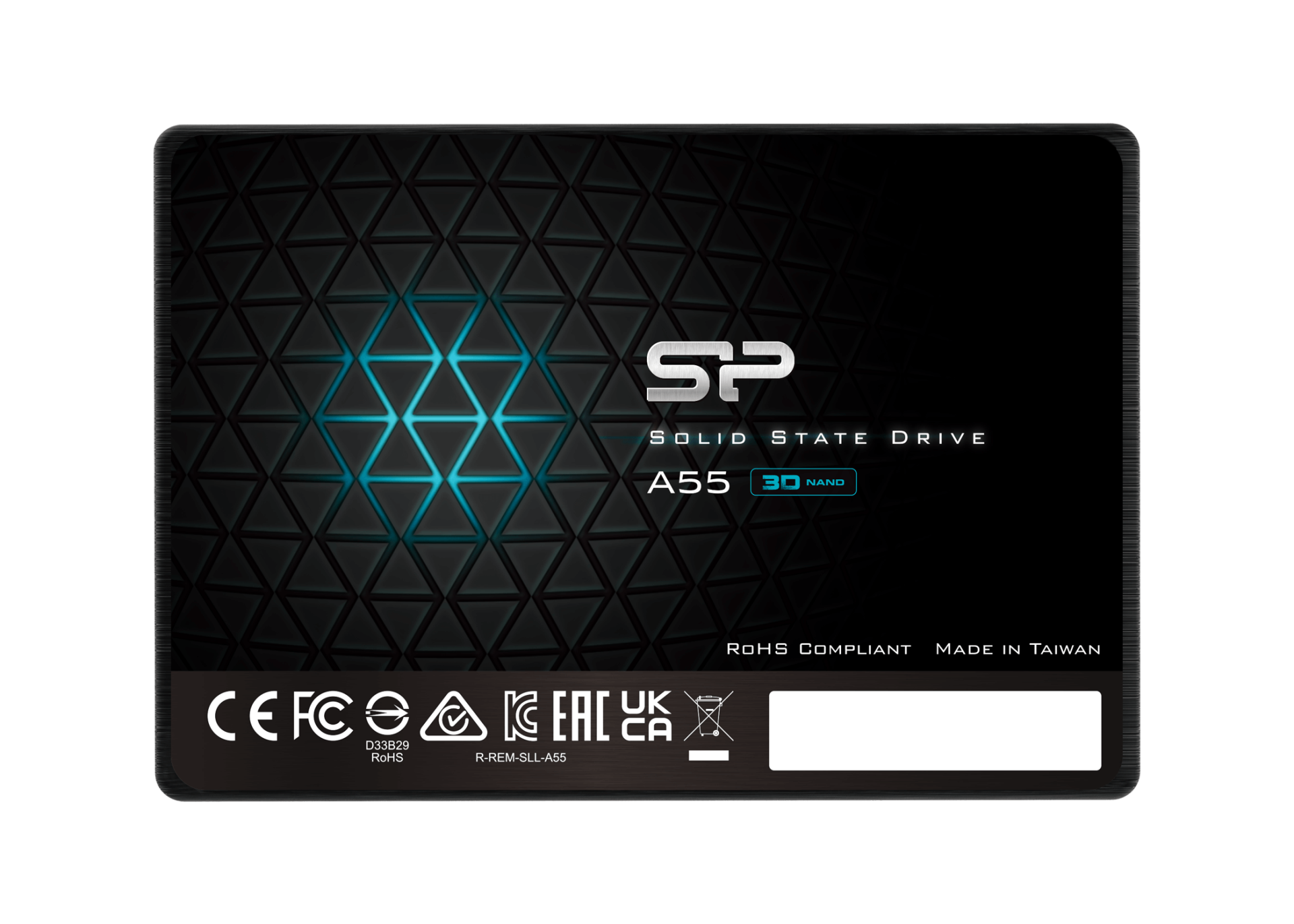

siliconpower-SSD-ACE 55-2100x1500_1

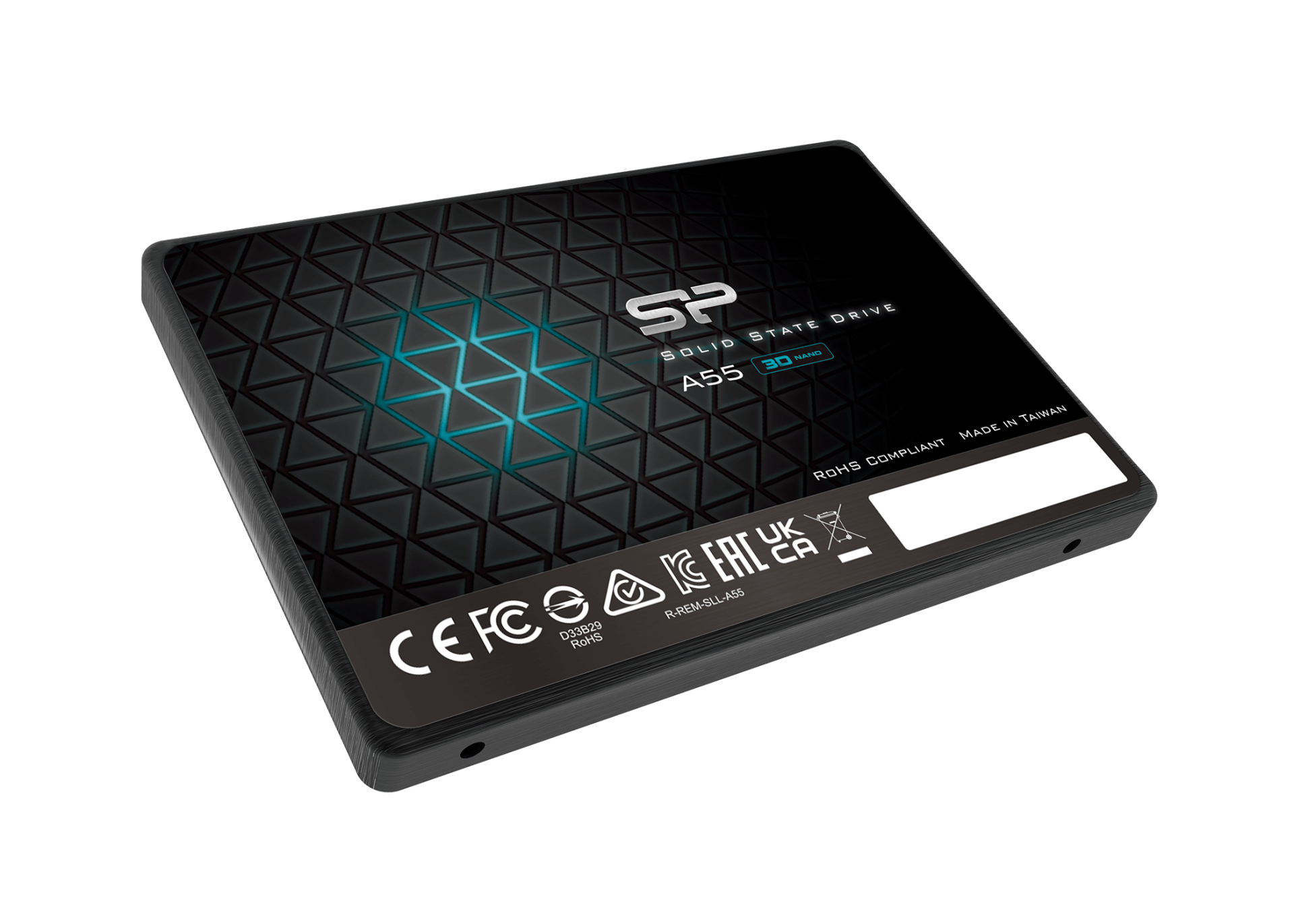

siliconpower-SSD-ACE 55-2100x1500_2

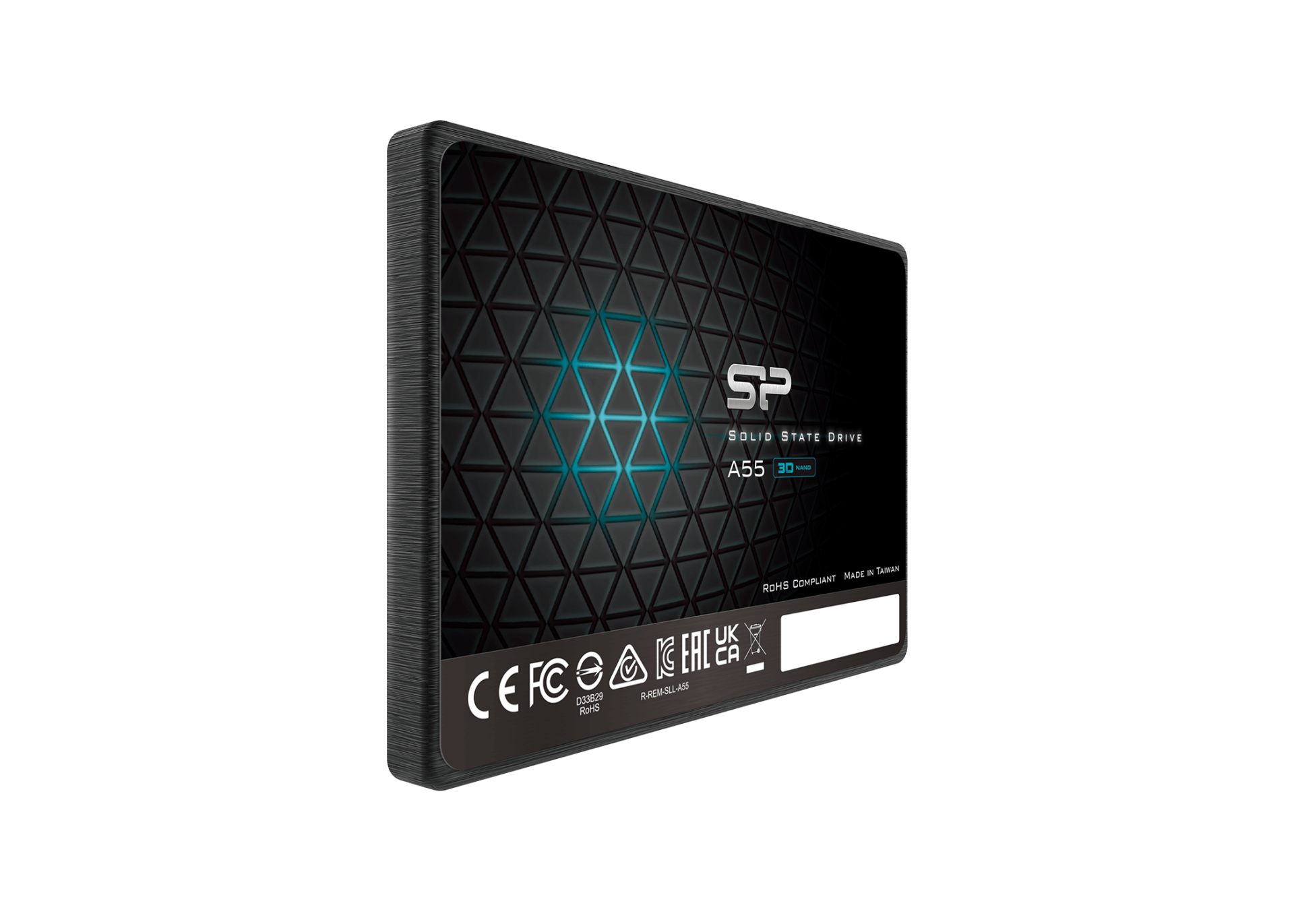

siliconpower-SSD-ACE 55-2100x1500_3

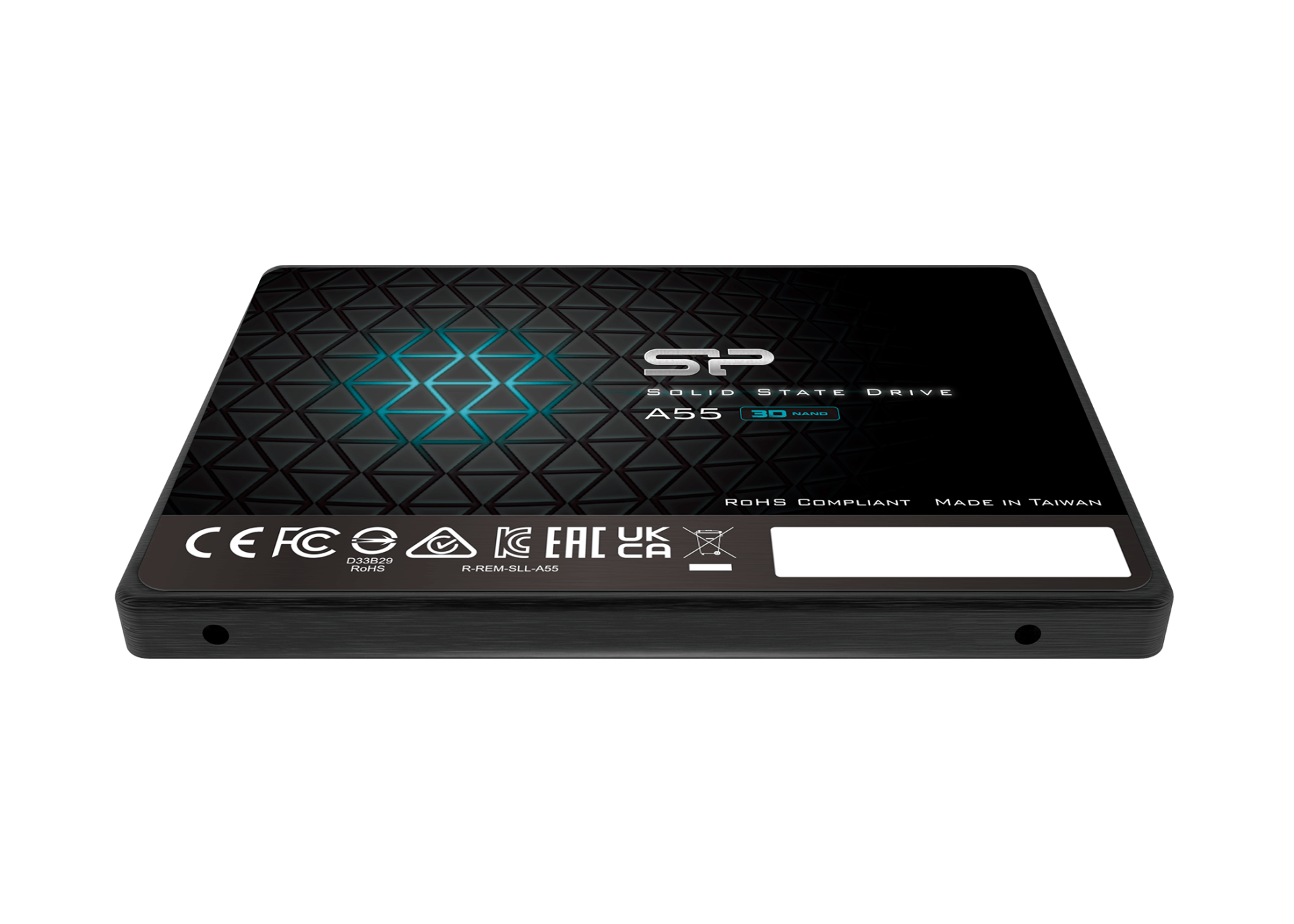

siliconpower-SSD-ACE 55-2100x1500_4

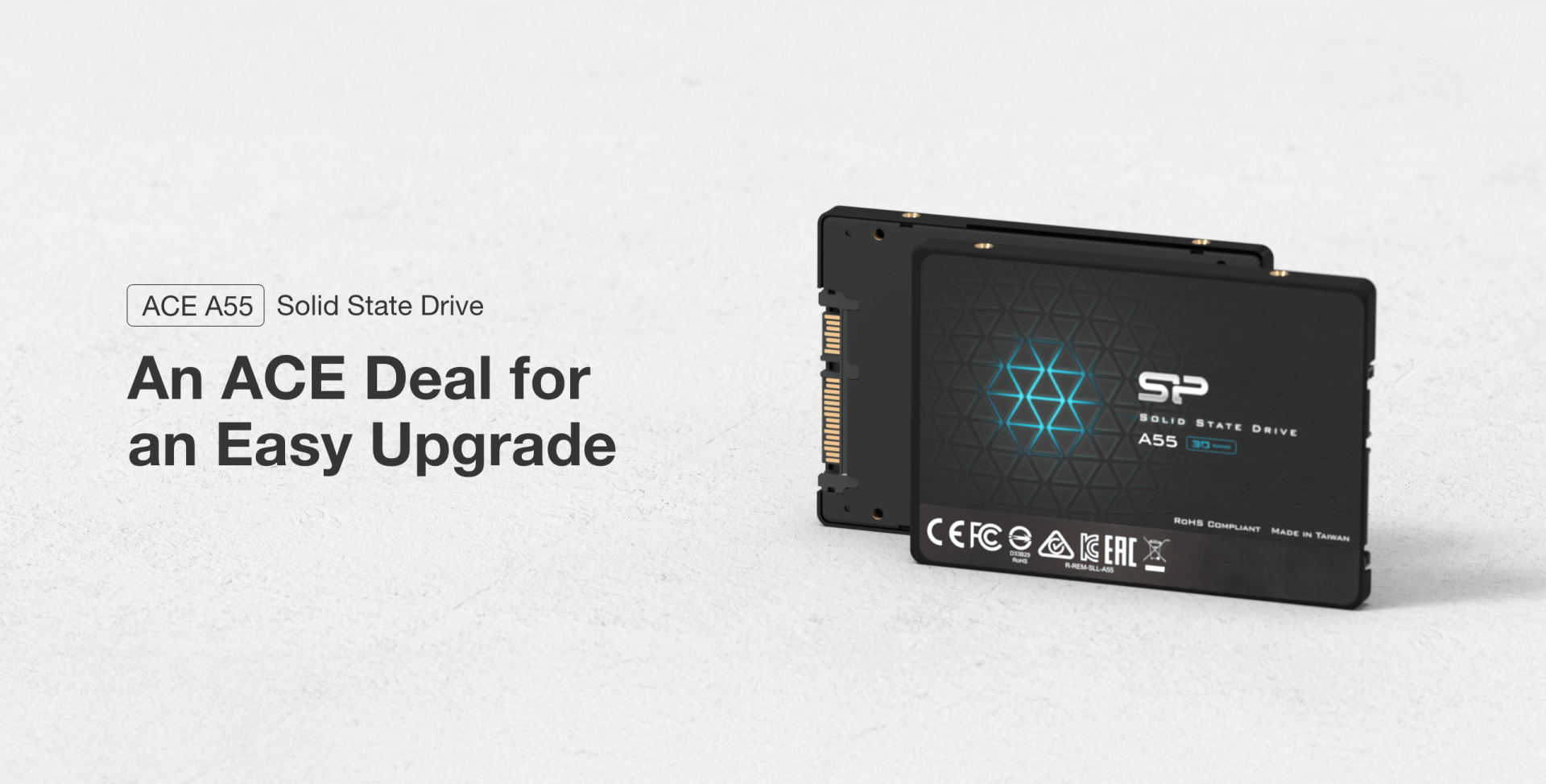

SP Ace A55 SATA III SSD

• Adopts 3D NAND flash and "SLC Cache technology" to improve overall performance

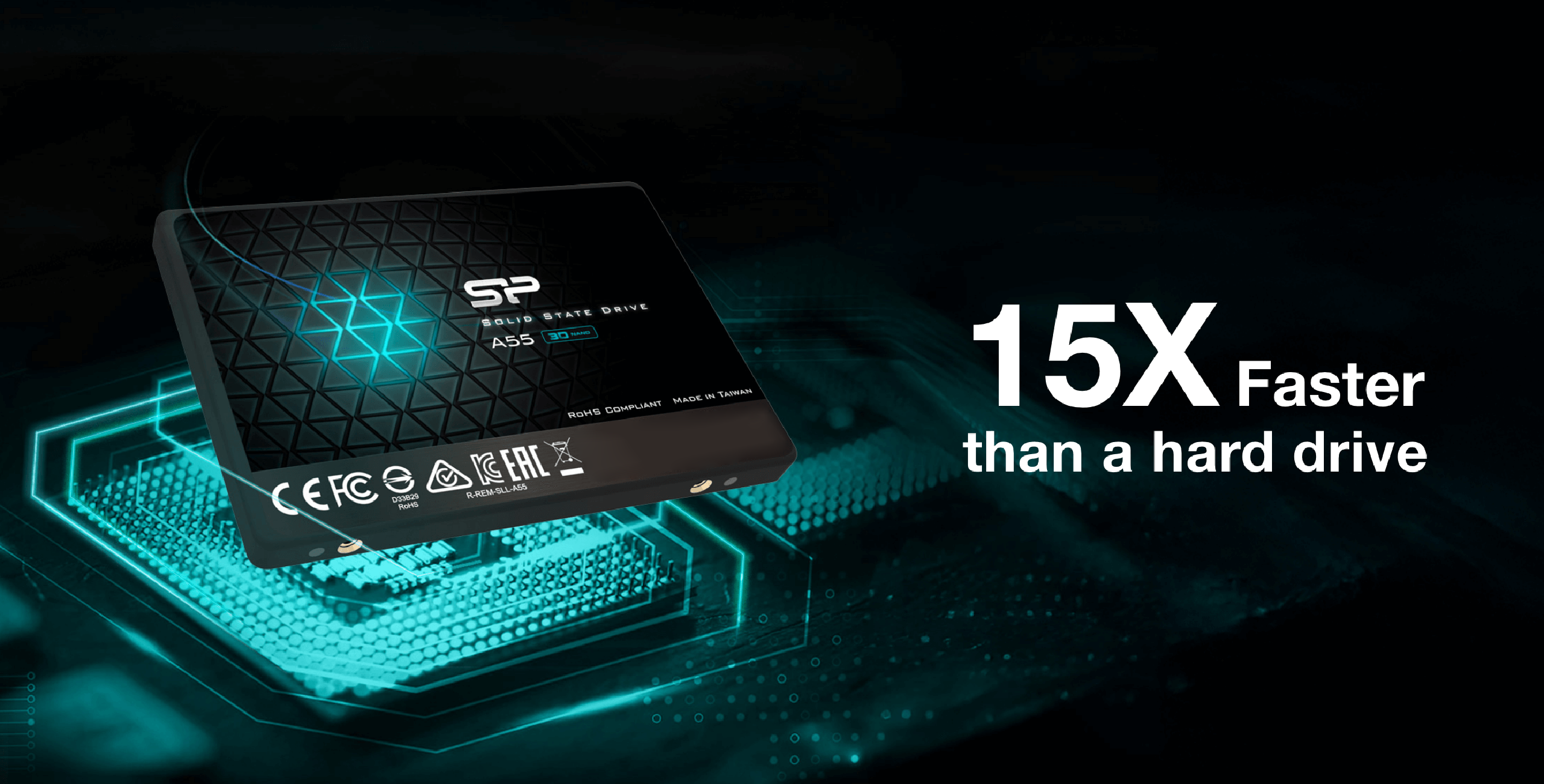

• 15 x faster than a standard 5400 HDD with SATA III 6Gb/s interface
• 7 mm slim design suitable for ultrabooks and ultra-slim laptops
• Supports TRIM command and Garbage Collection technology
• NCQ and RAID ready
• ECC technology to guarantee reliable data transmission
• S.M.A.R.T. monitoring system
• Low power consumption, shock and vibration-proof, noiseless and low latency
• Free download of SP ToolBox to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics
Expand

  2.5" SSD 7mm Height Full Capacity SLC Cache 3D NAND S.M.A.R.T
Give Your System A Boost
With 3D NAND flash, the Ace A55 offers excellent stability, durability, and performance. Picture fast 10-second boot-ups, quick app launches, and faster data transfers than traditional HDDs, perfect for both productivity and entertainment.

Affordable Upgrade for Everyone
The Ace A55 is a standout choice for budget-conscious buyers, offering one of the most cost-effective SSD models. With its advanced SATA III 6Gb/s interface and wallet-friendly price, upgrading your old computer is both easy and affordable.
Wide range of storage capacities
128GB / 256GB / 512GB / 1TB / 2TB / 4TB / 8TB / 16TB
There has to be one perfect choice for you!
A Multi-Purpose Upgrade
Upgrade your experience with the Ace A55 and feel the difference everywhere you go—at home, at work, at school, or beyond. Make everything you do faster with this simple but powerful enhancement.
At Home
At School
At Work

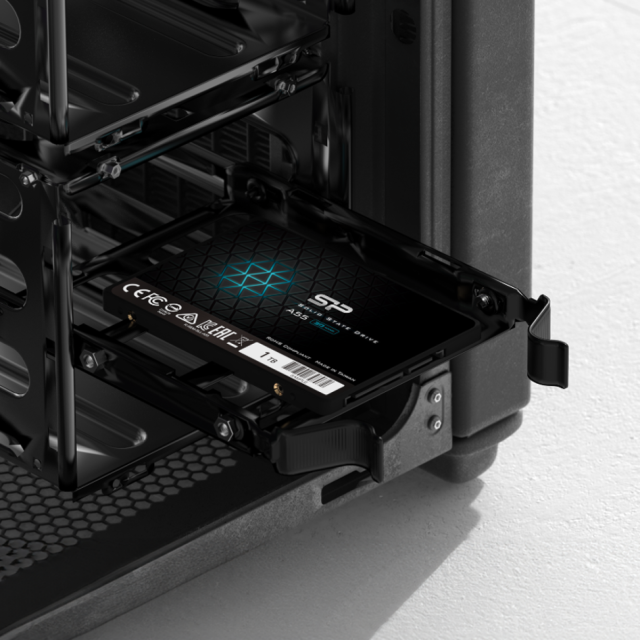

Slim Fit, Wide Compactibility
Discover the Ace A55, a sleek 7mm marvel designed to effortlessly slide into the most compact spaces. Perfect for laptops and tight-fitting systems, it brings a sophisticated touch to any setup where space is at a premium.
Enduring Excellence, Always
The Ace A55 doesn't just offer top-notch performance—it ensures it will last. With a solid 3-year warranty, your investment is protected, giving you peace of mind as technology changes and evolves over the years.
Enduring Excellence, Always
The Ace A55 doesn't just offer top-notch performance—it ensures it will last. With a solid 3-year warranty, your investment is protected, giving you peace of mind as technology changes and evolves over the years.
P/N CapacityDimensionsWeightInterfaceConnectorsPerformance ReadPerformance WriteMaterialColorSupported OSSystem RequirementOperating TemperaturePatentCertificationWarrantyExtra ProtectionProduct Feature ⇅ Compare
SP128GBSS3A55S25 128GB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 460 MB/s 360 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SPJ128GBSS3A55B 128GB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 460 MB/s 360 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP256GBSS3A55S25 256GB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 460 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SPJ256GBSS3A55B 256GB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 460 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP512GBSS3A55S25 512GB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SPJ512GBSS3A55B 512GB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP001TBSS3A55S25 1TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SPJ001TBSS3A55B 1TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP002TBSS3A55S25 2TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SPJ002TBSS3A55B 2TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP004TBSS3A55S25 4TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SPJ004TBSS3A55B 4TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP008TBSS3A55S25 8TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare
SP016TBSS3A55S25 16TB 100.0 X 69.9 X 7.0 mm 63g (max.) SATA III SATA 500 MB/s 450 MB/s n/a n/a Microsoft Windows 7 / 8 / 10 / 11 Linux Kernel 2.6.31 or newer Computer with 2.5" SATA slots supporting SATA III interface 0°C-70°C n/a CE / FCC / ROHS / BSMI / C-TICK / KCC / EAC 3-Year Limited Shock Resistance Test(1,500g/0.5ms) n/a Add to compare



Capacity

128GB, 256GB, 512GB, 1TB, 2TB, 4TB, 8TB, 16TB
Dimensions 100.0 X 69.9 X 7.0 mm
Interface SATA III
Weight 63g (max.)
Performance Read(max.) 460 MB/s(128GB, 256GB)
500 MB/s(512GB, 1TB, 2TB, 4TB, 8TB, 16TB)
Performance Write(max.)

360 MB/s(128GB)
450 MB/s(256GB, 512GB, 1TB, 2TB, 4TB, 8TB, 16TB)
Operation Voltage 5V



MTBF (est)



 1,500,000 hours
Vibration Resistance Test 20 G
Shock Resistance Test 1500G Max
Certification CE / FCC / ROHS / BSMI / C-TICK / KC / EAC
Warranty

3 years
Note Performance results may vary, depending on system platform, software, interface and capacity.
Name
Language
File Format
Version
Last Updated
File Download
SP Ace A55 SATA III SSD
EN
PDF.
v1.0
-
